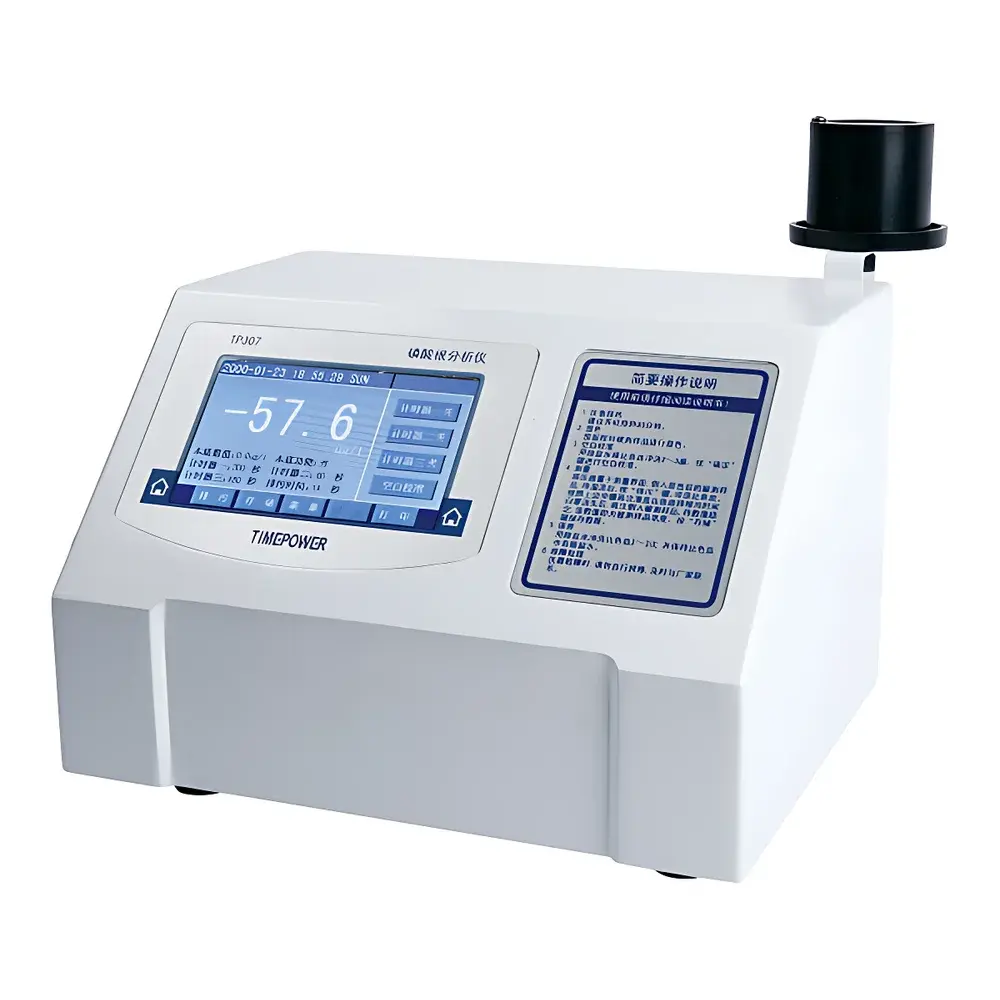

Timepower TP307 Phosphate Analyzer for Laboratory and Power Plant Water Quality Monitoring
| Brand | Timepower |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | TP307 |
| Pricing | Available Upon Request |
Overview
The Timepower TP307 Phosphate Analyzer is a benchtop photometric analyzer engineered for precise, routine quantification of orthophosphate (PO₄³⁻) in ultra-pure and process water streams. It operates on the classic vanadomolybdophosphoric acid colorimetric method—where orthophosphate reacts with ammonium metavanadate and ammonium molybdate under acidic conditions to form a stable yellow heteropoly acid complex. Absorbance of this complex is measured at 420 nm using a high-stability cold LED light source, and concentration is calculated via the Lambert–Beer law (A = ε·c·l), ensuring trace-level accuracy in low-conductivity matrices. Designed specifically for critical applications in thermal power generation—including condensate, boiler feedwater, and desalinated makeup water—the TP307 meets the stringent sensitivity and reproducibility requirements of ASTM D859 and ISO 6878 for phosphate determination in water.
Key Features
- Integrated optoelectronic architecture with surface-mount technology (SMT) PCBs for long-term signal stability and reduced thermal drift.
- Dedicated 5.0-inch capacitive touch LCD with native Chinese interface—optimized for lab technicians operating in mixed-language environments without compromising menu navigation clarity.
- Imported monochromatic cold LED light source (420 ± 5 nm bandwidth) delivering <0.5% intensity fluctuation over 10,000 hours, eliminating lamp replacement cycles common in tungsten-based systems.
- Onboard automatic timing protocol for reaction incubation—programmable from 0 to 300 seconds—enabling standardized color development per ASTM D859 Section 8.2.
- Dual-point calibration workflow: zero-point blank compensation followed by multi-point standard curve validation (up to 5 points), supporting both linear and polynomial regression fitting.
- Embedded data logger with circular buffer storage for up to 256 measurement records—including timestamp, operator ID, calibration status, and raw absorbance values—with auto-rollover upon overflow.
Sample Compatibility & Compliance
The TP307 accepts aqueous samples with conductivity ≤5 µS/cm and suspended solids <1 mg/L—ideal for steam cycle condensate, reverse osmosis permeate, and pharmaceutical-grade purified water (PW). It complies with key regulatory expectations for water chemistry monitoring in GxP environments: data integrity safeguards align with ALCOA+ principles; audit trail functionality supports GLP/GMP documentation requirements; and calibration logs meet FDA 21 CFR Part 11 readiness when deployed with Timepower’s optional LIMS-integrated firmware module. All reagents—including vanadomolybdate reagent kit (Cat. No. TP-RG01) and certified phosphate standards (NIST-traceable, 1.00 ± 0.02 mg/L as PO₄)—are supplied pre-formulated to eliminate analyst variability in reagent preparation.
Software & Data Management
No external PC is required for operation: all configuration, calibration, and reporting occur locally via the touchscreen GUI. Measurement data can be exported via USB 2.0 to CSV format for integration into laboratory information management systems (LIMS) or enterprise SCADA platforms. Optional RS-485 Modbus RTU output enables real-time streaming to distributed control systems (DCS) in power plant settings. Firmware updates are delivered via encrypted SD card—validated with SHA-256 checksums—to maintain cybersecurity compliance per IEC 62443-3-3 guidelines for industrial instrumentation.
Applications
- Monitoring phosphate carryover in turbine condensate to prevent corrosion-induced copper alloy degradation (per EPRI TR-102952R2).
- Verifying phosphate dosing control in drum-type boiler water treatment programs (ASTM D1089).
- Quality release testing of purified water in pharmaceutical manufacturing (USP , EP 2.2.43).
- Process water surveillance in synthetic fiber production where phosphate scaling compromises spinneret performance.
- Validation of ion exchange resin exhaustion in high-purity water loops through trending of baseline phosphate breakthrough.
FAQ
What sample volume is required per analysis?
25 mL of filtered, particle-free sample is recommended. For sub-0.1 mg/L detection, pre-concentration via evaporation is not supported—use TP307 in conjunction with Timepower’s TP-SPC preconcentrator module (sold separately).
Does the instrument support automatic dilution?
No—dilution must be performed manually prior to analysis. The TP307’s dual-range capability (0–20 mg/L and 0–50 mg/L) eliminates the need for hardware-based dilution in most power plant applications.
How often must calibration be performed?
Daily blank calibration is mandatory; full multi-point calibration is required every 14 days or after reagent lot change, per manufacturer’s quality assurance protocol and ISO/IEC 17025 Clause 7.7.
Can the TP307 be used for seawater or wastewater?
Not recommended. High chloride, sulfide, or silicate concentrations interfere with the vanadomolybdate reaction; use Timepower’s TP-ICP series for complex matrices requiring digestion and ICP-OES detection.
Is the reagent kit compatible with other brands’ analyzers?
TP307-specific reagents are optimized for its optical path length and LED spectral output. Cross-platform use may introduce systematic bias exceeding ±5% F.S. and void warranty coverage.
