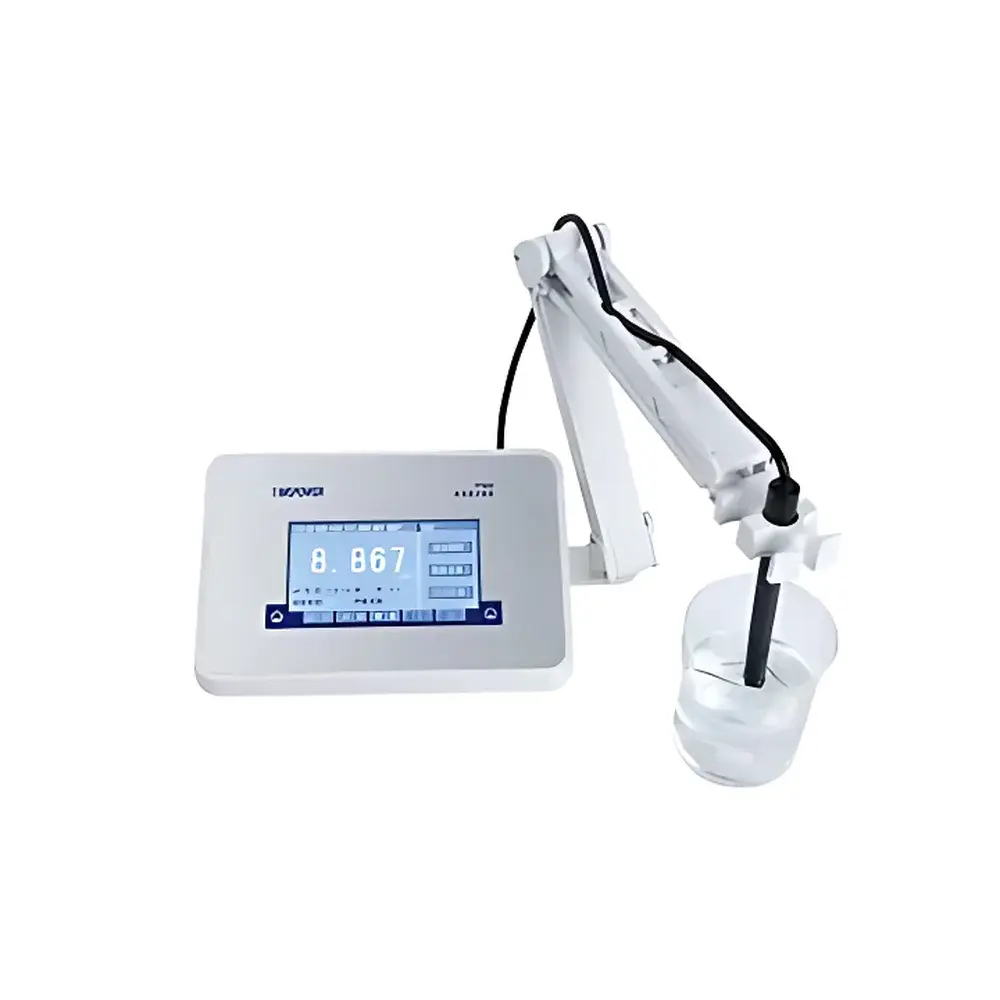

Timepower TP320 Benchtop Conductivity Analyzer

Overview

The Timepower TP320 Benchtop Conductivity Analyzer is a precision laboratory instrument engineered for accurate, stable, and traceable measurement of electrical conductivity in aqueous solutions. It operates on the fundamental principle of conductometric analysis: two parallel or cylindrical electrodes—characterized by a fixed cell constant (K)—are immersed in the sample, and a low-frequency sinusoidal voltage (1–3 kHz) is applied to minimize polarization and electrolytic decomposition. The resulting current is converted into conductance (G), and conductivity (σ) is calculated as σ = G × K (units: µS/cm). Designed in strict compliance with GB/T 6908–2008 (“Methods for Determination of Conductivity in Boiler Water and Cooling Water”), the TP320 delivers reliable performance across industrial and regulatory environments where solution purity, ion concentration, and thermal stability are critical parameters.

Key Features

• High-precision 24-bit analog-to-digital conversion coupled with an embedded microcontroller architecture ensures stable signal acquisition and real-time computation of conductivity and temperature.
• Four interchangeable conductivity cells (K = 0.01, 0.10, 1.00, and 10.0 cm⁻¹) enable optimal range selection—from ultra-pure water (25,000 µS/cm)—minimizing measurement error through matched cell constant application.
• Integrated Pt1000 temperature sensor with automatic temperature compensation (ATC) across 0–60 °C, adhering to standard linear or non-linear (e.g., DIN/IEC 751) compensation algorithms per IEC 60746-3.
• 5.0-inch capacitive touchscreen LCD with native Chinese UI—designed for intuitive navigation, multi-parameter concurrent display (conductivity value, measured temperature, system time, and operational status), and tactile feedback under glove-compatible conditions.
• Robust PCB layout utilizing surface-mount technology (SMT) and modular shielding ensures electromagnetic compatibility (EMC) and long-term drift stability in laboratory and plant-floor settings.
• Non-volatile memory retains calibration data, measurement logs, and system configuration for >10 years without power—supporting audit-ready GLP/GMP workflows and eliminating manual record reconstruction.

Sample Compatibility & Compliance

The TP320 is validated for use with deionized water, boiler feedwater, cooling tower recirculates, pharmaceutical process water (PW/WFI pre-check), municipal drinking water, wastewater effluents, and chemical process streams. Its measurement range spans 0.000–25,000 µS/cm across four cell constants, with full-scale accuracy of ±2.5% and repeatability ≤1%. All configurations meet IP20 enclosure rating per IEC 60529 and operate within ambient conditions of 5–45 °C and ≤90% RH (non-condensing). While not certified to ISO/IEC 17025 as a standalone device, the analyzer supports traceable calibration using NIST-traceable KCl standards (e.g., 1413 µS/cm at 25 °C), enabling compliance with ASTM D1125, USP , and EN 27888 when deployed within documented QA/QC procedures.

Software & Data Management

The TP320 embeds firmware supporting data logging with circular buffer storage—automatically overwriting oldest entries upon memory saturation. Logged records include timestamped conductivity, temperature, cell constant used, and operator ID (if configured via external authentication interface). Export is supported via USB host port (FAT32-formatted flash drive) in CSV format for downstream analysis in Excel, LIMS, or statistical process control (SPC) platforms. Though no dedicated PC software is bundled, the instrument’s ASCII-based serial protocol (RS-232, 9600 bps, 8N1) allows integration into SCADA or MES systems. Audit trail functionality—including calibration event logging with user ID and timestamp—is implemented in accordance with FDA 21 CFR Part 11 requirements for electronic records when paired with appropriate IT infrastructure controls.

Applications

• Power generation: Continuous monitoring of condensate polisher effluent and boiler feedwater purity per ASME PTC 19.11.
• Pharmaceutical manufacturing: On-site verification of purified water conductivity against USP limits during routine QC release testing.
• Chemical process control: Real-time tracking of reaction mixture ionic strength in fertilizer synthesis or electroplating bath management.
• Environmental laboratories: Field-deployable benchtop validation of EPA Method 120.1-compliant conductivity measurements in surface and groundwater samples.
• Food & beverage QA: Verification of rinse water quality and cleaning-in-place (CIP) endpoint detection via conductivity break-point analysis.

FAQ

What cell constant should I select for ultrapure water (UPW) applications?

For conductivity values below 3 µS/cm, use the K = 0.01 cm⁻¹ or K = 0.10 cm⁻¹ electrode—preferably within a sealed, temperature-stabilized flow cell to suppress CO₂ absorption and surface contamination effects.
Does the TP320 support linear or non-linear temperature compensation?

It implements both: default linear compensation (α = 2.0%/°C) for general use, and optional selectable non-linear compensation per DIN EN 27888 for high-accuracy potable water analysis.
Can calibration data be exported or backed up externally?

Yes—calibration coefficients, date stamps, and reference standard IDs are stored in non-volatile memory and exportable via USB alongside measurement logs.
Is the instrument suitable for continuous unattended operation?

Yes, with AC power input (85–265 VAC, 45–65 Hz) and low thermal dissipation (≤5 W), it is rated for 24/7 operation in climate-controlled labs or instrument cabinets.
How often does the TP320 require recalibration?

Per ISO/IEC 17025 guidance, initial calibration is recommended before first use; subsequent intervals depend on usage frequency and criticality—typically every 7–30 days for regulated environments, verified daily with a check standard.
