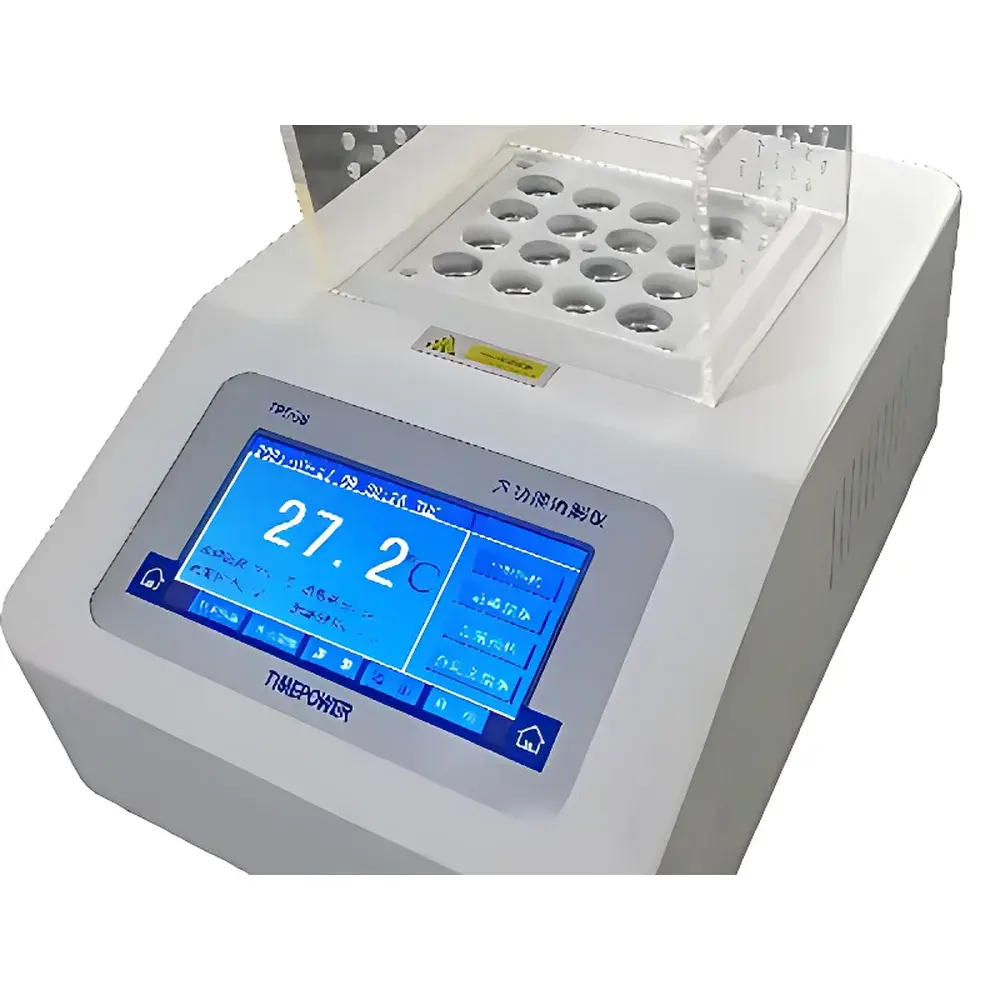

Timepower TP508 Advanced Electric Heating Block Digestion System
| Brand | Timepower |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Electric Heating Digestion System |
| Automation Level | Fully Automatic |
| Maximum Heating Temperature | 200 °C |
| Temperature Control Accuracy | ±1 °C |
| Heating Principle | Solid Aluminum Alloy Metal Bath (Cast Aluminum Block with Embedded Insulated Resistance Wire) |
| Sample Capacity | 16 Reagent Channels |
| Display | 5-inch Full-Color TFT Touchscreen Interface |
| Safety Features | Integrated PMMA Transparent Protective Cover, Splash-Resistant Housing, Auto-Cooling Post-Digestion Sequence |
| Calibration | User-Accessible Temperature Offset Adjustment for Long-Term Accuracy Maintenance |
Overview
The Timepower TP508 Advanced Electric Heating Block Digestion System is a fully automated, high-precision sample preparation instrument engineered for reproducible, trace-metal–compatible acid digestion of environmental, industrial, and regulatory-compliant samples. It employs a monolithic cast aluminum heating block—internally embedded with insulated resistance wire—as the thermal core, delivering uniform conductive heat transfer without open flames or convective air currents. This metal bath architecture eliminates hot spots and ensures spatial temperature homogeneity across all 16 sample positions, critical for meeting method requirements in EPA Method 3050B, ISO 11466, and ASTM D3682. Designed specifically for laboratories performing routine analysis of water, soil, sludge, and biomass matrices, the TP508 supports standardized wet digestion protocols using HNO₃, HCl, HF, and H₂O₂ under controlled thermal conditions up to 200 °C.
Key Features
- Fully automatic operation with programmable multi-step digestion cycles—including ramp-to-target temperature, hold duration, and post-digestion active cooling—reducing manual intervention and operator variability.
- High-integrity cast aluminum alloy heating block (not plate-type or ceramic), thermally optimized for rapid thermal response (<15 min to reach 200 °C from ambient) and long-term dimensional stability under repeated thermal cycling.
- ±1 °C temperature control accuracy maintained via closed-loop PID algorithm with real-time feedback from calibrated PT100 sensors embedded at multiple block depths.
- 5-inch capacitive touchscreen interface with intuitive icon-driven workflow navigation, password-protected method storage (≥100 user-defined protocols), and on-screen real-time temperature/time curve visualization.
- Integrated PMMA transparent safety shield with gas venting slots, compliant with IEC 61010-1:2010 for laboratory electrical equipment safety; prevents splashes, acid fumes dispersion, and accidental contact during operation.
- User-accessible temperature calibration offset function enables field verification and correction against NIST-traceable reference thermometers—ensuring metrological continuity throughout instrument lifetime.
Sample Compatibility & Compliance
The TP508 accommodates standard digestion vessels including 50 mL PTFE (Teflon®) tubes, quartz crucibles, and borosilicate glass digestion tubes (up to 75 mm height). Its 16-channel configuration supports parallel processing of heterogeneous sample types—e.g., surface water, groundwater, wastewater effluent, fly ash, and sediment—without cross-contamination risk due to independent thermal zoning and non-porous block surface design. The system meets essential regulatory preconditions for GLP and ISO/IEC 17025-accredited laboratories: full audit trail logging (via optional USB export), method version control, and electronic signature support (when integrated with LIMS). While not inherently FDA 21 CFR Part 11–compliant as a standalone unit, its data export formats (CSV, PDF reports) are compatible with validated laboratory informatics platforms enforcing electronic record integrity.
Software & Data Management
The embedded firmware provides local method storage, run history (date/time stamp, setpoints, actual temperatures, duration), and error event logging (e.g., overtemperature, lid open, communication timeout). All operational parameters and results can be exported via USB flash drive in timestamped, human-readable CSV files—structured for direct import into Excel, ChemStation, or ELN systems. No cloud connectivity or proprietary software installation is required; however, optional RS-232 or USB-to-serial interfaces enable integration with centralized lab automation controllers or SCADA systems for batch-level monitoring. Firmware updates are performed offline via FAT32-formatted USB media, ensuring data sovereignty and network isolation in secure analytical environments.
Applications
- Environmental testing labs performing heavy metal analysis (As, Cd, Cr, Pb, Hg, Ni, Zn) in accordance with EPA 200.2, ISO 17294-2, and China’s HJ 487–2009.
- Power generation facilities conducting boiler water and coal ash digestion prior to ICP-OES or ICP-MS quantification.
- Public health and municipal wastewater treatment plants executing nutrient and contaminant profiling per Standard Methods 3111B and HJ 680–2013.
- Research institutions preparing biological tissue and plant digestates for elemental mapping studies requiring low blank contribution and minimal volatilization loss.
- Quality control laboratories in electroplating and metal finishing industries validating rinse water compliance with discharge limits.
FAQ
What vessel types are compatible with the TP508 heating block?
Standard 50 mL PTFE digestion tubes (e.g., SCP Science, Milestone), quartz crucibles (≤75 mm height), and borosilicate glass tubes with flat bottoms are supported. Vessel diameter must be 14–16 mm to ensure optimal thermal coupling.
Does the TP508 support method validation documentation per ISO/IEC 17025?
Yes—the instrument records full thermal profiles and operational metadata for each run, enabling retrospective validation of digestion consistency. Calibration certificates for block sensors and traceable temperature verification procedures are provided with initial commissioning.
Can digestion methods be exported and shared between multiple TP508 units?
Yes—methods are stored in portable .TPM binary format and transferred via USB. Version timestamps and checksums prevent unauthorized modification.
Is HF acid digestion safe in this system?
HF use is permitted only with certified PTFE or PFA vessels and under certified fume hood conditions. The aluminum block itself is passivated and resistant to incidental HF exposure, but routine cleaning with dilute nitric acid is recommended after HF runs.
What maintenance is required to sustain ±1 °C accuracy over time?
Annual verification using a NIST-traceable thermometer is recommended. The built-in calibration offset function allows adjustment without disassembly or service technician dispatch.
