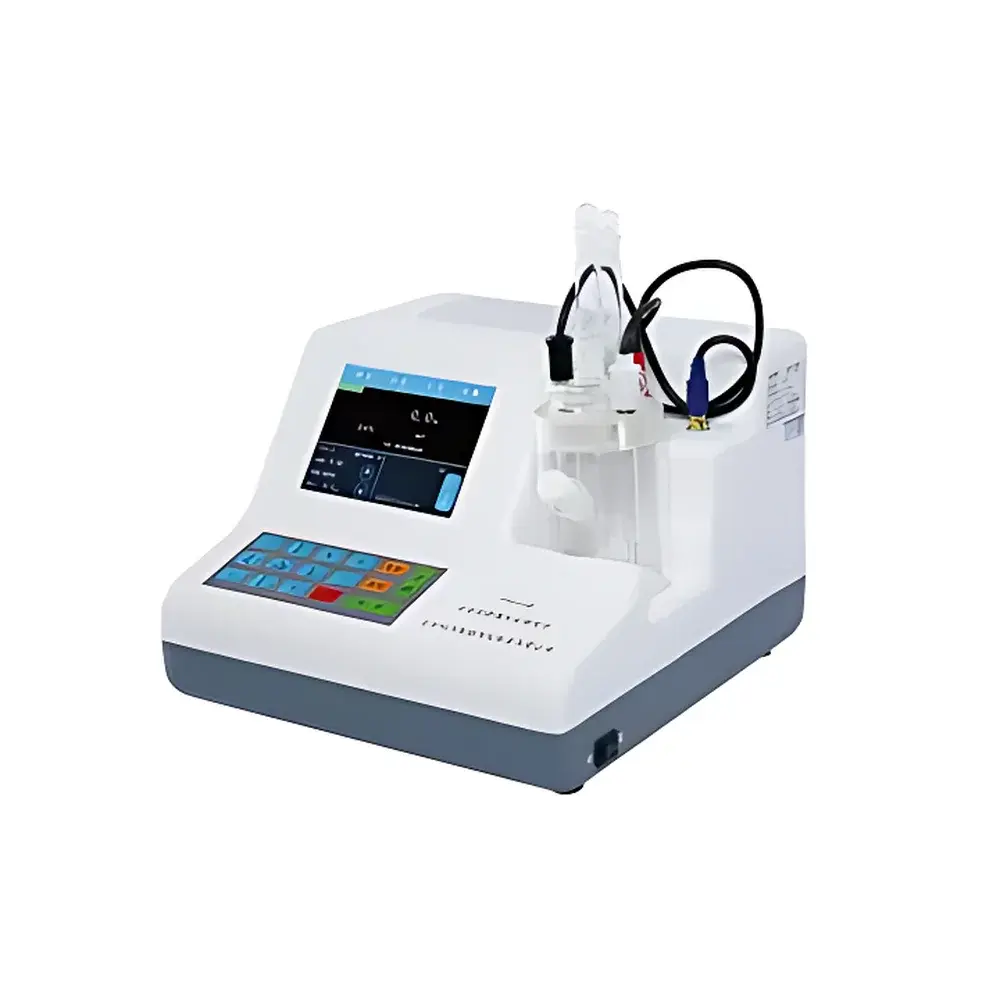

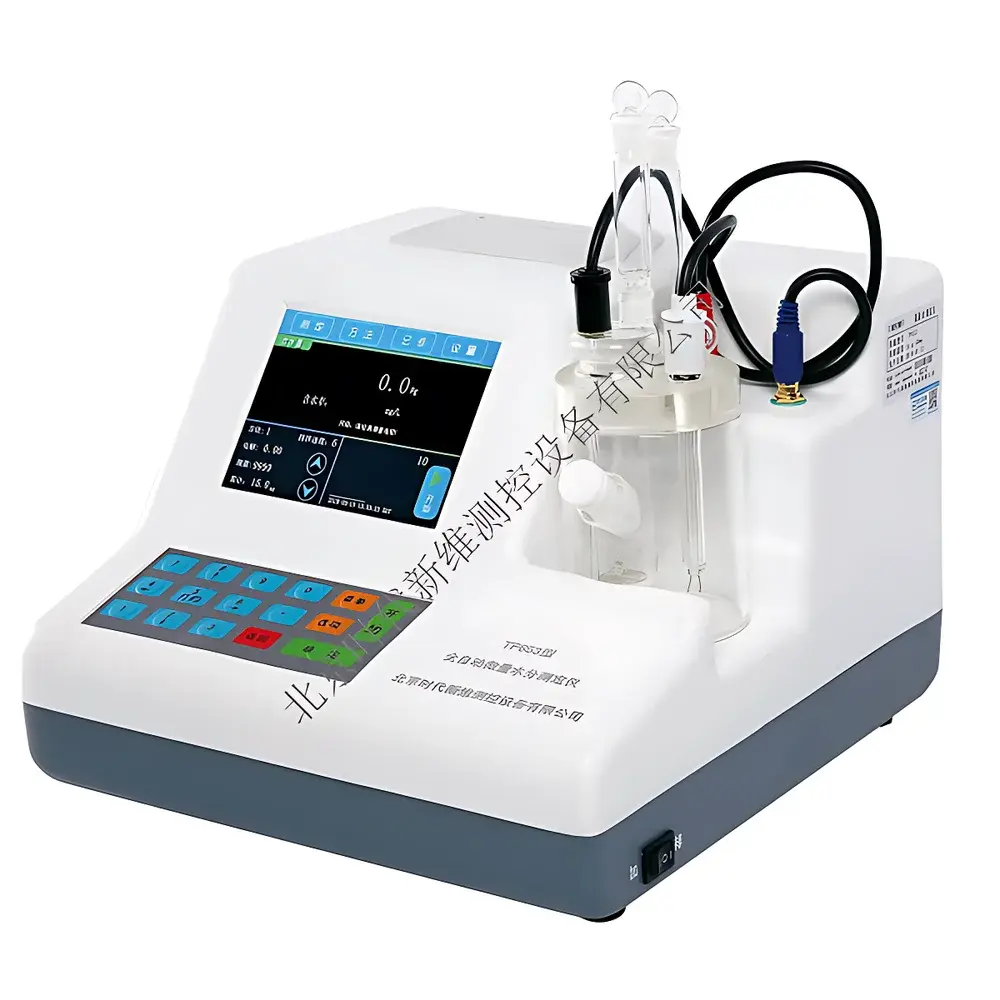

Timepower TP653 Coulometric Karl Fischer Moisture Analyzer

Overview

The Timepower TP653 Coulometric Karl Fischer Moisture Analyzer is a precision laboratory instrument engineered for trace-level water quantification in liquid, solid, and gaseous samples using the coulometric Karl Fischer titration principle. Unlike volumetric KF systems, the TP653 generates iodine electrochemically at the anode via controlled current application—ensuring stoichiometric equivalence between consumed charge and reacted water molecules (1 mole of I₂ ≡ 1 mole of H₂O). This method eliminates reagent standardization drift and delivers superior reproducibility for sub-microgram moisture determinations. Designed for high-throughput QC laboratories in petroleum refining, power generation, fine chemical synthesis, and pharmaceutical manufacturing, the TP653 meets stringent regulatory expectations for measurement traceability and data integrity in GLP- and GMP-aligned environments.

Key Features

• 32-bit embedded microprocessor with real-time operating system for deterministic control and low-latency response.
• Coulometric electrolysis cell with hermetic sealing and optimized electrode geometry—reducing equilibration time and extending electrolyte service life by up to 40% compared to conventional designs.
• Dual-mode operation: intuitive 5.6-inch color touchscreen interface complemented by tactile physical keys for glove-compatible or gloved-hand use in industrial settings.
• Automated reagent dispensing and waste evacuation—minimizing operator exposure to toxic, volatile KF reagents (pyridine/methanol-based) and supporting safe handling per OSHA and CLP guidelines.
• Real-time electrolysis curve visualization—enabling immediate assessment of reagent activity, endpoint stability, and system health without post-run interpretation.
• Twelve pre-programmable analysis methods, with six user-definable profiles stored onboard for rapid method recall across sample matrices (e.g., crude oil, transformer oil, ethanol, API intermediates).
• Integrated digital I/O and RS-232/USB interfaces for seamless bidirectional communication with analytical balances (auto-sampling weight import) and LIMS or ELN platforms.
• Thermal-printer support (miniature thermal module) for audit-ready hardcopy reports including timestamp, sample ID, method name, result, and operator signature field.

Sample Compatibility & Compliance

The TP653 accommodates diverse sample types—including hydrocarbons (gasoline, diesel, lubricants), polar solvents (methanol, acetone), polymers, pharmaceutical excipients, and compressed gases—via dedicated injection protocols and optional gas diffusion modules. Its coulometric architecture ensures consistent sensitivity across low-water matrices (<10 µg H₂O) where volumetric methods suffer from pipetting uncertainty. The analyzer complies with national and industry standards essential for regulated sectors: GB/T 7600 (determination of water in insulating oils), GB/T 6283 (general KF methodology), SH/T 0246 (water in light petroleum products), and SH/T 0255 (additive-containing lubricants). While not FDA 21 CFR Part 11–certified out-of-the-box, its audit trail functionality—including timestamped method changes, result modifications, and user logins—supports validation under ALCOA+ principles when deployed with validated SOPs.

Software & Data Management

Data capture is structured around ISO/IEC 17025–aligned traceability: each measurement record embeds instrument serial number, calibration status, ambient temperature/humidity logs, electrolyte batch ID (manually entered), and full electrochemical current-time profile. Export formats include CSV and PDF, compatible with Microsoft Excel and electronic lab notebooks. All results are time-stamped with internal RTC (real-time clock) backed by non-volatile memory—ensuring continuity during power interruption. Optional PC software provides trend analysis, statistical process control (SPC) charts, and automated report generation compliant with internal QA templates.

Applications

• Petroleum & Energy: Quantification of water in crude oil, refined fuels, and transformer oils per ASTM D6304 and IEC 60814—critical for corrosion prevention and dielectric strength assurance.
• Pharmaceuticals: Verification of residual moisture in lyophilized APIs and excipients per USP <921>, supporting stability studies and shelf-life determination.
• Chemicals & Agrochemicals: Moisture profiling of esters, amides, pesticides, and organometallic catalysts where water content directly impacts reactivity and shelf stability.
• Electronics Manufacturing: Monitoring moisture in solder pastes and encapsulation resins to prevent delamination and popcorning during reflow.
• Food Ingredients: Validation of dryness in hygroscopic carriers (e.g., maltodextrin, lactose) prior to blending or tableting.

FAQ

What is the minimum detectable water mass, and how is detection limit verified?
The TP653 achieves a lower detection limit of 3 µg H₂O, verified per ISO 12099 through repeated analysis of certified anhydrous standards and calculation of standard deviation at the 3 µg level.
Can the instrument be used for gas-phase moisture analysis?
Yes—when paired with an optional gas diffusion cell and carrier gas flow controller, the TP653 supports quantitative moisture analysis in compressed air, nitrogen, SF₆, and natural gas streams per ISO 8573-2.
How frequently must the electrolyte be replaced?
Electrolyte replacement is triggered automatically when cumulative charge consumption approaches the manufacturer-specified reagent capacity threshold—typically after 50–100 analyses depending on sample water load and cell maintenance.
Is method validation support available?
Timepower provides IQ/OQ documentation templates and application notes aligned with USP <1251> and EP 2.5.12 for laboratory-specific validation protocols.
Does the system support multi-user access with role-based permissions?
User accounts are managed locally with password protection; however, granular permission tiers (e.g., operator vs. administrator) require integration with external identity management via networked PC software.
