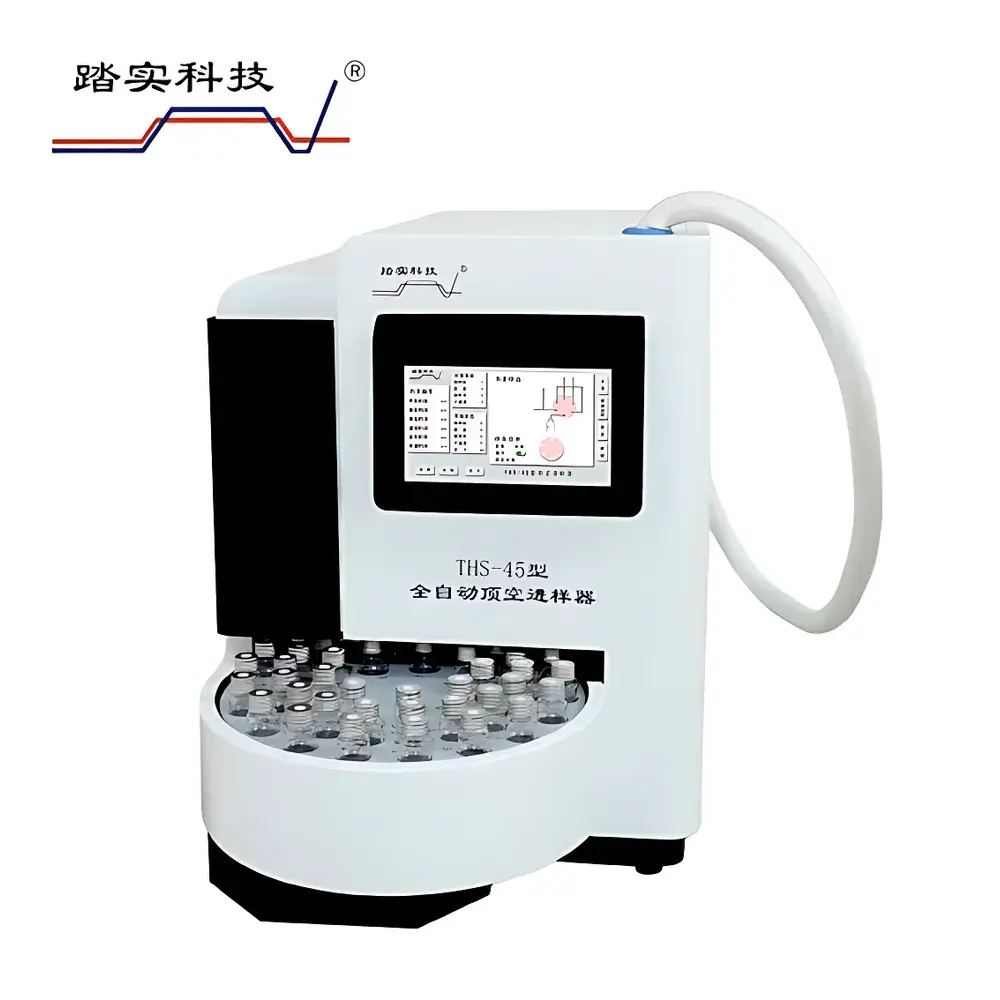

TouchScience THS-45 Automated Static Headspace Sampler

Overview

The TouchScience THS-45 is a fully automated static headspace sampler engineered for high-throughput, regulatory-compliant volatile organic compound (VOC) analysis in environmental, clinical, pharmaceutical, food safety, and forensic laboratories. It operates on the principle of equilibrium static headspace sampling: sealed sample vials are thermostatically heated to promote partitioning of analytes from the liquid or solid matrix into the vapor phase above it. After equilibration, a precise volume of headspace gas is withdrawn via a thermally insulated, inert sampling loop and transferred directly into a coupled gas chromatograph (GC) or GC-mass spectrometer (GC-MS). This method eliminates solvent interference, reduces column contamination, and delivers excellent reproducibility for trace-level VOC quantification—particularly critical in applications governed by HJ 736-2015, HJ 741-2015, HJ 810-2016, HJ 1067-2019, and GA/T 842-2019.

Key Features

• 45-position autosampler tray accommodating standard 20 mL crimp-top headspace vials (10 mL vials supported via optional adapter)
• Six independently controlled heating zones with programmable temperature ramping and optional orbital agitation to accelerate equilibration kinetics and improve precision for heterogeneous or viscous matrices
• Integrated 7-inch capacitive touchscreen interface enabling full system configuration—including method setup, real-time status monitoring, dynamic process visualization, and per-sample state tracking—without external PC dependency
• Full thermal management architecture: heated transfer lines, valve oven, and sampling needle maintained at user-defined temperatures up to 220 °C to prevent condensation and adsorption losses
• Automated leak detection routine performed prior to each run, verifying vial seal integrity and pneumatic pathway continuity to ensure analytical reliability

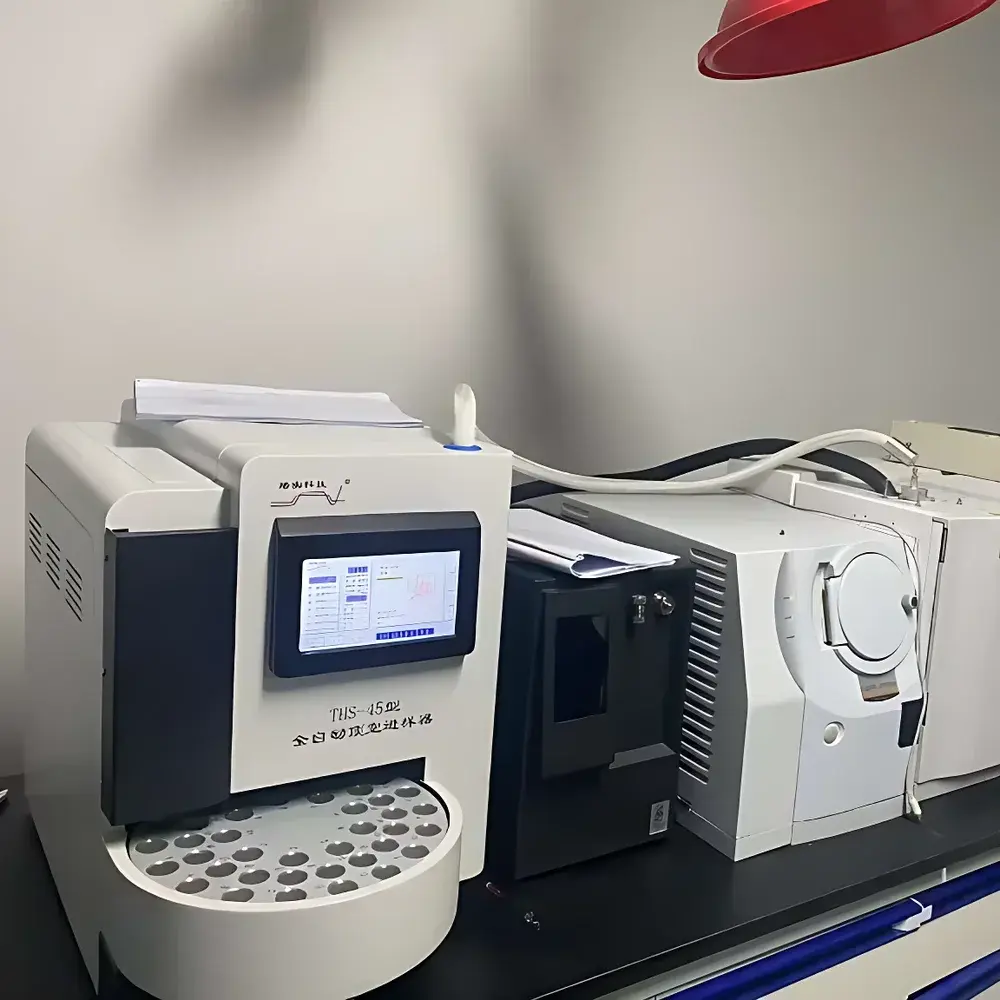

• Universal GC/GC-MS interface compatibility via standardized pressure-tight septumless connections and dual TTL synchronization outputs for seamless instrument triggering
• Comprehensive audit trail functionality logging all method parameters, calibration events, operator actions, and runtime anomalies—supporting GLP/GMP documentation requirements

Sample Compatibility & Compliance

The THS-45 accommodates aqueous, semi-solid, and solid-phase samples in standard 20 mL headspace vials sealed with PTFE/silicone septa. Its robust thermal design ensures consistent equilibration across diverse matrices—including soil slurries, blood specimens, wastewater extracts, polymer leachates, and pharmaceutical excipients. The system complies with multiple Chinese national environmental and forensic standards, including HJ 736-2015 (halogenated VOCs in soil), HJ 741-2015 (VOCs in sediment), HJ 810-2016 and HJ 1067-2019 (water analysis), and GA/T 842-2019 (blood ethanol quantification). While not certified to ISO/IEC 17025 or FDA 21 CFR Part 11 out-of-the-box, its deterministic control logic, parameter logging, and hardware-level traceability provide a foundation for laboratory-specific validation under ISO/IEC 17025 or internal SOP frameworks.

Software & Data Management

Operation is managed through an embedded Linux-based firmware interface with no third-party software dependencies. All methods—including temperature profiles, equilibration time, agitator speed (if equipped), pressurization sequence, loop fill/purge cycles, and injection timing—are stored locally with timestamped versioning. The system generates CSV-formatted log files exportable via USB port, containing run ID, start/stop times, detected leaks, actual vs. setpoint temperatures, and synchronization event timestamps. These records support retrospective analysis, deviation investigation, and regulatory audits. Optional remote monitoring is achievable via Ethernet-connected industrial PCs using Modbus TCP or custom SCADA integration.

Applications

• Environmental testing: Quantification of BTEX, chlorinated solvents, and halocarbons in soil, sediment, and groundwater per EPA Method 502.2 and HJ-series standards
• Clinical toxicology: Blood alcohol concentration (BAC) measurement in forensic labs aligned with GA/T 842-2019
• Pharmaceutical quality control: Residual solvent analysis (ICH Q3C) in active pharmaceutical ingredients (APIs) and final dosage forms
• Food and beverage safety: Detection of off-flavor compounds, ethanol fermentation markers, and packaging migration volatiles
• Materials science: Outgassing profiling of polymers, adhesives, and composites under accelerated thermal conditions

FAQ

Is the THS-45 compatible with Agilent, Thermo Fisher, and Shimadzu GC systems?
Yes—the sampler features universal pneumatic and electrical interfaces, including septumless injection ports and two TTL-triggered dry-contact outputs configurable for any GC make/model.
Can the system be validated for GMP environments?
While not pre-certified, its deterministic operation, full parameter logging, and hardware-level leak verification enable method-specific qualification per ICH Q2(R2) and internal validation protocols.
What maintenance is required for long-term stability?
Routine tasks include septum replacement every 200 injections, periodic cleaning of the sampling needle with methanol, and annual verification of temperature accuracy using NIST-traceable probes.
Does the THS-45 support method development workflows?
Yes—users can define and store unlimited methods with independent control over heating rate, agitation, pressurization, equilibration delay, and loop conditioning cycles.
Is remote diagnostics or firmware update capability available?
Firmware updates are performed via USB drive; remote diagnostics require local network access to the embedded web server interface (HTTP/HTTPS).
