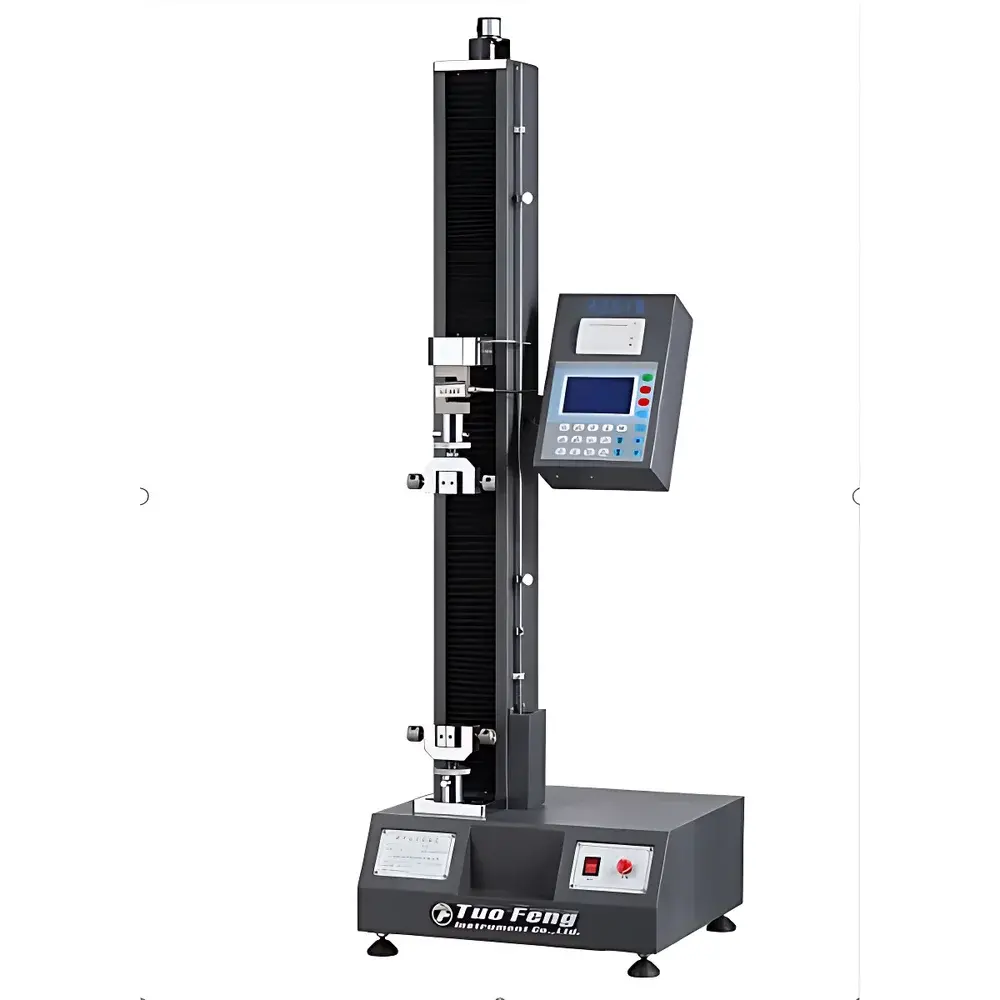

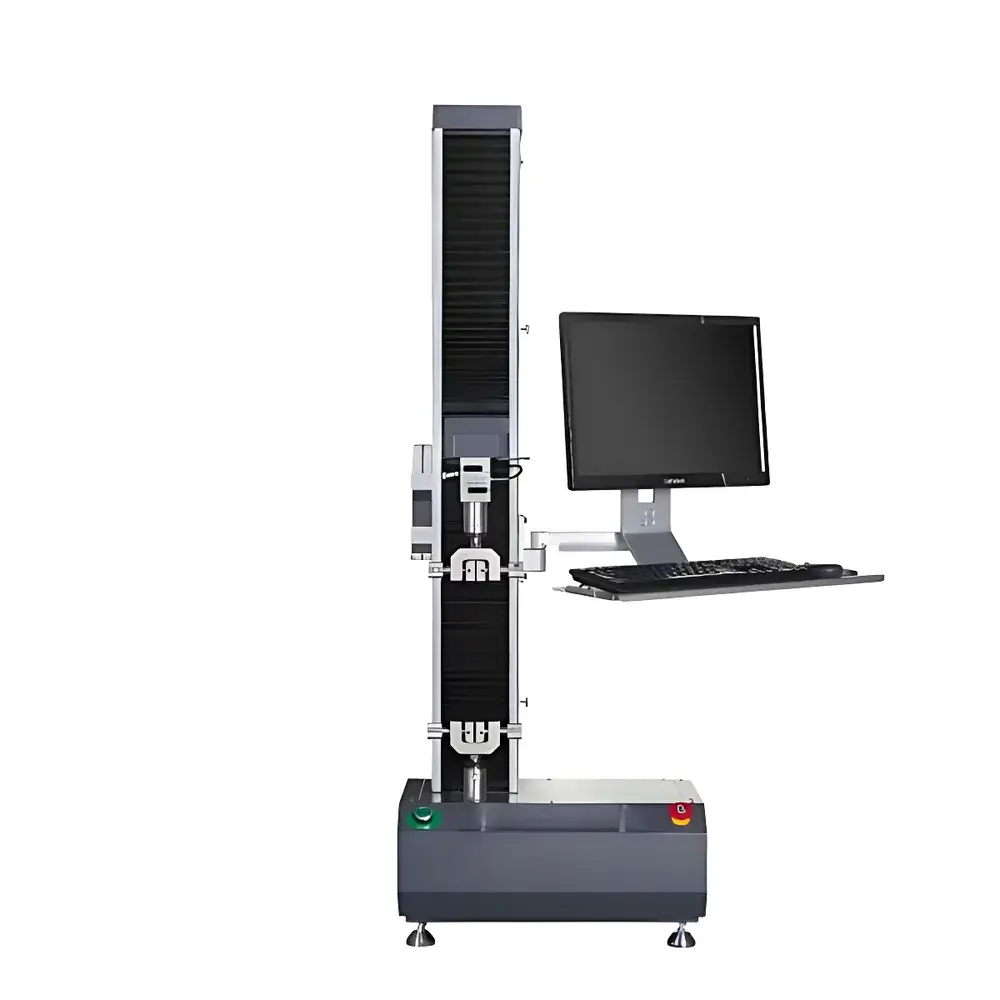

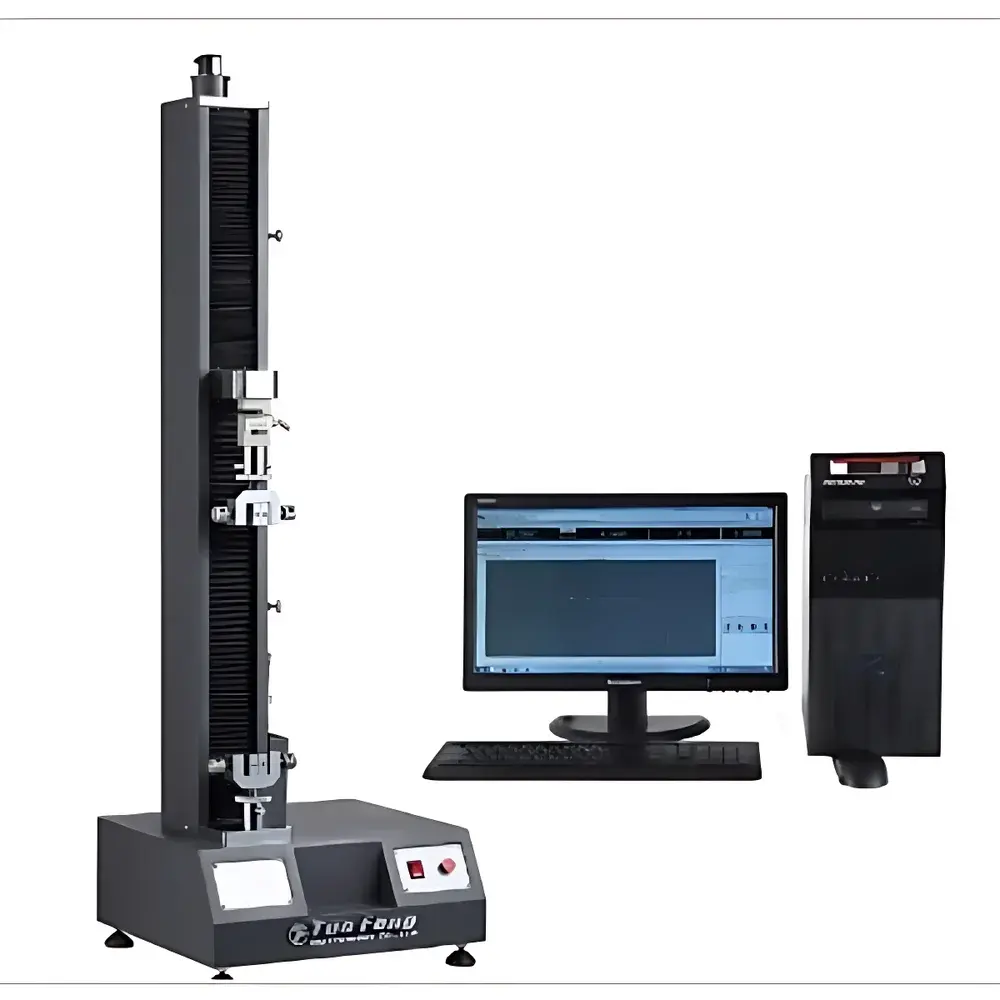

Tuofeng TFW-258 Advanced Universal Tensile Testing Machine

Overview

The Tuofeng TFW-258 Advanced Universal Tensile Testing Machine is a precision-engineered electromechanical system designed for static mechanical property evaluation of solid materials under uniaxial loading conditions. Based on servo-controlled load frame architecture and high-fidelity load cell transduction, it operates in accordance with fundamental principles of Hooke’s law and stress–strain continuum mechanics. The machine delivers controlled displacement or force input while simultaneously acquiring synchronized load, displacement, and (optional) strain data—enabling determination of tensile strength, yield strength, elongation at break, Young’s modulus, Poisson’s ratio, and fracture toughness parameters. Its modular design supports both standard compliance testing and application-specific method development across R&D laboratories, QC/QA departments, and third-party certification facilities. All mechanical and electronic subsystems are calibrated traceable to national metrological standards (e.g., CNAS-accredited reference laboratories), ensuring measurement integrity required for ISO/IEC 17025-compliant reporting.

Key Features

• High-stiffness dual-column load frame with reinforced aluminum alloy crosshead and precision-ground ball-screw drive mechanism
• 5 kN load cell with integrated temperature compensation and digital signal conditioning (±0.5% accuracy over 0.4–100% full scale)
• Adjustable crosshead travel of 700 mm (extendable upon request), supporting specimen lengths up to 600 mm gauge length
• Variable-speed actuation system (0.01–500 mm/min, infinitely adjustable via closed-loop servo control)
• Dual-mode positioning: manual jog control and programmable automatic return to home position post-test
• Integrated safety architecture including electronic limit switches, emergency stop circuitry, and overload protection (>110% FS automatic shutdown)
• Optical encoder-based displacement measurement with resolution better than ±0.5% of reading across full stroke
• Modular extensometer interface supporting clip-on, video, or non-contact strain measurement (optional add-on)

Sample Compatibility & Compliance

The TFW-258 accommodates a broad spectrum of specimen geometries and material classes—including metallic wires (diameters ≥0.1 mm), thin foils (thickness ≤3 mm), polymer films, elastomeric sheets, textile yarns, adhesive tapes, paperboard substrates, and composite laminates. Standardized grips include wedge-action pneumatic clamps, vise-type mechanical jaws, peel fixtures, and 180°/90° peel test holders. All test methods align with internationally recognized standards: ASTM E4 (load verification), ASTM E8/E21 (tensile testing of metals), ASTM D638/D882 (plastics and thin films), ISO 6892-1 (metallic materials), ISO 527-1 (plastics), GB/T 228.1 (Chinese national standard for metallic tensile testing), JIS Z 2241, and DIN 50125. The system supports GLP/GMP-aligned audit trails when configured with optional 21 CFR Part 11-compliant software modules.

Software & Data Management

The Windows-based TensilePro™ v4.2 software suite provides full control over test configuration, real-time data acquisition, and post-processing analytics. It supports multiple control modes: constant rate of extension (CRE), constant rate of loading (CRL), load hold, displacement hold, and cyclic loading protocols. Real-time visualization includes synchronized plots of force–time, force–displacement, stress–strain, and extension–time curves—with dynamic switching between views during active testing. Calculated outputs include ultimate tensile strength (UTS), yield point (0.2% offset), modulus of elasticity, percentage elongation, reduction in area, and adhesion/peel strength (per ASTM D903/D1876). Data export formats include CSV, XML, and PDF reports compliant with laboratory information management systems (LIMS). All raw datasets retain timestamped metadata, operator ID, environmental conditions (if sensor-integrated), and calibration history—facilitating full traceability and regulatory review.

Applications

This universal tester serves critical functions across diverse industrial sectors: incoming raw material verification for wire extrusion and foil rolling plants; quality conformance testing of medical device components (e.g., suture tensile strength per ISO 10993-12); packaging integrity assessment (seal peel strength, tear resistance of flexible laminates); automotive gasket and hose validation per SAE J2045; aerospace fastener bolt tension analysis; and academic research into nanocomposite reinforcement mechanisms. Its adaptability extends to accelerated aging studies where sequential mechanical testing tracks degradation kinetics under thermal/humidity exposure cycles.

FAQ

What standards does the TFW-258 support out-of-the-box?

It natively implements test sequences aligned with ASTM E8, ISO 6892-1, GB/T 228.1, and JIS Z 2241. Custom method templates can be imported for proprietary or industry-specific protocols.

Is the system compatible with external extensometers?

Yes—the controller features analog and digital I/O ports compliant with ASTM E83 Class B requirements for clip-on and video extensometers.

Can test data be integrated into an existing LIMS or ERP platform?

Absolutely. TensilePro™ supports ODBC connectivity and configurable REST API endpoints for automated data ingestion into enterprise systems.

Does the machine require annual recalibration?

Per ISO/IEC 17025 and internal QA policy, we recommend biannual verification using certified reference load cells and displacement standards—documented in the included calibration logbook.

What training and documentation are provided?

Each unit ships with bilingual (English/Chinese) hardware manual, software user guide, traceable calibration certificate, and access to remote instructor-led training sessions conducted by certified application engineers.
