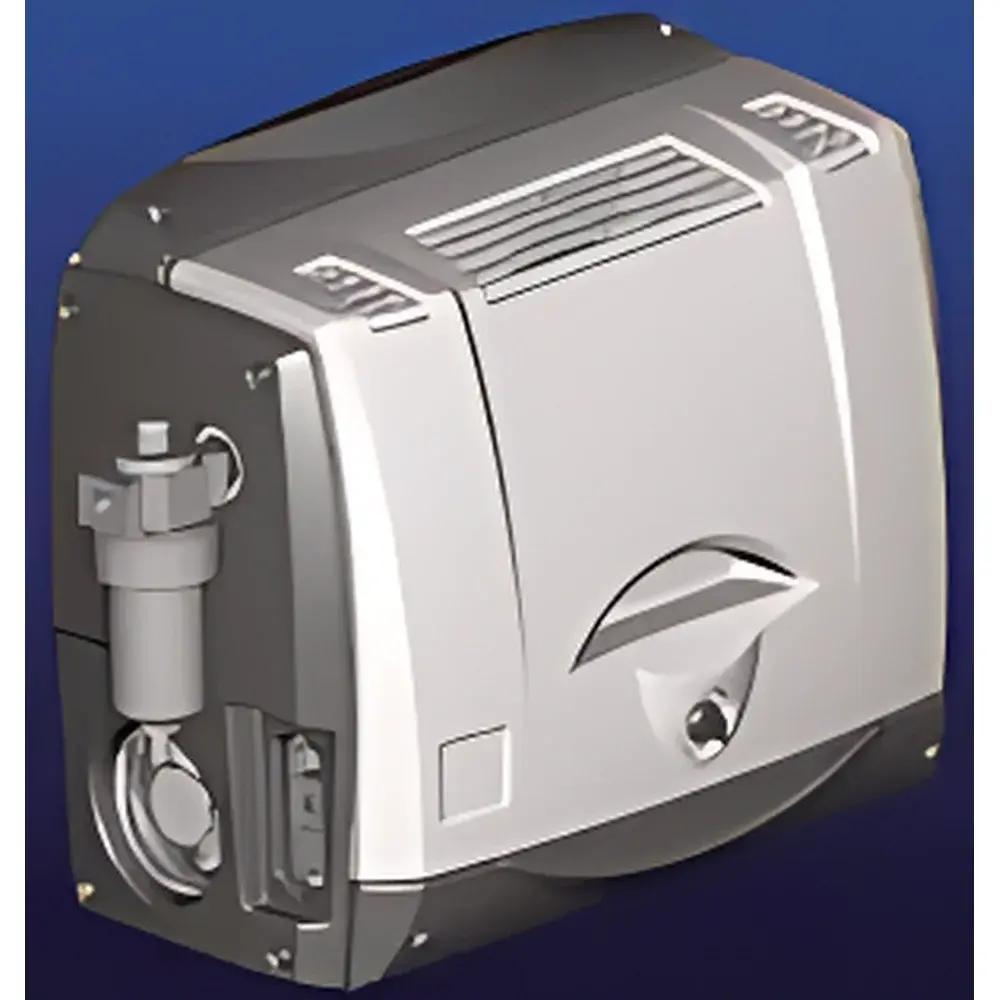

UltraZero Air Generator by Swiss Precision Systems
| Origin | Switzerland |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model Range | Full Series |
| Pricing | Available Upon Request |
| Hydrocarbon Output | <0.1 ppm |
| Nitrogen Oxides (NOₓ) Output | <0.1 ppm |
| Carbon Monoxide (CO) Output | <1 ppm |
| Carbon Dioxide (CO₂) Output | <5 ppm |
| Particulate Removal Efficiency (≥0.5 µm) | 99.99% |
| Flow Rate Range | 1.5–30 L/min |
Overview
The UltraZero Air Generator is a high-purity compressed air source engineered for analytical laboratories requiring ultra-low contaminant levels in carrier, purge, or instrument-grade air. Designed and manufactured to Swiss precision engineering standards, this generator employs a multi-stage purification architecture—comprising catalytic oxidation, molecular sieve adsorption, and sub-micron coalescing filtration—to achieve consistent delivery of zero-air compliant with ASTM D6167, ISO 8573-1 Class 1.1.1 (for particles, water, and oil), and EPA Method TO-14/TO-15 validation requirements. Unlike conventional oil-lubricated compressors or single-stage membrane systems, the UltraZero integrates real-time pressure-regulated flow control and thermal-stabilized catalytic converters to ensure stable output across variable ambient conditions—critical for GC-FID, GC-MS, FTIR, and ambient air monitoring systems where trace-level interference must be eliminated.
Key Features
- Multi-stage purification train: Integrated heated catalytic converter (for CO → CO₂ conversion), dual-bed molecular sieve (for H₂O and CO₂ removal), and sintered stainless-steel particulate filter (0.5 µm absolute rating, >99.99% efficiency)
- Continuous hydrocarbon destruction: Catalytic oxidation reduces total hydrocarbons (THC) to <0.1 ppmv, validated per EPA Protocol 25A and EN 14625
- Stable mass-flow output: Digital pressure-compensated flow control maintains ±0.5% setpoint accuracy across full 1.5–30 L/min range, independent of inlet pressure fluctuations
- Low-noise operation: Acoustic enclosure and vibration-damped mounting reduce operational noise to ≤48 dBA at 1 m—suitable for shared laboratory environments
- Modular service design: All consumables—including catalyst cartridges and desiccant beds—are field-replaceable without tools; service intervals documented per ISO 9001 calibration traceability
- Integrated diagnostics: LED status indicators for filter saturation, catalyst temperature stability, and flow deviation; optional analog 4–20 mA output for building management system (BMS) integration
Sample Compatibility & Compliance
The UltraZero Air Generator delivers gas-phase purity suitable for direct coupling to flame ionization detectors (FID), electron capture detectors (ECD), photoionization detectors (PID), and cavity ring-down spectrometers (CRDS). Its certified output meets the stringent air quality specifications required for USP , EP 2.2.43, and ISO/IEC 17025-accredited testing laboratories. All internal wetted materials comply with FDA 21 CFR Part 211 (for pharmaceutical QC labs) and are passivated per ASTM A967 for low-metal leaching. The unit carries CE marking under Directive 2014/30/EU (EMC) and 2014/68/EU (PED), and its firmware supports audit-ready event logging aligned with GLP and GMP documentation workflows.
Software & Data Management
While the base model operates via front-panel controls, optional Ethernet-enabled firmware (v3.2+) provides remote monitoring and configuration through a secure HTTPS interface. Logged parameters—including cumulative runtime, catalyst temperature history, flow deviation alerts, and filter life estimation—are exportable as CSV or PDF reports. Data integrity complies with FDA 21 CFR Part 11 requirements: user authentication (role-based access), electronic signatures, and immutable audit trails for all configuration changes. Integration with LabVantage LIMS and Thermo Fisher SampleManager is supported via standard OPC UA and RESTful API protocols.
Applications
- Gas chromatography: Carrier and detector gases for FID, NPD, and TCD systems requiring baseline stability and absence of ghost peaks
- Ambient air monitoring: Calibration and zero-gas generation for regulatory-grade PM₂.₅, O₃, and NO₂ analyzers (e.g., Thermo Scientific 42i, Teledyne API 400 series)
- Calibration laboratories: Primary zero-air source for certifying gas standards per ISO 6142 and ISO 6145
- Pharmaceutical QC: Instrument air for dissolution testers, tablet hardness analyzers, and residual solvent GC methods
- Research settings: Controlled atmosphere studies requiring reproducible O₂-free, hydrocarbon-free synthetic air matrices
FAQ
What certifications does the UltraZero Air Generator hold for laboratory use?
It is CE-marked per EU directives, complies with ISO 8573-1:2010 Class 1.1.1, and meets ASTM D6167 specifications for zero air. Optional IQ/OQ documentation packages are available for 21 CFR Part 11 and ISO/IEC 17025 compliance.
Can the flow rate be adjusted while the unit is operating?
Yes—digital flow control allows real-time adjustment across the full 1.5–30 L/min range without interrupting operation or compromising purity.
How often do consumables require replacement?
Catalyst cartridges last ≥12 months at 20 L/min continuous operation; desiccant beds require replacement every 18–24 months depending on ambient humidity; particulate filters are rated for 12,000 hours of service.
Is the unit compatible with nitrogen or oxygen generators?
No—it is a dedicated air purification system. However, it can be installed downstream of a clean, oil-free compressed air source or integrated into a hybrid gas supply network with appropriate pressure regulation and isolation valves.
Does it support remote diagnostics and predictive maintenance?
With the Ethernet firmware option, yes: real-time sensor telemetry, automated alerting for parameter drift, and service-life forecasting are enabled via secure web interface or SCADA integration.
