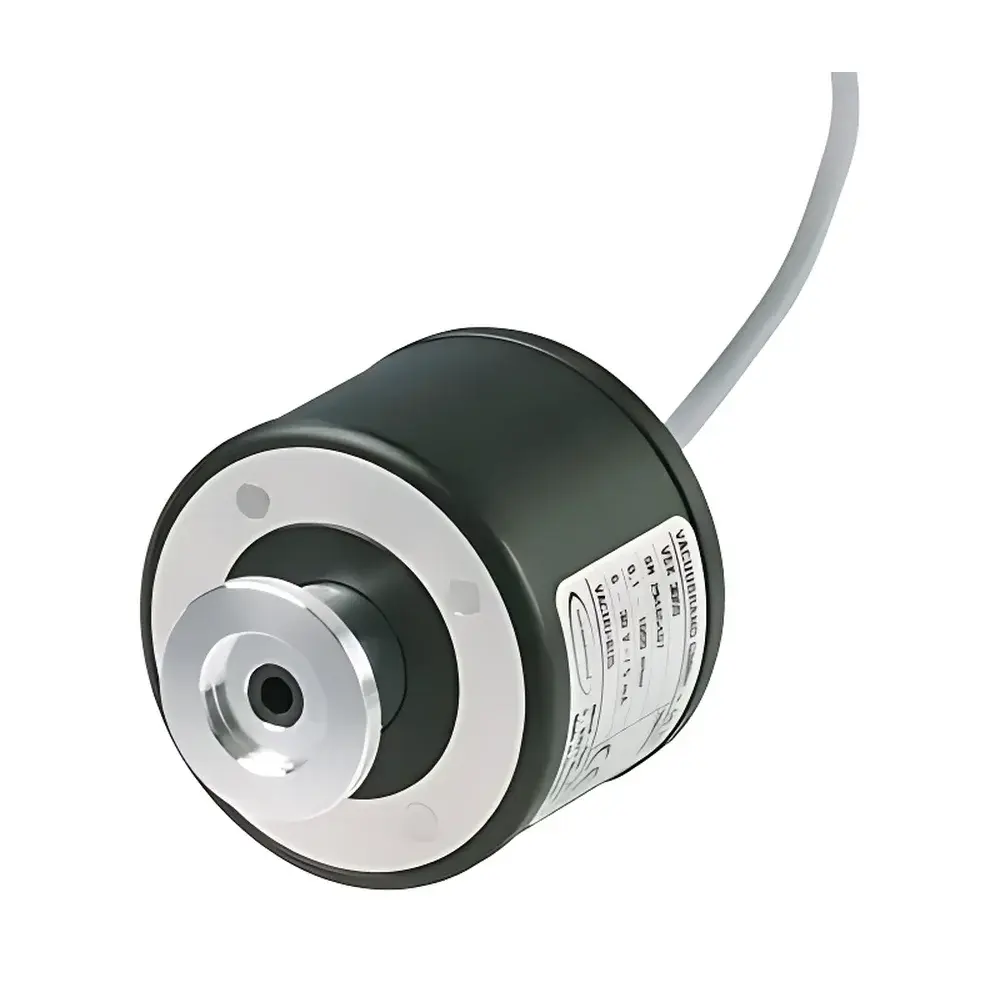

VACUUBRAND DCP 3000 + VSK 3000 Ceramic Capacitive Vacuum Gauge System

Overview

The VACUUBRAND DCP 3000 + VSK 3000 is a modular, digitally networked vacuum measurement system engineered for high-reliability absolute pressure monitoring across rough and medium vacuum ranges (0.1 mbar to 1080 mbar). At its core lies the VSK 3000 ceramic capacitive vacuum sensor — a hermetically sealed, alumina-based diaphragm transducer that operates on the principle of capacitance change induced by mechanical deflection under pressure differential. Unlike thermal or ionization gauges, this sensor delivers gas-independent absolute pressure readings, eliminating calibration drift caused by varying gas composition or molecular weight. Its monolithic alumina construction ensures exceptional chemical inertness, making it suitable for aggressive process environments involving solvents, acids, or reactive vapors. The DCP 3000 controller serves as a universal digital interface unit, supporting up to eight vacuum sensors via the proprietary VACUU·BUS® protocol — a deterministic, noise-immune RS-485-based fieldbus optimized for vacuum instrumentation in industrial and laboratory settings.

Key Features

• Modular architecture supporting simultaneous connection of up to four VSK 3000 sensors (0.1–1080 mbar) and four VSP 3000 sensors (10⁻³–1080 mbar) on a single DCP 3000 controller
• VACUU·BUS® digital bus enabling automatic sensor identification, plug-and-play configuration, and cable runs up to 30 meters without signal degradation
• Backlit graphical LCD display with intuitive rotary encoder navigation for real-time multi-channel readout and status diagnostics
• Integrated data logger storing up to 32,000 timestamped pressure values; exportable via RS-232C interface for traceability and post-processing
• Optional relative pressure mode using one VSK 3000 sensor as a stable atmospheric reference — ideal for leak testing and differential process control
• IP54-rated front panel and chemically resistant PTFE-sealed vacuum interfaces (KF DN 16, 10/8 mm PTFE, DN 6/10 mm hose nozzles) for operation in demanding cleanroom or pilot-plant environments

Sample Compatibility & Compliance

The VSK 3000 sensor exhibits broad compatibility with non-condensable gases and vapors commonly encountered in vacuum drying, freeze-drying, vacuum distillation, solvent recovery, and thin-film deposition processes. Its alumina diaphragm resists corrosion from HCl, H₂SO₄, acetone, ethanol, chlorinated hydrocarbons, and other aggressive media where stainless-steel or silicon-based sensors would degrade. The system complies with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions) for electromagnetic compatibility. While not intrinsically safe certified, its low-power design (<5 W typical) and absence of internal heating elements make it suitable for use in non-hazardous areas per ATEX Zone 2 / NEC Class I, Division 2 guidelines. For regulated pharmaceutical or biotech applications, the DCP 3000’s deterministic logging and RS-232C output support integration into 21 CFR Part 11-compliant data acquisition systems when paired with appropriate audit-trail software.

Software & Data Management

The DCP 3000 operates autonomously without host PC dependency but supports bidirectional communication via RS-232C for remote configuration, firmware updates, and bulk data retrieval. Logged datasets include pressure value, channel ID, timestamp (real-time clock), and sensor status flags (e.g., overpressure warning, temperature deviation). Exported CSV files are compatible with common analysis platforms including MATLAB, Python (pandas), LabVIEW, and LIMS databases. Optional VACUUBRAND PC software (not included) provides graphical trend visualization, alarm threshold setup, and batch report generation — all aligned with GLP documentation requirements. The VACUU·BUS® protocol includes CRC error checking and command acknowledgment, ensuring data integrity during multi-node deployments in distributed vacuum networks.

Applications

• Pharmaceutical lyophilization cycle monitoring and validation (ISO 22000, USP )
• Chemical reactor vacuum control during solvent removal and catalytic reactions
• Quality assurance in vacuum packaging lines for food and medical devices
• R&D vacuum chambers requiring long-term stability and cross-gas comparability (e.g., N₂ vs. Ar vs. CO₂)
• Environmental test chambers simulating altitude conditions (0.1–1000 mbar range)
• Maintenance diagnostics for vacuum pumps and trapping systems via continuous pressure profiling

FAQ

What vacuum ranges does the VSK 3000 sensor cover?
The VSK 3000 measures absolute pressure from 0.1 mbar (75 µtorr) to 1080 mbar (810 mmHg), spanning atmospheric pressure down to medium vacuum.
Is the DCP 3000 compatible with third-party sensors?
No — the DCP 3000 is designed exclusively for VACUUBRAND’s VACUU·BUS®-enabled sensors (VSK 3000, VSP 3000, VPG 3000 series); it does not support analog or generic 0–10 V / 4–20 mA inputs.
Can the data logger be triggered externally?
Yes — the DCP 3000 supports external TTL-level trigger input for synchronized logging events, such as pump start/stop signals or valve actuation pulses.
How is temperature compensation handled?
The VSK 3000 incorporates an integrated temperature sensor and factory-calibrated compensation algorithm; accuracy specification (±1 mbar) assumes ambient temperature stability within ±2 °C over 24 hours.
What maintenance is required for long-term accuracy?
No routine recalibration is needed under normal operating conditions; VACUUBRAND recommends annual verification against a traceable reference standard per ISO/IEC 17025 guidelines for accredited labs.
