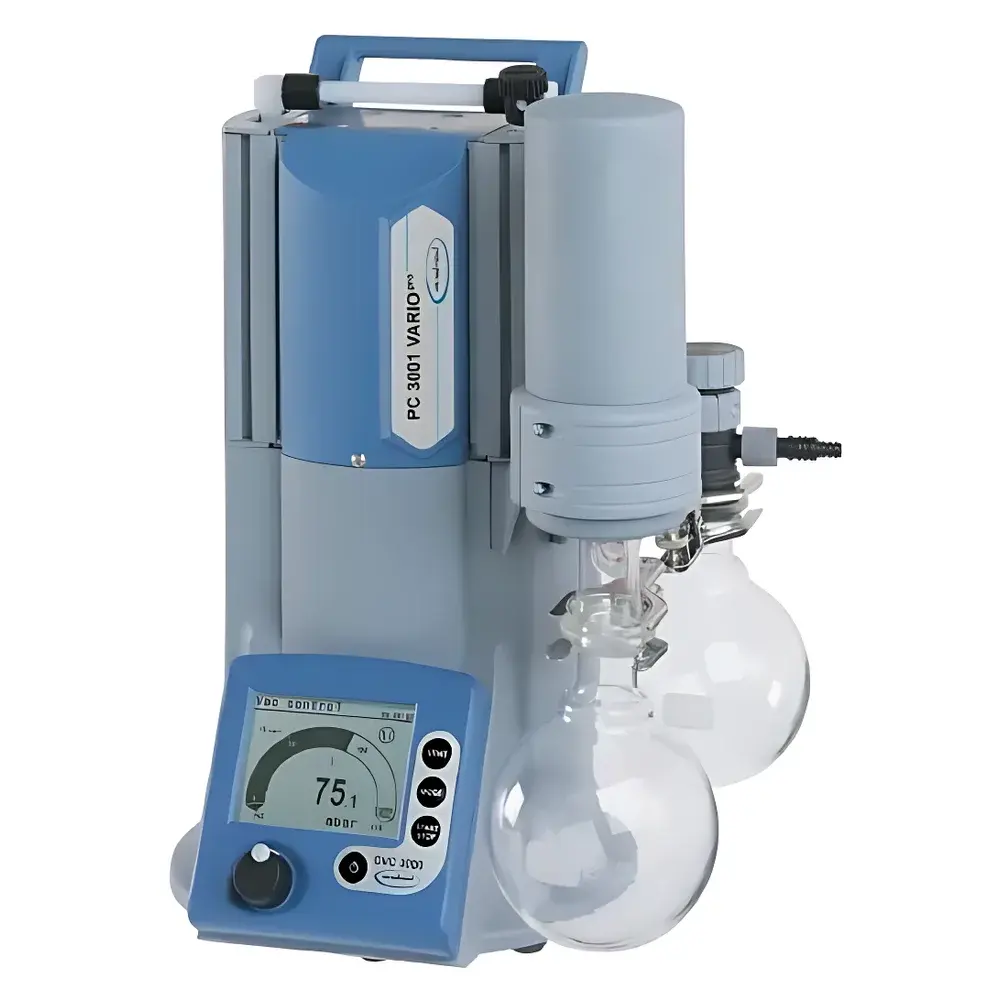

VACUUBRAND PC 3001–3004 VARIO Variable-Speed Diaphragm Vacuum Pump System
| Brand | VACUUBRAND® |
|---|---|
| Country of Origin | Germany |
| Pump Type | Chemically Resistant Diaphragm Vacuum Pump |
| Models | PC 3001 VARIO, PC 3002 VARIO, PC 3003 VARIO, PC 3004 VARIO |

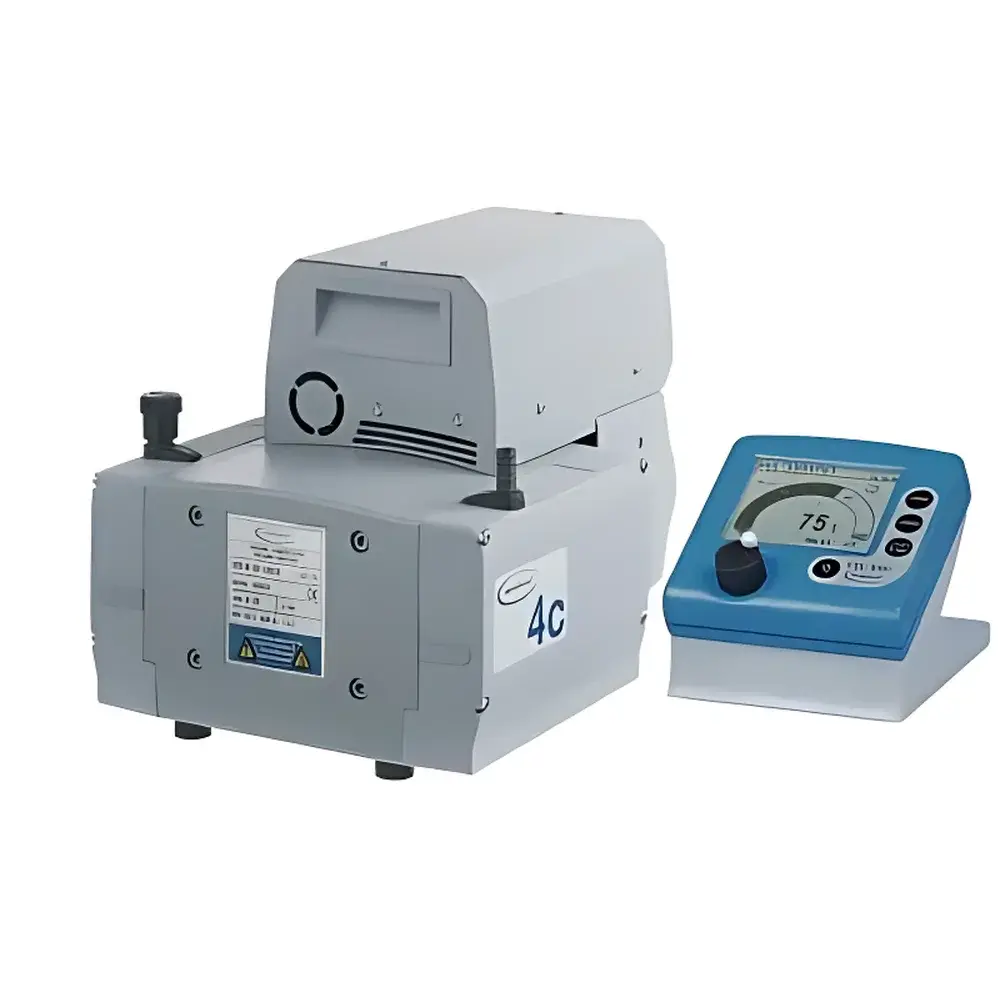

| Primary Pump Units | MD1C VARIO-SP, MZ2C NT VARIO, MV2C NT VARIO, MD4C NT VARIO |
| Integrated Buffer & Solvent Recovery | AK + EK Glass Trap Assembly |
| Vacuum Control System | CVC300 or CVC3000 Digital Controller |
| Ultimate Vacuum (mbar) | 0.6–7 |
| Max. Flow Rate (L/min) | 28–77 |
| Dimensions (W×D×H, mm) | 300×306×400 to 422×258×516 |
| Weight (kg) | 7.7–21.0 |
Overview
The VACUUBRAND PC 3001–3004 VARIO series represents a class of digitally controlled, chemically resistant diaphragm vacuum pump systems engineered for precision vacuum regulation in demanding laboratory applications. Based on the principle of positive displacement via elastomeric diaphragm oscillation—driven by brushless DC motors with variable-frequency drive (VFD)—these systems deliver stable, programmable vacuum levels across a wide operational range. Unlike fixed-speed pumps, the VARIO architecture continuously adjusts motor speed in response to real-time pressure feedback from integrated piezoresistive sensors, enabling dynamic vacuum setpoint maintenance without manual throttling or bypass valves. This closed-loop control is particularly critical during solvent evaporation, rotary evaporation, vacuum filtration, and distillation processes where volatile organic compounds (VOCs), corrosive vapors, or condensable solvents are present. All models comply with IEC 61000-6-3 (EMC) and IEC 61000-6-2 (immunity) standards and are constructed with PTFE-coated diaphragms, stainless steel valve plates, and EPDM or FKM elastomers—ensuring compatibility with aggressive media including HCl, HNO₃, acetone, THF, and chlorinated solvents.
Key Features
- Variable-frequency motor control enables precise, stepless adjustment of pumping speed to maintain user-defined vacuum setpoints—reducing energy consumption by up to 30% compared to fixed-speed equivalents.
- Digital vacuum controller (CVC300 or CVC3000) with intuitive rotary encoder interface, real-time pressure display (mbar or Torr), and programmable ramp profiles for controlled process initiation and termination.
- Integrated AK (inlet) and EK (exhaust) glass cold traps: inlet trap features borosilicate 3.3 construction with protective polymer sleeve to prevent particulate ingress; exhaust-side condenser achieves >95% solvent recovery efficiency under standard operating conditions (20 °C coolant, typical lab ambient).
- Automatic boiling point detection algorithm: dynamically identifies vapor pressure inflection points during concentration, supporting unattended operation for unknown or multi-component mixtures.
- Robust mechanical design with vibration-damped housing, IP20-rated enclosure, and modular service architecture—facilitating field replacement of diaphragms, valves, and filters without specialized tools.
Sample Compatibility & Compliance
The VARIO system is validated for continuous operation with non-explosive, non-toxic, and non-particulate-laden vapors encountered in synthetic chemistry, pharmaceutical QC, and analytical sample preparation workflows. It meets ISO 8573-1:2010 Class 4 purity requirements for compressed air/vacuum quality and is compatible with GLP and GMP environments when configured with audit-trail-enabled CVC3000 firmware (supporting 21 CFR Part 11-compliant electronic records upon optional software licensing). All wetted materials conform to USP Class VI and FDA 21 CFR 177.2490 for food-contact safety. CE marking confirms compliance with EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU.
Software & Data Management
The CVC3000 controller supports USB and RS-232 connectivity for integration into LIMS or ELN platforms. Logged data—including time-stamped vacuum traces, motor RPM, temperature alerts, and error codes—is exportable as CSV or PDF. Optional VACUUBRAND LabControl software provides remote monitoring, multi-pump synchronization, and customizable alarm thresholds (e.g., high-temperature shutdown at 65 °C, low-flow warning at <10% nominal rate). Firmware updates are delivered via signed .hex files to ensure integrity and traceability.
Applications
- Rotary evaporation under controlled vacuum gradients for heat-sensitive compounds
- Vacuum-assisted filtration of crystalline precipitates in API purification
- Distillation and fractional separation of low-boiling solvents (e.g., diethyl ether, pentane)
- Concentration of aqueous extracts in natural product isolation
- Deaeration of resin formulations prior to casting or molding
- Support vacuum for Schlenk line manifolds and glovebox antechambers
FAQ
What is the maximum permissible vapor load for continuous operation?
The system is rated for up to 20 g/h of condensable solvent (e.g., ethanol, ethyl acetate) when paired with chilled coolant (≤10 °C) in the EK condenser.
Can the pump be used with acidic gases such as HCl or SO₂?
Yes—provided the optional FKM diaphragm kit (Order No. 801200) and acid-resistant valve plates are installed; standard configuration uses EPDM and is suitable for mild organics only.
Is calibration traceable to national standards?
Vacuum sensor calibration is performed against NIST-traceable barometric references; factory calibration certificates (ISO/IEC 17025-accredited) are available upon request.
How often should the diaphragm be replaced under typical lab use?
Under normal operation (≤8 h/day, non-corrosive media), diaphragm service life exceeds 10,000 hours; inspection intervals are recommended every 6 months or after 2,000 operating hours.
Does the system support external analog input for process integration?
Yes—the CVC3000 offers 0–10 V analog input for external setpoint modulation and 4–20 mA output for vacuum level telemetry to PLC-based control systems.
