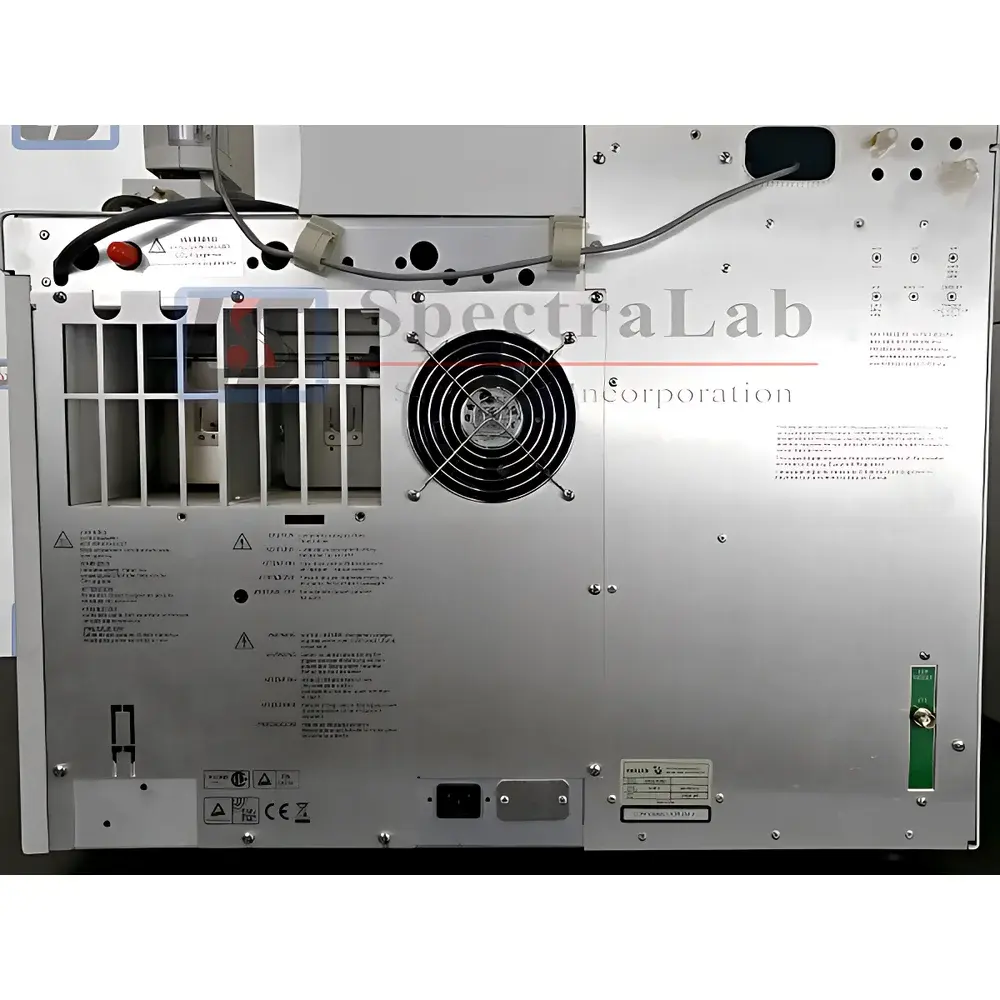

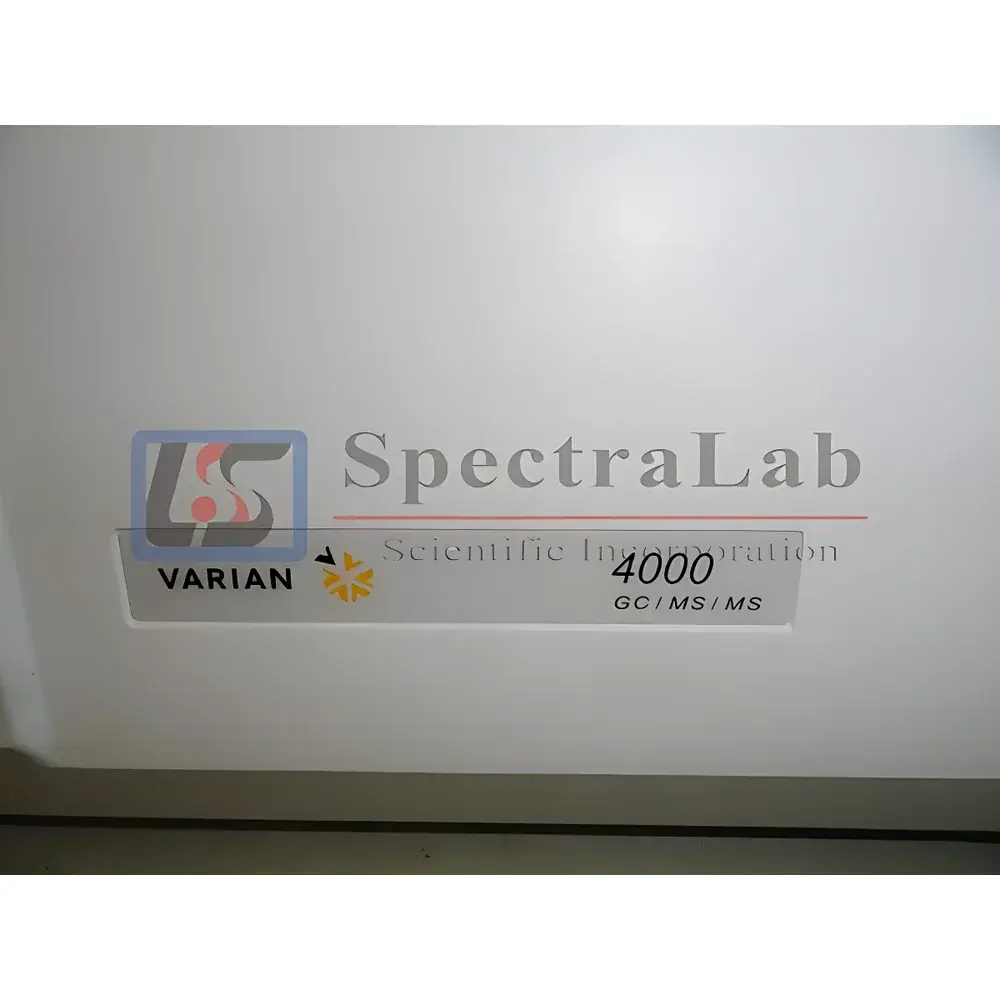

Varian 4000 GC/MS/MS Triple Quadrupole Gas Chromatography–Tandem Mass Spectrometer

Overview

The Varian 4000 GC/MS/MS is a high-performance triple quadrupole gas chromatography–tandem mass spectrometry system engineered for selective, sensitive, and reproducible quantitative and qualitative analysis of volatile and semi-volatile organic compounds in complex matrices. Its core architecture integrates a robust capillary gas chromatograph with a vacuum-compatible triple quadrupole mass analyzer, operating on the principle of sequential mass filtering (Q1 → collision cell → Q3) to enable targeted multiple reaction monitoring (MRM) and enhanced specificity in trace-level detection. Designed for laboratories requiring regulatory-grade data integrity—particularly in environmental testing, food safety, forensic toxicology, and pharmaceutical impurity profiling—the system delivers high duty-cycle acquisition, low chemical noise, and stable ion transmission across extended run times. All units undergo full functional validation at SpectraLab Scientific’s ISO/IEC 17025-accredited refurbishment facility, including leak testing, tuning verification (using perfluorotributylamine, PFTBA), mass calibration stability assessment, and MRM sensitivity benchmarking against EPA Method 8270D and ASTM D7011 standards.

Key Features

• Triple quadrupole mass analyzer with independently operated RF/DC voltage control on Q1 and Q3, enabling precise precursor ion selection and product ion detection
• Electron ionization (EI) and optional chemical ionization (CI) sources, both fully interchangeable and vacuum-integrated
• High-efficiency curved collision cell with optimized argon or nitrogen gas flow control for consistent fragmentation efficiency

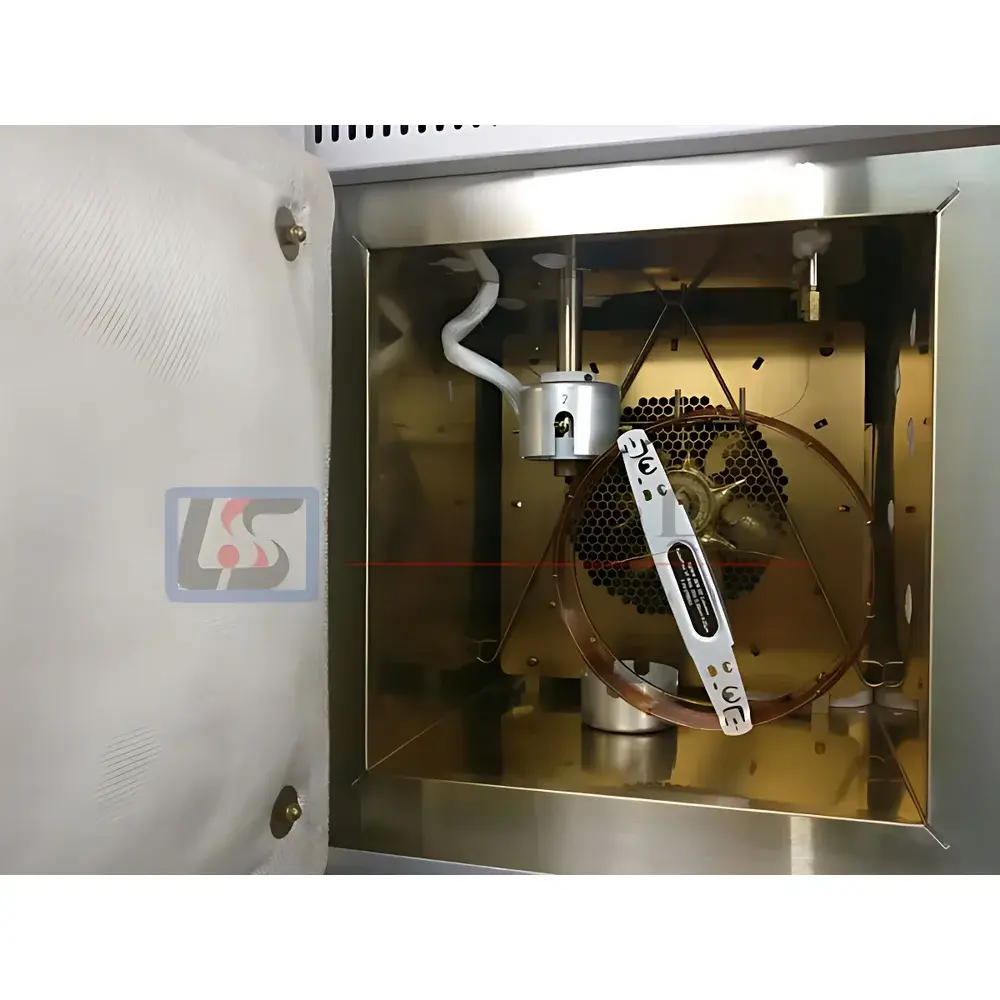

• Integrated Varian CP-3800 gas chromatograph featuring precision electronic pressure control (EPC), programmable temperature ramping (up to 450 °C), and split/splitless injection capability

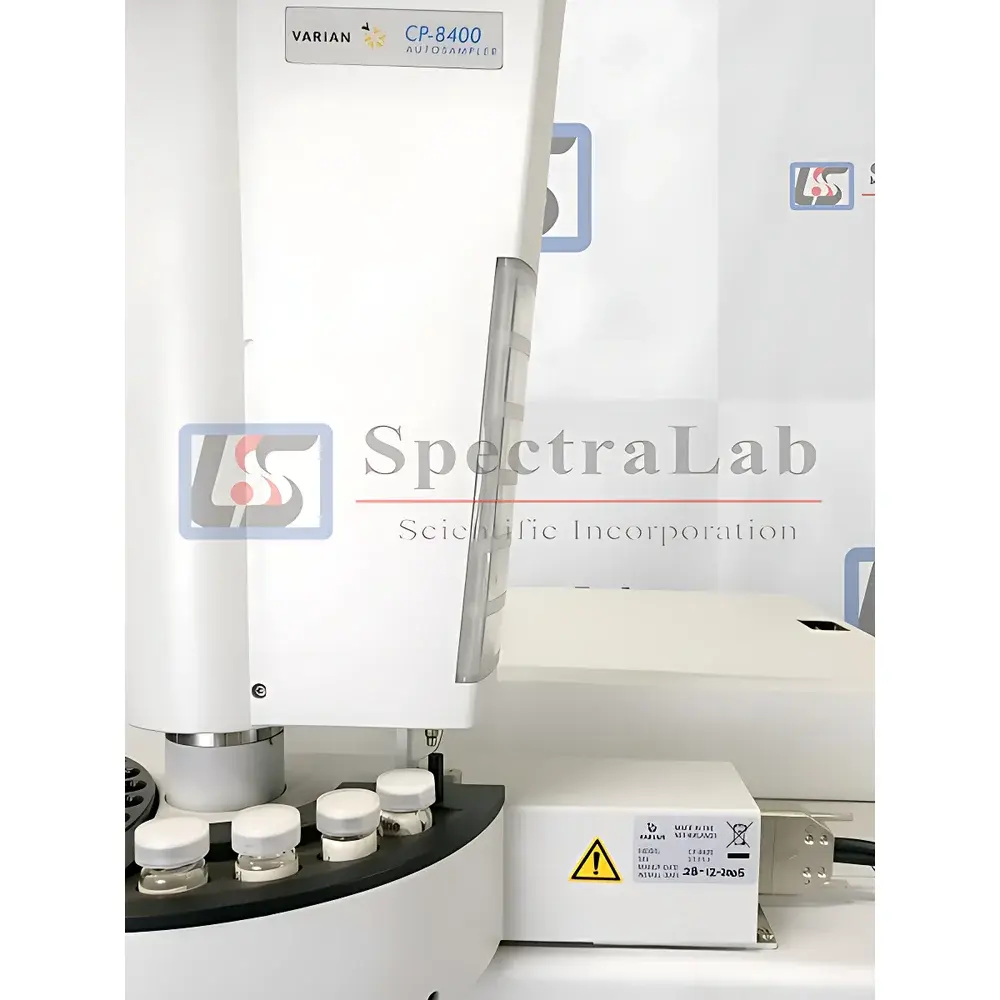

• CP-8400 autosampler with 108-position vial capacity, programmable syringe wash, and dual-tray support for unattended operation
• Robust vacuum system comprising dual-stage turbomolecular pump (≥260 L/s N₂) and backing pump, maintaining <5×10⁻⁶ Torr operating pressure during acquisition
• Fully refurbished electronics—including detector dynode assembly, filament assemblies, and RF power supplies—replaced or reconditioned to original Varian specifications

Sample Compatibility & Compliance

The Varian 4000 GC/MS/MS supports analysis of thermally stable and moderately labile analytes ranging from C₂ hydrocarbons to polycyclic aromatic hydrocarbons (PAHs), organophosphorus pesticides, PCB congeners, and volatile metabolites. Sample introduction is compatible with standard 2 mL amber vials, SPME fibers (via dedicated interface), and thermal desorption tubes (with optional TD unit). The system meets essential requirements for GLP and GMP environments: audit trail functionality is enabled within MS Workstation software; raw data files (.D directories) are immutable and timestamped; instrument method parameters are password-protected and version-controlled. While not shipped with FDA 21 CFR Part 11-compliant electronic signature modules by default, the platform is architecturally compatible with third-party validation packages for regulated laboratories.

Software & Data Management

Operation and data reduction are performed using Varian MS Workstation v6.3 or later—a Windows-based application supporting real-time spectral acquisition, automated tune optimization, library searching (NIST/EPA/WHO libraries included), and customizable report generation. Quantitative workflows include internal standard calibration curves, isotopic dilution, and batch processing with QC flagging (e.g., retention time drift >0.05 min, peak area RSD >15%). Raw data are stored in vendor-native format and exportable to ASCII, CSV, or mzXML for integration with LIMS or third-party chemometric tools. All refurbished units ship with licensed software media, activation keys, and documentation sets—including hardware maintenance manuals and software user guides.

Applications

• Environmental analysis: Quantification of chlorinated pesticides (e.g., endosulfan, dieldrin) and PAHs in soil/water per EPA Methods 8081B, 8270D, and 8260C
• Food and beverage testing: Residue screening of mycotoxins (e.g., aflatoxin B₁), veterinary drug residues (e.g., sulfonamides), and flavor compound profiling
• Forensic toxicology: Confirmation and quantitation of drugs of abuse (e.g., THC-COOH, methadone, fentanyl analogs) in urine and blood extracts
• Pharmaceutical development: Genotoxic impurity detection (e.g., alkyl halides, hydrazines) at sub-ppb levels in API batches
• Industrial hygiene: Workplace air monitoring for benzene, toluene, ethylbenzene, and xylenes (BTEX) using OSHA/NIOSH sampling protocols

FAQ

Is the instrument supplied with a valid calibration certificate?

Yes—each unit includes a traceable, laboratory-issued calibration report documenting mass axis accuracy (±0.1 Da), resolution (≥1,000 FWHM at m/z 502), and MRM sensitivity (e.g., 10 fg on-column injection of chlorpyrifos yielding ≥10,000 counts for m/z 371→97).
Can this system be upgraded to support GC×GC or high-resolution TOF capabilities?

No—the 4000 platform is hardware-limited to single-quadrupole and triple-quadrupole configurations; GC×GC requires external modulator integration and modified acquisition firmware not supported natively.
What consumables and spare parts are included?

Standard shipment includes one EI source, two filaments, one column nut kit, five deactivated liner packs, and a full set of septa and ferrules—sufficient for ≥6 months of routine operation.
Is remote diagnostics support available post-installation?

Yes—SpectraLab provides 6 months of complimentary remote technical assistance via TeamViewer or AnyDesk, subject to customer network permissions and firewall configuration.
