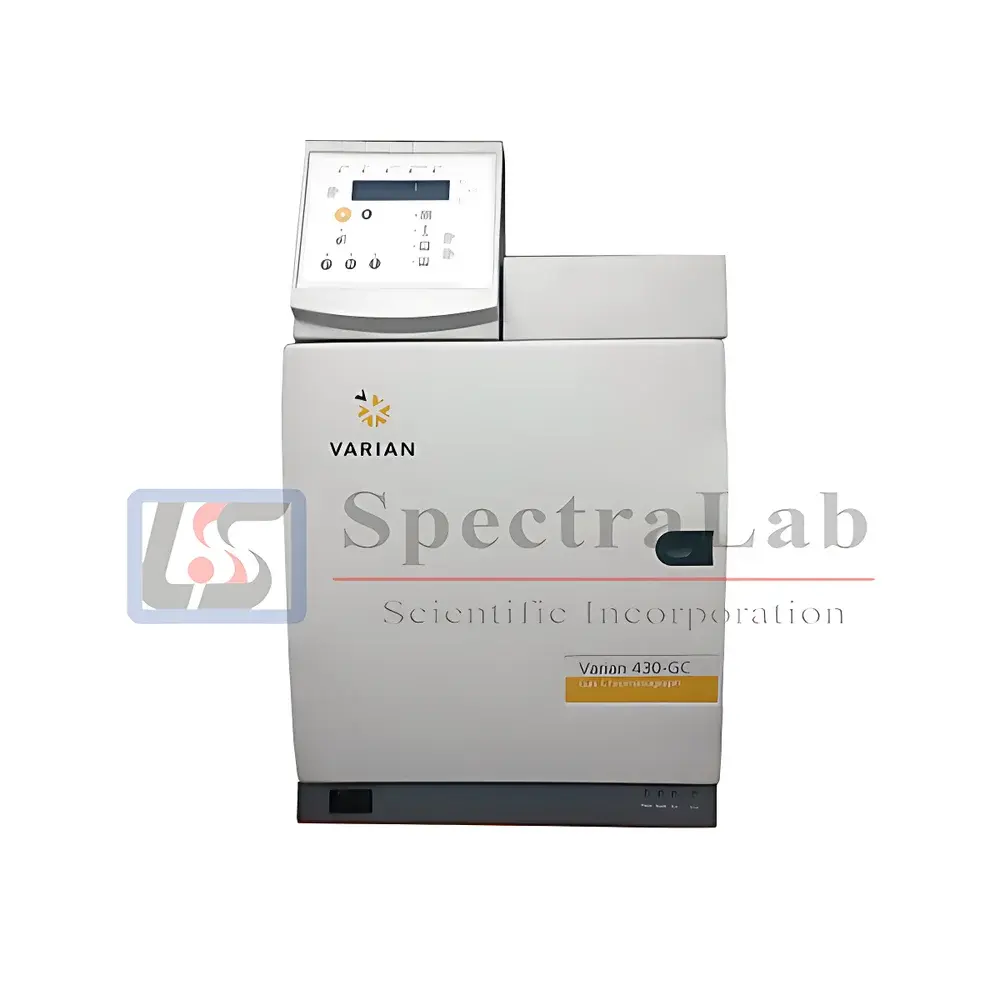

Varian 430-GC Gas Chromatograph (Refurbished)

Overview

The Varian 430-GC is a compact, single-channel gas chromatograph engineered for precision, reliability, and operational simplicity in routine analytical laboratories. Built on Varian’s legacy of robust GC architecture—originally developed by Varian, Inc. (now part of Agilent Technologies)—the 430-GC employs fully digital electronic pressure control (EPC) for carrier gas flow and inlet pressure regulation, ensuring high reproducibility across method transfers and long-term retention time stability. Its thermally optimized oven provides uniform temperature distribution (±0.1 °C isothermal stability) and rapid ramp rates (up to 125 °C/min), supporting both packed and standard-length capillary column configurations without requiring column-specific hardware adaptations. The system is designed for compliance with internationally recognized chromatographic standards including ASTM D3606 (benzene/toluene in gasoline), ASTM D1319 (hydrocarbon types), ISO 6974 (natural gas analysis), and USP system suitability criteria—making it suitable for QC/QA environments operating under GLP or GMP frameworks.

Key Features

• Compact footprint (35 × 50 × 45 cm) ideal for space-constrained labs without compromising thermal performance or column compatibility
• Intuitive icon-driven front-panel interface with real-time status display—minimizes operator training requirements and reduces method setup errors

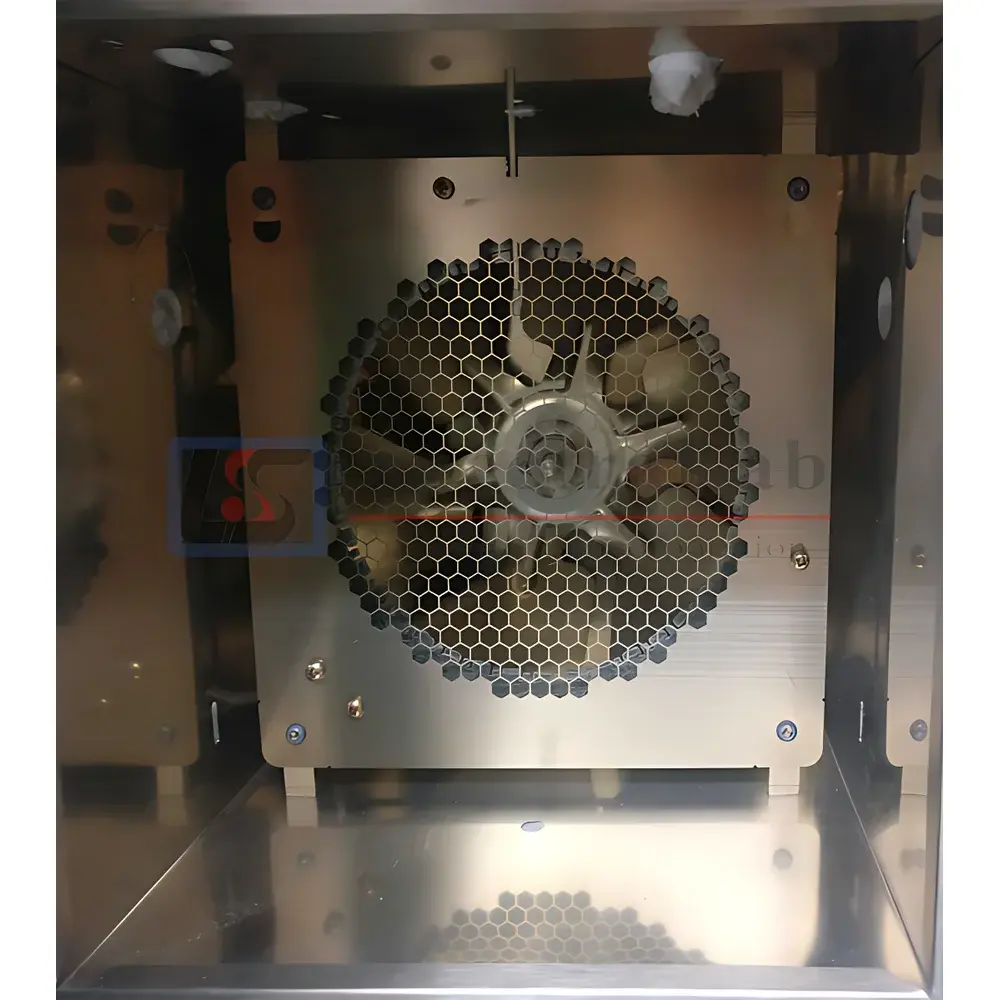

• Large-volume column oven (24 L) capable of housing standard 30 m capillary columns or dual 6-ft packed columns simultaneously
• Digital EPC supports precise, programmable control of inlet pressure, split ratio, and detector gas flows—eliminating mechanical regulators and associated drift
• Front-access “swing-back” oven door enables unobstructed access to injector and detector modules for routine maintenance, liner replacement, and jet cleaning
• Modular detector bay accepts factory-installed FID or TCD detectors; optional electron capture (ECD) or nitrogen-phosphorus (NPD) detectors available via qualified refurbishment
• Integrated RS-232 and Ethernet interfaces for seamless integration with Galaxie Chromatography Data System (CDS)

Sample Compatibility & Compliance

The 430-GC accommodates a broad range of sample introduction methods: liquid injection via syringe or autosampler (with 8400/8200-series compatibility), gas sampling through calibrated six-port valves, and headspace analysis using third-party heated transfer lines. It supports standard 0.25–0.53 mm ID fused-silica capillary columns and 1/8″ or 1/4″ stainless steel or glass packed columns. All refurbished units undergo full functional validation per ICH Q2(R2) guidelines—including baseline noise assessment (<0.5 pA), detector linearity verification (R² ≥ 0.999 over 5 orders of magnitude for FID), and retention time repeatability testing (RSD < 0.1% over 10 injections). Each instrument ships with documented IQ/OQ protocols and a Certificate of Conformance indicating compliance with ISO/IEC 17025 traceable calibration practices.

Software & Data Management

Controlled exclusively via Varian’s Galaxie CDS (v2.2 or later), the 430-GC supports full method development, sequence scheduling, real-time monitoring, peak integration, and automated report generation. Galaxie implements role-based user accounts, electronic signatures, and configurable audit trails—meeting core requirements of FDA 21 CFR Part 11 when deployed on validated Windows platforms. Raw data files (.raw) are stored in vendor-neutral formats compatible with third-party reprocessing tools (e.g., OpenChrom, Chromeleon). Data backups, version-controlled method libraries, and scheduled export to LIMS via ODBC or CSV are natively supported. Remote diagnostics and firmware updates may be performed securely over LAN with authenticated access.

Applications

The 430-GC is routinely deployed in environmental testing (VOCs in water/soil per EPA Method 8260), petrochemical QA (hydrocarbon typing per ASTM D1319), pharmaceutical residual solvent analysis (ICH Q3C), food flavor profiling, and forensic toxicology screening. Its stable baseline and low detection limits (FID: <1.8 pg C/sec; TCD: <800 pg/mL benzene) support quantitation at sub-ppm levels in complex matrices. Laboratories performing regulated work—including contract testing facilities accredited to ISO/IEC 17025—leverage its deterministic pneumatic architecture and software audit capabilities to sustain inspection readiness.

FAQ

Is this unit fully refurbished and tested prior to shipment?
Yes—each 430-GC undergoes comprehensive electrical, thermal, and chromatographic validation at SpectraLab’s ISO 9001-certified facility, including leak testing, detector sensitivity verification, and multi-point temperature calibration.
What documentation accompanies the instrument?
Shipment includes IQ/OQ test reports, Certificate of Conformance, Galaxie software license key, operation manual (English), and a 6-month limited warranty certificate.
Can this GC be integrated into an existing LIMS environment?
Yes—Galaxie supports direct LIMS connectivity via ASTM E1394-compliant file exchange or custom API integration using its open database schema.
Are consumables and spare parts still available?
All major components—including injectors, detector jets, oven seals, and EPC modules—are supported by active third-party OEM-equivalent supply chains; original Varian part numbers remain cross-referenced in current catalogs.
Does the warranty cover software support and method troubleshooting?
The 6-month warranty covers hardware defects and includes remote technical assistance for Galaxie configuration, basic method setup, and system optimization guidance.
