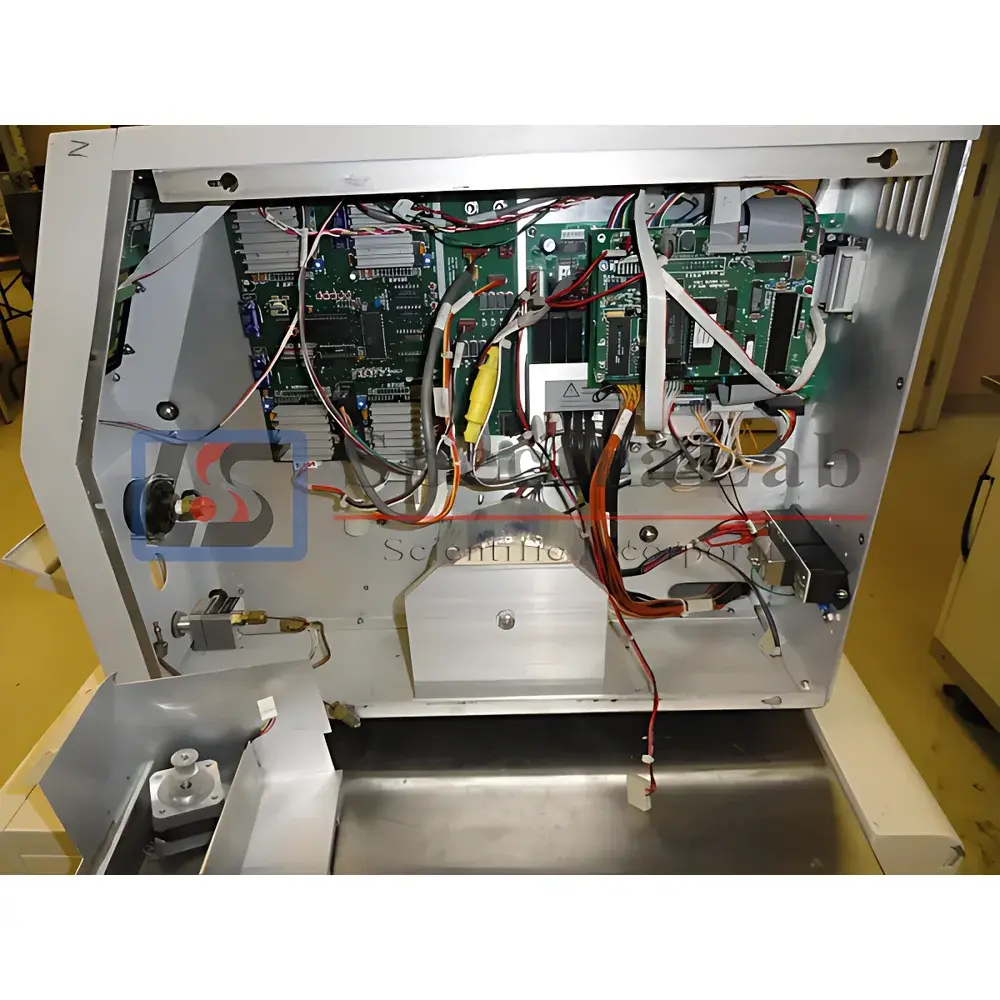

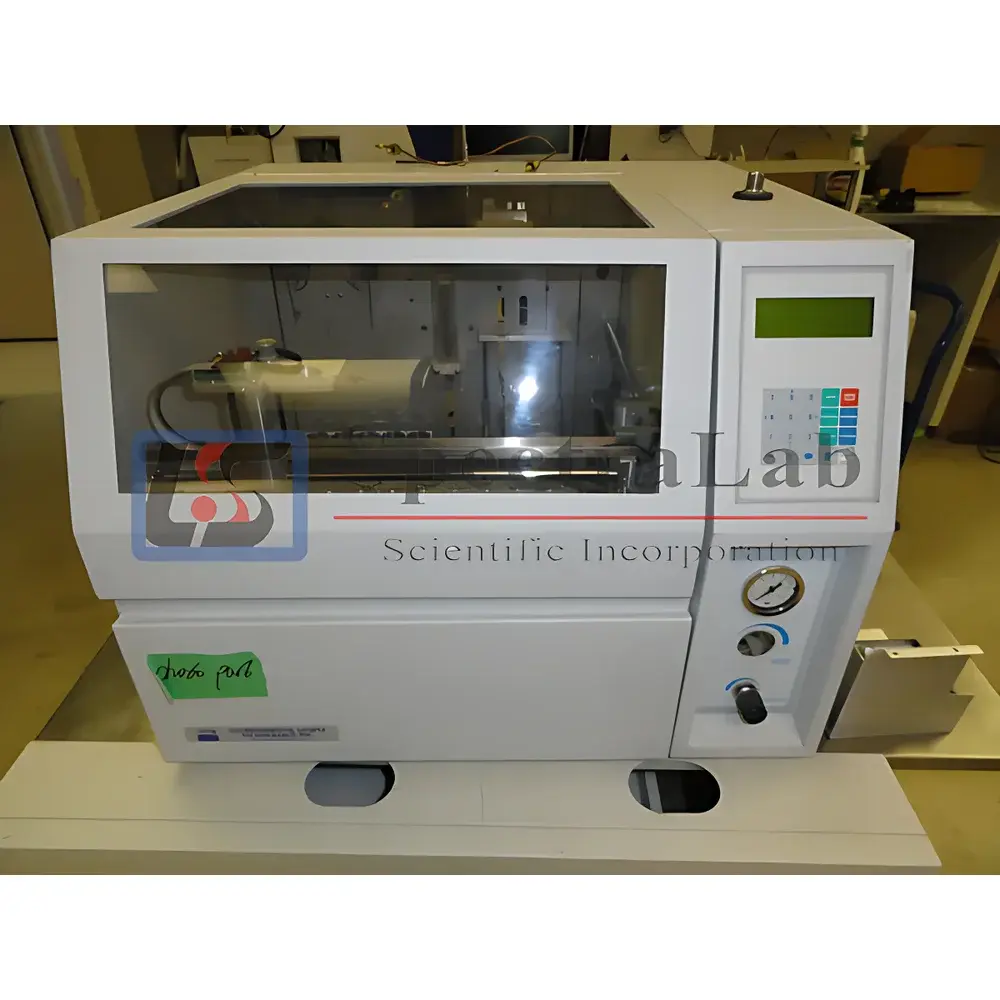

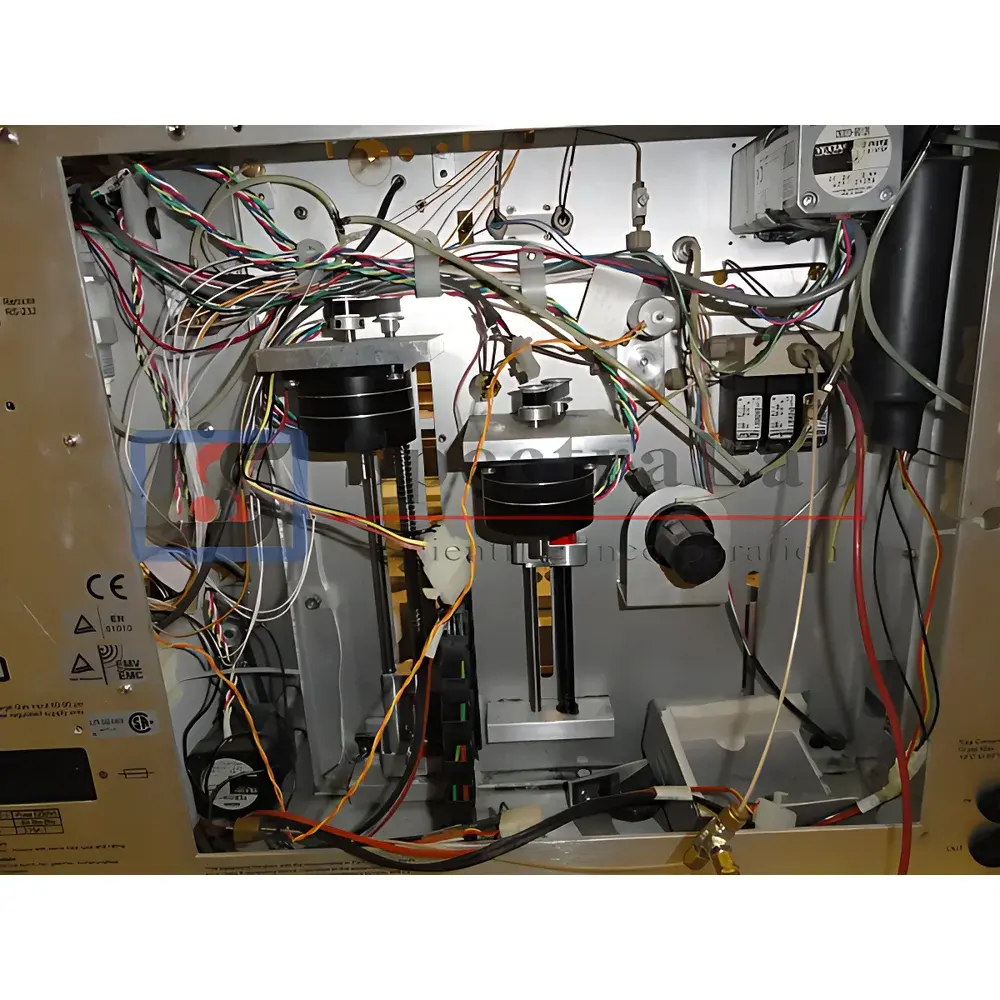

Varian Archon 5100 Purge and Trap Autosampler for Water and Soil Analysis

Overview

The Varian Archon 5100 Purge and Trap Autosampler is a robust, field-proven sample introduction system engineered for quantitative volatile organic compound (VOC) analysis in environmental matrices. It operates on the principle of dynamic headspace extraction: inert gas purges dissolved or adsorbed VOCs from aqueous or solid (soil/sediment) samples into a sorbent trap, followed by rapid thermal desorption directly into a gas chromatograph (GC) or GC/MS system. This method delivers high sensitivity (sub-part-per-trillion detection limits), excellent reproducibility, and minimal analyte loss—critical for regulatory compliance testing under U.S. EPA Methods 502.2, 524.2, 624, and 8260. The Archon 5100 integrates seamlessly with Varian Saturn™ or CP-3800 GC platforms and supports both manual and automated batch processing via serial or USB communication protocols.

Key Features

• Multi-matrix capability: Configurable for liquid (water, wastewater, extracts) and solid-phase (soil, sediment, tissue) sample introduction using dedicated purge vessels and spiking modules
• Programmable purge parameters: Adjustable purge time (1–30 min), temperature (25–100 °C), and flow rate (25–500 mL/min N₂ or He)
• Integrated thermal desorption: Two-stage heating (trap desorption at 250–350 °C; transfer line up to 250 °C) with precise ramp control to minimize breakthrough and carryover
• Automated internal standard addition: Dual-syringe module enables precise spiking of deuterated surrogates and labeled standards pre-purge

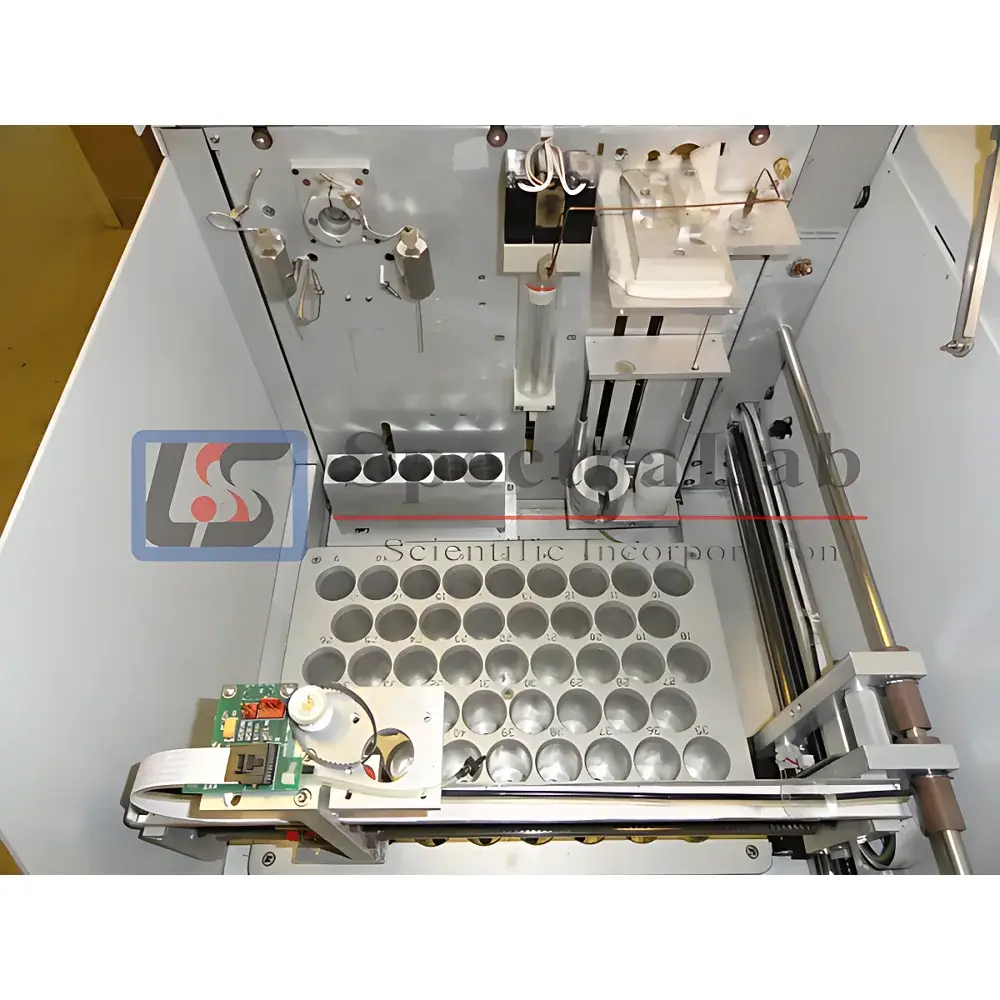

• Robust carousel design: Accommodates up to 40 standard 40-mL VOA vials or custom soil jars; includes barcode reader option for LIMS integration
• Self-diagnostics and error logging: Real-time monitoring of pressure, temperature, valve actuation, and trap integrity with event-driven log export

Sample Compatibility & Compliance

The Archon 5100 accepts a broad range of environmental sample types without modification: raw drinking water, groundwater, surface water, industrial effluents, acid-preserved soil slurries, and dried homogenized sediments. Its hardware architecture conforms to the mechanical and timing specifications required for full EPA Method 524.2 validation, including defined purge efficiency thresholds (>95% recovery for C₂–C₁₀ aliphatics) and blank performance criteria (<0.5 ng/L for target compounds). All refurbished units undergo traceable calibration verification against certified VOC standards (e.g., Supelco TO-14A mix), and system suitability tests include surrogate recovery (e.g., fluorobenzene, bromochloromethane), duplicate precision (RSD ≤15%), and method detection limit (MDL) confirmation per 40 CFR Part 136 guidelines.

Software & Data Management

The Archon 5100 communicates via RS-232 or USB to legacy Varian Star™ Chromatography Workstation (v6.x or later) or modern third-party GC/MS acquisition software (e.g., Agilent MassHunter, Thermo Xcalibur) through ASCII command protocol. Sequence methods—including purge/desorb parameters, vial mapping, and internal standard volumes—are stored in human-readable .seq files with version timestamps. Audit trail functionality is maintained when operated within validated Star™ environments compliant with FDA 21 CFR Part 11 (electronic signatures, user access controls, and immutable change logs). Raw instrument status logs (CSV format) are exportable for GLP/GMP review and laboratory quality audits.

Applications

• Regulatory environmental testing labs performing routine VOC screening for drinking water compliance (EPA 524.2, ISO 10301)
• Hazardous waste site characterization (RCRA, Superfund) requiring soil and leachate analysis per Method 8260D
• Wastewater treatment plant monitoring for chlorinated solvents, BTEX, and trihalomethanes
• Academic and contract research laboratories conducting method development for emerging contaminants (e.g., 1,4-dioxane, vinyl chloride)
• Reference lab cross-validation studies where inter-laboratory reproducibility of purge-and-trap performance is critical

FAQ

Is this unit compatible with non-Varian GC systems?
Yes—the Archon 5100 uses open ASCII command sets and can be integrated with Agilent, Thermo Fisher, or Shimadzu GC/MS platforms using standard interface cables and custom sequence scripting.
What refurbishment procedures are performed prior to shipment?
Each unit undergoes full functional testing: leak-checking of all pneumatic lines, calibration of temperature zones (purge chamber, trap, transfer line), validation of valve timing sequences, and verification of syringe accuracy for internal standard delivery.
Does the 6-month warranty cover parts and labor?
Yes—the limited warranty includes replacement of defective components and on-site or depot-based technical support for hardware faults attributable to manufacturing or refurbishment defects.
Are original manuals and software installation media included?
All units ship with scanned PDF copies of the Archon 5100 Operator’s Manual, Maintenance Guide, and EPA Method application notes. Physical media (CD-ROMs) are not provided due to obsolescence, but software installers are available upon request for licensed users.
Can the system be upgraded to support newer EPA methods such as 524.4?
While the Archon 5100 predates Method 524.4, its core hardware meets all specified purge/desorb parameters. Full compliance requires updated software method templates and laboratory-specific validation per the method’s QC requirements.
