ViALUX LabKit DMD Mounting Kit for DLP-Based Optical Systems

Overview

The ViALUX LabKit DMD Mounting Kit is an engineered mechanical integration solution designed specifically for rapid, repeatable, and alignment-stable deployment of Digital Micromirror Device (DMD)-based optical systems in laboratory and prototyping environments. Built upon Texas Instruments’ DLP® technology, the kit enables precise mechanical mounting of ViALUX’s UltraSpeed and SuperSpeed DMD modules—high-speed spatial light modulators widely used in structured illumination microscopy, optical trapping, maskless lithography, computational imaging, and dynamic wavefront shaping. Unlike generic optical mounts, the LabKit addresses critical challenges in DMD integration: angular alignment tolerance (±0.1°), thermal stability under continuous operation, mechanical decoupling from vibration sources, and compatibility with standard 30 mm cage systems (Thorlabs, Newport). The kit does not include the DMD module itself; it serves exclusively as a precision mechanical interface between the DMD chip carrier and host optical breadboard or enclosure.

Key Features

• Modular dual-component design: separates DMD chip carrier mounting (DMD Expansion Board Mount) from control electronics board mounting (Control PCB Mount), enabling independent thermal management and signal integrity optimization.

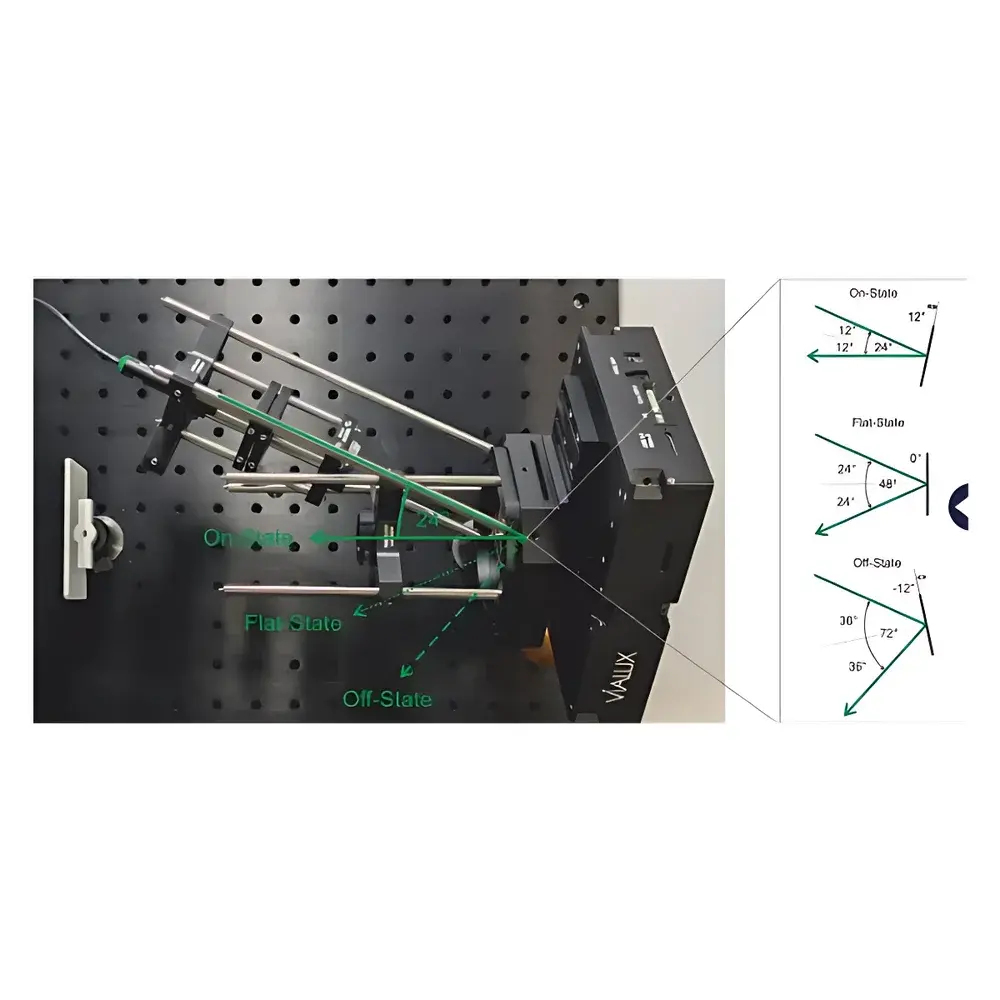

• Pre-calibrated angular positioning options: supports both 0° (collinear beam path) and 45° (folded beam path) configurations using kinematic, lockable tilt stages integrated into cage-compatible base plates.
• Cage-system agnostic architecture: includes standardized SM1 (1.035″-40) and SM30 (30 mm cage rod) threading, compatible with industry-standard optomechanics without custom adapters.
• Material specification: all structural components manufactured from stress-relieved 6061-T6 aluminum alloy with black anodized finish (hardness ≥60 HV, thickness 25 µm) to minimize stray light and ensure dimensional stability across ambient temperature ranges (15–30 °C).
• Alignment traceability: each mounting plate features engraved reference marks aligned to the DMD active area centroid (verified via coordinate measuring machine during final QA), supporting ISO 10110-7 compliant optical axis referencing.

Sample Compatibility & Compliance

The LabKit is validated for use with ViALUX’s two core DMD product families: UltraSpeed Modules (PCIe interface, e.g., V-6502, V-7002, V-9002, V-9502) and SuperSpeed Modules (USB 3.0 interface, e.g., V-6501, V-7001, V-9001, V-9501, V-650L, V-650L02). Specific variant compatibility is encoded in model suffixes: DM65/70 (V-65xx/V-70xx), DM90/95 (V-90xx/V-95xx), DM650L (V-650L series), CBC90/CBC95 (cross-platform carrier boards for mixed-interface deployments). All kits comply with RoHS 2011/65/EU and REACH (EC 1907/2006) directives. Mechanical drawings and GD&T documentation are supplied per ISO 8015 and ASME Y14.5-2018 standards to support GLP-aligned lab infrastructure audits.

Software & Data Management

While the LabKit is a purely mechanical subsystem, its design directly supports software-defined optical workflows. Precise, repeatable mechanical registration ensures pixel-to-optical-axis mapping remains invariant across firmware updates and driver revisions—critical for applications requiring strict spatiotemporal calibration (e.g., quantitative phase imaging or closed-loop adaptive optics). When used with ViALUX’s official SDKs (C/C++, Python, MATLAB), the mount’s fixed geometry eliminates the need for real-time affine correction during pattern projection. Audit logs generated by host systems retain mount configuration metadata (e.g., “CBC95_45deg_v2.1”), satisfying traceability requirements under FDA 21 CFR Part 11 for regulated R&D environments.

Applications

• High-throughput fluorescence lifetime imaging (FLIM) using time-gated DMD patterns
• Multi-plane structured illumination microscopy (SIM) with synchronized camera-DMD triggering
• Dynamic photopolymerization in microfabrication and 4D bioprinting
• Real-time optical aberration correction in retinal imaging systems
• Education and training platforms for digital holography and computational optics labs
• Integration into OEM instruments requiring modular, serviceable DMD subassemblies

FAQ

Is the LabKit compatible with non-ViALUX DMD modules?
No. The kit is dimensionally and thermally optimized for ViALUX’s proprietary DMD carrier boards and thermal interface layout. Use with third-party modules voids mechanical warranty and may compromise thermal dissipation.
Does the kit include optical components such as lenses or mirrors?
No. The LabKit contains only precision-machined mounting hardware, alignment fixtures, and cage-compatible interface plates. Optical elements must be sourced separately per system design requirements.
Can the 0° and 45° configurations be interchanged without disassembly?
Yes—angular orientation is selected at installation via reversible base plate orientation and pre-tapped mounting holes; no tools required for reconfiguration after initial setup.
What documentation is provided with the kit?
Each unit ships with ISO-compliant mechanical drawings (PDF + STEP), GD&T inspection reports, RoHS/REACH compliance certificates, and a mounting procedure guide aligned with ViALUX’s application note AN-DMD-004 (Rev. 2.1).
