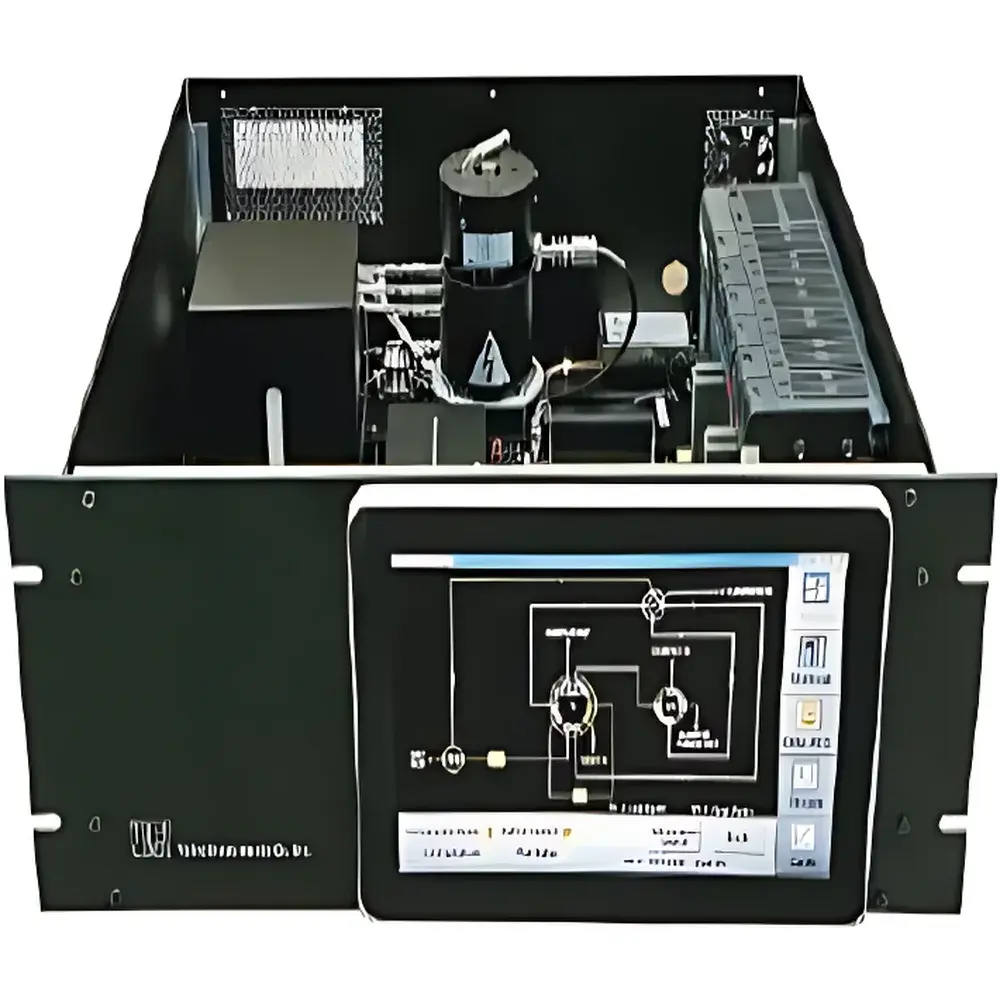

VICI MTGA6002 Online PDHID-Specific Gas Chromatograph

Overview

The VICI MTGA6002 Online PDHID-Specific Gas Chromatograph is an engineered analytical platform designed for high-sensitivity, continuous trace gas impurity analysis in demanding industrial environments. Built upon pulsed discharge helium ionization detection (PDHID) as its primary measurement principle, the system leverages the universal, near-equimolar response and exceptional signal-to-noise ratio of PDHID for sub-part-per-trillion (ppt) to low-part-per-trillion (ppt) level quantification of permanent gases, hydrocarbons, and reactive species—including H₂, O₂, N₂, CO, CO₂, CH₄, H₂S, NH₃, and halogenated compounds—without calibration dependency across broad compound classes. Unlike flame ionization or thermal conductivity detectors, PDHID operates without combustion or catalytic surfaces, eliminating memory effects and enabling stable, drift-free operation over extended unattended intervals. The MTGA6002 integrates this detector technology within a purpose-built online architecture, supporting direct integration into process gas streams via heated sample lines and pressure-regulated flow control. Its core application domain spans electronic-grade gas certification (per SEMI F63, ASTM D7607), food packaging atmosphere verification (ISO 8587), and ambient air toxicant surveillance (EPA Method TO-15 adjunct), where regulatory traceability and long-term reproducibility are non-negotiable.

Key Features

• Fully modular chassis permitting field-upgradable detector configurations—up to four independent detectors (PDHID, PDPID, PDECD, FID, micro-TCD, or RGD) can be installed concurrently with independent temperature zoning and gas supply routing.
• Pulsed discharge helium ionization source optimized for 95% of common inorganic and organic volatiles; certified linearity from 100 ppt to 100 ppm with R² ≥ 0.9998 per NIST-traceable validation protocols.
• Industrial-grade automation stack: embedded Linux controller with real-time OS, integrated web server (HTTPS), and dual redundant watchdog timers ensuring fail-safe recovery during network interruption or power fluctuation.
• Hazardous area readiness: mechanical and electrical interfaces compliant with IEC 60079-0/-11/-15 standards; supports third-party ATEX Zone 1/21 or IECEx Ex ia/ib certified detector housings and sample manifolds.
• Process-integrated communication suite: native support for 4–20 mA analog output (HART-enabled), OPC UA (compliant with IEC 62541), Profibus DP v3, and Ethernet/IP—enabling seamless integration into DCS, SCADA, and MES platforms without protocol gateways.
• Large-format, sunlight-readable 10.1″ capacitive touchscreen with intuitive graphical workflow navigation; all operational parameters—including column oven ramp profiles, valve sequencing logic, and detector bias settings—are configurable without CLI access.

Sample Compatibility & Compliance

The MTGA6002 accommodates gaseous samples ranging from ultra-high-purity (UHP) carrier gases (99.9999% purity) to complex multi-component process streams containing particulates, moisture, and corrosive agents—provided appropriate front-end conditioning (e.g., heated filters, Nafion dryers, sulfur traps) is implemented per ISO 8573-1 Class 2 requirements. It complies with ISO/IEC 17025:2017 for testing laboratories, supports full audit trails meeting FDA 21 CFR Part 11 and EU Annex 11 data integrity criteria, and includes GLP/GMP-compliant electronic signature workflows. All firmware and method files are digitally signed and version-controlled; raw chromatograms are stored in vendor-neutral ANDI/NetCDF format for third-party review.

Software & Data Management

ChromNav™ Embedded Software (v4.2+) provides unified control of acquisition, processing, and reporting. Key capabilities include automated peak identification using retention index libraries (NIST 2022, PetroDB), multi-point calibration curve generation with weighted least-squares regression, and customizable pass/fail logic for release testing. Data export options include CSV, PDF analytical reports (with embedded digital signatures), and structured XML for LIMS ingestion. Audit trail logs record every user action, parameter change, and instrument state transition with timestamp, IP address, and operator ID—retained for ≥10 years on encrypted internal SSD.

Applications

• Electronic specialty gas certification: monitoring Ar, Ne, Kr, Xe, SiH₄, PH₃, AsH₃ for semiconductor fab supply chains (SEMI C11, ASTM D7607-22).
• Food packaging atmosphere verification: quantifying residual O₂ (<10 ppm) and CO₂ in modified-atmosphere packaging (MAP) headspace per ISO 11642.
• Hydrogen fuel quality assurance: detecting CO, CO₂, H₂O, and total hydrocarbons in PEM electrolyzer output per ISO 8573-8 Class 0.
• Remote environmental monitoring: continuous detection of H₂S, Cl₂, HF, and NOₓ in fenceline or landfill gas networks using solar-powered telemetry modules.
• Pharmaceutical excipient gas qualification: verifying nitrogen purge gas purity per USP and EP 2.2.43.

FAQ

Is the MTGA6002 validated for use in regulated pharmaceutical manufacturing environments?
Yes—the system supports IQ/OQ/PQ documentation packages aligned with ASTM E2500-22 and includes built-in tools for performance qualification of detector sensitivity, retention time stability, and integration precision per USP .

Can the PDHID module be operated independently of other detectors in a multi-detector configuration?
Yes—each detector operates under independent firmware control; PDHID can be powered, calibrated, and acquired simultaneously with up to three additional detectors without cross-talk or resource contention.

What cybersecurity certifications does the embedded controller hold?
The controller conforms to IEC 62443-3-3 SL2 requirements, features TLS 1.3 encryption, disabled default accounts, and automatic security patch deployment via signed firmware updates.

Does the system support dynamic headspace sampling for solid or liquid matrices?
No—the MTGA6002 is designed exclusively for gaseous sample introduction; coupling to dynamic headspace requires external autosamplers (e.g., VICI Valco HS-200) and method-specific interface validation.
