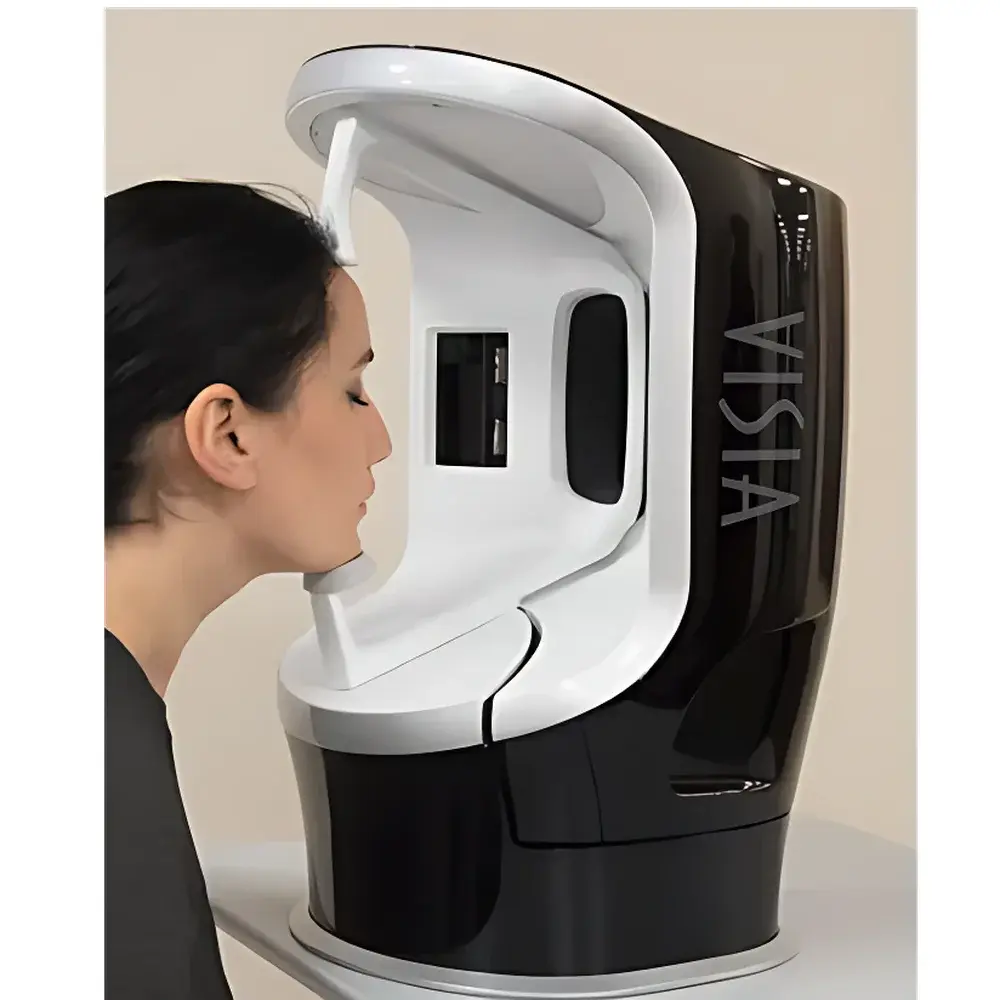

VISIA Skin Analysis System by Canfield

Overview

The VISIA Skin Analysis System by Canfield is a clinically validated, multi-spectral digital imaging platform engineered for objective, non-invasive assessment of facial skin conditions. It employs standardized illumination modalities—visible white light, ultraviolet (UV) A light, and cross-polarized visible light—to capture high-resolution, geometrically consistent facial images under controlled lighting and positioning protocols. Each modality targets distinct optical properties of skin tissue: standard white light enables surface-level morphometric quantification of spots, pores, wrinkles, and texture smoothness; UV illumination excites endogenous fluorophores (e.g., porphyrins from Propionibacterium acnes and subepidermal hemoglobin-derived pigments), revealing subsurface pigmentary and vascular features; cross-polarized light suppresses surface reflection, enhancing contrast for dermal erythema and melanin distribution in the upper reticular dermis. The system operates on the principle of comparative image-based segmentation and algorithmic feature extraction, delivering reproducible, operator-independent metrics aligned with dermatological grading scales.

Key Features

• Triple-illumination imaging architecture: simultaneous acquisition of white light, UV-A, and cross-polarized images in a single session
• Automated facial alignment and region-of-interest (ROI) mapping using proprietary facial landmark detection algorithms
• Quantitative scoring engine calibrated against clinical reference standards for spots, pores, wrinkles, texture, porphyrins, UV spots, brown spots, and red areas
• Integrated chin rest and forehead support ensure repeatable subject positioning and minimize motion artifacts
• High-resolution CMOS sensor with uniform spectral response across all illumination modes (400–400 nm for UV, 400–700 nm for visible)
• Modular software architecture supporting customizable report templates compliant with clinic workflow requirements

Sample Compatibility & Compliance

The VISIA system is designed exclusively for human facial imaging in clinical, aesthetic, and research dermatology settings. It requires no consumables or reagents and imposes no physical contact or radiation exposure. All image acquisition protocols adhere to ISO 13485–certified manufacturing practices and are validated per ASTM E2912-20 (Standard Guide for Digital Image Capture in Dermatology). Data output formats (JPEG, PNG, DICOM-compliant metadata) support integration into electronic health record (EHR) systems and clinical trial databases. The system meets IEC 62304 software lifecycle requirements and supports audit trails and user access controls required under FDA 21 CFR Part 11 for regulated studies.

Software & Data Management

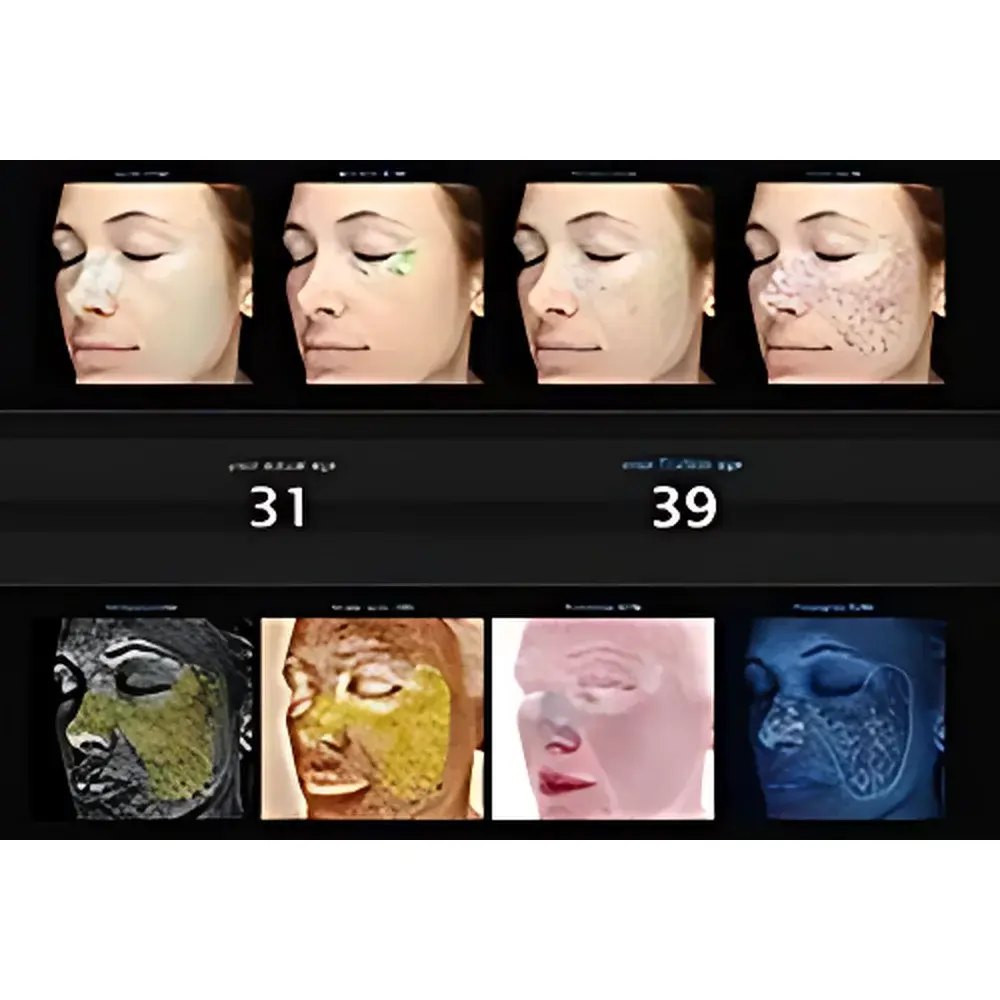

VISIA’s proprietary software provides real-time image processing, longitudinal tracking, and statistical comparison across visits. Each analysis generates a composite report containing absolute numerical scores, percentile rankings relative to age- and ethnicity-matched normative databases (n > 12,000 subjects), and trend visualization graphs. Raw image data is stored with embedded EXIF metadata—including illumination type, exposure time, lens aperture, and calibration timestamp—to ensure traceability. Software supports role-based permissions, encrypted local storage, and optional cloud backup with HIPAA-compliant encryption (AES-256). Version-controlled updates include regulatory patches and algorithm refinements documented per GLP/GMP-aligned change control procedures.

Applications

• Clinical evaluation of photodamage progression and treatment efficacy in cosmeceutical and laser intervention trials
• Objective baseline documentation prior to chemical peels, microneedling, or topical retinoid regimens
• Supporting diagnostic differentiation between melasma, post-inflammatory hyperpigmentation, and solar lentigines
• Quantifying inflammatory burden via erythema index in rosacea and atopic dermatitis monitoring
• Regulatory submission support for FDA 510(k) clearance of topical actives through objective endpoint validation
• Academic dermatology research requiring standardized, multi-center imaging protocols

FAQ

What is the recommended maintenance schedule for the VISIA system?
Annual calibration verification by Canfield-certified service engineers is recommended; optical alignment checks and LED intensity validation are performed using NIST-traceable reference targets.
Can VISIA data be exported for third-party statistical analysis?
Yes—CSV and XML exports include all quantitative metrics, demographic metadata, and acquisition parameters, enabling integration with R, Python (Pandas/SciPy), or SAS environments.
Is the system compatible with telemedicine platforms?
VISIA supports secure DICOM transmission and HL7 interface modules for integration with certified telehealth infrastructures meeting ONC Health IT Certification Criteria.
How does VISIA handle skin tone variability across Fitzpatrick types?
The scoring algorithms incorporate adaptive histogram normalization and tone-specific training datasets spanning Fitzpatrick I–VI, ensuring consistent sensitivity and specificity across diverse pigmentation profiles.
Does the system require special environmental controls during operation?
Operation is specified for ambient temperatures of 15–30°C and relative humidity ≤70%; no darkroom or vibration isolation is required due to integrated active illumination and motion compensation.
