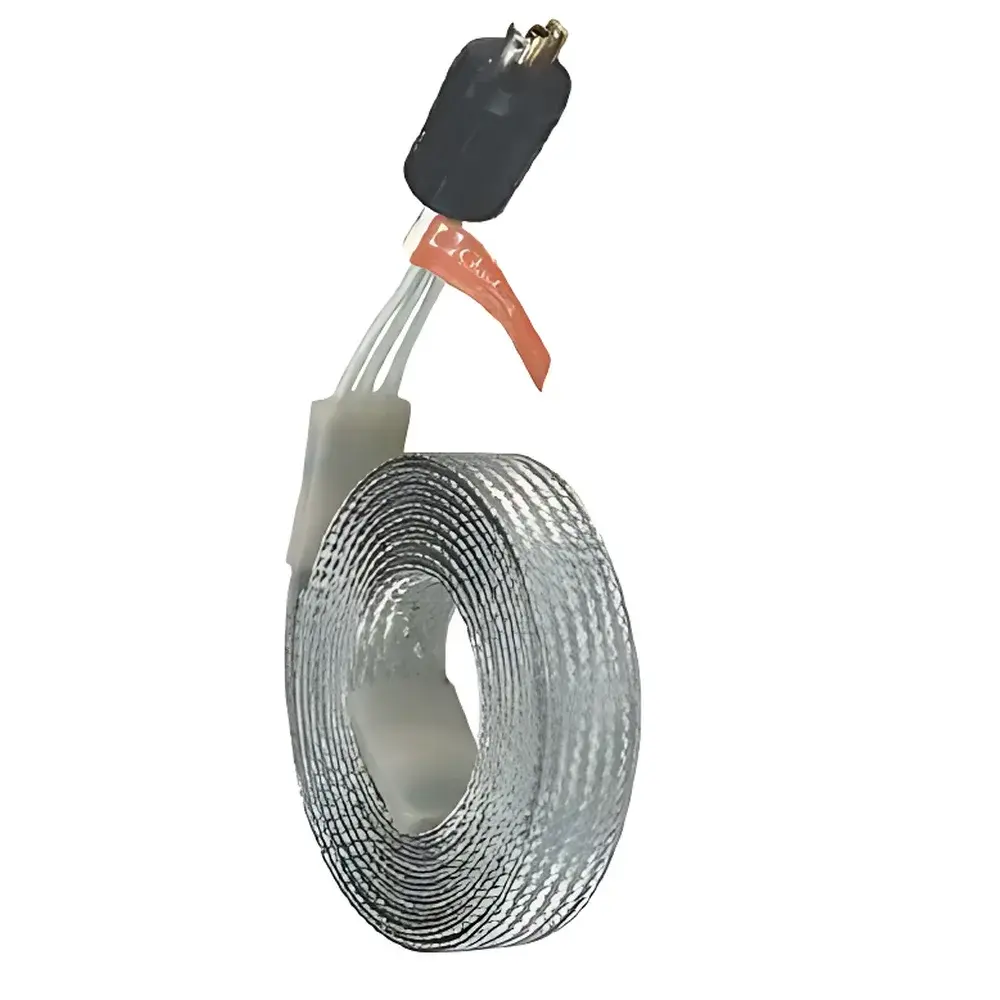

WIGGENS DET/FET/SET Series Laboratory Temperature-Controlled Heating Tapes and Heating Cords

Overview

The WIGGENS DET/FET/SET Series Laboratory Temperature-Controlled Heating Tapes and Heating Cords are engineered for precise, safe, and repeatable thermal maintenance of laboratory vessels, tubing, valves, and instrumentation in demanding analytical and process environments. These devices operate on resistive heating principles, delivering uniform surface temperature profiles across flexible, conformable substrates. Unlike generic industrial heat tapes, the DET/FET/SET series integrates laboratory-specific safety architecture—including fully encapsulated electrical terminations, moisture-resistant silicone rubber insulation, and thermally stable polymer jackets—enabling reliable operation in humidified enclosures, cold rooms, and controlled-atmosphere gloveboxes. Each unit is factory-calibrated for nominal power density and thermal response time, supporting applications requiring stable thermal setpoints from ambient to 250 °C without external PID controllers (when used with compatible thermostats or programmable temperature controllers).

Key Features

• Fully sealed, IP67-rated electrical connections prevent moisture ingress and ensure operational integrity in high-humidity or condensing environments.
• Three-wire configuration with NEMA L6-20P locking plug provides grounding continuity and mechanical retention—critical for vibration-prone lab benches and mobile reactor setups.
• Multi-layer construction: nickel-chromium resistance wire embedded in silicone rubber matrix, over-braided with tinned copper shielding, and jacketed in fluorosilicone for chemical resistance and thermal stability.
• Modular length options (ranging from 1.22 m to 6.10 m) and width variants (76 mm, 152 mm, 191 mm, 305 mm) enable custom wrapping of flasks, columns, gas lines, and reactor jackets without thermal bridging or hot-spot formation.
• Power density optimized per model: DET series (low-to-medium wattage, narrow width), FET series (medium wattage, medium width), and SET series (high-surface-area, low-wattage density for gentle, uniform heating of large-diameter vessels).
• Compliant with IEC 61000-6-3 (EMC emission limits) and tested per EN 60519-1 for electrical safety in industrial heating equipment—validated for integration into ISO/IEC 17025-accredited laboratory systems.

Sample Compatibility & Compliance

The DET/FET/SET series is compatible with standard laboratory glassware (e.g., round-bottom flasks, jacketed reactors, condensers), stainless-steel tubing (¼″–2″ OD), PTFE-lined piping, and modular bioreactor manifolds. All models meet UL 1030 and CSA C22.2 No. 72 requirements for heating cables used in non-hazardous locations. Units intended for regulated environments support traceable calibration documentation (NIST-traceable certificate available upon request) and are suitable for use in GxP workflows where temperature consistency must be documented per FDA 21 CFR Part 11 and EU Annex 11 requirements. The silicone-based construction ensures no outgassing of volatile organics below 250 °C, making them appropriate for GC inlet lines, HPLC solvent lines, and sample introduction systems.

Software & Data Management

While the heating tapes themselves are analog, passive thermal elements, they are designed for seamless integration with third-party temperature control platforms—including WIGGENS’ own WTC-3000 programmable thermostat, Eurotherm 2408 controllers, and LabVIEW-based DAQ systems. All models support 4–20 mA or 0–10 V analog feedback loops when paired with external RTD or thermocouple sensors. Audit trails, setpoint logging, and alarm history can be maintained through controller firmware compliant with ALCOA+ data integrity principles. Firmware updates and configuration backups adhere to ICH GCP and ISO 13485 software validation frameworks where applicable.

Applications

• Maintaining constant temperature in distillation heads and reflux condensers during fractional distillation.
• Preventing condensation in gas sampling lines for FTIR, GC-MS, and ambient air monitoring systems.
• Providing freeze protection and viscosity control for viscous reagents (e.g., molten salts, polymer solutions) stored in carboys or tote tanks.
• Enabling precise thermal conditioning of chromatographic columns housed in oven racks or insulated enclosures.
• Supporting ASTM D341 viscosity-temperature correlation studies by stabilizing sample reservoirs within ±0.5 °C over extended durations.
• Facilitating USP <645> purified water system loop heating in pharmaceutical clean utilities.

FAQ

Can these heating tapes be used with a standard laboratory temperature controller?
Yes—each model is rated for continuous duty with external proportional-integral-derivative (PID) controllers featuring SSR or mechanical relay outputs. Recommended minimum controller resolution: 0.1 °C.
Are custom lengths or voltage configurations available?
Standard configurations follow the published DET/FET/SET matrix. Non-standard lengths or voltages (e.g., 208 V, 277 V) require engineering review and are subject to MOQ and lead-time constraints.
What is the expected service life under continuous operation at 200 °C?
Based on accelerated aging tests per IEC 60216, median operational life exceeds 12,000 hours at 200 °C with proper thermal derating and mechanical strain relief.
Do these units comply with electromagnetic compatibility (EMC) requirements for use near sensitive instrumentation?
Yes—units meet Class B emission limits per CISPR 11 and include integrated ferrite suppression on the supply cord to minimize conducted emissions into shared lab power circuits.
Is third-party certification documentation available for audit purposes?
CE Declaration of Conformity, RoHS Certificate of Compliance, and material safety data sheets (MSDS/SDS) are provided with shipment. ISO 17025-accredited calibration reports are available as optional add-ons.
