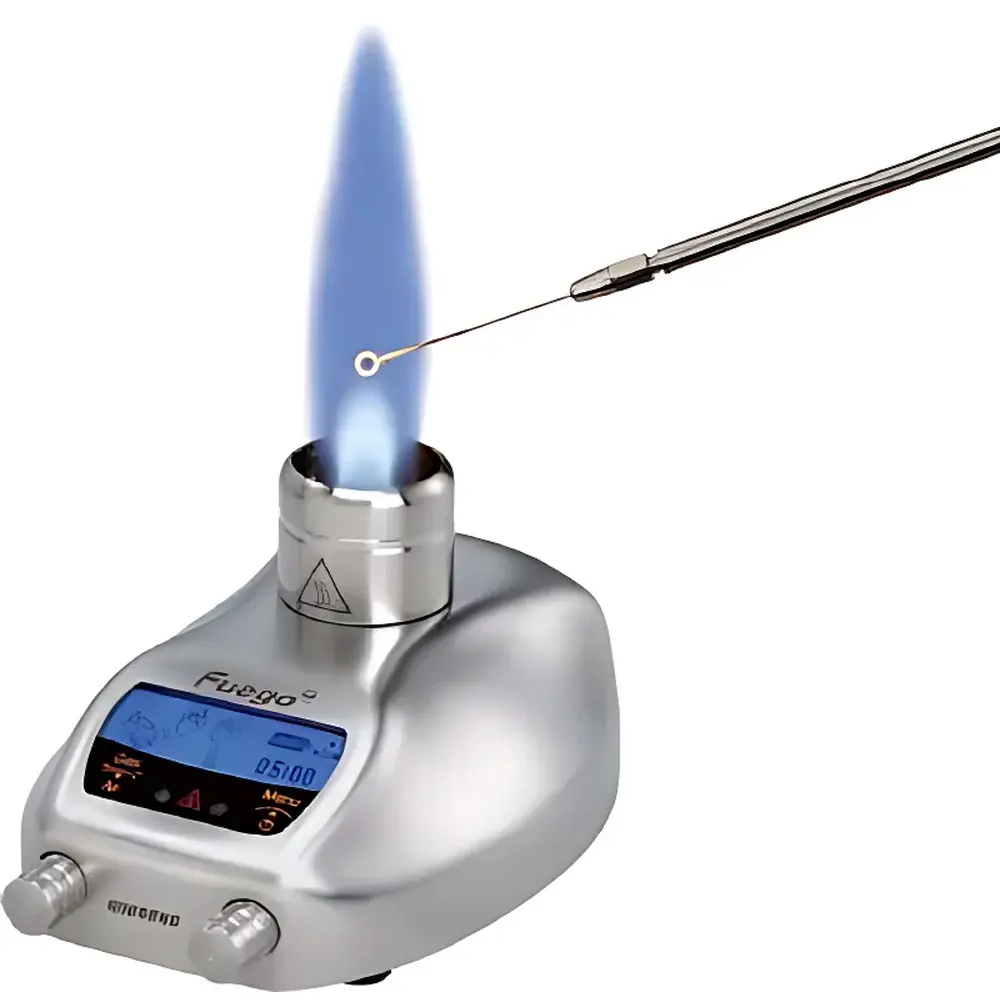

WIGGENS Fuego SCS Pro Bunsen Burner

Overview

The WIGGENS Fuego SCS Pro Bunsen Burner is an advanced, microprocessor-controlled laboratory combustion device engineered for reproducible high-temperature flame generation under stringent safety and ergonomic requirements. Unlike conventional Bunsen burners relying on manual air-gas mixing and mechanical ignition, the Fuego SCS Pro employs a closed-loop combustion architecture grounded in precise stoichiometric control, real-time thermal feedback, and multi-layered fail-safe protocols. Its core operational principle integrates regulated gas flow dynamics with adaptive flame stabilization—leveraging aerodynamic housing design (inspired by automotive fluid dynamics) to minimize ambient air turbulence and maintain consistent blue-flame geometry and thermal profile. Designed for applications demanding sustained thermal output—including sterilization of inoculation loops, glassware annealing, microbiological flame sterilization, and controlled open-flame heating—the instrument delivers stable 1350°C (LPG) or 1300°C (natural gas) peak flame temperatures with calibrated energy efficiency and minimal CO emission. As an imported Class I laboratory gas appliance compliant with DIN EN 61010-1 and EU Gas Appliances Regulation (EU) 2016/426, it meets foundational safety and electromagnetic compatibility (EMC) requirements for use in GLP-certified labs and ISO 17025-accredited testing environments.

Key Features

• Aerodynamically optimized stainless steel housing with seamless single-piece construction, eliminating crevices and enabling rapid decontamination via integrated drip channels and tool-free burner head disassembly
• SCS (Safety Control System) architecture: continuous monitoring of gas supply pressure, flame integrity, burner head temperature, and physical obstruction (via BHC—Burner Head Check algorithm); automatic shutoff upon zero inlet pressure, overheating (>120°C surface temp), or tilt beyond 90°
• Dual-mode flame activation: tactile rotary knob, wired footswitch (with programmable on/off timing from 1 s to 2 h), and standard non-contact infrared controller requiring intentional proximity-based initiation to prevent accidental ignition
• Graphical self-navigating LCD interface with fire-resistant thermal shield glass; displays real-time flame status, gas consumption alerts, residual heat warnings, and guided setup workflows
• Integrated rechargeable 6 V Li-ion battery supporting up to 7 hours of cordless operation—critical for mobile lab setups, biosafety cabinets, or locations lacking grounded outlets
• Expandable functionality via optional external Pt100 temperature sensor (±0.5°C accuracy), enabling closed-loop temperature regulation of heated media within +35°C to +350°C range
• Dual-user account system storing individual safety configurations, timer presets, and operational preferences—supporting audit-ready workflow continuity in shared-lab environments

Sample Compatibility & Compliance

The Fuego SCS Pro is compatible with standard laboratory-grade liquefied petroleum gas (LPG, 20–50 mbar) and natural gas (E/LL grade, 18–25 mbar), with automatic gas-type recognition during startup. Its burner orifice (Ø23 mm) accommodates standard inoculation loops, platinum wires, glass rods, and ceramic spatulas without modification. The unit complies with DIN EN 61010-1 (safety requirements for electrical equipment), CE marking per Directive 2014/35/EU (Low Voltage Directive) and 2014/30/EU (EMC Directive), and EEC Type Examination Certificate for gas appliances. While not intrinsically rated for Zone 1 hazardous areas, its zero-pressure shutoff, flame failure detection, and physical tilt cutoff satisfy prerequisite controls for installation in ISO Class 5–8 cleanrooms and university teaching laboratories operating under local fire safety ordinances.

Software & Data Management

Operation is managed entirely through embedded firmware (no external PC dependency). All user-defined parameters—including timer durations, temperature setpoints (when sensor-equipped), safety thresholds, and account profiles—are stored in non-volatile memory with write-protection against unintended overwrite. The LCD interface logs time-stamped events including ignition attempts, shutoff triggers (e.g., “Gas pressure loss at 14:22:07”), and thermal warnings—providing traceable operational history suitable for internal QA review. Though not FDA 21 CFR Part 11 compliant out-of-the-box (lacking electronic signature capability), its deterministic behavior, immutable event logging, and dual-user access control align with GLP documentation expectations for equipment use records.

Applications

• Routine sterilization of microbiological inoculation loops, needles, and forceps in clinical and research microbiology labs
• Controlled open-flame heating during chemical synthesis, solvent evaporation, and glass-bending procedures
• Calibration support for thermocouple verification systems requiring stable reference flames
• Teaching laboratories requiring demonstrable safety interlocks and student-accessible operational transparency
• Field-deployable sterilization in mobile diagnostic units where mains power is unavailable (leveraging onboard battery)
• Integration with automated sample handling platforms via footswitch or IR trigger synchronization

FAQ

What gases are supported, and what are the required inlet pressures?
The Fuego SCS Pro operates with LPG (20–50 mbar) or natural gas (E/LL, 18–25 mbar). Integrated pressure sensors enforce zero-pressure shutoff and trigger low-gas alerts.
Does the unit require external ventilation or fume hood integration?
While not mandated for safe operation, use within a certified fume hood is recommended when burning LPG in confined spaces due to potential CO accumulation; natural gas combustion produces lower CO yield but still requires adequate room air exchange per local occupational health regulations.
Can the built-in timer be used for unattended operation?
Yes—the programmable timer supports up to 2 hours of autonomous operation with automatic gas cutoff upon expiry; however, unattended use must comply with institutional risk assessments and local fire codes.
Is the lithium-ion battery replaceable by the end user?
Battery replacement requires authorized service due to sealed enclosure design and thermal management integration; WIGGENS provides certified service centers for component-level maintenance.
How does the BHC (Burner Head Check) protocol detect blockages?
BHC analyzes thermal response asymmetry and gas flow impedance during pre-ignition purge cycles, identifying partial obstructions from liquid residue or particulate buildup before flame initiation.
