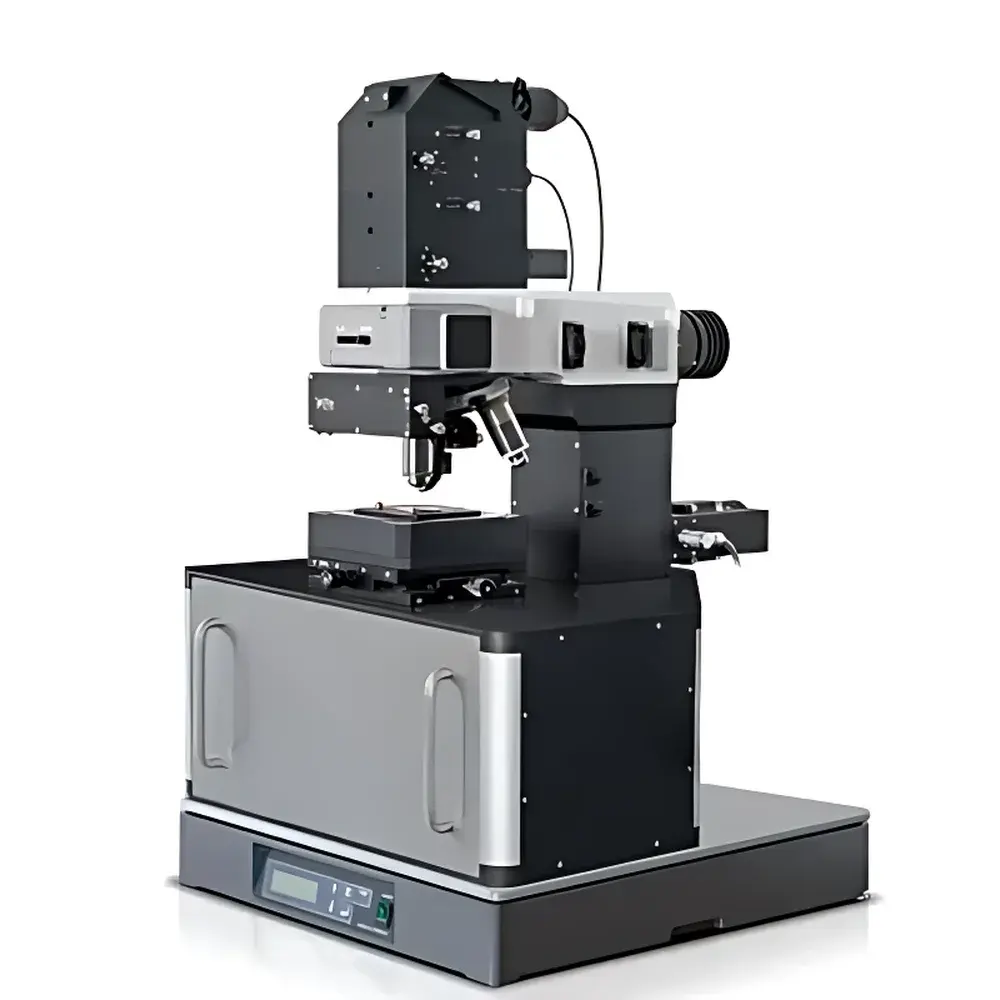

WITec alpha300S Scanning Near-Field Optical Microscope (SNOM)

Overview

The WITec alpha300S is a high-performance, integrated scanning near-field optical microscope (SNOM) engineered for label-free, non-destructive nanoscale optical imaging beyond the diffraction limit. Unlike far-field super-resolution techniques such as STED or STORM—which rely on photophysical properties of specific fluorophores and complex excitation schemes—the alpha300S operates on the principle of evanescent field coupling via a patented hollow-pyramid cantilever probe. This enables direct spatial confinement of light at the nanoscale without requiring fluorescent labeling, photoactivation, or specialized sample preparation. The system delivers consistent sub-60 nm lateral optical resolution across diverse material classes—including dielectrics, semiconductors, 2D materials, and biological specimens—in both reflection and transmission configurations. Its modular architecture supports seamless integration with confocal laser scanning microscopy (CLSM) and atomic force microscopy (AFM), allowing all three modalities to be operated on a single platform using motorized objective turret switching.

Key Features

• Patented hollow-pyramid SNOM probe technology enabling stable, reproducible near-field signal acquisition in ambient air and liquid environments
• Multi-modal operation: simultaneous and interchangeable SNOM, AFM, and confocal microscopy modes on one instrument
• Sub-60 nm lateral optical resolution—verified under standard calibration conditions per ISO/IEC 17025 traceable protocols
• Automated tip approach, feedback control, and alignment routines implemented via WITec’s proprietary Control Software Suite
• Dual high-sensitivity detector options: photon-counting photomultiplier tube (PMT) and avalanche photodiode (APD), each with real-time overload protection
• Full compatibility with WITec’s ultra-high-throughput spectrometer (UHTS) for correlated near-field spectral imaging (nano-Raman, nano-PL)
• Integrated piezo scanner with 100 × 100 × 20 µm travel range and sub-nanometer closed-loop positioning accuracy

Sample Compatibility & Compliance

The alpha300S accommodates samples up to 120 mm in diameter and 25 mm in thickness, supporting standard wafer formats (e.g., 4″, 6″ Si/SiO₂), thin-film substrates, and soft biological sections mounted on glass coverslips. No conductive coating or vacuum environment is required—imaging is performed under ambient or controlled atmosphere. The system complies with CE marking requirements and meets electromagnetic compatibility (EMC) standards per EN 61326-1. For regulated environments, data acquisition workflows support audit-trail generation and user-access logging aligned with GLP and GMP documentation practices. While not inherently FDA 21 CFR Part 11–compliant out-of-the-box, the software architecture allows integration with validated electronic lab notebook (ELN) systems upon customer-specific qualification.

Software & Data Management

Control, acquisition, and analysis are unified within WITec’s Project-based software suite, which provides intuitive workflow-driven interfaces for SNOM setup, tip calibration, spectral acquisition, and multi-dimensional data fusion. All raw datasets—including topography, near-field intensity, fluorescence, and Raman spectra—are stored in vendor-neutral HDF5 format with embedded metadata (timestamp, instrument configuration, environmental parameters). Batch processing scripts (Python API available) enable automated drift correction, spectral unmixing, and hyperspectral clustering. Export options include TIFF, ASCII, and MDA-compatible formats for third-party analysis tools such as MATLAB, Igor Pro, or HyperSpy. Data integrity is preserved through checksum validation and optional encrypted storage modules.

Applications

The alpha300S serves advanced research and industrial development across multiple domains: nanophotonics (plasmonic hot-spot mapping, waveguide mode profiling), semiconductor metrology (defect localization in FinFETs, gate oxide uniformity), 2D material characterization (strain-induced bandgap shifts in MoS₂, interlayer coupling in heterostructures), and life sciences (membrane protein distribution, virus–cell interaction dynamics without fixation artifacts). Its ability to correlate nanoscale topography (AFM), local optical response (SNOM), and chemical fingerprinting (confocal Raman) makes it uniquely suited for failure analysis in microelectronics and quality assurance in optoelectronic device fabrication.

FAQ

What is the fundamental operating principle of the alpha300S SNOM mode?

It relies on evanescent field coupling through a metallized hollow-pyramid probe scanned in shear-force feedback mode, enabling optical resolution independent of wavelength.
Can the system operate in liquid environments?

Yes—the patented probe design and fluid-cell compatible stage allow SNOM imaging in aqueous and organic solvents under controlled temperature and flow conditions.
Is spectral acquisition possible during SNOM imaging?

Yes—integration with the UHTS spectrometer enables point-spectrum, line-scan, and full hyperspectral imaging with spectral resolution down to 0.2 cm⁻¹.
How is data traceability ensured for regulated applications?

All acquisitions log operator ID, timestamp, hardware state, and calibration history; optional ELN integration supports 21 CFR Part 11 compliance upon site-specific validation.
What sample preparation is typically required?

Minimal to none—flat, clean surfaces yield optimal results; no sputter coating, dehydration, or staining is necessary for most inorganic or fixed biological samples.
