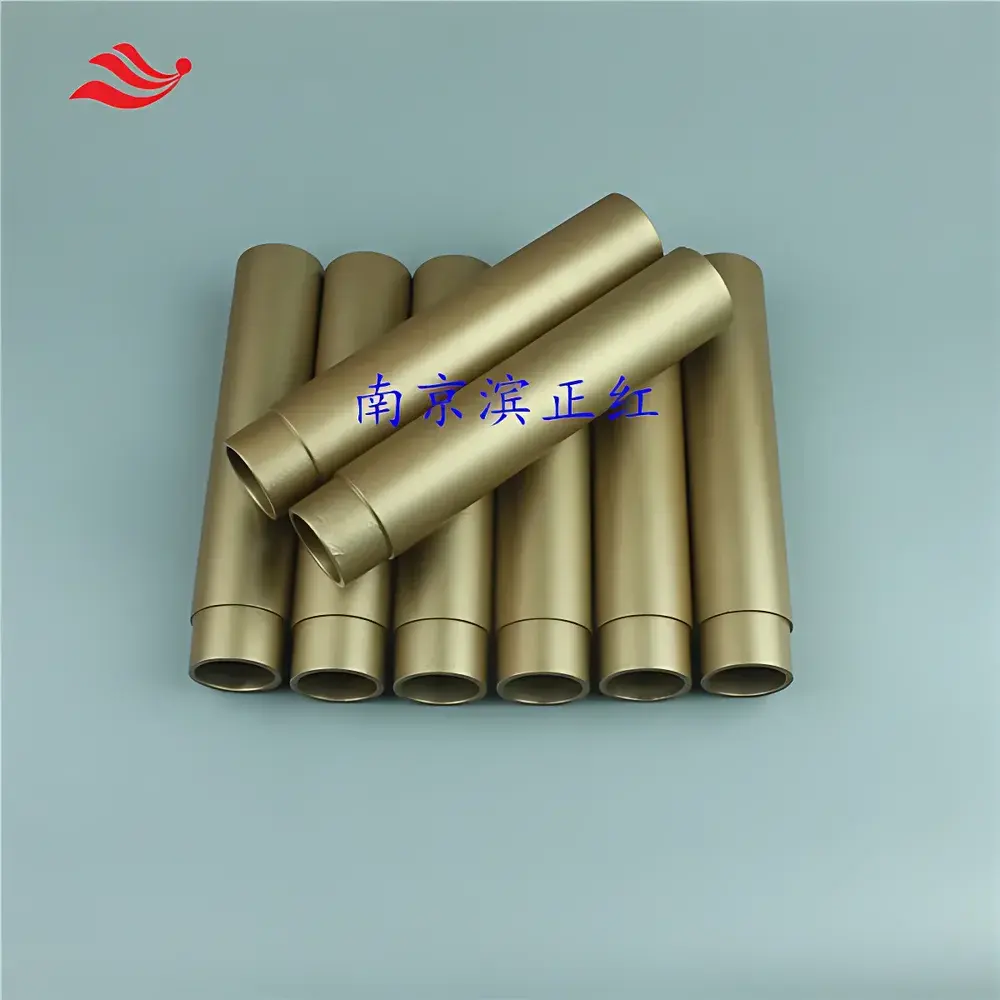

XD-9916 Explosion-Resistant Outer Vessel for Microwave Digestion System
| Brand | Binzhenghong |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Regional Classification | Domestic (China-Made) |
| Model | 42-Position XD-9916 |
| Pricing | Available Upon Request |
Overview
The XD-9916 explosion-resistant outer vessel is a critical safety and structural component designed exclusively for integration with the Binzhenghong XD-9916 microwave digestion system. Engineered to contain high-pressure, high-temperature reaction environments during closed-vessel acid digestion, this outer vessel functions as the primary mechanical barrier against overpressure events. It operates on the principle of passive pressure containment—utilizing reinforced polyetheretherketone (PEEK)-reinforced fiberglass composite construction—to absorb thermal expansion, resist chemical corrosion from concentrated HNO₃, HF, HCl, and H₂O₂, and maintain dimensional stability under cyclic thermal loading up to 300 °C and pressures exceeding 15 MPa. Unlike generic pressure vessels, the XD-9916 outer vessel features precision-machined alignment grooves, integrated venting channel geometry, and torque-optimized flange interfaces that ensure repeatable sealing performance across all 42 sample positions. Its design conforms to the fundamental safety architecture defined in ISO 17025-accredited laboratories for trace metal analysis workflows.
Key Features
- 42-position modular configuration compatible with standardized rotor assemblies used in high-throughput microwave digestion platforms
- Multi-layer composite shell comprising aerospace-grade fiberglass fabric impregnated with PEEK-based thermoplastic resin for enhanced tensile strength and creep resistance
- Integrated pressure-relief micro-channels machined into the vessel base to enable controlled venting prior to catastrophic failure—aligned with IEC 61000-4-5 surge immunity principles for ancillary electronics protection
- Chemical resistance validated per ASTM D543 against Class A–C mineral acids, including hydrofluoric acid concentrations up to 10 v/v% at 220 °C
- Thermal mass optimized to minimize temperature gradient deviation across adjacent cavities (< ±1.2 °C at 200 °C steady state), supporting ISO 11843-2 detection limit consistency
- Traceable manufacturing batch coding laser-etched on each unit for full GLP-compliant audit trail maintenance
Sample Compatibility & Compliance
The XD-9916 outer vessel supports all standard 55 mL high-purity quartz or TFMTM (tetrafluoroethylene-modified) inner vessels used in environmental, geological, clinical, and food testing applications. It enables complete digestion of complex matrices—including silicate-rich soils (EPA Method 3052), biological tissues (USP ), and polymer composites—without compromising vessel integrity. The assembly meets mechanical safety requirements outlined in EN 61000-6-2 (immunity) and EN 61000-6-3 (emission) for laboratory instrumentation. While not a standalone analytical device, its use is integral to compliance with ISO/IEC 17025:2017 Clause 6.4.3 (equipment verification) when paired with calibrated microwave systems and documented preventive maintenance logs.
Software & Data Management
As a passive hardware component, the XD-9916 outer vessel does not interface directly with software. However, its physical consistency directly impacts data reliability in instrument control platforms such as Binzhenghong’s proprietary Digisys™ v4.2 software suite. Batch-specific vessel IDs are manually entered or scanned via optional RFID tags (sold separately) to link digestion run parameters—including ramp time, hold temperature, and maximum pressure—with individual vessel units. This linkage supports 21 CFR Part 11-compliant electronic record retention when deployed within validated LIMS environments. Audit trails generated during method execution include timestamped vessel ID entries, operator credentials, and calibration status flags from associated pressure transducers.
Applications
- Preparation of certified reference materials (CRMs) for ICP-MS multi-element quantification in geochemical surveys
- Routine heavy metal extraction from wastewater sludge per ISO 11047 and EPA 3050B protocols
- Digestion of pharmaceutical excipients containing titanium dioxide or iron oxides for USP / elemental impurities testing
- High-precision lead isotope ratio analysis (MC-ICP-MS) requiring ultra-low blank levels—enabled by low-metallic leaching characteristics verified per ISO 14851
- Regulatory submissions requiring full traceability from sample tube to final digestate, including FDA ANDA and EMA dossier support
FAQ
Is the XD-9916 outer vessel compatible with non-Binzhenghong microwave digestion systems?
Compatibility is strictly limited to Binzhenghong XD-9916-series instruments due to proprietary rotor geometry, torque coupling specifications, and pressure sensor interface alignment.
What is the recommended service life under routine QC laboratory conditions?
Under daily use (≤8 cycles/day, 220 °C max, ≤12 MPa), the vessel exhibits no measurable fatigue degradation for ≥500 cycles; replacement is advised after 3 years or 1,000 cycles—whichever occurs first—as per manufacturer’s preventive maintenance schedule.
Does this component require annual calibration?
No calibration is performed on the outer vessel itself; however, its functional integrity must be verified quarterly using visual inspection, dimensional check (±0.15 mm tolerance on flange diameter), and pressure-hold validation tests per internal SOP QM-VD-09.
