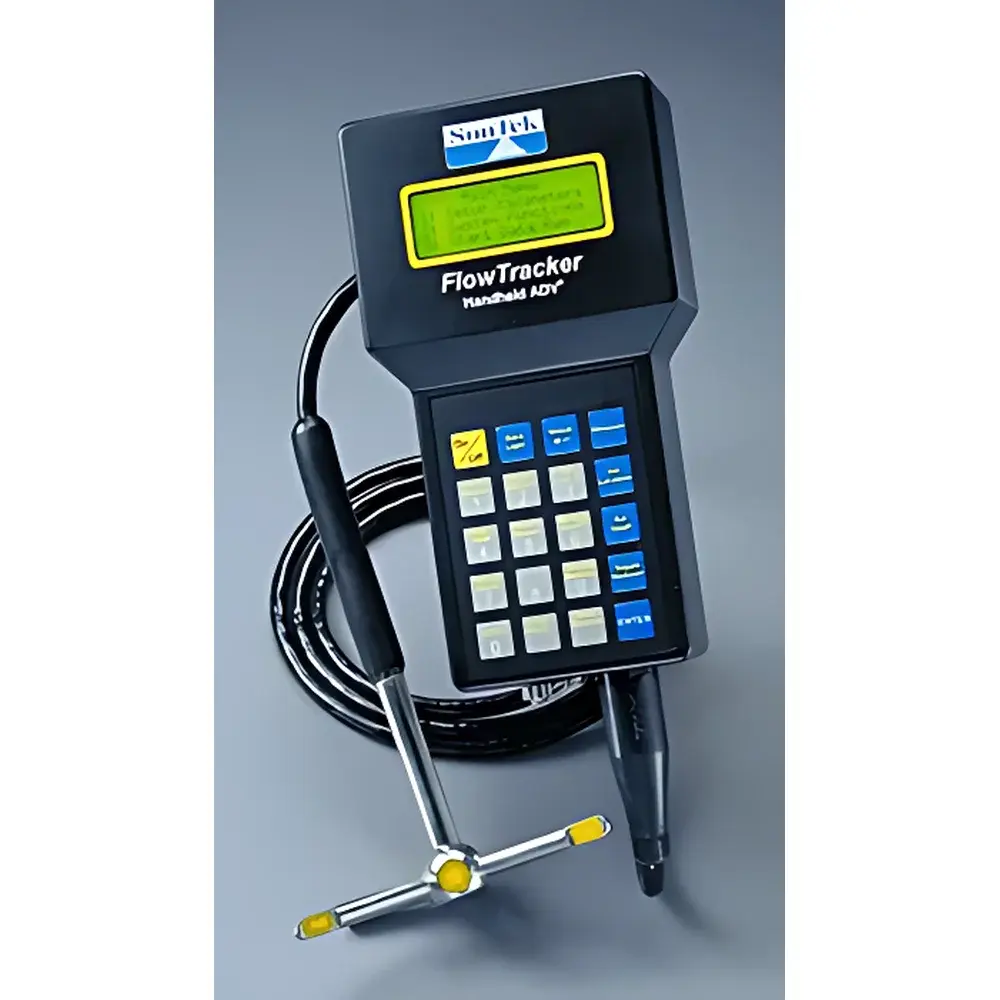

Xylem FlowTracker ADV Handheld Acoustic Doppler Velocimeter

Overview

The Xylem FlowTracker ADV is a handheld, field-deployable acoustic Doppler velocimeter engineered for high-fidelity point-velocity measurement in open-channel hydrometric applications. It operates on the principle of coherent pulsed Doppler signal processing—transmitting ultrasonic pulses into the water column and analyzing frequency shifts in backscattered signals from suspended particles to determine instantaneous, three-component (or two-component, depending on probe configuration) water velocity vectors. Unlike mechanical current meters, the FlowTracker ADV requires no moving parts, eliminating mechanical wear and enabling reliable measurements at extremely low velocities (down to 0.001 m/s) and shallow depths (as little as 2 cm), making it uniquely suited for environmental monitoring, ecological flow assessment, irrigation management, and regulatory compliance in low-energy systems such as wetlands, ditches, and ephemeral streams.

Key Features

• Sub-centimeter depth capability: Validated performance down to 0.02 m water depth—critical for measuring in riffles, seeps, and restored stream reaches where traditional instruments fail.
• Ultra-low velocity sensitivity: Resolves flow velocities as low as 0.001 m/s with 0.0001 m/s digital resolution—enabling quantification of groundwater-surface water exchange and hyporheic zone dynamics.
• SmartQC real-time quality assurance: Embedded signal-to-noise ratio (SNR), correlation coefficient, and beam coherence metrics are computed per ensemble, triggering visual and audible alerts when data reliability falls below user-defined thresholds.
• ISO- and USGS-compliant automated discharge computation: Supports multiple standardized integration methods—including partial-section mid-depth, partial-section mean, Japanese method, and USGS-approved multi-point verticals (1-, 2-, 3-, 5-, and Kreps-point protocols)—with automatic cross-sectional area interpolation and uncertainty propagation.
• Ruggedized, IP67-rated design: Fully sealed housing withstands immersion to 1 m for 30 minutes; operational across −20 °C to 50 °C ambient conditions; backlit LCD ensures legibility under low-light field conditions.
• Non-volatile memory architecture: All velocity ensembles, metadata (water level, time stamps, operator notes), and QA/QC flags persist through battery depletion—no data corruption or loss during power cycling.
• Integrated temperature sensor: High-stability thermistor (±0.1 °C resolution) enables real-time sound speed correction, improving velocity accuracy in thermally stratified or seasonally variable flows.

Sample Compatibility & Compliance

The FlowTracker ADV is validated for use in natural and engineered open channels containing sufficient acoustic scatterers (e.g., suspended sediment, plankton, or air bubbles). It complies with international hydrometric standards including ISO 748 (measurement of liquid flow in open channels using velocity-area methods), ISO 10721 (acoustic Doppler current profiler performance requirements), and USGS Techniques of Water-Resources Investigations Book 3, Chapter A17. Its measurement methodology supports GLP-aligned field data collection workflows, and all stored metadata—including operator ID, location tags, and QC flags—can be exported in audit-ready formats compatible with EPA-approved data management platforms. While not FDA 21 CFR Part 11-certified (as it is not a regulated medical device), its deterministic firmware logic, immutable timestamping, and full traceability of raw velocity ensembles meet ISO/IEC 17025 documentation requirements for accredited environmental laboratories.

Software & Data Management

Data retrieval and post-processing are supported via the FlowTracker software suite (Windows-compatible), which provides beam validation diagnostics, ensemble-level SNR visualization, customizable report generation (PDF/CSV), and export to industry-standard hydrological databases. The software natively supports multilingual interfaces—including English, Spanish, French, German, and Chinese—facilitating multinational project coordination. Raw velocity time series and processed discharge summaries can be imported into FlowPack, a dedicated hydrometric analysis platform offering advanced uncertainty modeling, stage-discharge curve fitting, and long-term trend analysis. All communication occurs over standard RS-232 serial protocol, ensuring compatibility with legacy field laptops and ruggedized tablets used in remote deployments. Firmware updates are delivered via secure HTTPS download and applied without requiring factory recalibration.

Applications

• Natural streams and rivers: Low-flow habitat assessment, baseflow separation, and sediment transport threshold studies.
• Irrigation and drainage canals: Real-time delivery verification, head loss profiling, and gate efficiency evaluation.
• Wetland and marsh hydrology: Quantifying sheet flow, tidal exchange, and evapotranspiration-driven fluxes.
• Regulatory outfalls and wastewater discharges: Compliance monitoring per NPDES permits, including minimum flow verification and effluent mixing zone characterization.
• Mining and reclamation sites: Monitoring seepage from tailings impoundments and assessing constructed channel stability.
• Urban stormwater infrastructure: Measuring flow in bioswales, detention basins, and curb-and-gutter systems under transient conditions.

FAQ

Does the FlowTracker ADV require periodic factory calibration?
No. The instrument employs factory-trimmed transducer timing and fixed sound-speed compensation algorithms. Field verification using still-water zero checks and known-velocity reference flows is recommended annually—but formal recalibration is not required under normal operating conditions.
Can the FlowTracker ADV operate in saline or turbid water?
Yes. It functions reliably in waters with salinity up to 35 ppt and turbidity exceeding 1000 NTU, provided sufficient acoustic scatterers are present. In ultra-clear or bubble-rich environments, signal strength may decrease; SmartQC alerts guide users to adjust positioning or sampling duration.
Is the RS-232 interface compatible with modern USB-only computers?
Yes. Standard USB-to-RS-232 adapters (FTDI chipset-based) are fully supported; driver installation is plug-and-play on Windows 10/11 and macOS (via third-party serial terminal applications).
How is measurement uncertainty reported?
The software calculates total discharge uncertainty per ISO 748 Annex B, incorporating velocity precision, depth measurement error, cross-sectional geometry assumptions, and spatial interpolation residuals—all documented in the final export file.
What probe configurations are supported for 3D velocity measurement?
The standard 2D side-looking probe measures u- and v-components; optional 3D side-looking or downward-looking probes add w-component resolution for turbulence intensity and Reynolds stress estimation in research-grade applications.
