YaCheng YC-018A Closed-Loop Inert-Gas Spray Dryer for Organic Solvents

Overview

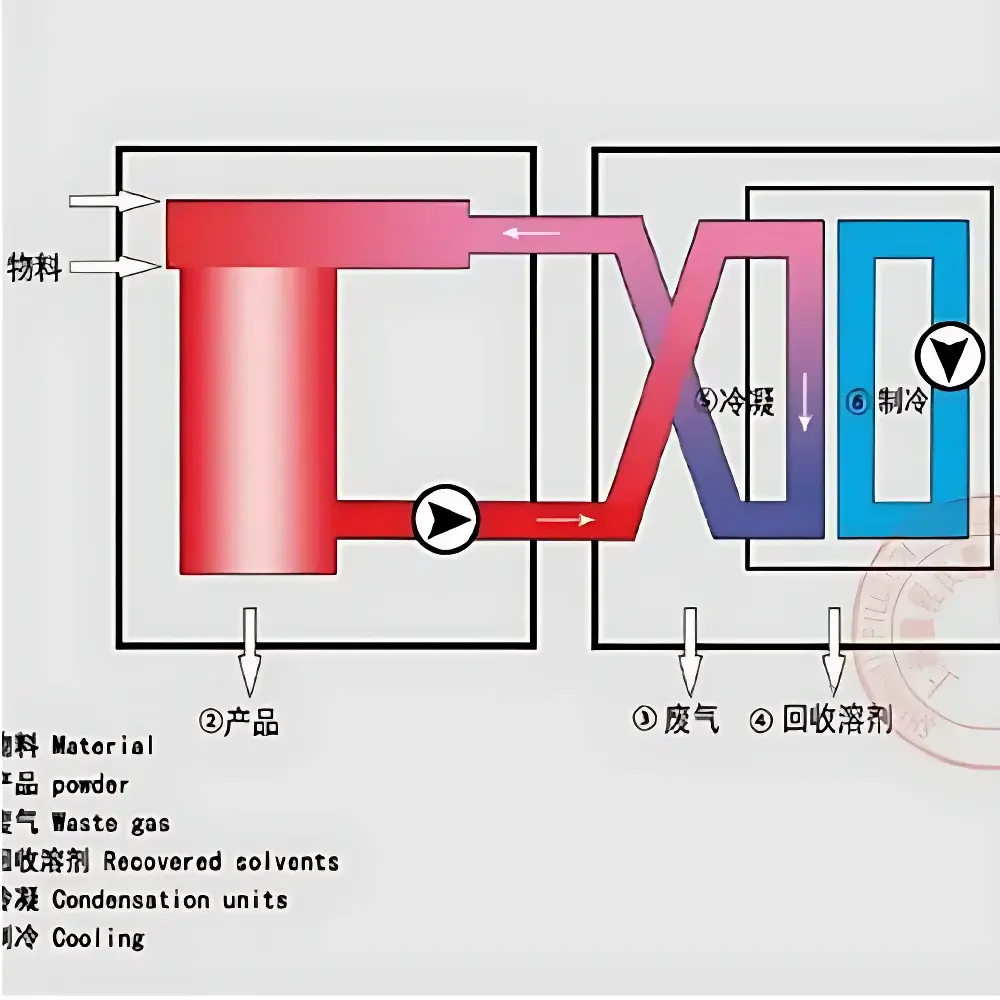

The YaCheng YC-018A Closed-Loop Inert-Gas Spray Dryer is an engineered laboratory-scale system designed for the safe, reproducible, and residue-controlled drying of heat-sensitive, oxidation-prone, or flammable-solvent-based formulations. Unlike conventional open-loop spray dryers that rely on ambient air, the YC-018A operates under a fully sealed nitrogen (N₂) recirculation environment—eliminating oxygen exposure and mitigating explosion risks associated with volatile organic solvents (e.g., acetone, ethanol, ethyl acetate, dichloromethane). Its core process leverages pneumatic two-fluid atomization: liquid feed is pressurized via peristaltic pump and nebulized by high-purity N₂ through a concentric nozzle; concurrent counter-current or co-current flow of heated inert gas induces rapid solvent evaporation in the drying chamber. Resulting particles are separated via cyclonic force, collected in an inert-atmosphere receiving vessel, while saturated N₂–solvent vapor passes through a condenser–heat exchanger unit where solvent is liquefied and recovered (>95% typical recovery efficiency), and cooled, purified N₂ is returned to the inlet stream. This closed-loop architecture satisfies intrinsic safety requirements for handling Class I flammable liquids per NFPA 30 and supports compliance with ATEX Zone 2 / IECEx design principles when configured with appropriate instrumentation.

Key Features

• Inert gas management system with real-time O₂ concentration monitoring (0–10% range, ±0.1% accuracy); automatic emergency shutdown triggered at user-defined threshold (default: 2.5% v/v O₂)

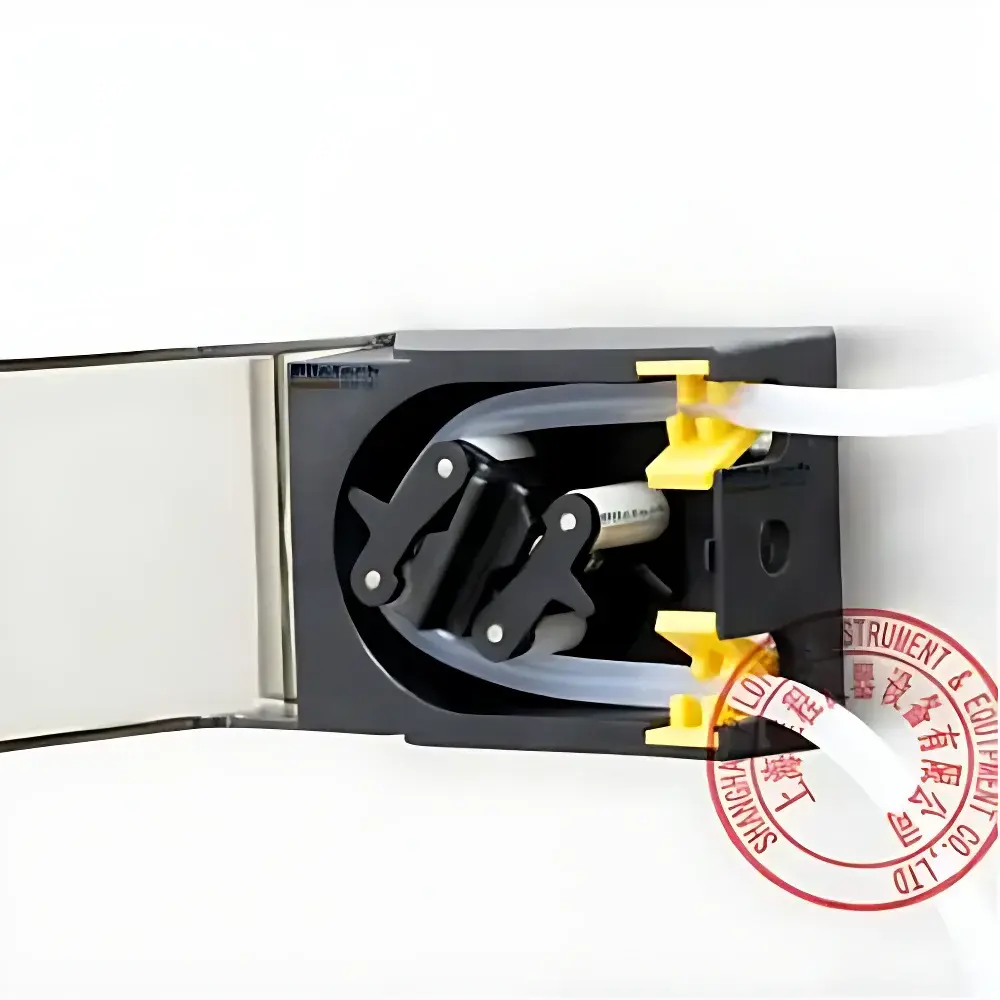

• 7-inch color touchscreen HMI with PLC-based control logic—supports full parameter logging, recipe storage, and dynamic adjustment during operation (inlet temperature, feed rate, atomization gas pressure, needle purge frequency)

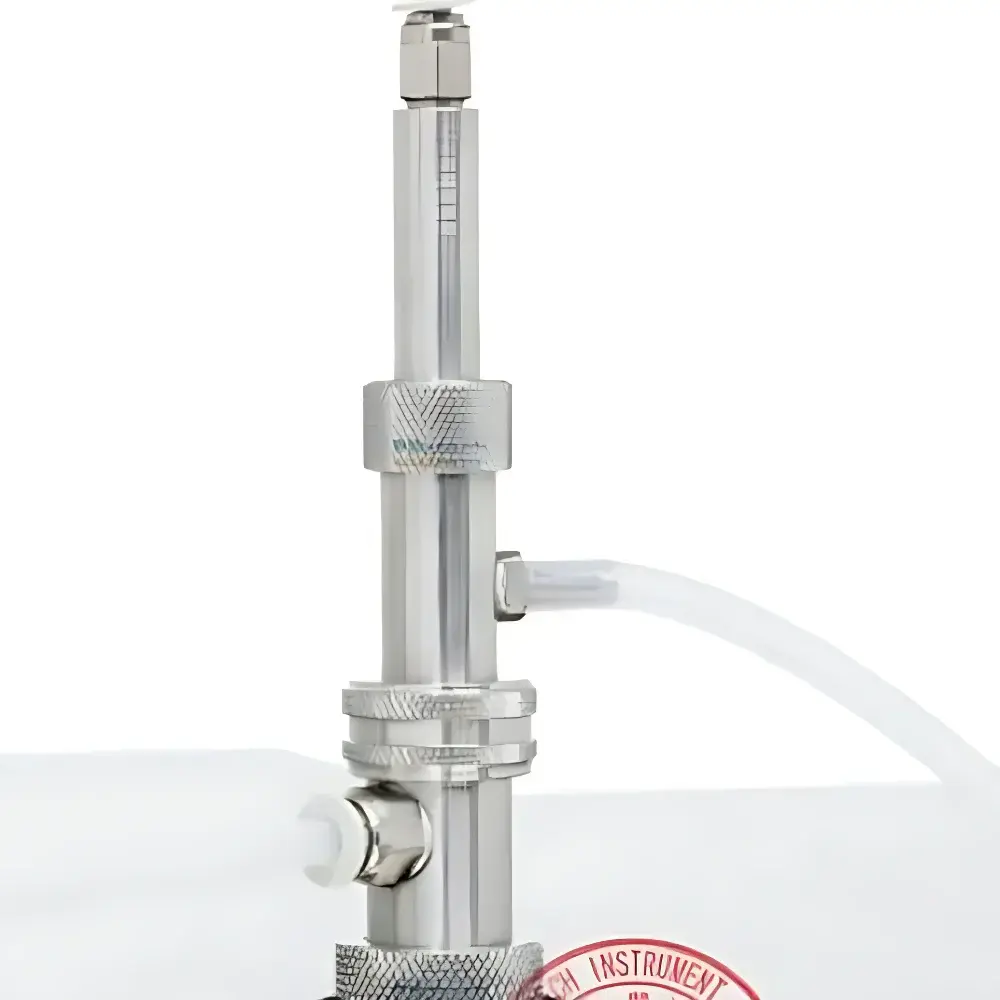

• Concentric dual-channel nozzle assembly with vertical position adjustability—ensures axial symmetry of spray plume, eliminates wall impaction, and maximizes powder yield and size uniformity
• Integrated solvent recovery train comprising plate-type heat exchanger and low-temperature condenser (optionally coupled with external chiller for sub-0 °C condensation of low-boiling solvents)
• Robust thermal architecture: stainless steel 316L drying chamber, ceramic-insulated heating elements, and corrosion-resistant centrifugal blower with non-contact gas-path design (no internal lubrication or bearing exposure to solvent vapors)
• Intelligent post-run cooldown protocol: fan continues operation until chamber internal temperature falls below 50 °C, independent of operator input—prevents thermal stress and residual solvent accumulation
• Minimal sample requirement: as low as 100 mL per run, scalable to continuous 3000 mL/h throughput—ideal for formulation screening, stability studies, and small-batch GMP-adjacent pilot work

Sample Compatibility & Compliance

The YC-018A accommodates aqueous, alcoholic, ketonic, ester-based, and chlorinated solvent systems—including but not limited to methanol, isopropanol, THF, DMF, and acetonitrile—enabling processing of biologics (peptides, monoclonal antibody fragments), enzyme suspensions, lipid nanoparticles (LNPs), polymer micelles, and agrochemical actives. Its closed-loop configuration aligns with ISO 8573-1:2010 compressed gas purity standards (Class 2 solid/particulate, Class 3 water, Class 2 oil) for N₂ supply. When operated with audit-trail-enabled firmware (optional), the system supports ALCOA+ data integrity principles and can be validated per ASTM E2500–22 (User Requirements Specification) and ICH Q5C (stability testing of biotechnological products). Oxygen monitoring and forced shutdown functionality satisfy OSHA 1910.119 Process Safety Management (PSM) criteria for highly hazardous chemicals.

Software & Data Management

The embedded controller logs all critical process variables—including inlet/outlet temperatures, N₂ flow rate, O₂ partial pressure, feed pump RPM, and cyclone differential pressure—at 1-second intervals. Raw data exports in CSV format via USB; optional Ethernet/IP interface enables integration into LabVantage or Thermo Fisher SampleManager LIMS environments. Audit trail functionality (21 CFR Part 11 compliant with electronic signature module) records user logins, parameter modifications, alarm events, and system state transitions—with immutable timestamps and operator ID attribution. All firmware updates undergo SHA-256 checksum verification prior to installation.

Applications

• Encapsulation of labile APIs into amorphous solid dispersions using solvent-based polymer solutions
• Production of inhalable dry powders from ethanol-based liposomal suspensions
• Stabilization of probiotic cultures and vaccine adjuvants via cryo-protectant-assisted spray drying
• Rapid screening of excipient–drug compatibility under inert atmosphere to prevent Maillard degradation
• Recovery and reconstitution of nanocrystal suspensions post-organic-phase synthesis
• Scale-down modeling for pharmaceutical fluid-bed or spray dryer tech transfer (ICH Q5A–Q5E aligned)

FAQ

What inert gases are compatible with the YC-018A system?

Nitrogen is standard; argon and helium may be used with pressure regulator and flow calibration adjustments.
Can the system handle chlorinated solvents such as chloroform or DCM?

Yes—provided the condenser operating temperature is maintained below the solvent’s dew point and all wetted parts (gaskets, seals) are selected for chemical resistance (e.g., Viton® or Kalrez®).
Is the collected powder automatically protected from moisture or oxygen during discharge?

The collection vessel features a quick-connect inert-gas purging port; manual or automated glovebox integration is recommended for oxygen-sensitive materials.
Does the YC-018A support GMP documentation packages?

Factory-supplied IQ/OQ protocols and traceable calibration certificates (temperature sensors, flow meters, O₂ analyzers) are available upon request.
What maintenance intervals are recommended for long-term reliability?

Nozzle inspection every 50 hours; O₂ sensor recalibration every 3 months; condenser coil cleaning every 200 operational hours—full maintenance schedule provided in the technical manual.
