Showing 1–30 of 111 results
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YC-210 |
| Instrument Type | Automated Quantitative Concentrator |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Region Classification | Domestic (China) |

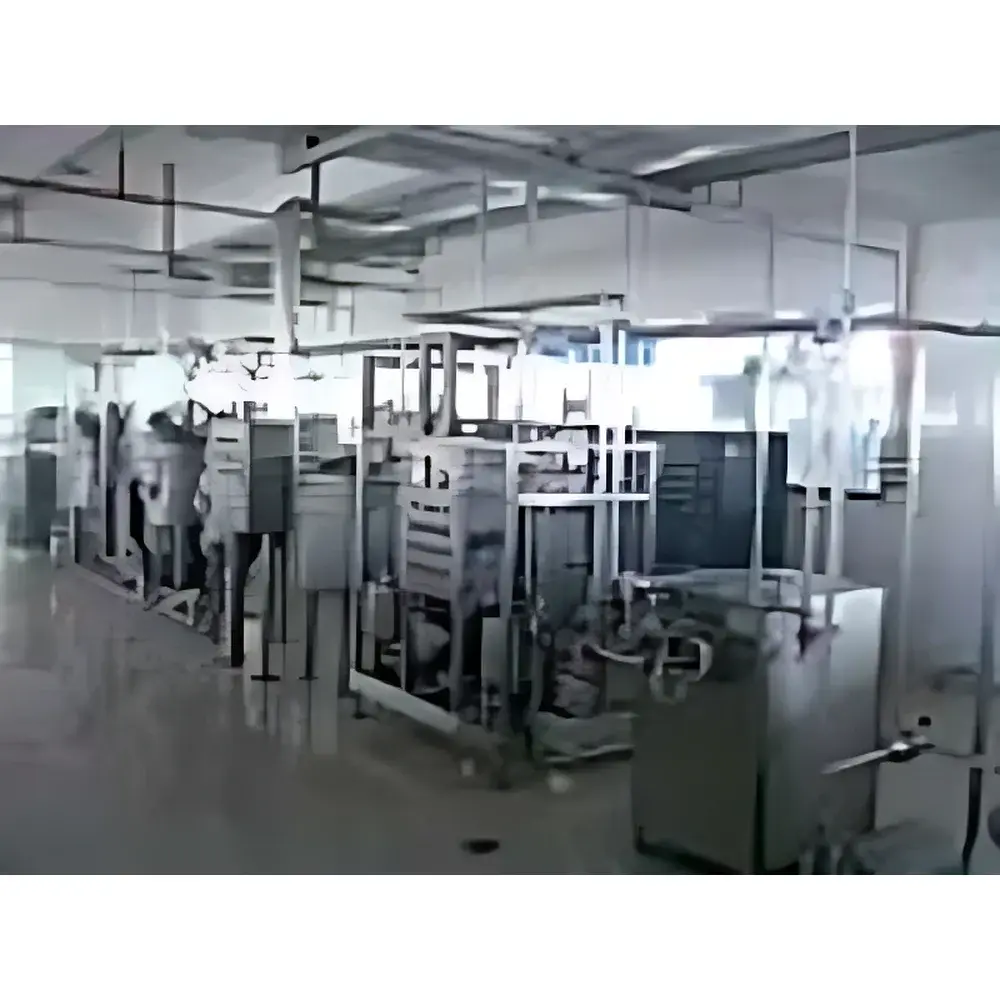

| Model | YC |
| Pricing | Upon Request |
| Capacity | 20 L/h, 50 L/h, 100 L/h, 200 L/h, 500 L/h |
| Brand | YaCheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM Manufacturer |
| Country of Origin | China |
| Model | YC-02 |
| Rated Capacity | 20–25 L/h (adjustable flow: 5–50 L/h) |
| Minimum Sample Volume | 3–5 L |
| Sterilization Temperature Range | Up to 150 °C |
| Temperature Control Accuracy | ±0.5 °C (PID-controlled) |
| Sterilization Hold Time Options | 3, 5, 10, 30 s (optional up to 300 s) |
| Max Operating Pressure | 8 bar |
| CIP Flow Rate | 400 L/h |
| Product Flow Rate (Sterilization Mode) | 5–25 L/h |
| Heating Medium | Integrated Overheated Water Generator + Dual High-Temp Circulating Pumps |
| Cooling | Dual-stage tubular cooling (tap water to near-ambient) |
| Construction Material | Full 316L stainless steel |
| Control System | PLC with 10.4″ color touchscreen HMI |
| Data Export | USB export to Excel (.xlsx), direct thermal printing support |
| SIP & CIP | Built-in SIP capability |
| Dimensions (H×L×W) | 1650 × 1150 × 910 mm |
| Power Rating | 10 kW |
| Optional Add-ons | Homogenizer integration, aseptic filling chamber (10 L jacketed buffer tank + single-head filler) |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YC-03 |
| Pricing | Upon Request |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM Manufacturer |
| Model | YC-1000 |
| Power Supply | 220 V / 50 Hz, 5 kW |
| Heating Power | 3 kW |
| Spray Drying Capacity | 1500 mL/h |
| Fluidized Bed Granulation/Coating Capacity | 1000 g/batch |
| Inlet Air Temperature (Spray Drying) | 105–200 °C |
| Inlet Air Temperature (Fluidized Bed) | 40–150 °C |
| Peristaltic Pump Flow Rate | 0–1500 mL/h |
| Atomizing Air Pressure | 1–3 bar |
| Drying Chamber Volume | 10 L (Borosilicate Glass + Stainless Steel) |
| PID Temperature Control Accuracy | ±1 °C |
| Touchscreen Interface | Color LCD with Real-time Display of Inlet Temp, Fan Frequency, Fluid Bed Temp, Pump Speed, Pulse Cleaning Frequency |
| Construction Material | Full 316L Stainless Steel |
| Minimum Sample Requirement | 50 g |
| Footprint | 0.5 m² |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | YC-1800 |
| Pricing | Upon Request |
| Max Feed Rate | 1500 mL/h |
| Minimum Sample Volume | 50 mL (varies with solids content) |
| Inlet Air Temperature Range | 110–150 °C |
| Temperature Control Accuracy | ±1 °C (PID-controlled) |
| Nozzle Orifice Options | 0.5, 0.7, 1.0, 1.5, 2.0 mm (stainless steel) |
| Power Supply | 4 kW / 380 V AC |
| Construction | Full 316L stainless steel |
| Atomization | Two-fluid pneumatic nozzle system |
| Integrated Needle Cleaner | Auto-adjustable frequency |
| Noise Level | Compliant with ISO 7779 laboratory noise standards |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | YC-1800 |
| Heating Temperature Range | 110–150 °C |
| Max. Feed Rate | 1500 mL/h |
| Minimum Sample Volume | 50 mL (varies with solids content) |
| Nozzle Orifice Options | 0.5, 0.7, 1.0, 1.5, 2.0 mm |
| Temperature Control Accuracy | ±1 °C (PID-regulated) |
| Power Supply | 4 kW / 380 V |
| Construction | Full Stainless Steel (AISI 304) |
| Atomization | Two-Fluid Pneumatic Nozzle System |
| Integrated Cleaning Function | Automatic Needle Cleaner (Adjustable Frequency) |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM Manufacturer |
| Country of Origin | China |
| Model | YC-310 |
| Pricing | Upon Request |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YC-510 |
| Maximum Feed Rate | 500 mL/h |
| Inlet Air Temperature Range | 50–200 °C |
| Vacuum Level | −0.08 MPa |
| Particle Size Range | 1–25 µm |
| Temperature Control Accuracy | ±1 °C |
| Nozzle Orifice | 1.0 mm standard (0.5/0.8/1.5/2.0 mm optional) |
| Minimum Sample Volume | 10–20 mL |
| Final Moisture Content | <1% w/w |
| Construction Material | Full 316L Stainless Steel |
| Power Rating | 3.5 kW |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | YC-610 |
| Pricing | Upon Request |
| Touchscreen | 7-inch color HMI with PLC control |
| Batch Capacity | 100–400 g per batch |
| Heating Power | 3 kW (PID temperature control) |
| Air Consumption | 0.6 m³/min |
| Fan Airflow | 1.5 m³/min (variable-frequency controlled) |
| Power Supply | 220 V / 50 Hz, Total Rated Power: 4 kW |
| Coating Pan Diameter | φ210 mm (customizable) |
| Motor | 370 W, infinitely variable speed (adjustable via touchscreen) |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Manufacturer |
| Region Category | Domestic (China) |
| Model | YC-610 |
| Pricing | Upon Request |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | YC-610 |
| Pricing | Upon Request |
| Touchscreen | 7-inch Color HMI |
| Control System | PLC-based Automation |
| Batch Capacity | 100–400 g per batch |
| Heating Power | 3 kW (PID Temperature Control) |
| Air Consumption | 0.6 m³/min |
| Fan Airflow | 1.5 m³/min (Variable-Frequency Controlled) |
| Power Supply | 220 V / 50 Hz |
| Total Power Rating | 4 kW |
| Coating Pan Diameter | φ210 mm (Customizable) |
| Motor | 370 W, Stepless Speed Regulation |
| 雾化压力显示与自动保护 | Yes (Real-time Display & Automatic Peristaltic Pump Stop on Pressure Deviation) |
| Nozzle Features | Adjustable Spray Fan Angle, Integrated Needle-Cleaning Function, Programmable Needle Stroke Frequency |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YC-610 |
| Pricing | Upon Request |
| Touchscreen | 7" Color HMI |
| Control System | PLC-Based Automation |
| Batch Capacity | 100–400 g |
| Heating Power | 3 kW (PID Temperature Control) |
| Air Consumption | 0.6 m³/min |
| Fan Airflow | 1.5 m³/min (Variable-Frequency Controlled) |
| Voltage/Frequency | 220 V / 50 Hz |
| Total Power | 4 kW |
| Drum Diameter | φ210 mm (Customizable) |
| Motor Power | 370 W (Infinitely Variable Speed Control) |
| 雾化压力显示与自动保护 | Yes |
| Spray Nozzle | Adjustable Fan-Angle Nozzle with Needle-Cleaning Function |
| Ventilation Design | Optimized Inlet/Outlet Air Ducts |
| Special Drum Options | Micro-Tablet Drum Available |
| Compliance | Designed for GLP-compliant R&D environments |
| Key | Brand: YaCheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | YC-910 |
| Throughput | 1–3 kg/hr |
| Extruder Speed | 50 rpm |
| Spheronizer Disc Speed | 1400 rpm |
| Pellet Diameter Range | 0.3–3 mm |
| Disc Diameter | 250 mm |
| Power Rating | 3 kW |
| Compressed Air Requirement | 0.3 m³/h |
| Integrated Cooling System | Built-in Chilled Water Circulation Unit |
| Compliance | Designed for GLP-compliant lab-scale development and GMP-aligned process validation |
| Brand | YaCheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YC910 |
| Pricing | Available Upon Request |
| Throughput | 1–3 kg/hr |
| Extrusion Speed | 50 rpm |
| Spheronization Speed | 1400 rpm |
| Pellet Diameter Range | 0.3–3 mm |
| Disc Diameter | 250 mm |
| Power Rating | 3 kW |
| Compressed Air Requirement | 0.3 m³/h |
| Integrated Cooling System | Built-in Chilled Water Circulation Unit |
| Process Mode | Wet Extrusion–Spheronization–Drying–Film Coating (Sequential or Standalone) |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YC-015 |
| Maximum Feed Rate | 1500 mL/h |
| Particle Size Range | 1–25 µm |
| Inlet Air Temperature Range | Up to 250 °C |
| Drying Residence Time | 1.0–1.5 s |
| Temperature Control Accuracy | ±1 °C (PID-controlled) |
| Noise Level | <60 dB(A) |
| Standard Nozzle Orifice | 1.0 mm (optional: 0.5/0.8/1.5/2.0 mm) |
| Construction Material | 316 Stainless Steel + Borosilicate Glass |
| Power Supply | 3.5 kW, 220 V, Single-phase |
| Key | Brand: Yacheng/PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YC-1000 |
| Max Feed Rate (Spray Drying) | 1500 mL/h |
| Inlet Air Temperature Range (Spray Drying) | 105–200 °C |
| Fluidized Bed Inlet Air Temp | 40–150 °C |
| Pump Flow Range | 0–1500 mL/h |
| Atomizing Air Pressure | 1–3 bar |
| Drying Chamber Volume | 10 L |
| Construction | Full 316L Stainless Steel + Borosilicate Glass Expansion Chamber |
| Heating Power | 3 kW |
| Total Electrical Load | 5 kW (220 V/50 Hz) |
| Minimum Sample Requirement | 50 g per granulation batch |
| Compliance | Designed for GLP-compliant R&D workflows |
| Brand | YaCheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YC-1800 |
| Price | Upon Request |
| Max Feed Rate | 1800 mL/h |
| Minimum Sample Volume | 50 mL |
| Drying Inlet Temperature Range | 110–150 °C |
| Temperature Control Accuracy | ±1 °C (PID) |
| Nozzle Orifice Options | 0.5, 0.7, 1.0, 1.5, 2.0 mm |
| Power Supply | 4 kW / 380 V AC |
| Construction | Full 316L Stainless Steel |
| Atomization | Dual-Fluid Pneumatic Nozzle |
| Noise Level | <65 dB(A) |
| Particle Flowability | High (Narrow Normal Size Distribution) |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | YC-1800 |
| Max Evaporation Rate | 1500 mL/h |
| Inlet Air Temperature Range | 105–200 °C |
| Minimum Feed Volume | 50 mL |
| Temperature Control Accuracy | ±1 °C (PID) |
| Drying Time | 1.0–1.5 s |
| Nozzle Orifice Options | 0.5 / 0.7 / 1.0 / 1.5 / 2.0 mm |
| Noise Level | <60 dB(A) |
| Power Supply | 4 kW / 220 V |
| Construction | Stainless Steel 316L + Borosilicate Glass |
| Compressor | Oil-Free Air Compressor |
| Optional Upgrade | Nitrogen-Closed Loop System (YC-1800A) |
| Brand | Yacheng/PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YC-1800 |
| Heating Temperature Range | 110–150 °C |
| Max. Feed Rate | 1800 mL/h |
| Minimum Sample Volume | 50 mL |
| Nozzle Orifice Options | 0.5 / 0.7 / 1.0 / 1.5 / 2.0 mm |
| Temperature Control Accuracy | ±1 °C (PID) |
| Power Supply | 4 kW / 380 V |
| Construction | Full Stainless Steel |
| Atomization | Two-Fluid Pneumatic Nozzle |
| Display | Color LCD Touchscreen (Chinese Interface) |
| Key | Brand: YaCheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China) |
| Model | YC020 |
| Pricing | Upon Request |
| Tank Volume | 20 L |
| Batch Feed Capacity | 0.3–5 kg |
| Minimum Feed | 0.3 kg |
| Vacuum Range | 0 to −0.08 MPa |
| Temperature Control Accuracy | ±2 °C |
| Heating Power | 9 kW @ 380 V |
| Condenser Area | 0.5 m² |
| Cooling Water Consumption | 1 t/h @ <0.3 MPa |
| Construction Material | SUS304 Stainless Steel |
| Footprint | 2–3 m² |
| Operating Pressure Range | −0.08 MPa to +0.3 MPa (gauge) |
| Concentrate Density Range | 1.10–1.38 g/mL |
| Solvent Compatibility | Water, Ethanol, and Other Organic Solvents |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | YC-01 |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application Scope | Laboratory Use |
| Maximum Batch Capacity | 3 L per cycle |
| Spray Freezing Throughput | 300–2500 mL/h |
| Collection Efficiency | ≥98% (based on 15% dextrin solution) |
| Construction Material | SUS304 Stainless Steel |
| Control System | PLC with 10-inch Color Touchscreen |
| Integrated Refrigeration | Built-in Compressor |
| Power Supply | 220 V, 3 kW |
| Heating Method | Radiant Heating |
| Vacuum Interface & Compressed Air Inlet | Standardized Onboard Ports |
| Footprint | ~1 m² |
| Mobility | Equipped with Casters |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | YC-01 |
| Instrument Type | Benchtop Spray Freeze Dryer |
| Application Scope | Research & Development Laboratories |
| Maximum Batch Capacity | 3 L per cycle |
| Spray Freezing Throughput | 300–2500 mL/h |
| Collection Efficiency | ≥98% (based on 15% dextrin solution) |
| Control System | PLC with 10-inch color touchscreen |
| Construction Material | SUS304 stainless steel |
| Integrated Refrigeration | Built-in compressor (no external chiller required) |
| Power Supply | 220 V AC, 3 kW |
| Heating Method | Radiant heating with programmable temperature control |
| Vacuum Interface | Standard KF-25 port |
| Compressed Air Inlet | Integrated |
| Footprint | ~1 m² |
| Mobility | Equipped with casters |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | YC-01 |
| Instrument Type | Standard Shelf-Type |
| Application Scope | Laboratory Use |
| Maximum Batch Capacity | 3 L per cycle |
| Spray Freezing Throughput | 300–2500 mL/h |
| Final Product Collection Efficiency | ≥98% (based on 15% dextrin test) |
| Control System | PLC with 10-inch color touchscreen |
| Construction Material | SUS304 stainless steel |
| Power Supply | 220 V, 3 kW |
| Integrated Refrigeration | Yes (built-in compressor) |
| Heating Method | Radiant heating, temperature programmable |
| Vacuum Interface & Compressed Air Inlet | Standardized onboard ports |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | YC-01 |
| Instrument Type | Standard Shelf-Type Freeze Dryer |
| Application Scope | Laboratory Use |
| Maximum Batch Capacity | 3 L per cycle |
| Spray Freezing Rate | 300–2500 mL/h |
| Collection Efficiency | ≥98% (based on 15% dextrin solution) |
| Construction Material | SUS304 Stainless Steel |
| Control System | PLC with 10-inch Color Touchscreen |
| Integrated Refrigeration | Built-in Compressor (No External Chiller Required) |
| Power Supply | 220 V, 3 kW |
| Heating Method | Radiant Heating |
| Vacuum Interface & Compressed Air Inlet | Standard Fitted |
| Footprint | ~1 m² |
| Mobility | Equipped with Casters |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | YC-01 |
| Instrument Type | Benchtop Spray Freeze Dryer |
| Application Scope | R&D and Analytical Laboratories |
| Maximum Batch Capacity | 3 L per cycle |
| Spray Freezing Rate | 300–2500 mL/h |
| Collection Efficiency | ≥98% (based on 15% dextrin solution) |
| Construction Material | SUS304 Stainless Steel |
| Control System | PLC with 10-inch Color Touchscreen |
| Integrated Refrigeration | Built-in Compressor (No External Chiller Required) |
| Power Supply | 220 V AC, 3 kW |
| Heating Method | Radiant Heating with Adjustable Temperature Setpoint |
| Footprint | ~1 m² |
| Vacuum Interface & Compressed Air Inlet | Standard Fitted |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Product Origin | Domestic (China) |
| Model | YC-010 |
| Pricing | Upon Request |
| Brand | YaCheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YC-010 |
| Extraction Chamber Volume | 10 L |
| Temperature Control Accuracy | ±2 °C |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YC-010 |
| Pricing | Upon Request |
| Extraction Vessel Capacity | 10 L (effective) |
| Construction | 3-layer stainless steel (inner polished, middle thermal oil jacket, outer PU insulation) |
| Condenser Area | 0.5 m² (tubular) |
| Vacuum Range | 0 to –0.08 MPa |
| Temperature Control | PID-regulated, ±2 °C accuracy |
| Cooling Water Consumption | 0.5 t/h at <0.3 MPa pressure |
| Material Contact Surface | AISI 316L stainless steel |
| Operating Pressure Modes | Vacuum, atmospheric, and positive pressure |
| Optional Ultrasonic Module | Titanium alloy transducer, frequency selectable from 15–60 kHz |
| Brand | Yacheng / PILOTECH |
|---|---|
| Origin | Shanghai, China |
| Manufacturer | Yes |

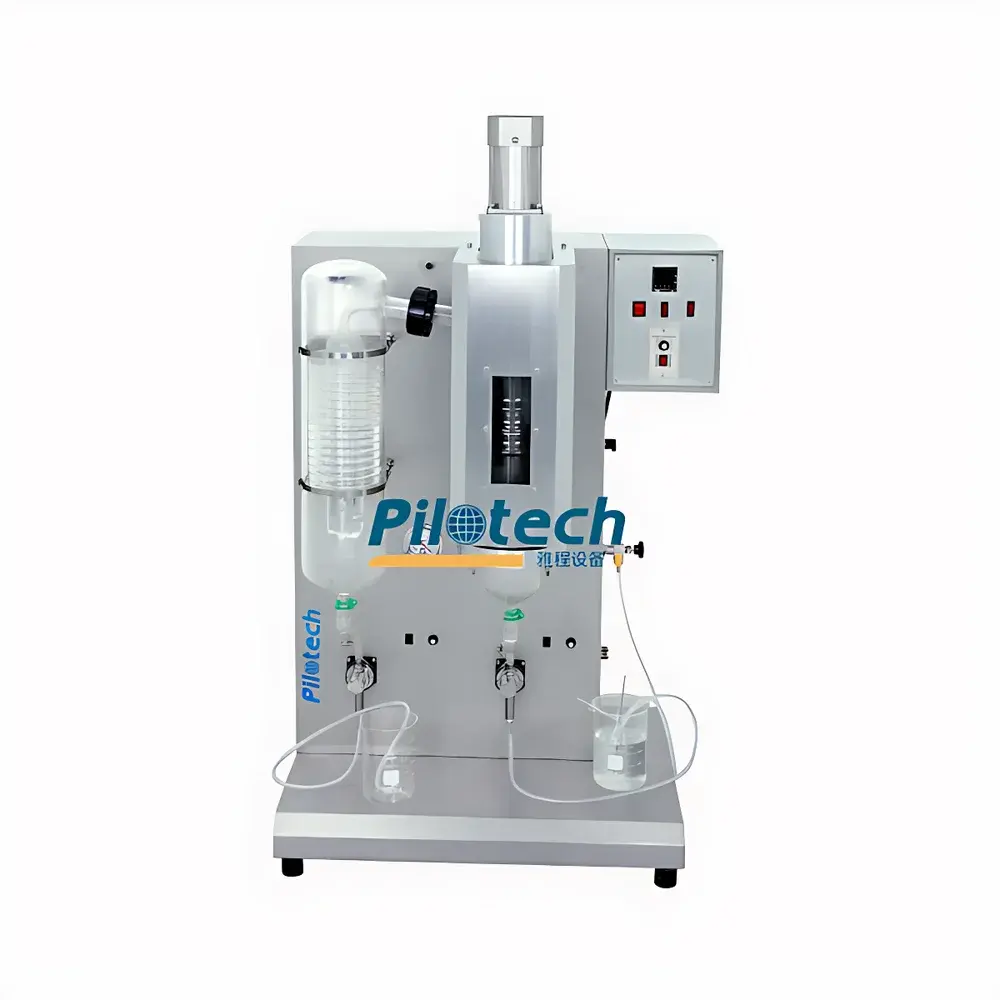

| Type | Lab-Scale Spray Dryer |
| Model | YC-015 |
| Max Feed Rate | 1500 mL/h |
| Particle Size Range | 1–25 µm |
| Inlet Air Temperature Range | Up to 250 °C |
| Drying Time | 1.0–1.5 s |
| Temperature Control Accuracy | ±1 °C (PID) |
| Noise Level | <60 dB(A) |
| Power Supply | 3.5 kW / 220 V / Single Phase |
