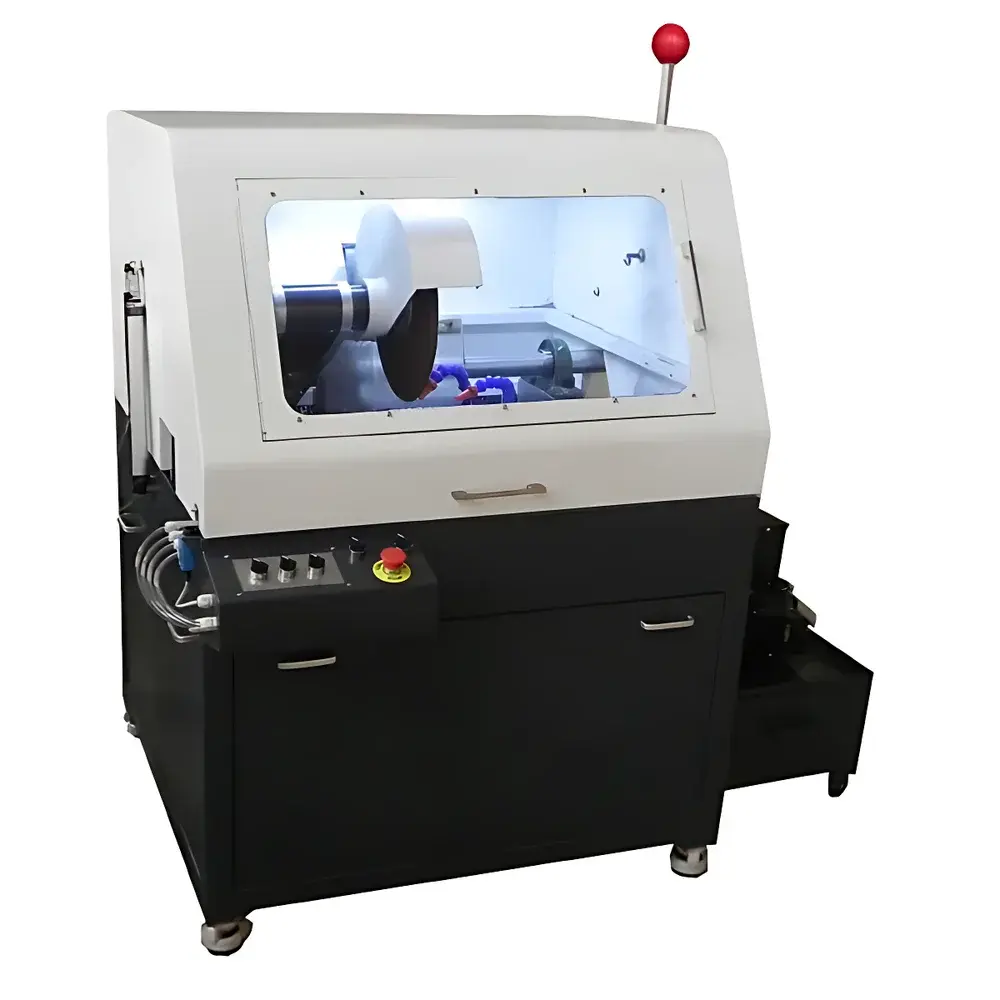

YANRUN ZY-45/65 Precision Linear Guide Cutting Machine

Overview

The YANRUN ZY-45/65 Precision Linear Guide Cutting Machine is an industrial-grade, manually operated (with optional pneumatic automation) cutting system engineered specifically for high-accuracy cross-sectional severing of linear motion components—primarily hardened steel linear guides, precision ground shafts, and cylindrical bar stock. Unlike general-purpose saws, this machine employs a rigid freestanding monoblock frame and a through-type worktable architecture to ensure minimal deflection under load, enabling consistent perpendicularity and surface integrity in cut faces. Its design conforms to fundamental mechanical metrology principles: the fixed blade axis remains orthogonal to the worktable plane, while the lateral positioning platform provides repeatable X-axis alignment within ±0.05 mm over full travel. The machine operates on the principle of abrasive cutoff using reinforced resin-bonded silicon carbide or diamond-impregnated blades, where controlled rotational speed, feed force, and coolant delivery jointly govern thermal management and edge quality—critical for downstream grinding, assembly, or metrological verification.

Key Features

• Rigid monolithic cast-iron base with vibration-damping structural geometry, minimizing resonance during high-torque cutting cycles.
• Through-type worktable (650 × 300 mm) with calibrated lateral translation mechanism, enabling precise positioning of long guide rails without re-clamping.
• Pneumatically actuated clamping system delivering uniform holding pressure across variable cross-section profiles—compatible with T-slot, H-profile, and square-section linear guides.
• Integrated automatic recirculating coolant system with 60 L reservoir and magnetic chip separator, ensuring continuous removal of ferrous swarf and stable thermal conditions at the cut interface.
• ABB-sourced industrial motors (4 kW for ZY-45; 7.5 kW for ZY-65) with IP55 enclosure rating and IE3 efficiency compliance, optimized for sustained duty-cycle operation.
• 24 V LED cold-light illumination mounted on adjustable arm, providing shadow-free viewing of the cut zone without introducing radiant heat to sensitive workpieces.

Sample Compatibility & Compliance

The ZY-45/65 accommodates linear guide rails up to 45 mm (ZY-45) or 65 mm (ZY-65) in maximum cross-sectional dimension—including DIN 647-1, JIS B 1192, and ISO 10791-4 compliant profiles—as well as solid round bars (up to Ø65 mm), square stock, and hardened alloy steels (HRC 58–62). All structural materials meet GB/T 9439-2010 gray iron casting standards; electrical components comply with IEC 60204-1 safety requirements for machinery. The machine supports GLP-aligned documentation workflows: calibration records, maintenance logs, and operator training verification can be maintained per ISO/IEC 17025 clause 6.3.3 for testing laboratories utilizing the equipment in sample preparation for dimensional or metallurgical analysis.

Software & Data Management

While the base configuration is manually controlled, optional pneumatic feed modules support integration with external PLC-based sequencing logic (e.g., Siemens S7-1200 or Allen-Bradley Micro850) via standard 24 V DC I/O interfaces. No proprietary software is embedded; however, the machine’s operational parameters—including cycle count, coolant temperature history, and clamp pressure events—are accessible via analog signal outputs (0–10 V) for connection to SCADA or LIMS systems. Audit trails for maintenance interventions are retained in physical logbooks supplied with each unit, consistent with FDA 21 CFR Part 11 expectations for non-electronic record systems used in regulated sample prep environments.

Applications

• Cutting linear guide rails to specified lengths prior to surface grinding or end-machining in OEM production lines.
• Preparing metrology-grade specimens from hardened shafts for hardness profiling (ASTM E10/E18), microstructure analysis (ISO 643), or residual stress measurement.
• Sectioning prototype motion components for fit-check validation in automated assembly cells.
• Generating standardized test coupons from bar stock for tensile (ASTM E8/E8M) or impact (ASTM E23) testing laboratories.
• Processing high-value tool steel blanks where thermal distortion must be minimized—enabled by the machine’s water-cooled abrasive cutoff methodology.

FAQ

Is the ZY-45/65 suitable for cutting non-ferrous materials such as aluminum or brass?
Yes—provided appropriate blade selection (e.g., aluminum-specific resinoid bonds) and reduced spindle speed settings are applied to prevent loading and burr formation.
Can the machine be validated for use in GMP-regulated environments?
The unit supports IQ/OQ documentation protocols; its mechanical repeatability, coolant filtration performance, and traceable component sourcing (e.g., ABB motors, ISO-certified bearings) facilitate qualification under Annex 15 and EU GMP Chapter 4 requirements.
What maintenance intervals are recommended for the magnetic coolant separator?
Magnetic drum cleaning is required every 40 operating hours; full coolant replacement and filter inspection should occur every 200 hours or quarterly—whichever comes first.
Does the machine include CE marking?
The ZY-45/65 complies with essential health and safety requirements of the Machinery Directive 2006/42/EC; CE marking is available upon request with full EC Declaration of Conformity and technical file submission.
Are replacement blades certified to ISO 5270 for abrasive wheels?
All supplied guide rail–specific cutting discs meet ISO 5270:2017 dimensional tolerances and burst-speed certification; material safety data sheets (MSDS) and EN 12413 conformity declarations are provided with each blade batch.
