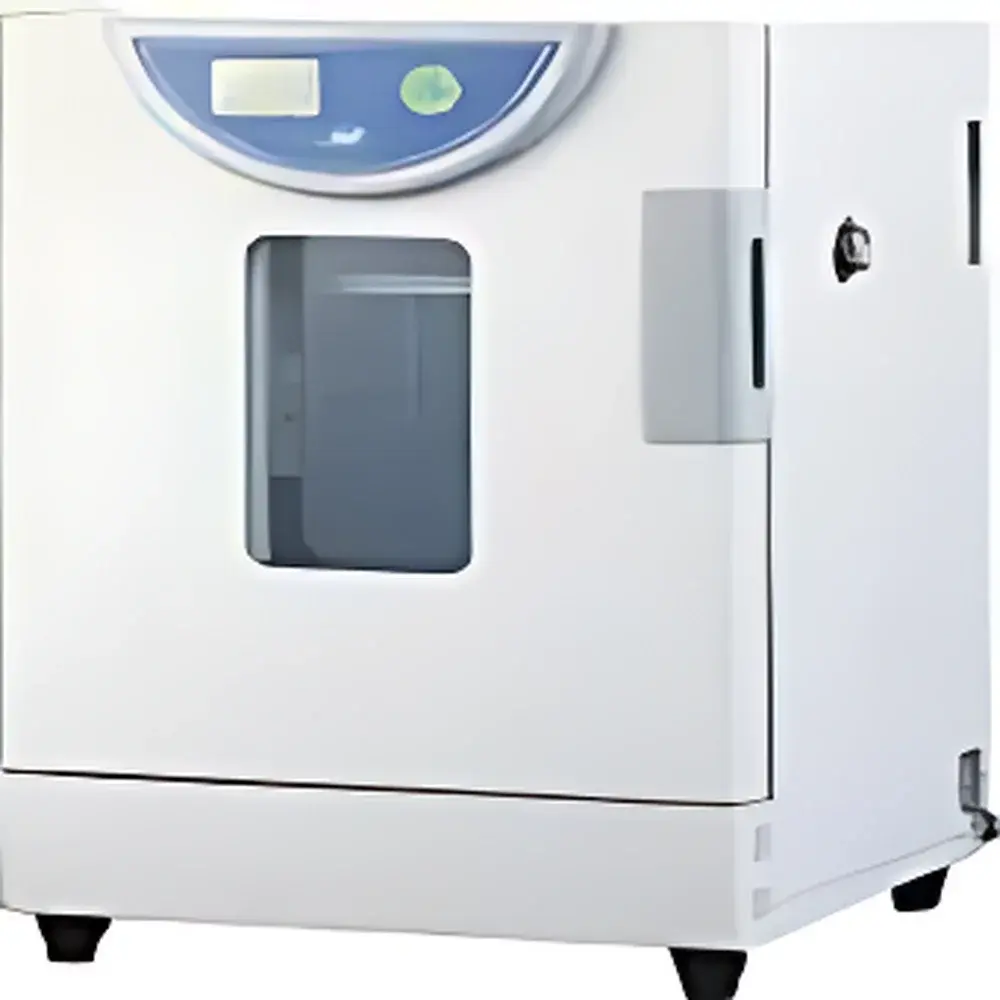

Yiheng BPG-9070A Precision Forced-Air Drying Oven

Overview

The Yiheng BPG-9070A is a precision forced-air drying oven engineered for consistent thermal processing in analytical, quality control, and research laboratories. It operates on the principle of convection-based heat transfer—using a centrifugal circulation fan and optimized airflow duct design to ensure uniform temperature distribution across the stainless-steel chamber. The unit maintains stable setpoint temperatures within ±1°C fluctuation and delivers ≤±2.5% spatial uniformity (validated at 100°C per ASTM E2207), making it suitable for applications requiring reproducible drying, curing, sterilization validation support, and moisture content determination. Its RT+10°C to 250°C operational range supports both low-temperature desiccation and high-temperature thermal stabilization protocols, while the 0.1°C digital resolution enables fine-grained parameter control essential for method development and SOP adherence.

Key Features

• Large backlit LCD display showing real-time temperature, setpoint, elapsed time, and system status—enabling intuitive menu-driven navigation without external software.
• Mirror-finish 304 stainless-steel interior with seamless quarter-radius corners and removable adjustable shelves for easy cleaning and residue-free maintenance—critical for cross-contamination-sensitive workflows.
• Left-side 25 mm diameter access port (gasket-sealed) allows feedthrough of thermocouples, sensors, or gas lines without compromising chamber integrity or thermal stability.
• Self-diagnostic firmware alerts users via on-screen fault codes (e.g., sensor open-circuit, overtemperature condition, fan failure), reducing downtime and supporting preventive maintenance planning.
• Optional microprocessor-based multi-segment programmable controller supports up to 15 segments and 30 steps, with individual time settings from 1 minute to 99 hours 59 minutes—ideal for ramp-soak-hold thermal profiles in polymer aging or pharmaceutical stability testing.
• Configurable safety architecture includes independent mechanical overtemperature cutoff (optional), audible/visual alarm triggers for deviation >±3°C from setpoint, and automatic power cutoff upon critical fault detection.

Sample Compatibility & Compliance

The BPG-9070A accommodates standard laboratory vessels—including Petri dishes, weighing boats, glass desiccators, aluminum sample pans, and ceramic crucibles—within its 80 L working volume. Its stainless-steel chamber resists corrosion from mild solvents, saline solutions, and acidic vapors commonly encountered during residual solvent removal or ash content analysis. While not certified to IEC 61010-1 as a standalone safety-certified device, the oven meets functional requirements aligned with ISO 17025 clause 6.4.3 (equipment suitability) and supports GLP/GMP documentation practices when paired with validated calibration procedures. Optional RS485 interface enables integration into centralized lab monitoring systems compliant with FDA 21 CFR Part 11 data integrity standards when used with audit-trail-enabled host software.

Software & Data Management

Data logging and traceability are supported through optional peripheral interfaces: a USB port enables direct export of temperature/time logs to FAT32-formatted USB drives; an RS485 serial interface permits bidirectional communication with SCADA platforms or LIMS using Modbus RTU protocol; and an embedded thermal printer (optional) provides hard-copy records for immediate review during audits. All timestamped data include operator ID fields (when integrated with network authentication), session start/stop markers, and deviation flags—facilitating retrospective analysis and regulatory reporting under ISO/IEC 17025 or USP . Firmware supports user-level access control (administrator/operator modes) and retains configuration history for change tracking.

Applications

• Moisture loss-on-drying (LOD) assays per USP and Ph. Eur. 2.2.32.
• Pre- and post-weighing sample conditioning prior to elemental analysis (e.g., ICP-OES, AAS).
• Thermal stabilization of reference standards and calibration weights.
• Curing of coatings, adhesives, and composite matrix resins under controlled convection environments.
• Accelerated stability testing of excipients and finished dosage forms (ICH Q1A).
• Drying of filter papers, membrane filters, and chromatography media prior to gravimetric quantification.
• Residual solvent evaporation in synthetic chemistry workups where inert atmosphere is not required.

FAQ

What is the maximum operating temperature of the BPG-9070A?

The unit supports two selectable ranges: RT+10°C to 200°C (standard configuration) or RT+10°C to 250°C (with high-temp option enabled).
Is the chamber volume verified per ISO 17025 requirements?

Chamber dimensions are factory-measured and documented in the Certificate of Conformance; volumetric verification may be performed in-house using calibrated displacement methods per ISO/IEC 17025 Section 6.4.2.
Can the oven be calibrated externally?

Yes—NIST-traceable PT100 probes can be inserted via the 25 mm port for field verification; internal Class II platinum resistance thermometer is user-calibratable using offset adjustment per manufacturer’s procedure.
Does the BPG-9070A comply with UL or CE safety standards?

It is manufactured to GB/T 15470-2002 (Chinese national standard for electric heating ovens) and carries CCC certification; CE marking is not applicable as it is not placed on the EU market directly by Yiheng.
How many shelves are included, and are they load-rated?

Three adjustable 304 stainless-steel shelves are supplied, each rated for 15 kg distributed load at 200°C; additional shelves may be ordered separately.
