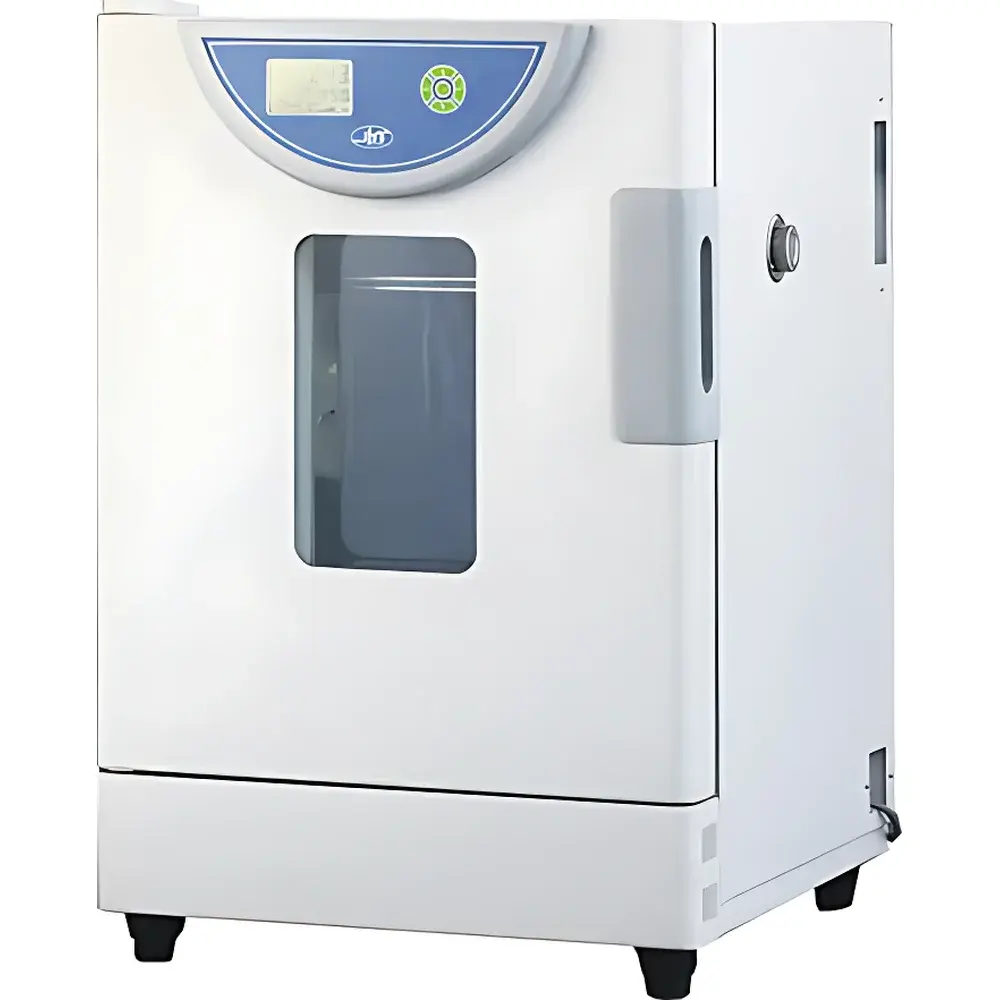

YiHeng BPG Series Precision Forced-Air Drying Oven with LCD Display

Overview

The YiHeng BPG Series Precision Forced-Air Drying Oven is engineered for reliable, repeatable thermal processing in academic, industrial, and quality control laboratories. Utilizing a robust convection-based heating architecture with a high-efficiency axial circulation fan, the BPG series ensures uniform heat distribution across the entire chamber volume—critical for moisture removal, pre-baking of components, sterilization of glassware, and thermal stabilization of samples prior to analysis. The oven operates on a proven resistive heating principle, where calibrated nickel-chromium alloy heating elements deliver stable thermal output under microprocessor-regulated feedback control. Its RT+10 °C to 200 °C standard operating range (extendable to 250 °C in select models) supports a broad spectrum of ISO/IEC 17025-compliant drying protocols—including ASTM D1654 (coating corrosion testing), ISO 7637 (electronic component conditioning), and USP (sterile product depyrogenation validation support). The unit’s mirror-polished stainless-steel interior—featuring seamless, radius-corner construction—minimizes particle entrapment and facilitates rapid decontamination, aligning with cleanroom-compatible maintenance practices.

Key Features

• Large-format backlit LCD display presenting real-time temperature, setpoint, elapsed time, and system status—all within a single visual field.
• Intuitive menu-driven interface with soft-touch keys enabling rapid parameter entry without navigational ambiguity.
• High-grade 304 stainless-steel chamber and door liner, corrosion-resistant and compliant with ISO 8573-1 Class 3 particulate standards for low-shedding environments.
• Dual independent temperature sensors (working + monitoring) integrated into the control loop for redundancy and fault detection.
• 25 mm diameter external access port (left-side mounted) allowing unobstructed insertion of thermocouples, humidity probes, or purge gas lines without compromising chamber integrity.
• Self-diagnostic firmware that logs and displays error codes (e.g., E01 = sensor open circuit, E03 = overtemperature event) directly on the LCD—reducing mean time to repair (MTTR).

Sample Compatibility & Compliance

The BPG series accommodates a wide range of sample formats—including Petri dishes, weighing boats, crucibles, PCB substrates, polymer films, and pharmaceutical excipients—without thermal distortion or cross-contamination risk. Its chamber geometry permits unrestricted airflow around stacked or nested items, supporting ICH Q5C stability protocol adherence. All models are designed per EN 61000-6-3 (EMC emissions) and EN 61000-6-2 (immunity), and meet mechanical safety requirements outlined in EN 61010-1. While not certified for hazardous location use (e.g., ATEX), the oven’s electrical isolation and grounded chassis satisfy general laboratory safety expectations under OSHA 1910.1200 and EU Directive 2014/30/EU. Optional RS485 communication enables integration into centralized facility monitoring systems compliant with FDA 21 CFR Part 11 when paired with validated audit-trail software.

Software & Data Management

Optional digital interfaces extend traceability and regulatory readiness: an RS485 port (with Modbus RTU protocol support) allows bidirectional communication with SCADA or LIMS platforms; a USB host interface accepts standard FAT32-formatted USB flash drives for autonomous logging of temperature/time profiles at user-defined intervals (1 s to 60 min resolution); and a parallel printer port (or optional embedded thermal printer) generates hard-copy records suitable for GLP audit packages. Data export formats include CSV and plain-text timestamped logs—ensuring compatibility with JMP, MATLAB, and Python-based analytical pipelines. Firmware updates are performed via USB, with version rollback capability and SHA-256 checksum verification to maintain configuration integrity.

Applications

• Residual solvent evaporation in HPLC vial preparation (USP )
• Moisture content determination per AOAC 950.46 and ISO 5530-1
• Curing of epoxy adhesives and conformal coatings (IPC-CC-830B)
• Drying of filter papers and gravimetric filters prior to ashing (EPA Method 1664)
• Pre-conditioning of reference standards and calibration weights (ISO 17034)
• Accelerated aging studies for packaging materials (ASTM F1980)

FAQ

What is the maximum allowable load weight per shelf?

Each adjustable stainless-steel shelf supports up to 15 kg uniformly distributed—verified per DIN 12880 Annex B static load testing.

Is the temperature sensor NIST-traceable?

Factory calibration uses a Pt100 sensor with ±0.3 °C accuracy at 100 °C; full NIST-traceable certification is available as a paid service with documented uncertainty budget.

Can the BPG operate continuously at 250 °C?

Yes—models designated with “/250” suffix are rated for uninterrupted operation at 250 °C, incorporating upgraded insulation and high-temp gasketing per IEC 60519-12.

Does the oven support ramp-hold programming out-of-the-box?

Standard configuration includes basic timer and setpoint hold; multi-segment ramp-soak programming requires the optional programmable controller (Order Code: BPG-PC15).

How often should preventive maintenance be scheduled?

We recommend quarterly inspection of fan belt tension, door seal compression, and sensor response time—documented per internal SOP-PM-BPG-01.
