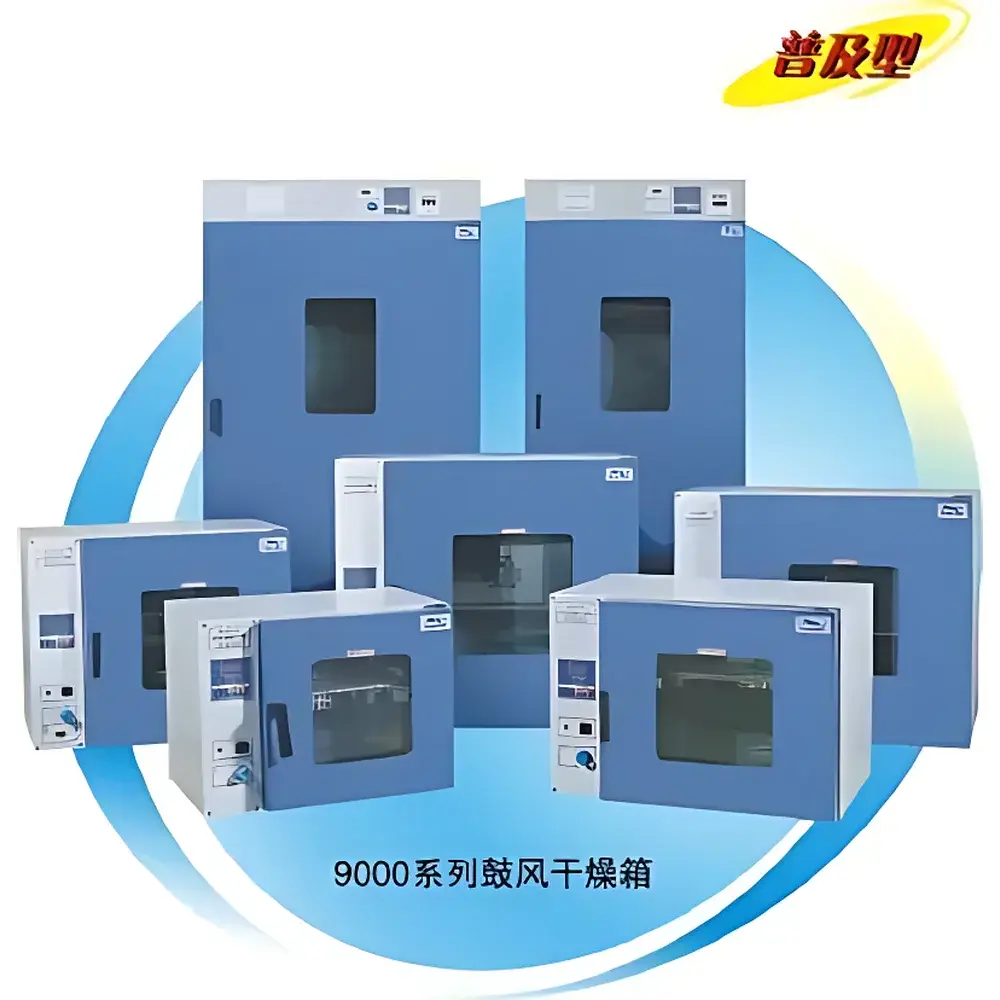

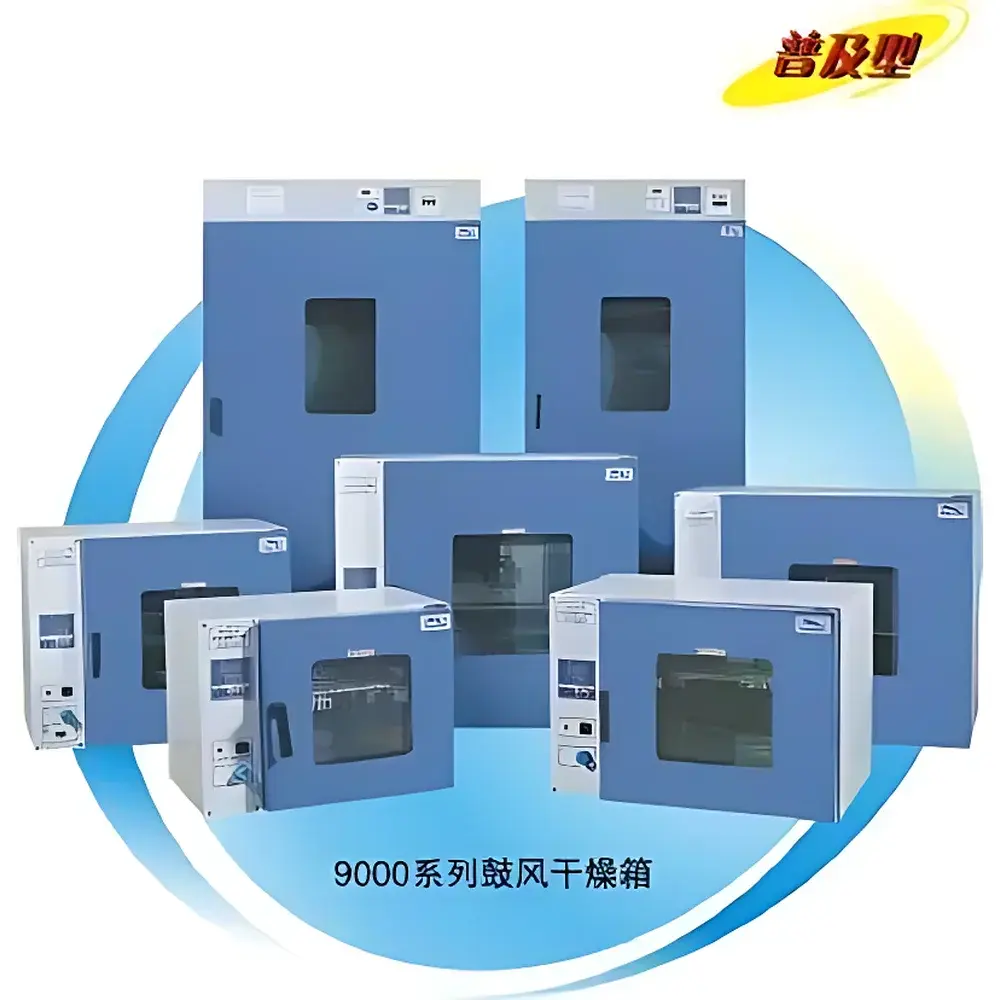

Yiheng DHG-9000 Series Forced-Air Drying Oven

Overview

The Yiheng DHG-9000 Series Forced-Air Drying Oven is an engineered thermal processing instrument designed for precise, repeatable, and uniform heat treatment of samples in research, quality control, and production environments. Utilizing a forced-convection architecture—where a high-temperature-rated centrifugal blower circulates heated air through a calibrated duct system—the oven ensures rapid thermal equilibration and minimized spatial temperature gradients across the working chamber. This principle of dynamic air exchange enables consistent drying, baking, sterilization, and wax-melting operations per ASTM E145, ISO 14644-3 (cleanroom-compatible operation), and USP for thermal decontamination protocols. The series supports ambient-start operation (RT+10°C minimum setpoint) and extends to 300°C maximum, accommodating both low-temperature moisture removal and high-temperature stabilization workflows.

Key Features

• Mirror-polished 304 stainless steel inner chamber (standard on “A” models) provides corrosion resistance, non-porous surface integrity, and ease of cleaning—critical for pharmaceutical residue control and ISO 14644-1 Class 7/8 cleanroom integration.
• Microprocessor-based P.I.D. temperature controller with digital display delivers ±1.0°C temperature stability and 0.1°C resolution, supporting traceable calibration via external reference thermometers per ISO/IEC 17025 Clause 6.5.
• Adjustable intake and exhaust dampers allow fine-tuning of internal air exchange rate—enabling optimization for volatile solvent evaporation, low-oxygen annealing, or humidity-sensitive sample handling.
• Independent over-temperature cut-off circuit (optional) acts as a hardware-level safety layer compliant with IEC 61010-1:2010 Annex BB for laboratory equipment protection.
• Robust thermal insulation using high-density ceramic fiber minimizes external surface temperature rise (<45°C at 200°C internal setpoint), meeting EN 61000-6-3 EMC emission limits.
• Modular shelving system includes 2–4 load-rated stainless steel trays (adjustable in 25 mm increments), rated for static loads up to 15 kg per shelf without deflection.

Sample Compatibility & Compliance

The DHG-9000 Series accommodates diverse sample formats—including Petri dishes, weighing boats, glassware, metal crucibles, polymer substrates, and pre-sterilized packaging—within volumetric configurations ranging from compact 16 L (DHG-9015A) to industrial-scale 1000 L (DHG-9920A). Chamber dimensions are optimized for ergonomic loading and laminar airflow distribution. All models comply with general laboratory safety standards including UL 61010-1 and GB/T 25915.1–2021 (Chinese equivalent of ISO 14644-1). When equipped with RS485 interface and optional data logging firmware, the system supports 21 CFR Part 11–compliant audit trails for electronic records in regulated GMP environments.

Software & Data Management

While the base configuration operates via front-panel controls, optional digital interfaces enable extended functionality: an RS485 port (Modbus RTU protocol) permits integration into SCADA or LIMS platforms for centralized parameter monitoring and alarm forwarding. Optional embedded thermal printer outputs time-stamped temperature logs at user-defined intervals (e.g., every 30 s), generating hard-copy records suitable for FDA inspection readiness. For advanced process validation, the optional intelligent programmable controller supports up to 30 segment ramp-soak profiles with real-time deviation alerts—aligning with Annex 15 IQ/OQ/PQ documentation frameworks.

Applications

• Moisture content determination per AOAC 950.46 and ASTM D2231 for polymers, soils, and food matrices.
• Pre-conditioning of test specimens prior to tensile, impact, or dielectric testing (ASTM D618, ISO 291).
• Thermal sterilization of glassware and stainless tools in non-critical microbiology labs (validated at ≥160°C for ≥2 h).
• Baking of coated electrodes, battery separators, and thin-film substrates under controlled convection.
• Accelerated aging studies for packaging materials per ISTA 2A and ISO 11607-1.
• Residue ashing support for gravimetric analysis (e.g., ASTM D874, ISO 6297) when used with ceramic crucibles.

FAQ

What is the difference between “A” and non-“A” model variants?
The “A” suffix denotes a mirror-finish 304 stainless steel inner chamber; non-“A” models feature galvanized steel construction—suitable for general-purpose drying but not recommended for acidic, saline, or high-purity applications.
Can the oven be validated for GMP use?
Yes—when configured with optional RS485 interface, programmable controller, and calibrated NIST-traceable thermometer, it supports IQ/OQ execution per ASTM E2500 and EU GMP Annex 15 guidelines.
Is airflow velocity measurable or adjustable?
Air velocity is not directly displayed, but intake/exhaust damper positions provide empirical control over air exchange rate; typical face velocity at chamber inlet ranges from 0.3–0.8 m/s depending on setpoint and load.
What maintenance is required for long-term reliability?
Biannual inspection of fan bearings, seal integrity verification using smoke testing, and quarterly calibration of the primary temperature sensor against a reference standard are recommended per manufacturer service schedule.
Does the oven meet electromagnetic compatibility (EMC) requirements for shared lab environments?
Yes—all units conform to EN 61000-6-3 (radiated emissions) and EN 61000-6-2 (immunity), verified during CE marking assessment.
