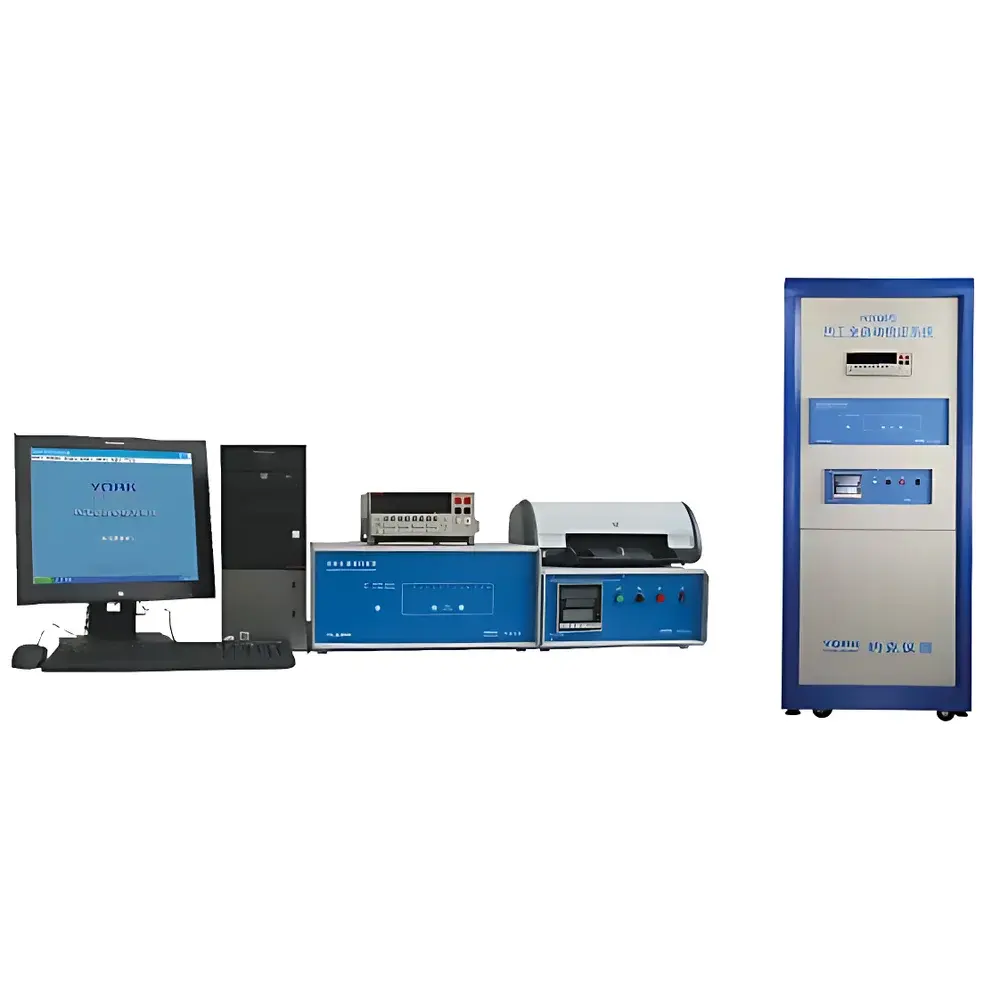

YK2000 Automated Thermocouple and RTD Calibration System

Overview

The YK2000 Automated Thermocouple and RTD Calibration System is a fully integrated metrological platform engineered for high-accuracy, traceable calibration of thermocouples (types K, E, T, J, N, S, R, B) and resistance temperature detectors (RTDs), including Pt100, Pt10, Pt50, Cu50, Cu100, BA1, BA2, and G. Based on the principle of comparative calibration—where unknown sensors are measured against certified reference standards under precisely controlled thermal environments—the system supports calibration in furnaces (for high-temperature thermocouples), oil baths, and water baths (for RTDs and low-to-mid temperature thermocouples). It implements real-time closed-loop temperature control, automated data acquisition, compliance-driven calculation algorithms, and full audit-ready documentation generation—all aligned with current national verification regulations in China (e.g., JJG 141–2000, JJG 229–1998, JJG 1098–2003). Designed for metrology laboratories, national institutes, and industrial QA/QC departments, the YK2000 ensures repeatability, regulatory transparency, and long-term data integrity across calibration cycles.

Key Features

• Full automation of temperature calibration workflows: automatic temperature ramping, dwell stabilization, multi-point measurement, data logging, uncertainty evaluation, and certificate generation.
• High-resolution measurement: 0.1 µV potential resolution and 0.1 mΩ resistance resolution; thermal stability monitoring at ≤0.2 °C/min (furnace) and ≤0.04 °C/10 min (oil bath).
• Flexible cold-junction compensation with three modes: ice-point (0 °C), ambient temperature input, or real-time automatic tracking—compensation error ≤ ±0.2 °C within 10–30 °C ambient range.
• Multi-sensor batch calibration: simultaneous handling of mixed thermocouple types (e.g., K + S) or RTD families (e.g., Pt100 + Cu50) in a single thermal environment, reducing cycle time and resource overhead.
• Intelligent grade classification: automatic determination of sensor class (e.g., Class A/B per IEC 60751 or accuracy grade per JJG 229) based on deviation analysis and uncertainty budgeting.
• Comprehensive database architecture supporting relational querying, longitudinal trend analysis, calibration history tracking, and lifecycle management of both DUTs and reference standards.
• Configurable temperature setpoints with arbitrary increment (not restricted to multiples of 5 or 10 °C), enabling fine-grained verification points aligned with process-specific requirements.
• Real-time graphical visualization of thermal profiles—including furnace/oil-bath temperature vs. time, deviation from setpoint, and measurement convergence status—supporting immediate diagnostic intervention.
• Integrated dual-direction thermocouple reference table lookup with built-in counter function for rapid verification of thermoelectric voltage–temperature relationships.

Sample Compatibility & Compliance

The YK2000 supports calibration of all standard industrial and laboratory-grade contact temperature sensors compliant with international and Chinese national standards. This includes base-metal and noble-metal thermocouples (K, E, T, J, N, S, R, B), platinum and copper RTDs (Pt100, Pt10, Pt50, Cu50, Cu100), and legacy types (BA1, BA2, G). The system adheres strictly to JJG-series verification regulations issued by the State Administration for Market Regulation (SAMR) of China. While not pre-certified to ISO/IEC 17025 or ANSI/NCSL Z540, its architecture—particularly its deterministic measurement sequence, traceable reference hierarchy, and immutable audit log generation—enables laboratories to meet GLP/GMP documentation requirements and prepare for formal accreditation. All calculations follow prescribed uncertainty propagation models defined in JJG 1098–2003, and results are reported with expanded uncertainty (k = 2) where applicable.

Software & Data Management

The embedded Windows-based application provides role-based access control, electronic signature support, and tamper-evident audit trails compliant with basic data integrity principles. Measurement data—including raw EMF/resistance values, environmental metadata (ambient temperature, humidity, operator ID), and instrument configuration logs—are stored in a local SQL Server Compact database. Export functions support CSV, PDF (for certificates and reports), and XML formats compatible with LIMS integration. Software enforces mandatory fields for calibration records, enforces mandatory review/approval workflows before report issuance, and maintains version-controlled calibration procedures. Reference standard expiry alerts are triggered automatically based on user-defined recalibration intervals, ensuring ongoing metrological traceability. No cloud connectivity or remote telemetry is enabled by default—data sovereignty remains fully on-premise.

Applications

• Primary and secondary calibration labs performing periodic verification of temperature sensors used in pharmaceutical manufacturing (compliant with Annex 1 and USP ).
• Power generation facilities validating turbine inlet/outlet thermocouples and reactor coolant RTDs under ASME PTC 19.3 and DL/T 659 standards.
• Aerospace component test houses verifying sensor performance across extreme thermal transients (−50 °C to 1200 °C) per SAE ARP4754A guidelines.
• Automotive R&D centers calibrating exhaust gas temperature (EGT) probes and battery pack thermal sensors prior to climatic chamber testing.
• Academic metrology programs teaching comparative calibration methodology, uncertainty analysis, and regulatory compliance frameworks.

FAQ

Does the YK2000 support external reference standards traceable to NIM or other national metrology institutes?

Yes—users may import calibration certificates for reference thermocouples or PRTs with NIM-traceable uncertainties; the software applies correction factors and propagates associated uncertainties into final DUT results.
Can the system generate calibration certificates compliant with ISO/IEC 17025?

While the YK2000 does not include built-in 17025-specific reporting templates, its structured data export (including uncertainty budgets, environmental conditions, and equipment IDs) enables manual or scripted generation of accredited certificates when paired with an accredited lab’s approved format.
Is firmware or software update capability available remotely?

No—updates are distributed via secure offline media (USB drive) only, preserving air-gapped operation for regulated environments.
What is the maximum number of DUTs supported per calibration run?

Up to 12 channels (configurable), allowing concurrent calibration of multiple sensors in one thermal cycle, subject to thermal uniformity constraints of the bath/furnace.
Does the system store raw analog measurements before digital conversion?

Yes—raw ADC counts and timestamped voltage/resistance readings are retained in the database alongside processed values, supporting retrospective reanalysis and metrological investigation.
