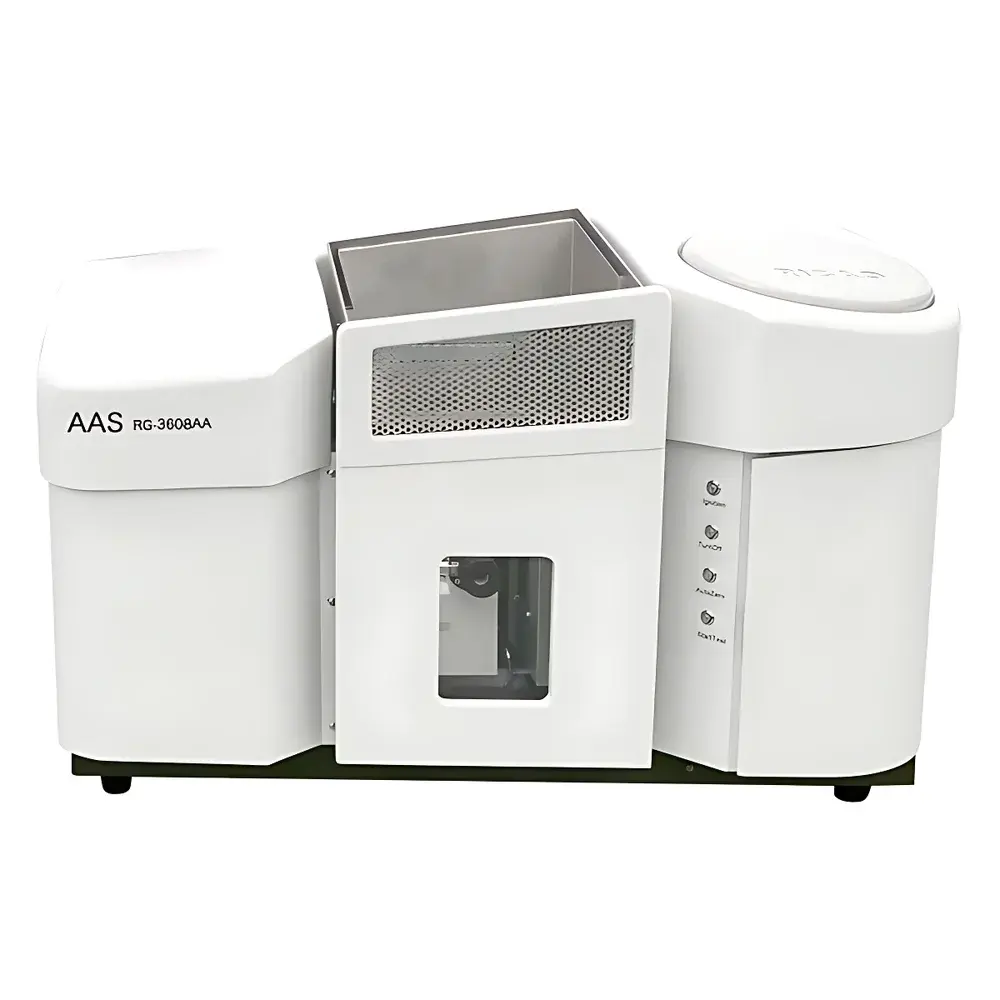

Yoke RG-3608AA Flame Atomic Absorption Spectrophotometer

Overview

The Yoke RG-3608AA Flame Atomic Absorption Spectrophotometer is a benchtop analytical instrument engineered for quantitative elemental analysis of liquid samples in the parts-per-trillion to parts-per-trillion concentration range. It operates on the fundamental principle of atomic absorption spectroscopy (AAS), wherein ground-state atoms in a flame-generated atomic vapor absorb characteristic wavelengths of light emitted by hollow cathode lamps (HCLs) or electrodeless discharge lamps (EDLs). The magnitude of absorption—measured via Beer–Lambert law—is directly proportional to analyte concentration. Designed specifically for flame atomization, the RG-3608AA utilizes an air-acetylene or nitrous oxide-acetylene flame to achieve efficient nebulization, desolvation, volatilization, and atomization of metal ions. Its single-beam optical architecture, coupled with a high-efficiency plane grating monochromator and low-noise photomultiplier tube detector, ensures stable baseline performance and high signal-to-noise ratio across the UV–Vis spectral range (190–900 nm). This configuration supports routine analysis of over 60 metallic elements—including Na, K, Ca, Mg, Fe, Cu, Zn, Mn, Pb, Cd, and Cr—in environmental, clinical, food, pharmaceutical, and industrial quality control laboratories.

Key Features

• Optimized all-reflective optical path design minimizes chromatic aberration and energy loss, enhancing photometric stability and long-term signal reproducibility.
• Intelligent gas control module with real-time pressure monitoring, automatic flame ignition sequence, and fail-safe interlocks compliant with EN 61010-1 safety standards.
• Dual-mode background correction: simultaneous deuterium lamp continuum correction and high-precision self-absorption correction, enabling accurate quantification in complex matrices with structured background absorption.
• Motorized 8-lamp turret with 360° rotational positioning and automatic lamp selection—reducing manual alignment errors and improving inter-lamp wavelength repeatability.
• Adjustable burner head with precision vertical and horizontal translation, optimized nebulizer alignment, and integrated flame viewing port for visual flame condition assessment.
• Fully automated instrument initialization, wavelength scanning, slit width selection, lamp current optimization, and measurement parameter setup via RG-WinAAS software interface.

Sample Compatibility & Compliance

The RG-3608AA accepts aqueous and dilute acid-digested samples (e.g., HNO₃, HCl, or HClO₄ extracts) compatible with standard flame AAS protocols. Sample introduction is achieved via concentric pneumatic nebulizer and all-glass spray chamber. The system supports ASTM D1576 (iron in fuel oils), ISO 11885 (water quality—determination of selected elements by AAS), and USP (elemental impurities in pharmaceuticals) methodologies when operated under validated conditions. All electronic controls and data handling functions conform to GLP documentation requirements, including user-access logging, method versioning, and audit trail generation. While not pre-certified for FDA 21 CFR Part 11 compliance, the software architecture permits configuration of electronic signatures, role-based access control, and immutable raw data storage—enabling laboratory-specific validation per regulatory expectations.

Software & Data Management

RG-WinAAS is a Windows-native application developed exclusively for Yoke AAS platforms. It provides intuitive workflow navigation, real-time spectral display, multi-point calibration curve generation (linear, quadratic, or forced-zero), QC sample bracketing, and automatic drift correction. Raw absorbance data, peak area/intensity values, and calibration metadata are stored in proprietary .RGA binary format with embedded timestamps and operator ID tags. Export options include CSV, TXT, and PDF reports compliant with ISO/IEC 17025 documentation standards. Data integrity safeguards include automatic backup upon session close, read-only archive mode, and configurable auto-save intervals. The software supports integration with LIMS via ODBC drivers and allows batch processing of up to 999 samples per sequence with programmable pause/resume logic.

Applications

• Environmental testing: determination of heavy metals (Pb, Cd, Ni, As) in drinking water, wastewater, and soil leachates per EPA Method 7000B.
• Clinical chemistry: quantification of serum calcium, magnesium, zinc, and copper in diagnostic laboratories adhering to CLIA and CAP guidelines.
• Food safety: screening of toxic elements in infant formula, dairy products, and cereals according to EU Commission Regulation (EC) No 1881/2006.
• Pharmaceutical QC: trace metal analysis in active pharmaceutical ingredients (APIs) and excipients per ICH Q2(R2) validation principles.
• Industrial process control: monitoring of catalyst residues (e.g., Pt, Pd, Rh) in petrochemical feedstocks and electroplating bath solutions.

FAQ

What types of lamps are supported by the RG-3608AA?
The instrument accommodates standard 3-pin hollow cathode lamps (HCLs) and electrodeless discharge lamps (EDLs) for elements requiring higher sensitivity, including As, Se, and Hg.
Is the RG-3608AA suitable for analyzing organic solvents?
Direct aspiration of flammable organic solvents is not recommended; however, diluted samples in aqueous acid media or after appropriate solvent removal (e.g., evaporation, digestion) are fully compatible.
Does the system support hydride generation or graphite furnace accessories?
No—the RG-3608AA is a dedicated flame AAS platform. Hydride generation and electrothermal atomization require separate instrumentation (e.g., Yoke HG-3600 or GF-3600 modules).
Can the software generate IQ/OQ/PQ documentation templates?
RG-WinAAS does not include built-in qualification templates, but its parameter logging, method export, and audit trail features provide foundational data required for third-party IQ/OQ/PQ protocol development.
What maintenance is required for optimal long-term performance?
Routine maintenance includes weekly burner head cleaning, monthly nebulizer inspection, quarterly optical alignment verification, and annual PM service including gas line leak testing and PMT voltage calibration.
