YORK ETBB Ear Thermometer Calibration System

Overview

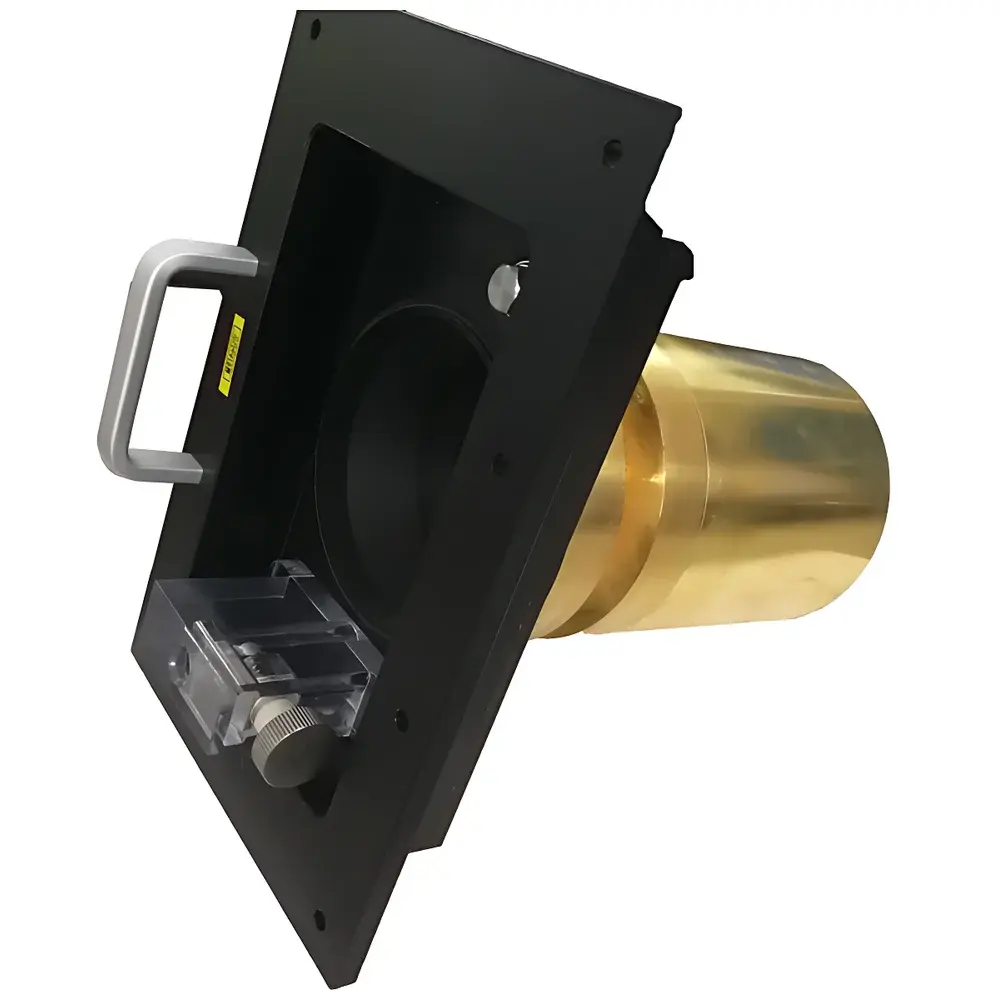

The YORK ETBB Ear Thermometer Calibration System is a metrologically rigorous, primary-standard-level calibration platform engineered for the verification and periodic calibration of clinical infrared tympanic (ear) thermometers and non-contact forehead (temporal artery) thermometers. It operates on the principle of blackbody radiation thermometry in the 8–14 µm mid-infrared spectral band—the dominant atmospheric transmission window and the operational range of most medical IR thermometers. The system comprises a precision-machined, high-emissivity blackbody cavity (ETBB), a thermostatically stabilized liquid bath (796MA), a NPL-traceable standard platinum resistance thermometer (YKS500), and a milliK-class digital thermometer readout. Temperature uniformity and stability within the cavity’s effective aperture are maintained by precise thermal coupling to the bath’s working fluid, enabling reproducible brightness temperature generation across the clinically relevant range of 34 °C to 42 °C. The ETBB cavity’s geometry and surface treatment ensure an effective emissivity of ≥0.999, minimizing radiometric error contributions from reflected ambient radiation.

Key Features

• High-fidelity blackbody source with 10 mm aperture diameter and certified effective emissivity ≥0.999, validated per ISO/IEC 17025-accredited procedures
• Expanded uncertainty (k = 2) of ≤0.07 °C for brightness temperature reproduction in the 8–14 µm band—meeting or exceeding requirements of ISO 80601-2-56:2017 and IEC 60601-2-56 Annex DD
• Direct thermal coupling to the 796MA precision immersion bath ensures exceptional axial and radial temperature uniformity (< ±0.01 °C over cavity depth)
• Modular architecture supports interchangeable blackbody inserts (e.g., FTBB for forehead thermometers) without recalibration of the core thermal metrology chain
• Full traceability to UK National Physical Laboratory (NPL) through documented calibration certificates for YKS500 sensor and milliK readout, compliant with ISO/IEC 17025:2017 clause 6.6
• Rugged mechanical design optimized for laboratory environments subject to GLP and ISO 15197:2013 audit requirements

Sample Compatibility & Compliance

The ETBB system accommodates all commercially available tympanic thermometers requiring calibration against a defined blackbody source. Its 10 mm aperture enables full-field irradiance capture for sensors with typical field-of-view angles of 3:1 to 5:1. The system satisfies the physical and metrological prerequisites outlined in ISO 80601-2-56:2017 (Medical electrical equipment – Part 2-56: Particular requirements for basic safety and essential performance of clinical thermometers for body temperature measurement), including cavity temperature homogeneity, spectral responsivity alignment, and temporal stability criteria. All components—including the YKS500 sensor and milliK readout—are supplied with valid, unexpired calibration certificates issued by UKAS-accredited laboratories. The entire calibration process supports audit-ready documentation for FDA 21 CFR Part 11-compliant environments when integrated with validated electronic record systems.

Software & Data Management

While the ETBB is a hardware-centric calibration platform, its integration with the milliK thermometry system enables automated data acquisition, real-time stability monitoring, and uncertainty budgeting per GUM (JCGM 100:2008). The milliK software provides configurable logging intervals, statistical analysis (mean, standard deviation, drift rate), and export of raw temperature time-series in CSV or XML formats. All calibration sessions generate timestamped reports containing cavity setpoint, measured bath temperature, sensor ID, calibration certificate reference, operator ID, and environmental conditions (ambient temperature, humidity). Audit trails are retained for ≥10 years in accordance with ISO/IEC 17025:2017 clause 7.11.1 and EU Annex 11 requirements for computerized systems used in regulated environments.

Applications

• Primary calibration of ear and forehead thermometers in national metrology institutes (NMIs) and accredited calibration laboratories
• Verification of clinical thermometer performance prior to deployment in hospitals, clinics, and point-of-care testing facilities
• Supporting regulatory submissions under MDR (EU 2017/745) and FDA 510(k) pathways for IR thermometer manufacturers
• Inter-laboratory comparison studies and proficiency testing programs administered by ILAC signatories
• Validation of thermal imaging systems used in mass fever screening applications where traceable reference sources are mandatory
• Research into emissivity effects, spectral responsivity deviations, and distance-to-spot ratio errors in non-contact thermometry

FAQ

What is the recommended operating temperature range for the ETBB cavity?
The ETBB is optimized for stable operation between 34 °C and 42 °C, covering the full clinical body temperature range. Extended-range configurations (e.g., 20 °C to 50 °C) are available upon request with updated uncertainty budgets.
Can the ETBB be used for calibrating thermal cameras?
Yes—when operated with appropriate collimation optics and validated against camera-specific measurement protocols (e.g., ASTM E1933, ISO 18434-1), the ETBB serves as a transfer standard for IR camera calibration in the 8–14 µm band.
Is the system compatible with automated calibration workflows?
The milliK readout supports RS-232, USB, and Ethernet interfaces, enabling seamless integration into LabVIEW, Python-based automation suites, or LIMS platforms compliant with ASTM E2500 and ISO/IEC 17025 clause 7.7.
How often must the YKS500 reference sensor be recalibrated?
Per ISO/IEC 17025:2017 and manufacturer recommendations, the YKS500 requires annual recalibration at a UKAS-accredited laboratory; interim verification using a secondary standard is advised before each calibration campaign.
Does the ETBB meet FDA requirements for thermometer verification in clinical settings?
Yes—the system fulfills the technical and documentation requirements of FDA Guidance for Industry: Clinical Thermometers (2020) and supports compliance with 21 CFR Part 820 Quality System Regulation when deployed within a validated, auditable calibration management system.
