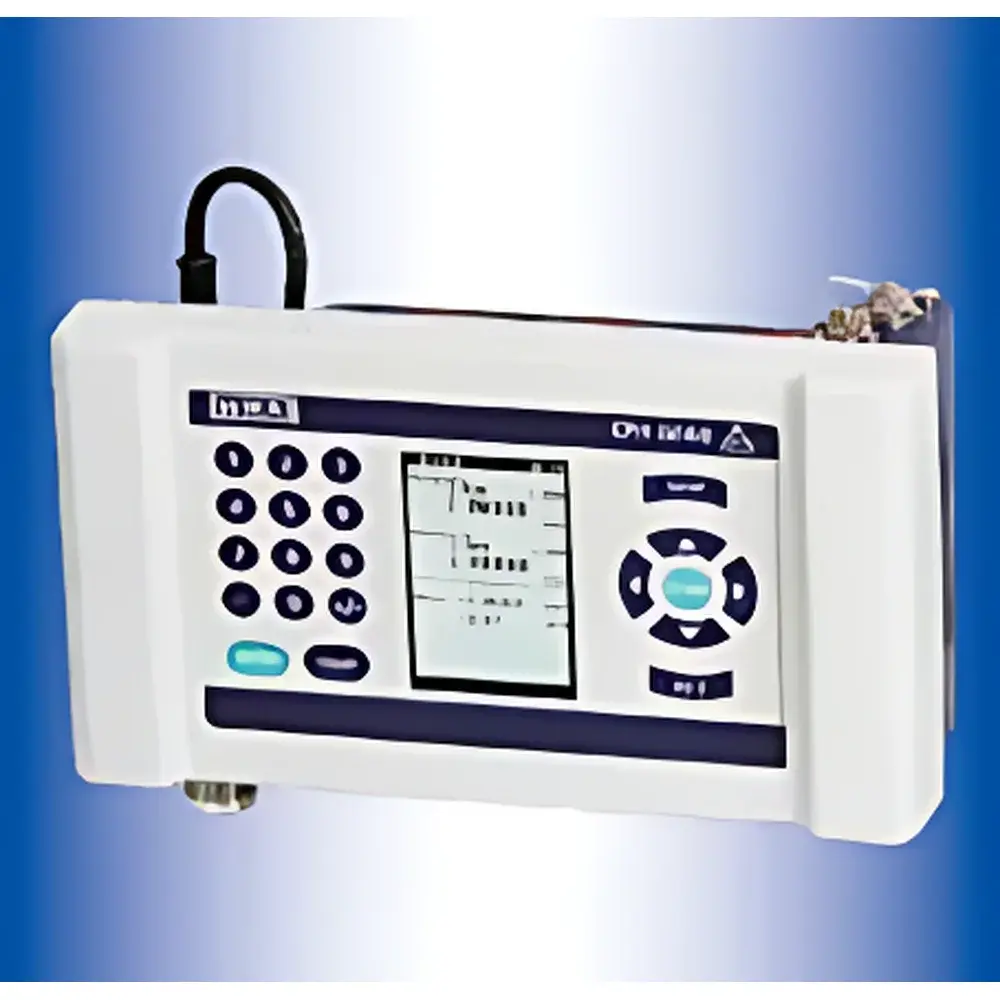

York Instruments CPH 6000 Process Calibrator

Overview

The York Instruments CPH 6000 Process Calibrator is a high-precision, field-deployable instrumentation tool engineered for metrological traceability and functional verification in industrial process control environments. Designed around a modular sensor architecture, it implements digital pressure measurement based on piezoresistive or strain-gauge transduction principles—calibrated against national standards and certified per ISO/IEC 17025 requirements. Its primary operational scope encompasses the calibration of pressure transmitters, gauges, switches, and I/P converters across upstream oil & gas, power generation, pharmaceutical manufacturing, and chemical processing facilities. Unlike fixed-range calibrators, the CPH 6000 supports seamless transition between ultra-low vacuum (25 kPa) and ultra-high hydrostatic pressure (600 MPa) regimes via interchangeable sensor modules—enabling a single instrument to serve multiple process lines without compromising measurement integrity.

Key Features

• Hot-swappable pressure sensor modules with automatic range detection: Upon physical installation—whether internally mounted or remotely connected via a 1-meter shielded cable—the display unit self-identifies sensor type, full-scale range, and factory calibration coefficients, eliminating manual configuration and reducing setup time by >70%.
• Three dedicated operational modes—Measurement, Calibration, and Pressure Switch Test—each governed by context-aware menu navigation logic that guides users through procedural steps while enforcing metrological sequence compliance.
• Integrated calibration assistant provides real-time prompts during multi-point calibration routines, automatically logs reference vs. DUT readings, calculates deviation, and generates pass/fail determinations per user-defined tolerance bands.
• Pressure switch test mode automates hysteresis calculation, dead-band evaluation, and trip-point repeatability assessment across ascending and descending pressure ramps—outputting tabulated results compatible with QA documentation workflows.
• Rugged aluminum housing rated IP65, operating temperature range –10 °C to +50 °C, and EMI-hardened circuitry ensure reliable performance in harsh plant-floor environments subject to vibration, humidity, and electromagnetic interference.

Sample Compatibility & Compliance

The CPH 6000 accommodates pressure sensors compliant with DIN EN 837-1 (analog pressure gauges), IEC 61511 (functional safety for SIS), and ASTM E74 (calibration of force-measuring instruments). It supports both gauge and absolute pressure configurations, and its sensor interface conforms to HART® 7 physical layer specifications for future interoperability. All delivered units include an ISO/IEC 17025-accredited calibration certificate traceable to PTB (Physikalisch-Technische Bundesanstalt), with uncertainty budgets explicitly stated for each configured range. The device meets CE marking requirements under the EU Measuring Instruments Directive (MID 2014/32/EU) and complies with RoHS 2011/65/EU for hazardous substance restriction.

Software & Data Management

York Instruments provides the CPH Control Suite—a Windows-based application supporting bidirectional communication via USB or Bluetooth. The software enables automated report generation (PDF/CSV), audit-trail-enabled session logging, and electronic signature capture aligned with FDA 21 CFR Part 11 requirements for regulated industries. All calibration records retain embedded metadata—including operator ID, environmental conditions (optional external sensor input), sensor serial number, and timestamped raw data—ensuring full GLP/GMP traceability. Firmware updates are delivered via signed package files to prevent unauthorized modification, and configuration templates can be exported/imported for standardized deployment across global sites.

Applications

• Periodic verification of smart pressure transmitters prior to critical shutdowns in refinery FCC units.
• Field validation of safety-critical pressure switches in nuclear plant containment systems per IEEE 338 and ASME NQA-1.
• Commissioning support for cryogenic LNG transfer lines requiring sub-100 Pa vacuum stability checks.
• Pharmaceutical clean steam system qualification where pressure decay testing must meet ISO 13485 and Annex 1 traceability mandates.
• Calibration laboratory use as a secondary standard for verifying Class 0.1 pressure references prior to inter-laboratory comparison exercises.

FAQ

Does the CPH 6000 support live zero-trim functionality for 4–20 mA loop-powered transmitters?

Yes—it includes a built-in 24 VDC loop supply with milliamp measurement capability (±0.015 % of reading), enabling simultaneous pressure stimulus and current output verification without external power sources.
Can the calibration certificate be reissued with updated metrological data after field recalibration?

Yes—when recalibrated at an accredited York Instruments service center or authorized partner lab, a new certificate with revised uncertainty values and validity period is issued, maintaining full traceability to original PTB references.
Is the maintenance kit compatible with all CPH 6000 sensor variants?

Yes—the included hand pump, seal kits, and adapter set covers all standard pressure port configurations (NPT, G, and metric threads) across the full 25 kPa–600 MPa range.
How does the instrument handle sensor drift compensation during extended field use?

The firmware implements adaptive zero-stabilization algorithms that monitor thermal drift signatures and apply dynamic offset correction during idle periods—verified via internal reference stability checks every 15 minutes.
Are custom sensor modules available for non-standard pressure media such as molten salt or supercritical CO₂?

Yes—York Instruments offers OEM sensor integration services with material compatibility engineering (e.g., Hastelloy C-276 wetted parts, ceramic diaphragms) and bespoke calibration protocols validated per customer-specific process conditions.
