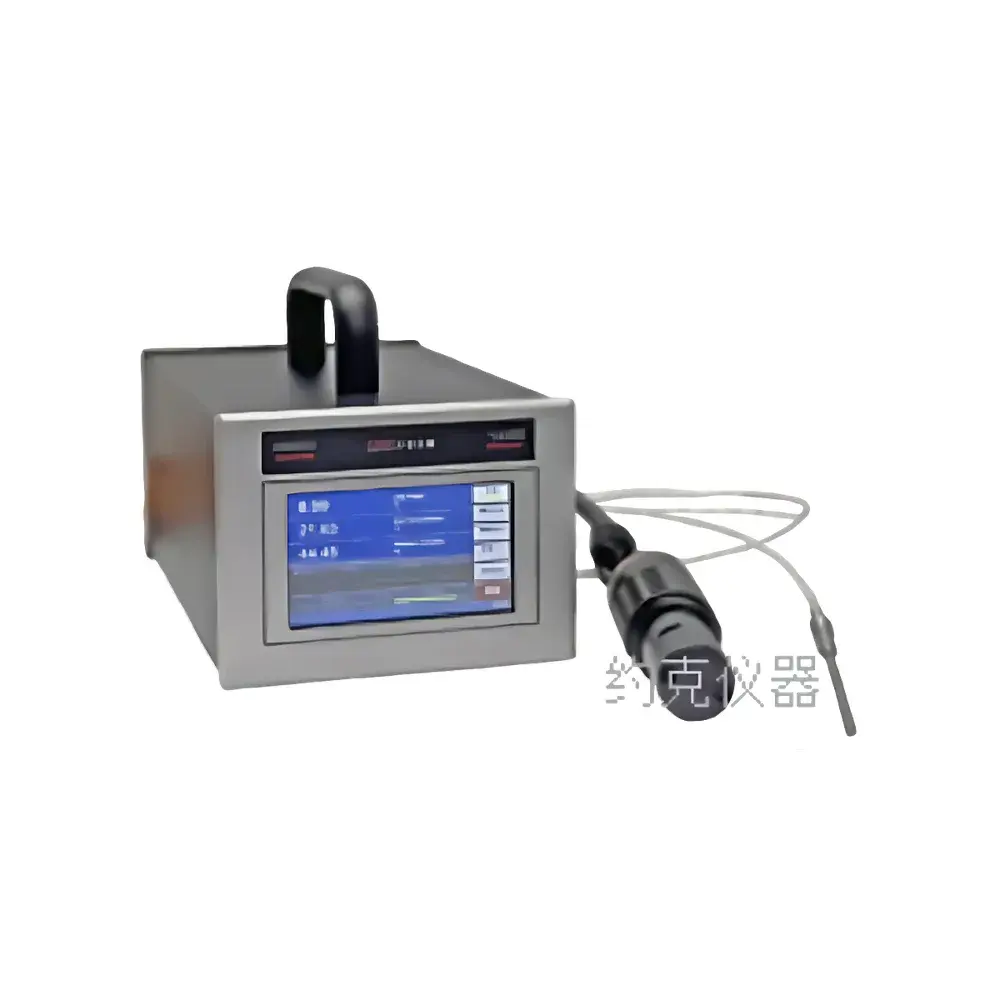

York Instruments DM9200 Immersion-type Chilled Mirror Dew Point Meter

Overview

The York Instruments DM9200 Immersion-type Chilled Mirror Dew Point Meter is a high-precision, traceable dew point analyzer engineered for primary and secondary metrological applications in humidity calibration laboratories, industrial process monitoring, and environmental testing facilities. Unlike capacitive or aluminum oxide sensors, the DM9200 employs a fundamental thermodynamic measurement principle—chilled mirror condensation—where water vapor in a sampled gas stream is condensed onto a temperature-controlled, optically polished chromium-plated copper mirror surface. The instrument precisely detects the onset of dew (or frost) formation via integrated photometric reflectance sensing and dynamically regulates mirror temperature to maintain phase equilibrium. This physical method delivers intrinsic accuracy traceable to SI units, eliminating sensor drift and chemical aging effects common in indirect electronic hygrometers. Designed for both continuous in-line installation and ambient spot-check deployment, the DM9200’s immersion-style probe enables direct integration into pressurized gas lines (up to 20 bar) or static environmental chambers without flow conditioning requirements.

Key Features

• Chromium-plated copper mirror with active optical condensation detection and automated self-cleaning cycle to prevent contamination-induced hysteresis
• Integrated PT100 temperature sensor (±0.1 °C accuracy) co-located with the mirror for simultaneous dew point and thermodynamic temperature measurement
• 4.3-inch capacitive touchscreen display with multilingual UI (English/Chinese), supporting real-time visualization of dew point (°C/°F), ppm_v, ppm_w, RH (%), g/kg, and mg/m³
• Digital fuzzy logic control algorithm enabling rapid thermal equilibrium (<1 °C/s stabilization rate) and automatic dew point balancing under dynamic gas conditions
• Triple-channel configurable analog output (4–20 mA, 0–20 mA, 0–24 mA, 0–5 V, or 0–10 V) with user-defined scaling and channel assignment
• USB-C and RS-232 interfaces with standard MODBUS RTU protocol for seamless integration into SCADA, DCS, and LIMS environments
• Onboard SD card slot (FAT32, up to 32 GB) supporting time-stamped, audit-ready data logging compliant with GLP/GMP record retention requirements

Sample Compatibility & Compliance

The DM9200 accommodates a broad range of sample matrices including compressed air, nitrogen, natural gas, SF₆, CO₂, and inert carrier gases. Its robust sensor housing (aluminum alloy) and 3-meter shielded cable support operation across −40 °C to +95 °C ambient temperatures and up to 99 % RH (non-condensing). For pressurized applications, the probe is rated to 20 bar (290 psi) and compatible with laminar flow rates from 0.3 to 1 L/min—or passive diffusion in ambient air. The instrument meets ISO 8503-1 surface roughness specifications for mirror finish, complies with IEC 61000-4 electromagnetic immunity standards, and supports configuration for ISO/IEC 17025-accredited calibration workflows. Optional NIST-traceable certificate of calibration is available upon request.

Software & Data Management

York Instruments provides a dedicated Windows-based PC software suite for remote configuration, real-time data streaming, historical trend analysis, and report generation. The software implements full 21 CFR Part 11-compliant audit trail functionality—including user login tracking, parameter change logging, and electronic signature capability—making it suitable for regulated pharmaceutical, semiconductor, and aerospace manufacturing environments. All logged data are stored in CSV and binary formats with embedded metadata (timestamp, sensor ID, operator ID, environmental context), enabling direct import into statistical process control (SPC) platforms. Firmware updates and configuration backups are performed over USB-C without external programming hardware.

Applications

• Primary reference standard in national metrology institutes and accredited calibration labs performing humidity intercomparisons per ISO/IEC 17025
• Continuous monitoring of compressed air quality in ISO 8573-1 Class 0–4 systems for food, pharma, and electronics manufacturing
• Frost point verification in cryogenic gas purification processes (e.g., LNG, hydrogen fuel cell feed gas)
• Validation of environmental test chamber humidity profiles per ASTM E2234 and IEC 60068-3-4
• Field verification of desiccant dryer performance and adsorption cycle efficiency
• Research-grade atmospheric moisture profiling in climatology and HVAC system commissioning

FAQ

What is the fundamental measurement principle of the DM9200?
The DM9200 uses chilled mirror condensation—a first-principles method where dew/frost formation on a temperature-controlled mirror is detected optically, ensuring traceability to thermodynamic definitions of humidity.
Is the instrument suitable for use in pressurized gas lines?
Yes—the immersion probe is rated for continuous operation at pressures up to 20 bar (290 psi) and supports flow rates from 0.3 to 1 L/min; no external pressure regulation is required.
Does the DM9200 support regulatory compliance for pharmaceutical manufacturing?
Yes—it includes 21 CFR Part 11–ready software, audit trail logging, electronic signatures, and configurable user access levels aligned with FDA GMP Annex 11 expectations.
How often does the mirror require manual cleaning or maintenance?
The integrated intelligent mirror cleaning system performs periodic thermal cycling and purge cycles automatically; routine maintenance intervals exceed 12 months under typical industrial use.
Can the analog outputs be assigned to different humidity parameters?
Yes—each of the three analog channels can be independently configured to output dew point, RH, ppm_v, or temperature, with user-defined scaling and zero/span calibration.
