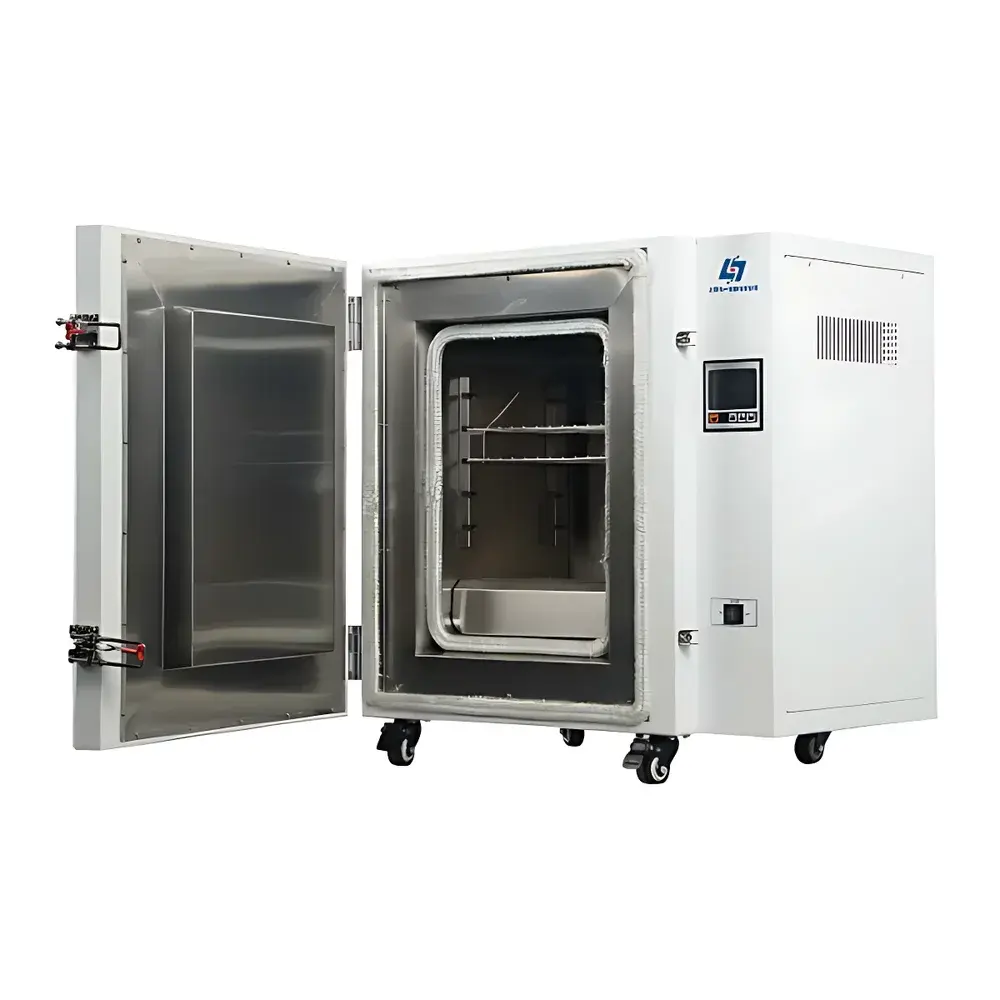

Yoyi DGG-308 High-Temperature Forced-Air Drying Oven

Overview

The Yoyi DGG-308 is a high-temperature forced-air drying oven engineered for precision thermal processing in laboratory, quality control, and industrial R&D environments. It operates on the principle of convection-based heat transfer, utilizing a multi-blade centrifugal fan and optimized air duct geometry to achieve uniform temperature distribution across its 300 L stainless-steel chamber. Designed for continuous operation at up to 400°C, the DGG-308 meets fundamental thermal stability requirements for applications including moisture removal, polymer curing, pre-baking of electronic components, ash content determination (per ASTM E180 or ISO 562), and thermal aging per IEC 60216. Its microprocessor-controlled heating system—comprising independent heating elements, PID-based power modulation, and real-time thermal feedback—ensures repeatable thermal profiles with minimal overshoot and drift.

Key Features

• Microcomputer-based intelligent temperature controller with 4.3-inch LCD interface, supporting programmable ramp-soak cycles, auto-tuning, and power suppression algorithms for stable setpoint maintenance.
• Pre-heating cavity design directs fully mixed, thermally equilibrated air directly into the working chamber—reducing startup time and improving thermal homogeneity (±2.5% at 100°C, validated per IEC 60068-3-5).
• Double-layer ceramic fiber door gasket rated for continuous service at 400°C; resistant to thermal degradation and compression set over extended duty cycles.
• Insulation system comprising high-density glass fiber batts (≥100 mm thickness) between chamber and outer casing, minimizing surface temperature rise and energy consumption.
• Robust construction: cold-rolled steel exterior with electrostatic epoxy coating; mirror-finish 304 stainless steel interior with smooth, non-porous welds for easy decontamination and corrosion resistance.
• Adjustable stainless steel shelving (2 standard trays, load-rated to 15 kg per shelf); quick-release hinge mechanism with positive-latching door lock.
• Independent over-temperature cut-off circuit (optional) compliant with EN 61000-6-2 and IEC 61000-6-4 electromagnetic immunity standards.

Sample Compatibility & Compliance

The DGG-308 accommodates a broad range of sample formats—including Petri dishes, crucibles, metal trays, PCB assemblies, and polymer specimens—without risk of outgassing-induced contamination, thanks to its all-metal chamber and absence of organic sealants or adhesives near the hot zone. Chamber geometry supports ISO/IEC 17025-compliant validation protocols: temperature mapping (per ASTM E2251), sensor calibration traceability (NIST-traceable reference thermocouples), and alarm response testing are fully supported. The unit conforms to general safety requirements outlined in UL 61010-1 and GB/T 14710 (Chinese national standard for environmental adaptability of lab equipment). Optional RS485 communication enables integration into GLP/GMP audit trails when paired with compliant data acquisition software.

Software & Data Management

While the base configuration features standalone operation, optional digital interfaces expand regulatory readiness: the RS485 port (with Modbus RTU protocol support) allows bidirectional communication with SCADA systems or LIMS platforms for automated parameter logging and event-triggered alerts. An embedded thermal printer option provides hard-copy records of temperature profiles, start/stop timestamps, and alarm events—meeting documentation requirements under FDA 21 CFR Part 11 when used with appropriate access controls and audit log configurations. All firmware updates are delivered via secure USB interface, preserving version integrity and change history for internal QA review.

Applications

• Moisture content analysis in pharmaceutical excipients (USP <921>), food powders, and ceramics raw materials.
• Thermal stabilization of catalyst supports and battery electrode coatings prior to sintering.
• Aging studies of elastomers and insulating materials per ASTM D573 and IEC 60811-2-1.
• Residual solvent removal from coated substrates in semiconductor packaging and optical lens manufacturing.
• Pre-conditioning of test specimens for tensile, impact, and dielectric strength evaluation (ISO 527, ASTM D256, IEC 60243).
• Calibration of temperature-sensitive sensors and reference standards in metrology labs.

FAQ

What is the maximum continuous operating temperature of the DGG-308?
The chamber is rated for uninterrupted operation at 400°C, verified by thermal endurance testing per GB/T 14710 Clause 6.3.

Does the oven support programmable temperature ramps?
Yes—the optional intelligent programmable controller enables up to 30 segment ramp-soak profiles with adjustable rate limits (°C/min) and hold durations.

Is the temperature uniformity validated across the full volume?
Uniformity is specified as ±2.5% at 100°C per IEC 60068-3-5; users may perform full-volume mapping using nine-point sensor arrays per ISO/IEC 17025 Annex A.3.

Can the DGG-308 be integrated into a centralized lab monitoring network?
With the RS485 interface and Modbus-compatible software driver, it can be incorporated into BMS or LabVantage environments for remote status polling and alarm forwarding.

Are custom chamber modifications available?
Yoyi offers OEM engineering services—including modified dimensions, additional ports, inert gas purging, or Class II biological safety interlocks—subject to feasibility assessment and compliance review.
