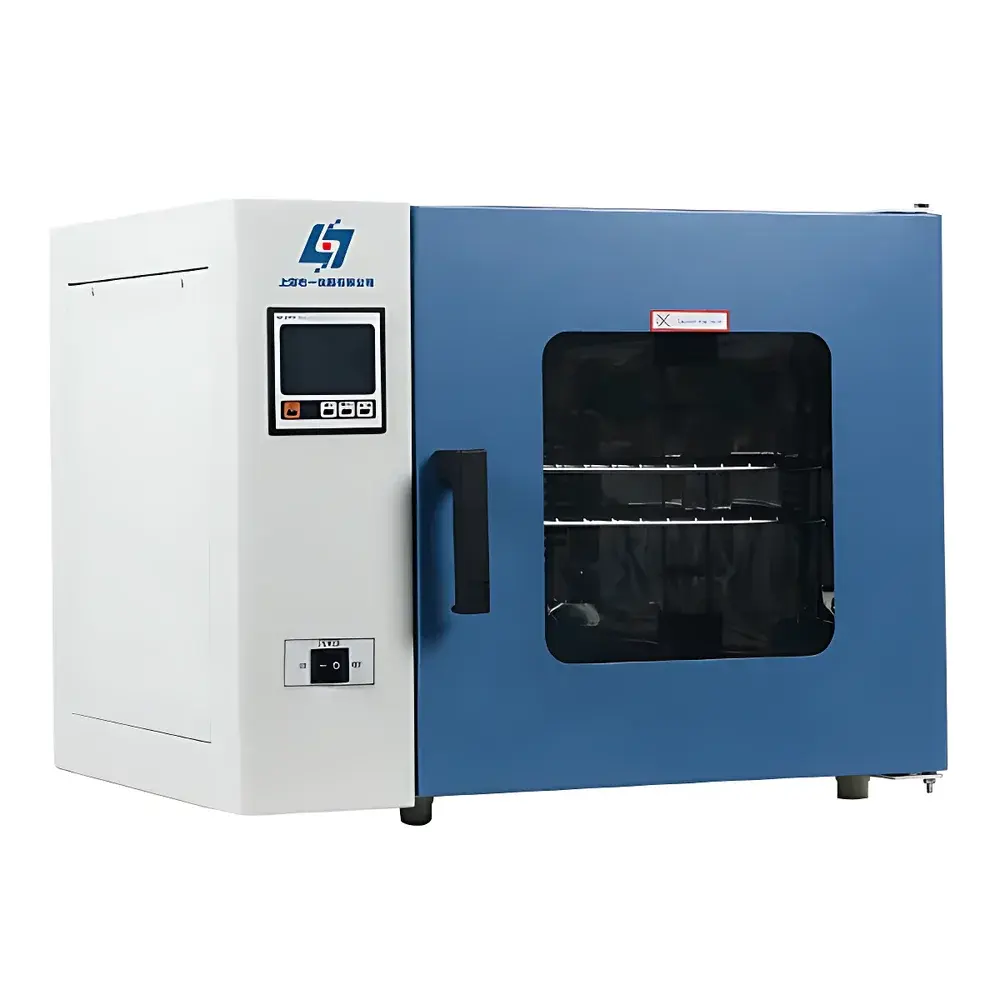

Yoyi DHG-9023A Precision Forced-Air Drying Oven

Overview

The Yoyi DHG-9023A is a compact, microprocessor-controlled forced-air drying oven engineered for precision thermal processing in research laboratories, quality control environments, and industrial R&D settings. It operates on the principle of convection-driven heat transfer, utilizing an optimized rear-mounted air circulation system with adjustable intake and exhaust ports to ensure rapid thermal equilibration and stable temperature maintenance across the entire working chamber. Designed in strict accordance with GB/T 30435–2013 — the Chinese national standard governing performance requirements for electric heating ovens and forced-air drying ovens — the DHG-9023A delivers repeatable, traceable, and auditable thermal treatment for applications including moisture content determination, pre-weighing sample conditioning, polymer curing, pharmaceutical stability testing, electronic component baking, and sterilization validation protocols. Its 20 L internal volume, combined with a maximum operating temperature of 280°C and resolution of 0.1°C, positions it as a robust solution for routine and regulated drying tasks where spatial efficiency and thermal fidelity are critical.

Key Features

• Microcomputer-based PID temperature controller with intuitive LCD menu interface — displays setpoint, real-time chamber temperature, and remaining hold time simultaneously
• Intelligent power-loss recovery function: automatically resumes previous operating parameters after unexpected interruption, preserving experimental continuity and data integrity

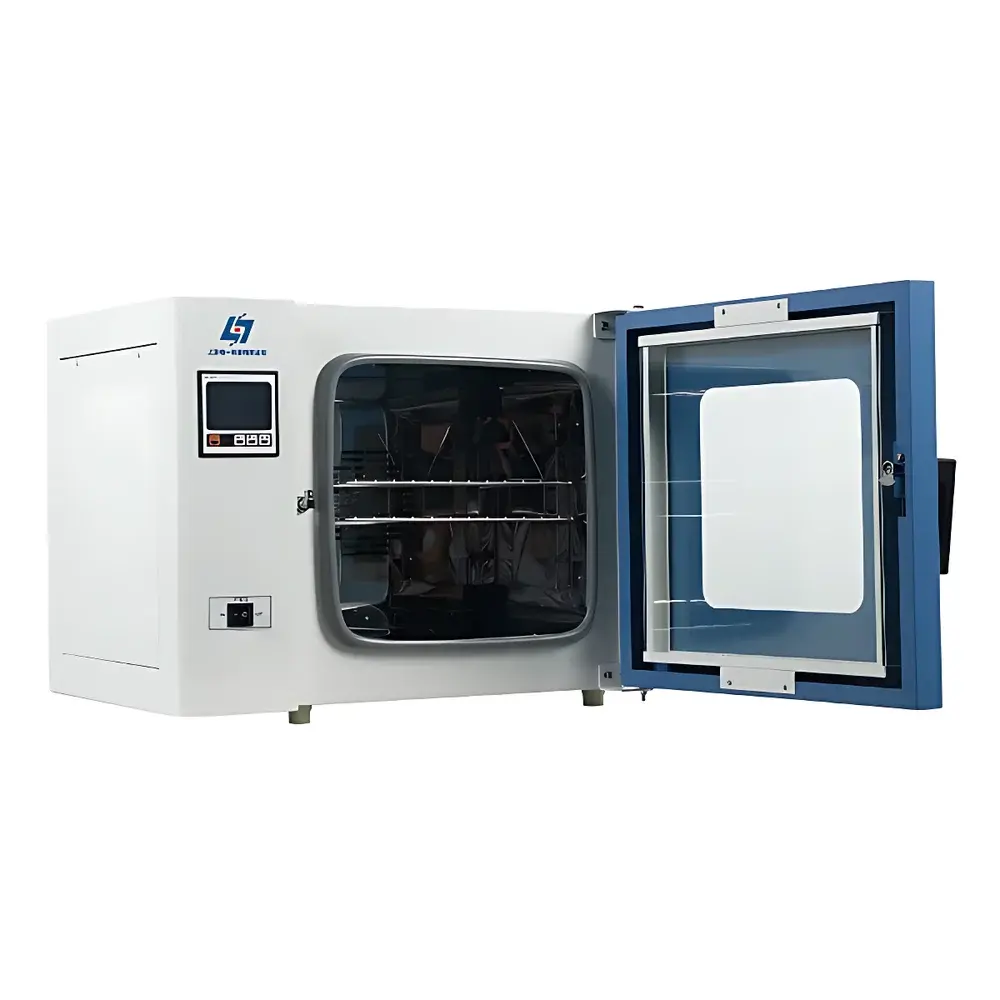

• Dual-layer tempered glass observation window with large viewing area — enables non-intrusive monitoring without thermal disturbance or door opening
• High-efficiency forced-air circulation architecture — integrated blower, directional ductwork, and rear-mounted automatic inlet/exhaust valves ensure uniform airflow and eliminate manual vent adjustment
• Robust mechanical construction: cold-rolled steel exterior with electrostatic epoxy coating; mirror-finish SUS304 stainless steel interior chamber and adjustable stainless steel shelving (2 standard trays included)
• High-temperature silicone door gasket — provides reliable sealing up to 280°C, minimizes heat leakage, and extends service life with field-replaceable design
• Independent over-temperature cut-off protection circuit (optional) — triggers immediate power disconnection upon exceeding user-defined safety threshold, satisfying essential lab safety requirements

Sample Compatibility & Compliance

The DHG-9023A accommodates a broad spectrum of sample types, including but not limited to: granular solids (e.g., powders, catalysts), thin-film coatings, biological tissue specimens (post-fixation), ceramic green bodies, printed circuit board assemblies, and hygroscopic reference standards. Its stainless steel chamber resists corrosion from mild organic solvents and residual moisture, supporting applications under ISO/IEC 17025-accredited testing workflows. While not certified to IEC 61010-1 or UL 61010B out-of-the-box, the unit meets structural and operational criteria referenced in ASTM E145–22 (Standard Specification for Gravity-Convection and Forced-Ventilation Ovens) for general-purpose laboratory use. For GLP/GMP-aligned environments, optional RS485 communication and embedded printer enable audit-ready temperature logging compliant with FDA 21 CFR Part 11 data integrity expectations when paired with validated software.

Software & Data Management

The DHG-9023A supports external data acquisition via optional RS485 serial interface (Modbus RTU protocol), enabling integration into centralized laboratory information management systems (LIMS) or SCADA platforms. An optional embedded thermal printer provides hard-copy output of temperature profiles, timestamps, and event logs — suitable for SOP-driven documentation in QC labs. For advanced thermal profiling, the optional multi-segment programmable controller (up to 30 segments) allows precise ramp-hold-cool sequences, supporting accelerated aging studies per ICH Q1A(R3) guidelines. All digital interfaces undergo functional verification under no-load thermal cycling conditions (20°C ambient, 50% RH), ensuring signal fidelity across the full operating range.

Applications

• Moisture loss-on-drying (LOD) analysis per USP & Ph. Eur. general chapters
• Pre-conditioning of reference materials and calibration standards prior to gravimetric analysis
• Baking of PCB substrates and solder paste residues in electronics manufacturing QA
• Thermal stabilization of polymeric films and elastomeric components before tensile testing
• Residual solvent removal from coated pharmaceutical dosage forms
• Heat treatment of metallographic specimens and sintered ceramics
• Low-temperature sterilization of glassware and reusable lab tools (160°C/2 h protocol)

FAQ

What is the recommended calibration interval for the DHG-9023A?

We recommend annual calibration using NIST-traceable thermistors or PT100 probes at three defined points (e.g., 50°C, 100°C, 200°C) in accordance with ISO/IEC 17025 Clause 6.5.
Can the DHG-9023A be used under inert atmosphere?

Yes — optional inert gas inlet port (with calibrated float flowmeter) enables nitrogen or argon purging to prevent oxidation during high-temperature processing of sensitive materials.
Is the unit suitable for GMP-regulated environments?

When equipped with RS485 + validated software and/or embedded printer, it supports ALCOA+ data integrity principles; however, final qualification must be performed per site-specific validation protocols (IQ/OQ/PQ).
Does the oven include over-temperature protection as standard?

The primary PID controller includes upper-limit alarm; independent hardware-based over-temperature cutoff is available as a factory-installed option.
What maintenance is required for long-term reliability?

Biannual inspection of door seal integrity, cleaning of air intake filters (if installed), and verification of fan operation are sufficient under normal usage conditions.
