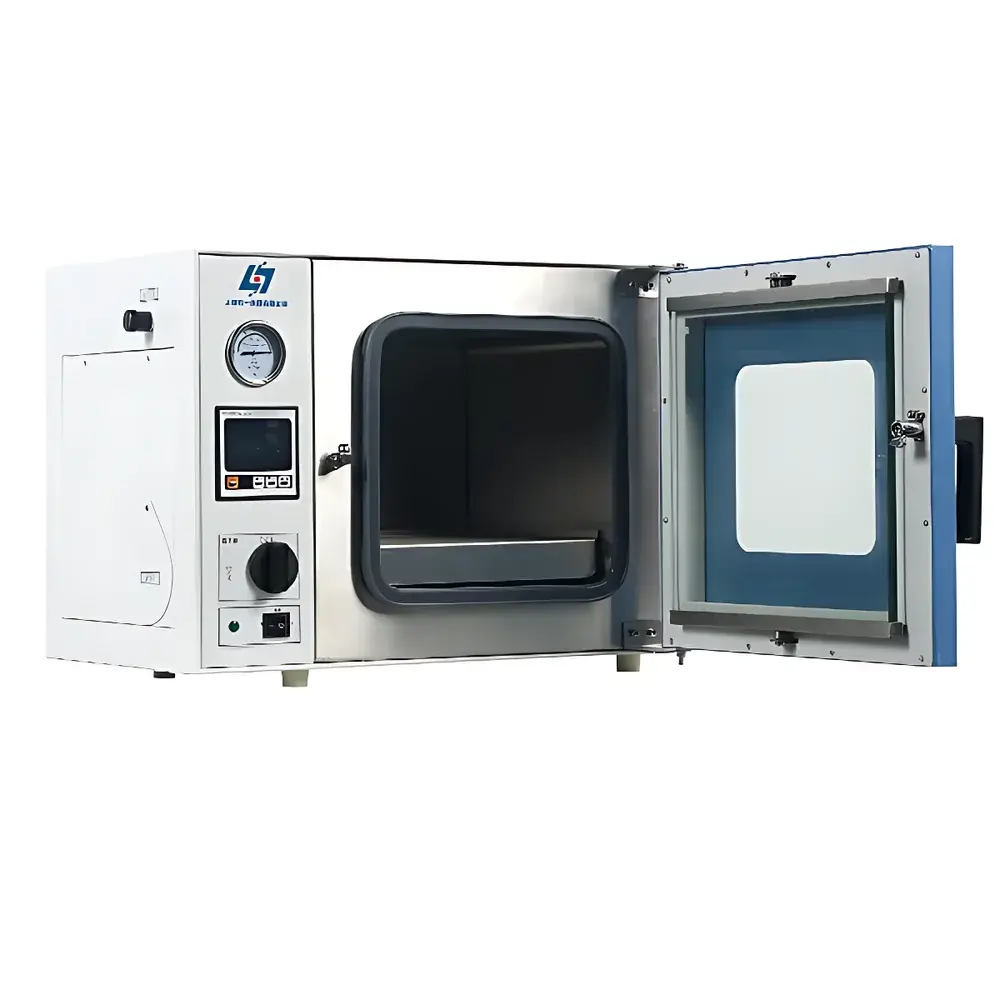

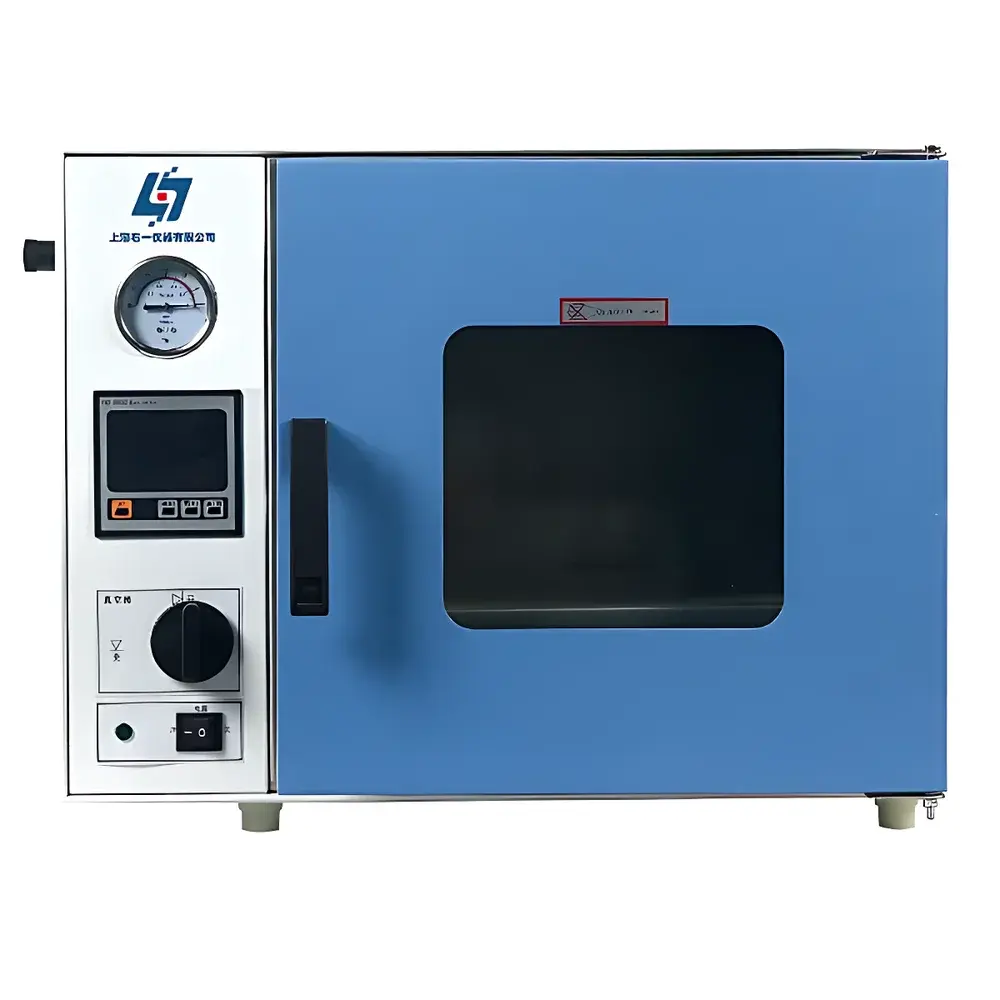

Yoyi DZF-6030 Benchtop Vacuum Drying Oven

Overview

The Yoyi DZF-6030 Benchtop Vacuum Drying Oven is an engineered solution for controlled, oxygen-free thermal processing of sensitive and reactive materials. Operating on the principle of reduced-pressure drying—where lowering ambient pressure depresses the boiling point of solvents and moisture—the unit enables efficient dehydration at lower temperatures than atmospheric ovens. This minimizes thermal degradation of heat-labile compounds such as pharmaceutical intermediates, enzyme preparations, polymer precursors, and biological samples. Designed for laboratory-scale applications in R&D, QC, and academic settings, the DZF-6030 maintains stable vacuum conditions while delivering precise temperature control across its 25 L internal chamber. Its all-stainless-steel interior ensures chemical resistance and long-term cleanliness compliance, supporting repeated sterilization cycles and residue-free operation.

Key Features

• Microprocessor-based PID temperature controller with 0.1°C resolution and ±1°C uniformity across the chamber volume
• Robust 304 stainless steel inner chamber and cold-rolled steel exterior with electrostatic powder coating for corrosion resistance
• Dual-layer tempered glass observation window with silicone rubber door gasket, enabling real-time visual monitoring without vacuum loss
• Internally mounted heating elements ensure rapid thermal response and minimal temperature gradient within the working space
• Configurable inert gas inlet port (optional) compatible with nitrogen or argon supply lines for active atmosphere control during drying or annealing
• Power-fail memory function retains setpoints and operational status; automatic recovery upon power restoration
• Ergonomic adjustable door latch mechanism and integrated door-seal compression system maintain consistent vacuum integrity over extended cycles
• Aluminum alloy shelf plates—formed via precision stamping—exhibit high thermal conductivity and oxidation resistance up to 250°C

Sample Compatibility & Compliance

The DZF-6030 accommodates a broad range of sample formats including Petri dishes, glass vials, crucibles, aluminum pans, and custom trays—provided they conform to the 320 × 320 × 300 mm internal envelope. It supports drying of hygroscopic powders, lyophilized formulations, thin-film coatings, ceramic precursors, and moisture-sensitive electronics components. The unit complies with general laboratory safety standards for Class II electrical equipment (IEC 61010-1). While not certified for explosion-proof use, its design permits safe operation under inert gas purging when configured with optional gas inlet valves and flow meters. For GLP/GMP-aligned workflows, users may integrate external vacuum gauges with digital logging capability to satisfy audit requirements for process traceability.

Software & Data Management

The DZF-6030 operates via an embedded LCD interface with intuitive menu navigation—no external PC required. All parameters—including set temperature, dwell time, vacuum status, and real-time chamber temperature—are displayed simultaneously on a single screen. Optional multi-segment programmable controllers (sold separately) support up to 30 ramp-hold cycles with user-defined vacuum sequencing logic. Data output is limited to local display only; however, analog voltage signals (0–5 V or 4–20 mA) can be tapped from the internal temperature sensor for integration into third-party SCADA or LIMS platforms. The system does not natively support FDA 21 CFR Part 11-compliant electronic signatures or audit trails, but timestamped manual log entries remain compatible with standard laboratory notebook practices.

Applications

• Drying of thermally unstable APIs and excipients without decomposition or polymorphic transition
• Removal of residual solvents from coated tablets, inhalation powders, and transdermal patches
• Pre-conditioning of reference standards prior to gravimetric analysis per USP & ASTM E1258 protocols
• Dehydration of gel matrices, hydrogels, and aerogel precursors under controlled partial pressure
• Post-synthesis solvent removal from metal-organic frameworks (MOFs) and covalent organic frameworks (COFs)
• Sterilization and moisture elimination of glassware, pipette tips, and filtration assemblies in microbiology labs
• Accelerated aging studies of packaging materials under low-oxygen, elevated-temperature conditions

FAQ

What vacuum level can the DZF-6030 achieve without an external pump?

The unit requires connection to an external vacuum pump; it does not include an integrated pump. With a standard 2 L/s rotary vane pump, ultimate vacuum reaches ≤133 Pa (1 Torr) after 30 minutes of evacuation.
Is the chamber volume validated for temperature uniformity per ISO 14644 or ASTM E2297?

No formal validation report is supplied. Users are advised to perform in-house mapping using calibrated thermocouples at nine spatial points per ICH Q5C guidance.
Can the DZF-6030 be used for outgassing of vacuum chamber components?

Yes—its 250°C upper limit and stainless steel construction make it suitable for pre-baking metal and ceramic parts prior to UHV system assembly.
Does the oven support continuous inert gas purge during operation?

Yes, when equipped with the optional inert gas inlet valve and mass flow controller, continuous purge mode maintains positive differential pressure relative to ambient while preserving vacuum integrity.
Are replacement shelves and door gaskets available as service parts?

Standard aluminum shelves and molded silicone door seals are stocked and available under part numbers YO-DZF-SH-AL-01 and YO-DZF-SEAL-02, respectively.
