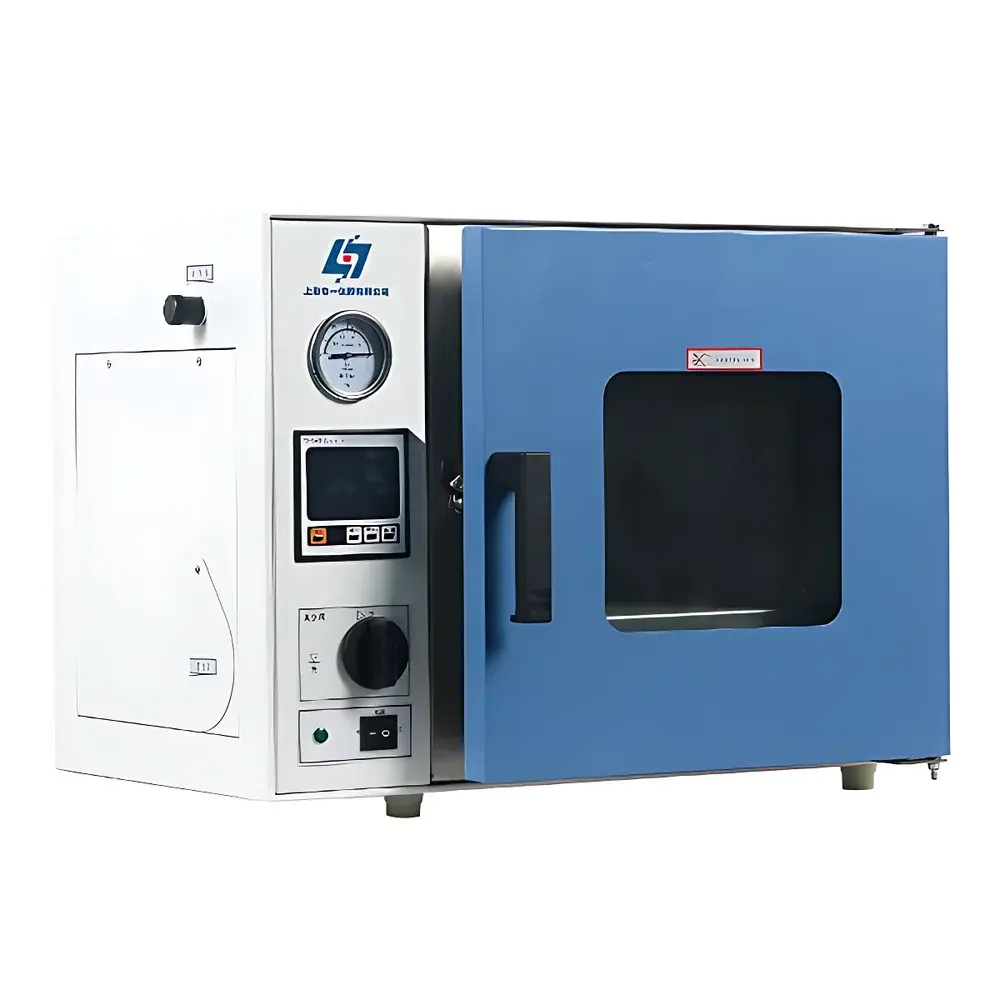

Yoyi DZF-6053 Benchtop Vacuum Drying Oven

Overview

The Yoyi DZF-6053 Benchtop Vacuum Drying Oven is an engineered solution for controlled thermal processing under reduced pressure environments. It operates on the principle of vacuum-assisted drying—lowering the ambient pressure inside the chamber to reduce the boiling point of volatile solvents and moisture, thereby enabling gentle, uniform dehydration of heat-sensitive, oxygen-labile, or compositionally complex samples. Unlike conventional convection ovens, this system eliminates oxidative degradation and thermal decomposition risks by removing atmospheric oxygen and permitting precise low-temperature drying across a wide operational range (RT+10°C to 250°C). Its stainless steel interior, double-layer tempered glass door, and molded silicone gasket ensure long-term vacuum integrity and chemical resistance—critical for applications in pharmaceutical stability testing, polymer curing, catalyst activation, and lyophilization pre-drying.

Key Features

• Stainless steel (304 grade) interior chamber and cold-rolled steel exterior housing with electrostatic powder coating for corrosion resistance and mechanical durability.
• Precision microprocessor-based temperature controller with 0.1°C resolution and ±1°C uniformity across the working volume—validated per ASTM E2209 for laboratory oven performance.
• Benchtop design with optimized internal geometry (415 × 370 × 345 mm) delivering high usable volume-to-footprint ratio; accommodates standard petri dishes, glass vials, crucibles, and custom sample trays.

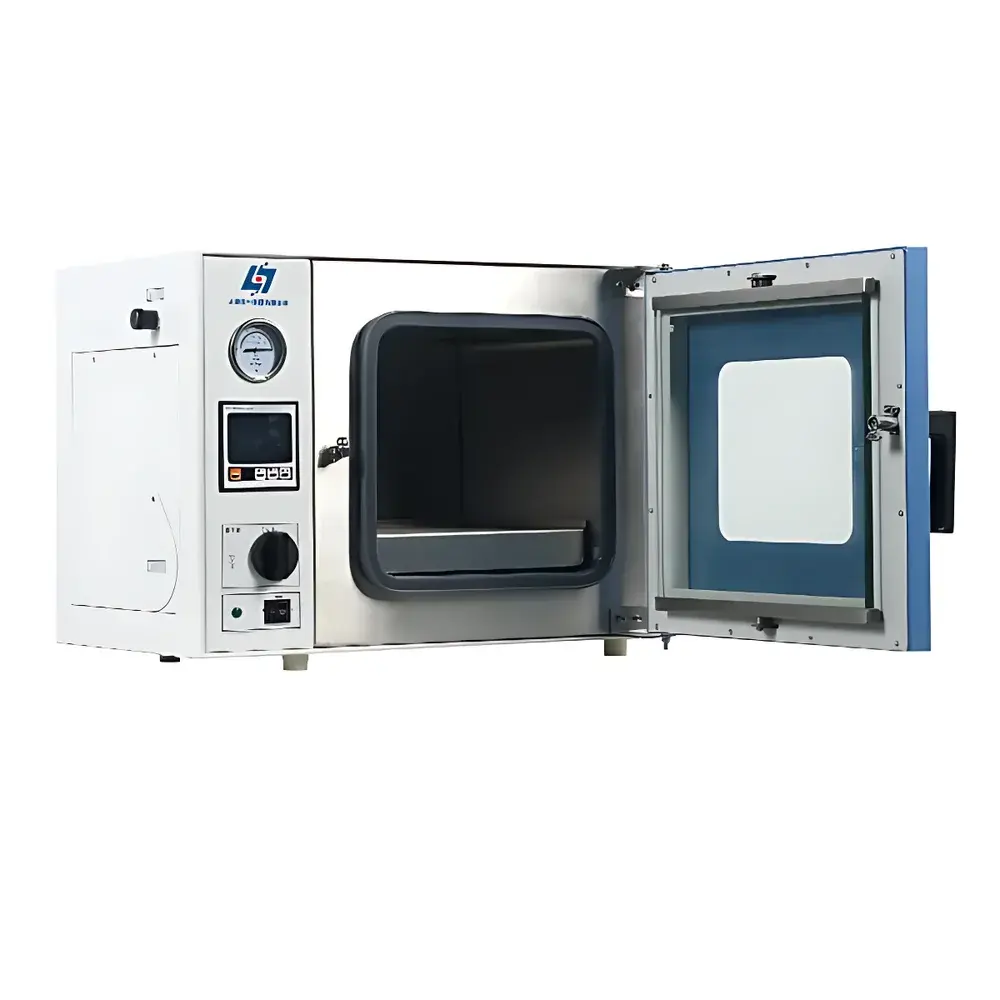

• Double-layer tempered glass observation window with integrated safety seal—enables real-time visual monitoring without vacuum loss or thermal interruption.
• Two adjustable stainless steel shelves with aluminum alloy surface treatment: oxidation-resistant, rapid-thermal-response, and low-heat-loss design for energy-efficient operation.
• Intelligent power-failure recovery: automatically restores setpoints, timer status, and vacuum hold state upon re-powering—ensuring continuity in GLP-compliant workflows.
• User-configurable door compression system: fine-tuned clamping force ensures consistent vacuum seal performance over extended service life.

Sample Compatibility & Compliance

The DZF-6053 supports diverse sample types including biological powders (e.g., enzymes, antibodies), pharmaceutical intermediates, ceramic precursors, battery electrode slurries, and environmental soil extracts. Its inert gas inlet port (optional) allows purging with nitrogen or argon prior to and during drying—meeting ISO 12099 requirements for anaerobic sample handling. The unit complies with IEC 61010-1:2010 for electrical safety in laboratory equipment and conforms to CE marking directives. While not intrinsically rated for explosive atmospheres, it is suitable for use in non-hazardous zones when operated with certified external vacuum pumps meeting ATEX Category 3G standards.

Software & Data Management

The built-in LCD interface supports multi-parameter display (setpoint, actual temperature, elapsed time, vacuum status) and menu-driven navigation without external software dependency. Optional programmable controller enables up to 30 segments of time-temperature-vacuum profiles—compatible with CSV export via RS232 interface for audit-ready recordkeeping. All parameter changes are timestamped and stored locally, supporting basic 21 CFR Part 11 compliance when paired with user-defined access controls and electronic log review protocols.

Applications

• Pharmaceutical R&D: Residual solvent removal from APIs under inert atmosphere per ICH Q5C guidelines.
• Materials Science: Pre-sintering of metal-organic frameworks (MOFs) and controlled dehydration of hydrogels.
• Food & Agriculture: Moisture content determination in grains and spices per AOAC 950.46, minimizing Maillard reaction artifacts.
• Electronics Manufacturing: Degassing of encapsulants and conformal coatings prior to curing.
• Environmental Testing: Stabilization of volatile organic compound (VOC)-laden soil samples prior to GC-MS analysis.
• Academic Research: Solvent-free drying of nanomaterial dispersions and graphene oxide suspensions.

FAQ

What vacuum level can the DZF-6053 achieve without an external pump?

The chamber is designed to maintain ≤133 Pa when used with a compatible external vacuum pump (e.g., 2 L/s or 4 L/s rotary vane pump); the unit itself does not include an integrated pump.

Is the temperature sensor calibrated traceable to NIST standards?

Factory calibration is performed using reference thermometers certified to national metrology institutes; full NIST-traceable calibration certificates are available as a paid option.

Can the oven be operated continuously at 250°C?

Yes—the heating elements and insulation are rated for continuous operation at maximum temperature, provided ambient conditions remain within 15–35°C and relative humidity ≤80% RH.

Does the unit support inert gas backfilling during cooling?

With the optional inert gas inlet valve and flowmeter, users may introduce nitrogen or argon at regulated flow rates (0–5 L/min) during both drying and cooldown phases.

What maintenance is required for long-term vacuum integrity?

Annual inspection of the silicone door gasket for compression set, cleaning of the chamber interior with isopropyl alcohol, and verification of vacuum hose connections are recommended per manufacturer’s service schedule.
