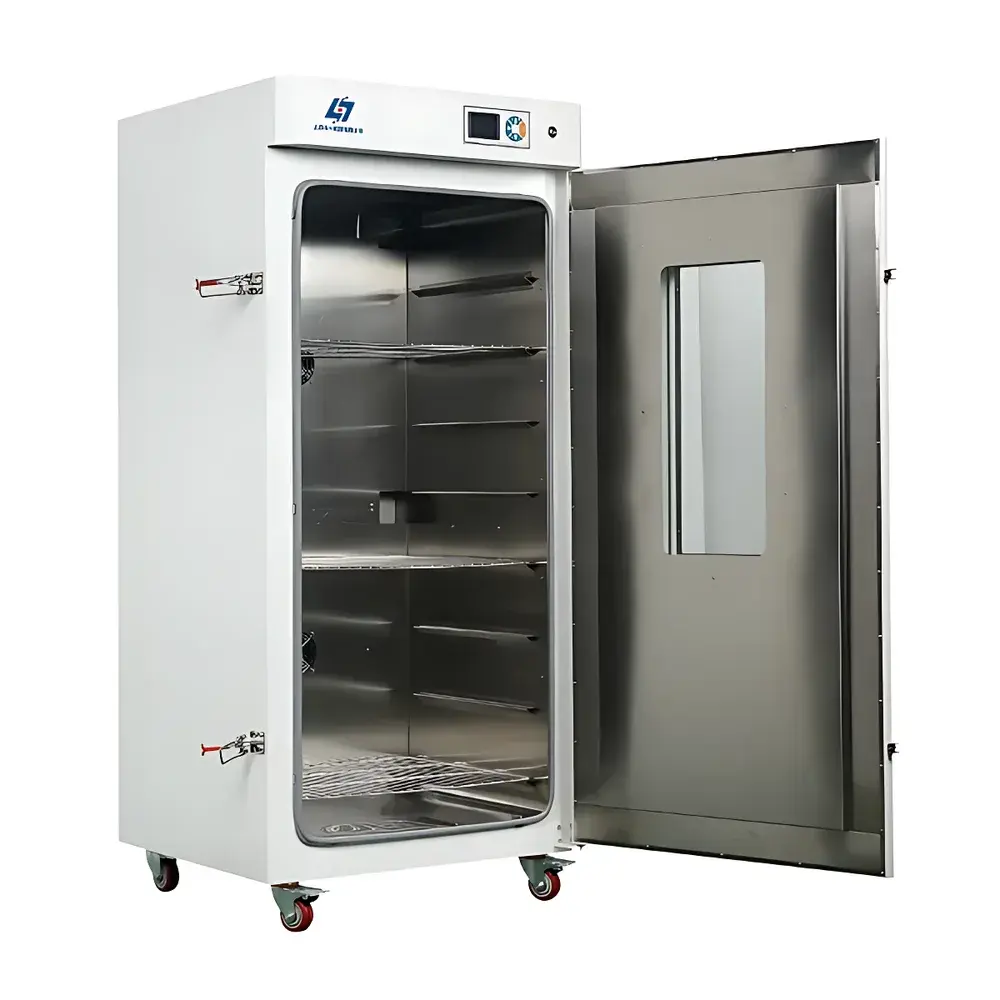

Yoyilab DHP-9902 Large-Capacity Forced-Air Biochemical Incubator

Overview

The Yoyilab DHP-9902 is a large-volume, forced-air biochemical incubator engineered for stable, reproducible temperature control in life science laboratories, bioproduction facilities, and quality control environments. Designed according to fundamental principles of convective heat transfer and thermal mass stabilization, the DHP-9902 maintains precise ambient-equivalent or elevated temperature conditions—critical for microbial culture propagation, enzyme activity assays, cell line maintenance, and long-term stability testing of biological reagents. Its 1000 L working chamber accommodates high-throughput sample loads while sustaining uniform thermal distribution across the entire volume under continuous operation. The unit operates within a validated range of RT+5°C to 65°C, with microprocessor-based regulation ensuring minimal thermal drift and robust resistance to external environmental perturbations such as ambient temperature shifts or door-opening events.

Key Features

• Forced-air convection system with optimized airflow path design ensures rapid temperature recovery (<15 min after 60 s door opening at 37°C) and minimizes vertical/horizontal thermal gradients
• Double-layer insulated door with magnetic seal and low-emissivity glass viewport preserves internal thermal integrity during visual monitoring
• Electropolished stainless-steel interior chamber (AISI 304 grade) featuring radius-corner geometry for seamless cleaning and reduced contamination risk
• Adjustable stainless-steel shelving (standard configuration: 4 shelves, load capacity ≥15 kg per shelf) with tool-free height positioning
• 5.7-inch backlit LCD controller displaying real-time setpoint, chamber temperature, elapsed time, and alarm status simultaneously
• Dual-stage thermal protection: primary PID control loop + independent mechanical overtemperature cutoff (optional, factory-configurable limit)
• Power-loss recovery function retains user-defined parameters and resumes operation automatically upon grid restoration
• High-efficiency polyurethane foam insulation (≥80 mm thickness, CFC-free) combined with perimeter silicone gasketing achieves thermal leakage <0.8°C/h at 37°C

Sample Compatibility & Compliance

The DHP-9902 supports standard laboratory vessels including Petri dishes, multiwell plates, Erlenmeyer flasks (up to 2 L), roller bottles, and stacked culture racks. Its interior geometry accommodates ISO-standard stackable incubator trays (600 × 400 mm footprint). The unit complies with IEC 61010-1:2010 for electrical safety in laboratory equipment and meets EN 60529 IP20 ingress protection requirements. While not certified for medical device manufacturing under ISO 13485, it is routinely deployed in GLP-compliant environments for non-clinical biostability studies. Optional RS485 interface enables integration into facility-wide monitoring systems adhering to FDA 21 CFR Part 11 data integrity requirements when paired with validated third-party software.

Software & Data Management

The embedded controller logs temperature data at user-selectable intervals (1–60 min) with internal storage capacity for ≥30 days of continuous recording (1-min resolution). Optional RS485 communication supports Modbus RTU protocol for bidirectional data exchange with SCADA or LIMS platforms. An optional thermal printer module provides timestamped hardcopy output compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Audit trail functionality—including operator ID, parameter changes, alarm triggers, and calibration events—is available via the programmable P-series variant (DHP-9902P), supporting traceability for ISO/IEC 17025-accredited testing labs.

Applications

• Bacterial and fungal culture expansion in microbiology and food safety testing laboratories
• Seed stock maintenance for industrial fermentation strain banks
• Accelerated stability studies of diagnostic reagents, vaccines, and monoclonal antibody formulations
• Enzyme kinetics profiling requiring tightly controlled thermal environments (e.g., amylase, protease, lipase assays)
• Plant tissue culture protocols involving callus induction and organogenesis
• Environmental simulation for ecotoxicology endpoints (e.g., Daphnia magna reproduction assays)
• Pre-incubation conditioning of biosensors and immunoassay plates prior to detection

FAQ

What is the minimum ambient temperature required for stable operation at 65°C?
The unit is rated for continuous operation in ambient environments between 15°C and 30°C; performance validation at maximum setpoint assumes ≤50% RH and no direct solar loading.
Can the DHP-9902 be used for CO₂-independent mammalian cell culture?
No—it lacks CO₂ control, humidity regulation, and HEPA filtration; it is intended for non-CO₂-dependent applications such as bacterial growth, enzymatic reactions, or dry-heat sterilization validation.
Is calibration documentation provided with shipment?
A factory-issued temperature uniformity report (per ISO 16776:2017 Annex B) is included; NIST-traceable calibration certificates are available upon request at additional cost.
What maintenance intervals are recommended for optimal thermal performance?
Condenser coil inspection every 6 months; door gasket integrity check quarterly; annual verification of temperature sensor offset against reference PT100 probe.
Does the incubator support remote monitoring via Ethernet or Wi-Fi?
Native Ethernet/Wi-Fi capability is not integrated; however, third-party IoT gateways can be connected via RS485 using standard Modbus-to-MQTT translation firmware.
