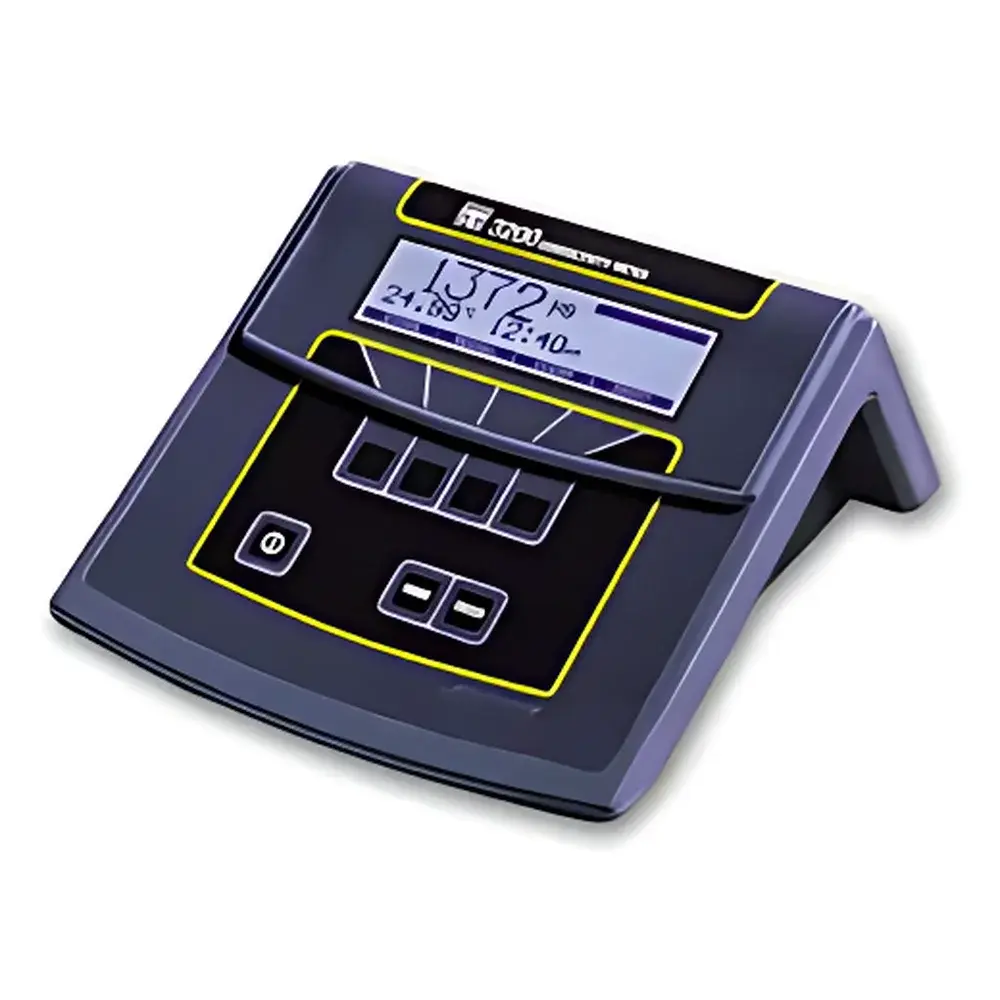

YSI 3200 Laboratory Conductivity Analyzer

Overview

The YSI 3200 Laboratory Conductivity Analyzer is a precision-engineered benchtop instrument designed for high-accuracy, trace-level conductivity and resistivity measurements in ultra-pure water, pharmaceutical process streams, power plant boiler feedwater, semiconductor rinse water, and environmental aqueous standards. It employs YSI’s proprietary Resistance Ratio Technology (RRT), a four-electrode measurement principle that eliminates polarization errors and cable capacitance effects—critical for stable, drift-free readings below 1 µS/cm. Unlike conventional two-electrode or even standard four-electrode systems, RRT measures the ratio of voltage drop across the sample to a known reference resistor, delivering exceptional linearity and long-term stability across an unprecedented 9-decade conductivity range (0.0001 µS/cm to 3 S/cm). The analyzer integrates a built-in Pt1000-grade thermistor within each compatible probe, enabling real-time, high-resolution temperature compensation (±0.01 °C resolution) essential for compliance with ASTM D1125, ISO 7888, and USP requirements for purified water and water-for-injection (WFI) qualification.

Key Features

• Resistance Ratio Technology (RRT) for sub-µS/cm accuracy and immunity to electrode fouling and polarization artifacts
• Auto-ranging capability spanning 0.0001 µS/cm to 3 S/cm — fully automatic scale selection without manual intervention
• Seven-range conductivity measurement with calibrated accuracy from ±0.10% to ±1.0%, traceable to NIST-certified standards
• Multi-point conductivity calibration support (up to 5 points) using certified KCl standards for extended linear and non-linear calibration curves
• Configurable temperature compensation: linear (α = 0–10 %/°C), preloaded non-linear curves (2 factory-defined), or user-defined non-linear tables (6 customizable profiles)
• Onboard non-volatile memory storing up to 100 data points and configuration parameters for six unique conductivity cells (including cell constant 0.001–100 cm⁻¹)
• Graphical LCD with menu-driven interface, tactile keypad navigation, and real-time parameter display including TDS, salinity (0–80 ppt NaCl), resistivity, and temperature
• RS232 serial interface compliant with EIA/TIA-232-E standards for bidirectional communication with LIMS, SCADA, or custom data acquisition software

Sample Compatibility & Compliance

The YSI 3200 accommodates a full suite of OIML R56 and R68-certified conductivity cells—including immersion-type (Model 3252), flow-through (Model 3254), and suction-style (Model 3256)—ensuring metrological traceability and interchangeability across laboratory, pilot-scale, and validation environments. All cells feature platinum-black plating for enhanced surface area and reduced polarization impedance. The system meets UL 61010-1, CSA C22.2 No. 61010-1, and CE marking requirements for electrical safety and electromagnetic compatibility (EMC Directive 2014/30/EU). Its measurement architecture supports GLP/GMP workflows through timestamped data logging, operator ID fields (via optional external keyboard), and audit-ready output formatting suitable for FDA 21 CFR Part 11-compliant systems when paired with validated software.

Software & Data Management

Data export occurs via ASCII-formatted RS232 output, supporting direct integration into Excel, LabVIEW, or enterprise-quality management systems. Each stored reading includes conductivity value, temperature, date/time stamp, selected cell constant, and compensation mode—enabling full traceability per ISO/IEC 17025 clause 7.7. The instrument does not include onboard PC software; however, it is compatible with YSI’s legacy DataTrac™ utilities and third-party serial terminal emulators (e.g., Tera Term, PuTTY) for automated batch logging. All calibration records and measurement history remain retained in battery-backed RAM, surviving power cycles without data loss.

Applications

• Pharmaceutical water system validation (PW, WFI, Purified Water per USP and EP 2.2.38)
• Power generation: monitoring condensate polisher effluent and steam cycle purity
• Microelectronics: ultrapure rinse water QC in wafer fabrication cleanrooms
• Environmental laboratories: low-conductivity groundwater and precipitation analysis per EPA Method 120.1
• Academic research: kinetic studies of ion exchange resins and membrane fouling behavior
• Calibration labs: reference standard verification against primary conductivity standards

FAQ

What conductivity range is supported for ultra-pure water applications?

The YSI 3200 achieves reliable measurement down to 0.0001 µS/cm using RRT and dedicated low-range cells (e.g., 3252 with k = 0.01 cm⁻¹), making it suitable for Type I reagent water per ISO 3696 and ASTM D1193.
Is temperature compensation mandatory—and how is it implemented?

Yes; all conductivity values are reported at a user-selectable reference temperature (0–100 °C). Compensation uses either linear α-coefficient input, two built-in non-linear curves (for NaCl and natural waters), or up to six user-defined lookup tables.
Can the instrument store calibration data for multiple probes?

Yes—six independent probe configurations (including cell constant, calibration date, and offset) are retained in non-volatile memory for rapid probe swapping without reconfiguration.
Does the YSI 3200 meet regulatory requirements for GxP environments?

While the hardware itself is not “Part 11 certified,” its deterministic output format, time-stamped logs, and calibration traceability enable validation under GMP/GLP protocols when integrated into a qualified software environment.
What is the operating humidity limit for continuous use?

The analyzer is rated for continuous operation at up to 95% relative humidity (non-condensing), conforming to IEC 60529 IP20 enclosure classification.
