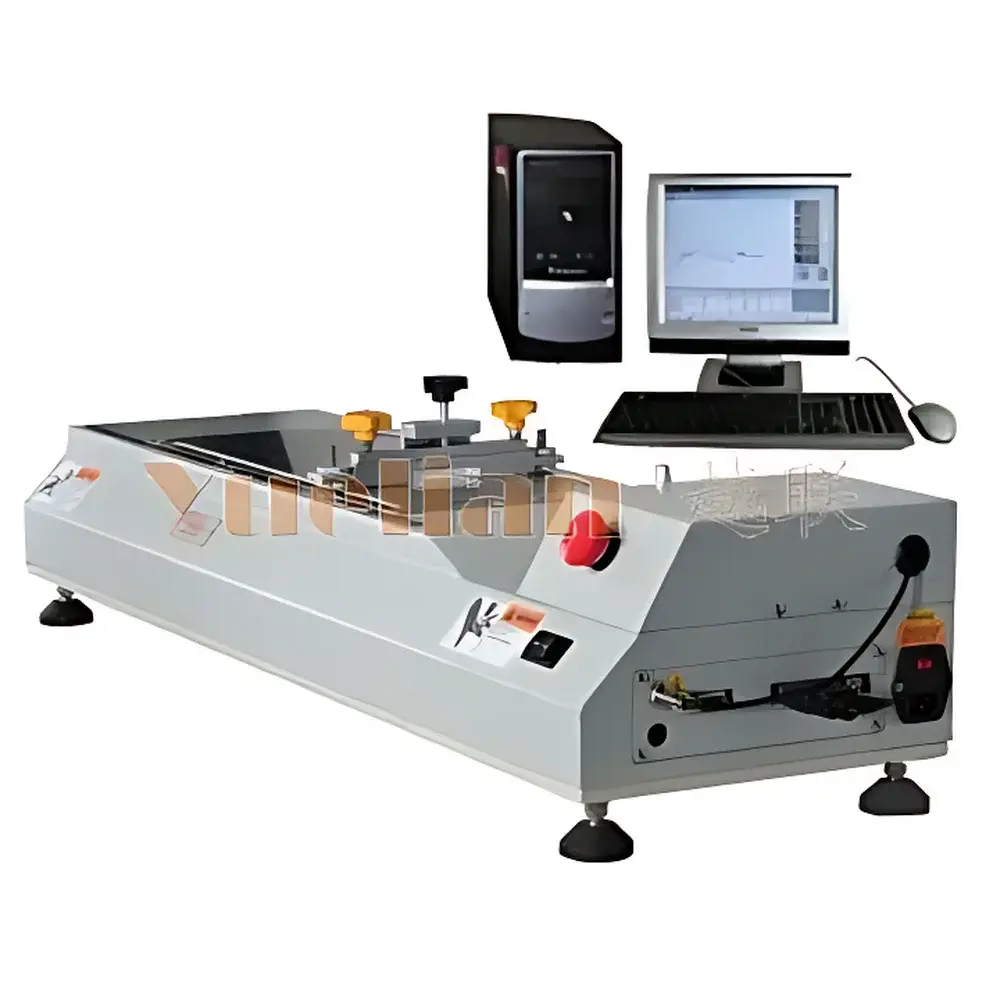

Yuelian YL-1103 Carrier Tape Peel Tester
| Brand | Yuelian |
|---|---|
| Model | YL-1103 |
| Load Capacity | 1–50 kgf |
| Max. Specimen Length | 300 mm |
| Max. Specimen Width | 110 mm |
| Test Speed Range | 1–500 mm/min (adjustable) |
| Force Resolution | 1/10,000 of full scale |
| Displacement Resolution | 0.005 mm |
| Dimensions (W×D×H) | 92 × 30 × 32 cm |
| Weight | 36 kg |
| Power Supply | AC 110–220 V, 50/60 Hz |
| Standard Interface | USB |
| Included | Dedicated PC Software |
Overview
The Yuelian YL-1103 Carrier Tape Peel Tester is a precision-engineered electromechanical testing system designed specifically for quantitative peel force evaluation of carrier tapes used in surface-mount technology (SMT), electronic component packaging, and tape-and-reel logistics. It operates on the fundamental principle of controlled tensile separation—applying a defined peeling angle (typically 90° or 180° per industry practice) while measuring the instantaneous and average peel load required to separate the cover tape from the carrier tape under standardized displacement conditions. The instrument complies with core mechanical test methodologies referenced in IPC-STD-782A (Surface Mount Design and Land Pattern Standards), JIS C 0042 (Peel Strength of Adhesive Tapes), and ASTM D903 (Standard Test Method for Peel Resistance of Adhesives). Its modular architecture integrates a high-stiffness load frame, servo-controlled crosshead actuation, and real-time digital signal acquisition to ensure repeatability and traceability across production QC environments and R&D laboratories.
Key Features
- Programmable test speed ranging from 1 to 500 mm/min, enabling compliance with both low-speed qualification protocols (e.g., 300 mm/min per IPC-TM-650 2.4.1) and high-throughput inline verification scenarios.
- High-resolution force transduction with 1/10,000 full-scale resolution, supporting accurate detection of subtle peel initiation forces and post-yield delamination behavior in thin-film adhesive systems.
- Dual-directional data transmission between tester and host PC ensures synchronized acquisition of force-displacement curves, peak load values, and energy-to-peel metrics without packet loss or timing drift.
- Robust aluminum alloy frame with vibration-damped base minimizes mechanical noise during low-load measurements (<5 N), critical for evaluating ultra-thin cover tapes (≤25 µm PET).
- USB 2.0 interface enables plug-and-play connectivity with Windows-based workstations; no external DAQ cards or proprietary drivers required.
- Onboard memory buffer retains up to 1,000 test records independent of PC connection—essential for audit-ready data integrity in GLP-compliant facilities.
Sample Compatibility & Compliance
The YL-1103 accommodates standard industry carrier tape formats including 8 mm, 12 mm, 16 mm, 24 mm, and 32 mm widths (max. 110 mm usable width), with specimen lengths up to 300 mm to support both single-cycle and multi-point peel profiling. It accepts embossed plastic carriers (PS, ABS, PC), paper-based tapes, and conductive variants. All mechanical configurations conform to ISO 2041:2018 (Vocabulary for Mechanical Testing of Materials) definitions of peel testing geometry and boundary conditions. Calibration certificates are traceable to NIM (National Institute of Metrology, China) standards; optional UKAS-accredited calibration kits available upon request.
Software & Data Management
The bundled Windows application provides ISO/IEC 17025-aligned test method templates—including preconfigured 90° and 180° peel modes, automatic peak detection, and area-under-curve integration for total peel energy calculation. Raw data exports in CSV and XML formats support integration with LIMS platforms (e.g., LabWare, Thermo Fisher SampleManager). Audit trail functionality logs user ID, timestamp, parameter changes, and calibration events in accordance with FDA 21 CFR Part 11 requirements when configured with electronic signatures. Batch reporting supports statistical process control (SPC) charting (X-bar/R, Cp/Cpk) directly from test series.
Applications
- Validation of cover tape adhesion strength prior to SMT reel loading
- Comparative analysis of adhesive formulations across temperature/humidity aging cycles (e.g., 85°C/85% RH per JESD22-A101)
- Root-cause investigation of tape jamming or misfeed incidents in pick-and-place equipment
- Qualification of new carrier tape suppliers against OEM-specified peel force windows (e.g., 0.3–1.2 N per IPC-7351B)
- Supporting failure mode and effects analysis (FMEA) for tape-related field returns
- Material substitution studies involving halogen-free or bio-based carrier substrates
FAQ
What peel angles does the YL-1103 support?
The system is mechanically configured for 90° and 180° peel geometries, with interchangeable fixture plates supplied as standard. Custom-angle fixtures (e.g., 45°) can be ordered separately.
Is the software compatible with Windows 11 and 64-bit architectures?
Yes—the current release (v3.2.1) supports Windows 10 and 11 (64-bit), with .NET Framework 4.8 and VC++ Redistributables included in the installer.
Can test data be exported to Excel without proprietary software?
All test results export natively to CSV format with column headers compliant with ASTM E1447 conventions, enabling direct import into Excel, Python pandas, or MATLAB.
Does the unit meet CE or UL safety certification requirements?
The YL-1103 carries CE marking per Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. UL 61010-1 listing is available under OEM agreement for North American distribution.
How often should force calibration be performed?
Per ISO 17025 recommendations, initial calibration is performed at factory; users should schedule annual recalibration or after any impact event exceeding 120% of maximum capacity. Internal zero-point verification is supported via software before each test session.
