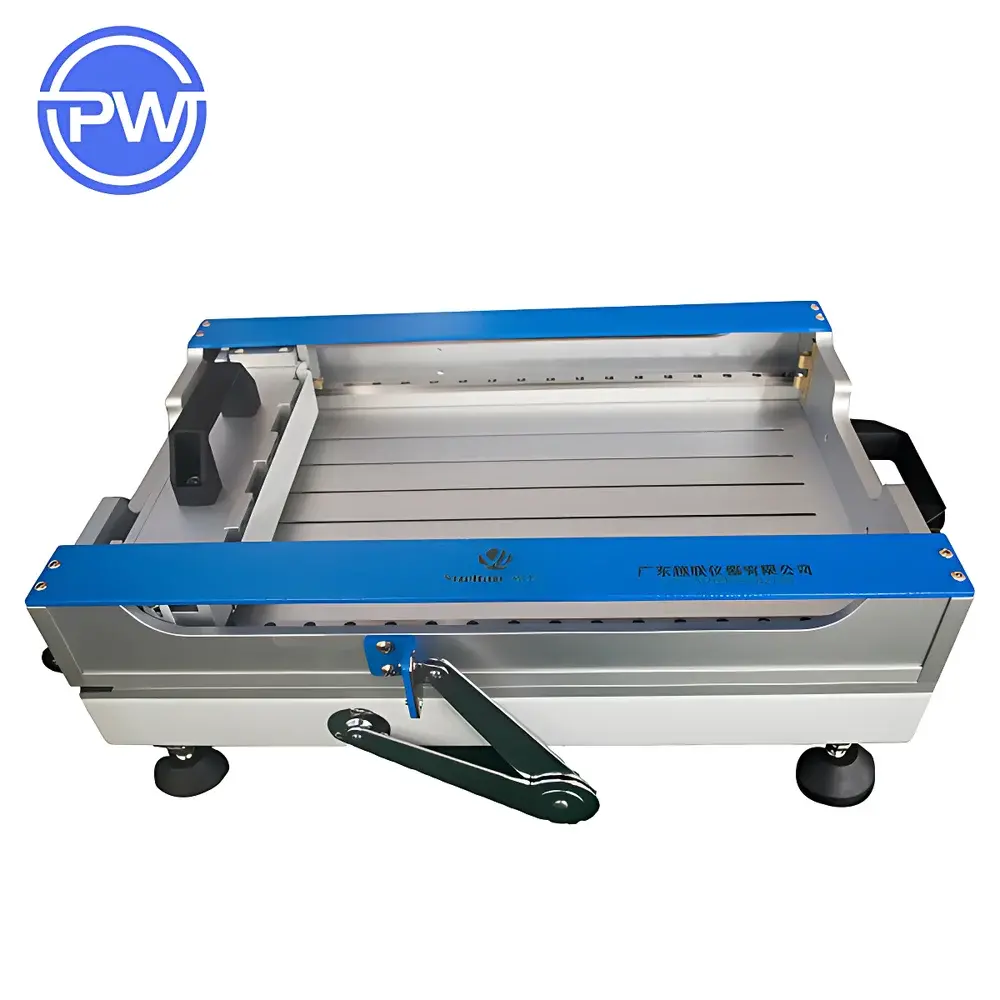

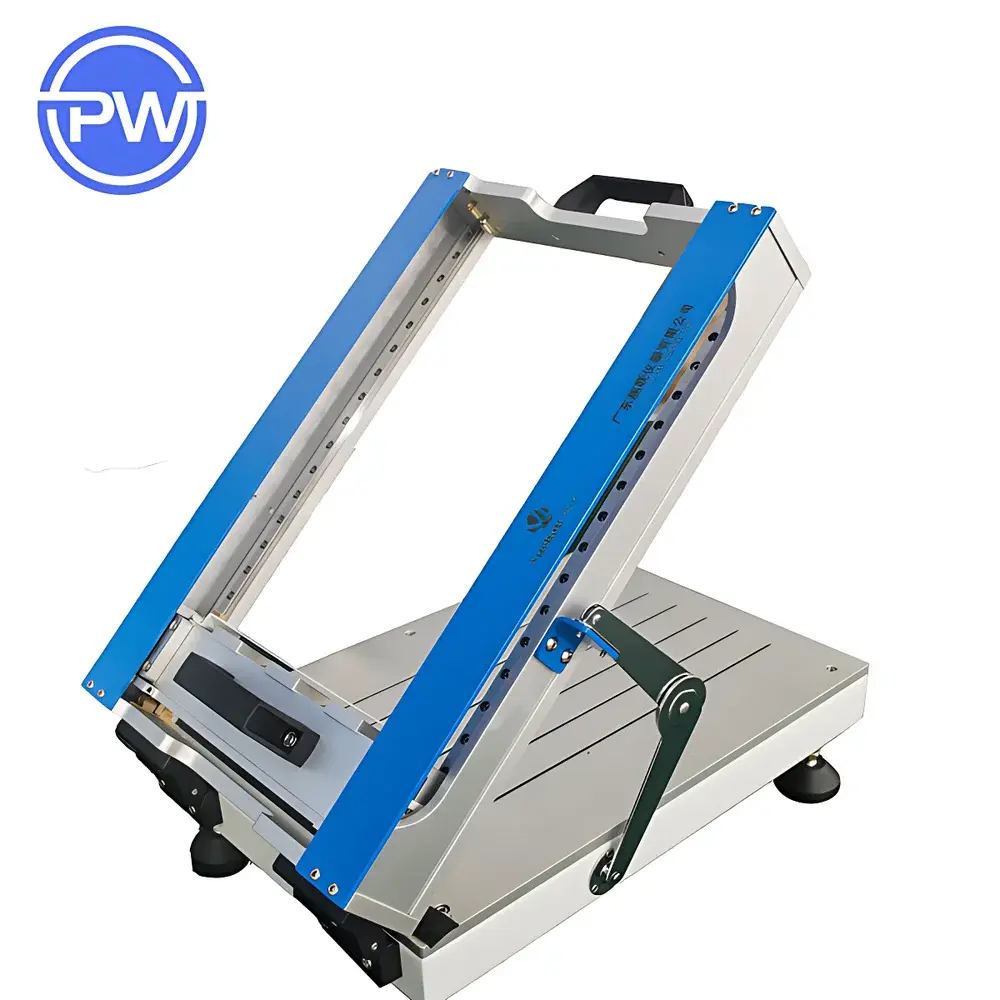

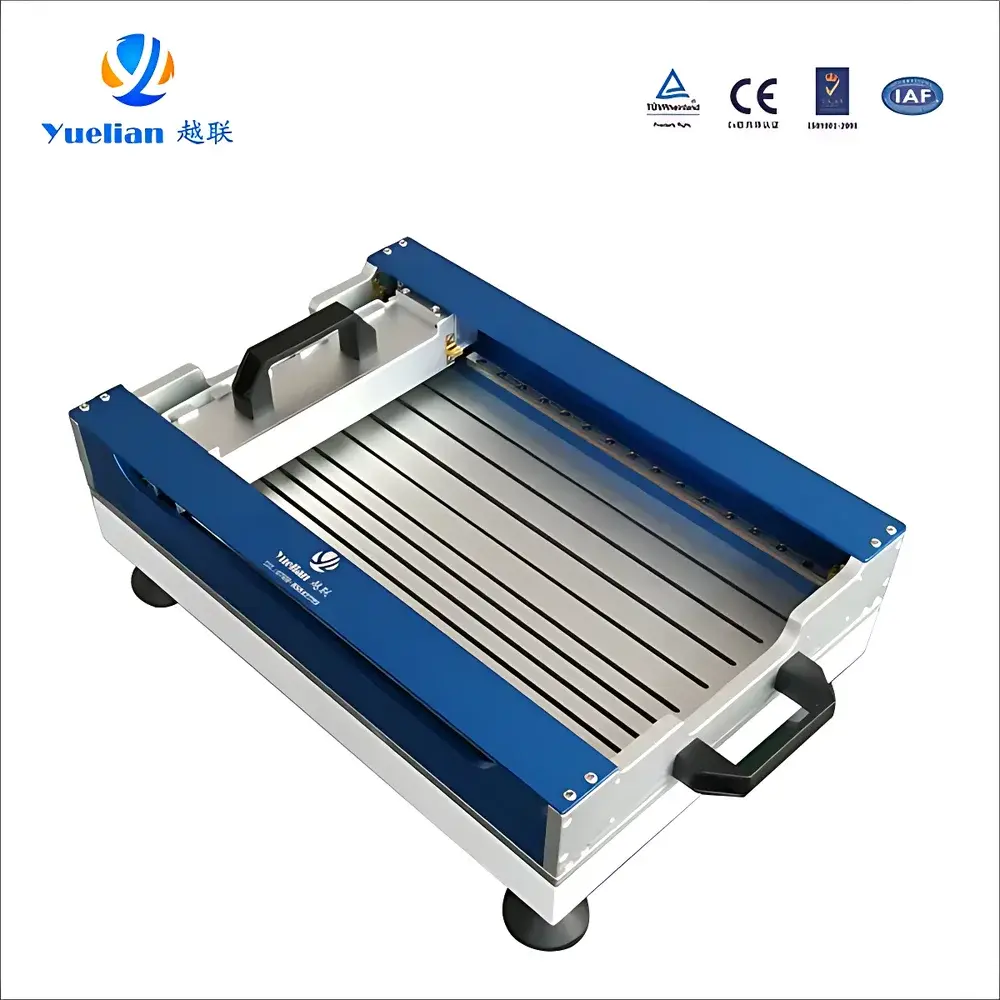

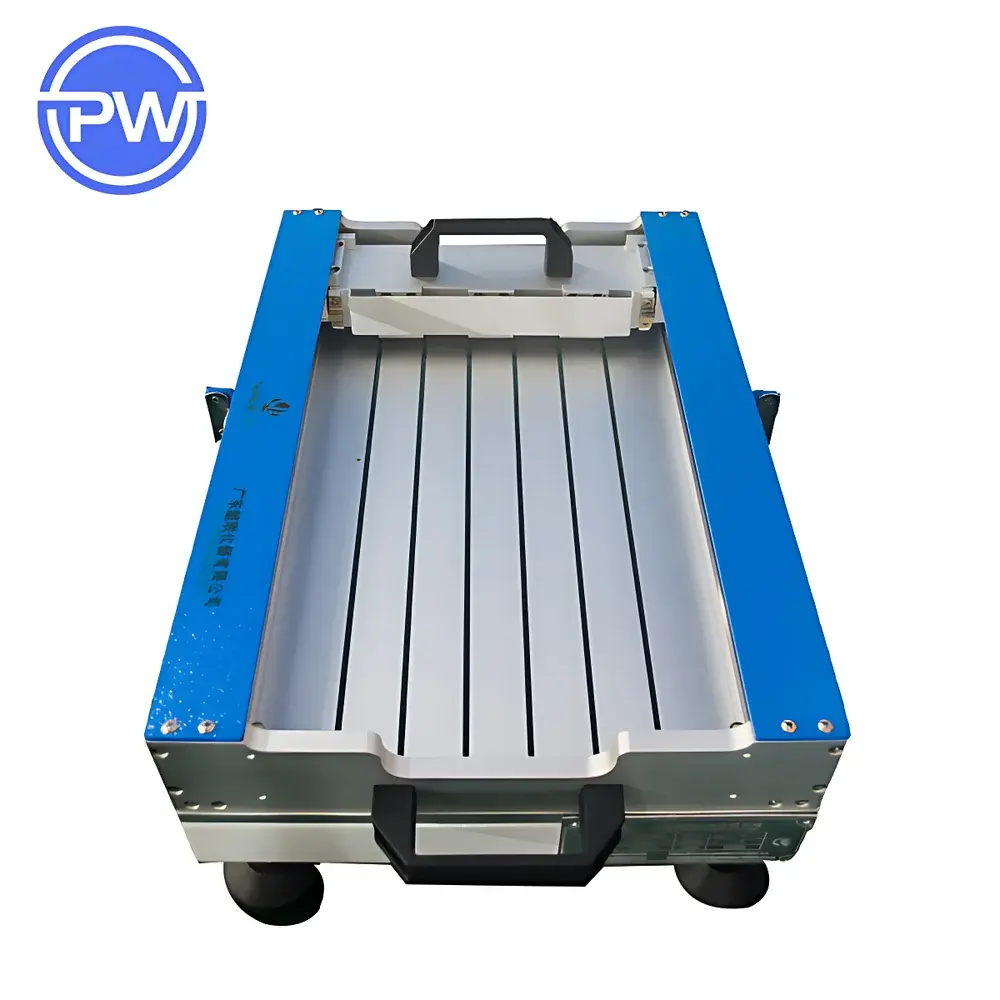

Yuelian YL-8809B Precision Film & Tape Sampler

Overview

The Yuelian YL-8809B Precision Film & Tape Sampler is a manually operated, mechanical sampling device engineered for repeatable and dimensionally accurate specimen preparation in quality control laboratories serving the packaging, adhesive, and functional film industries. It operates on a guided linear cutting principle: a calibrated template defines the sample geometry, while a spring-loaded, manually actuated blade carriage traverses the sample surface at controlled velocity and consistent normal force—ensuring uniform shear-induced separation without thermal degradation or edge deformation. This mechanism eliminates operator-dependent variability inherent in handheld die-cutting or scissors-based methods, delivering traceable, metrologically stable specimens required for tensile testing (ASTM D3330, ISO 8510-2), peel adhesion evaluation (ASTM D903, PSTC-101), and thickness correlation studies. The device is not a measuring instrument per se, but a critical pre-analytical tool whose dimensional fidelity directly impacts downstream test reproducibility—particularly when validating batch-to-batch consistency of pressure-sensitive adhesives, release liners, and multi-layer laminates.

Key Features

• Modular interchangeable templates supporting standardized widths of 15 mm, 24 mm, and 25.4 mm (1 inch), with engineering documentation available for custom width tooling upon request.
• Dual-mode sample support: rigid base plate with anti-slip rubber matting and adjustable vertical clamp assembly to secure substrates up to 1.5 mm thick—including low-modulus foam tapes and high-tensile-strength woven fabric tapes.
• Linear guide rail system with hardened steel bushings ensures straight-line blade travel over the full 300 mm stroke, minimizing lateral deviation and maintaining ±0.01 mm dimensional tolerance across all cut edges.
• Ergonomic lever-actuated blade deployment mechanism applies consistent downward force during cutting, eliminating manual pressure variation that causes incomplete cuts or substrate stretching.
• Compact benchtop footprint (470 × 285 × 155 mm) and lightweight aluminum alloy frame (8 kg net weight) facilitate integration into ISO/IEC 17025-accredited lab workflows without requiring floor mounting or vibration isolation.

Sample Compatibility & Compliance

The YL-8809B accommodates a defined range of flexible polymeric and composite materials used in industrial packaging and electronics protection applications. Verified compatibility includes acrylic- and rubber-based pressure-sensitive adhesives on PET, PP, PE, and paper carriers; silicone-coated release liners; polyimide and polyester (PET) protective films; and textile-reinforced duct and masking tapes. All cutting parameters comply with the geometric requirements specified in ASTM D6287 (“Standard Practice for Calibration of Laboratory Instruments for Testing Adhesive Tapes”) and align with sampling protocols referenced in ISO 2922:2021 (“Adhesives — Determination of peel resistance”). While the device itself carries no CE or UL certification, its mechanical design conforms to ISO 12100:2012 principles for machinery safety, and all user-facing components meet RoHS Directive 2011/65/EU restrictions on hazardous substances.

Software & Data Management

The YL-8809B is a fully mechanical, non-electronic instrument and does not incorporate embedded firmware, connectivity interfaces, or digital data output. As such, it requires no software installation, network configuration, or cybersecurity validation. Its operational integrity is maintained through physical calibration verification—performed annually using certified gauge blocks and optical comparators—and documented in laboratory equipment logs per GLP Annex 11 and ISO/IEC 17025 Clause 6.4.2. Traceability is achieved via serialized unit identification engraved on the base plate and recorded in internal asset management systems. No electronic audit trail or 21 CFR Part 11 compliance is applicable, as no electronic records are generated during operation.

Applications

• Preparation of standardized specimens for 180° peel strength testing per ASTM D3330 Method A and PSTC-101.
• Generation of uniform-width strips for tensile property evaluation (modulus, elongation, break force) in accordance with ISO 527-3 and ASTM D882.
• Sampling of release liner materials prior to silicone coating uniformity analysis via FTIR mapping or gravimetric residue assessment.
• Quality gate screening in contract manufacturing facilities producing die-cut electronics protection films, where consistent sample geometry enables rapid pass/fail decisions based on visual inspection and dimensional metrology.
• Reference material preparation for inter-laboratory round-robin studies coordinated under ILAC MRA frameworks.

FAQ

Is the YL-8809B suitable for cutting metal foil-backed tapes?
No. The device is rated exclusively for polymeric, elastomeric, and fibrous substrates within the specified thickness ranges. Metal foils exceed the blade’s shear capacity and risk catastrophic edge chipping or rail misalignment.
Can blade replacement be performed by end users?
Yes. The carbide-tipped blade is secured with a single M3 hex screw and can be exchanged using standard 2.0 mm Allen key—no special tools or recalibration required.
Does the sampler include calibration certification?
A factory-verified dimensional certificate (traceable to NIM, China) is provided with each unit, listing measured deviations against nominal width and length specifications at time of shipment.
What maintenance schedule is recommended?
Monthly cleaning of guide rails with lint-free cloth and light mineral oil; biannual inspection of clamp spring tension and blade edge integrity using 10× magnification.
Is technical support available outside mainland China?
Yes. Yuelian authorizes regional service partners in Southeast Asia, the Middle East, and Latin America for spare parts fulfillment and mechanical troubleshooting—documentation is available in English, Spanish, and Arabic.
