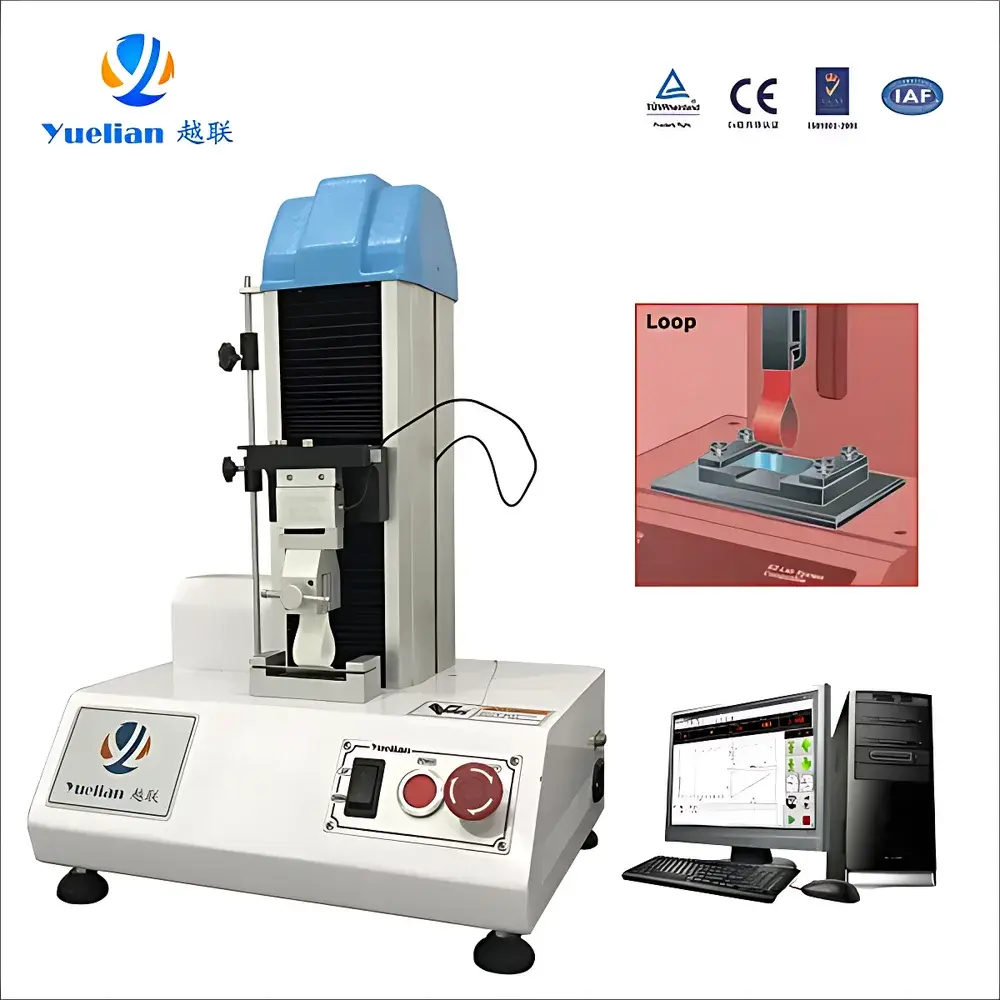

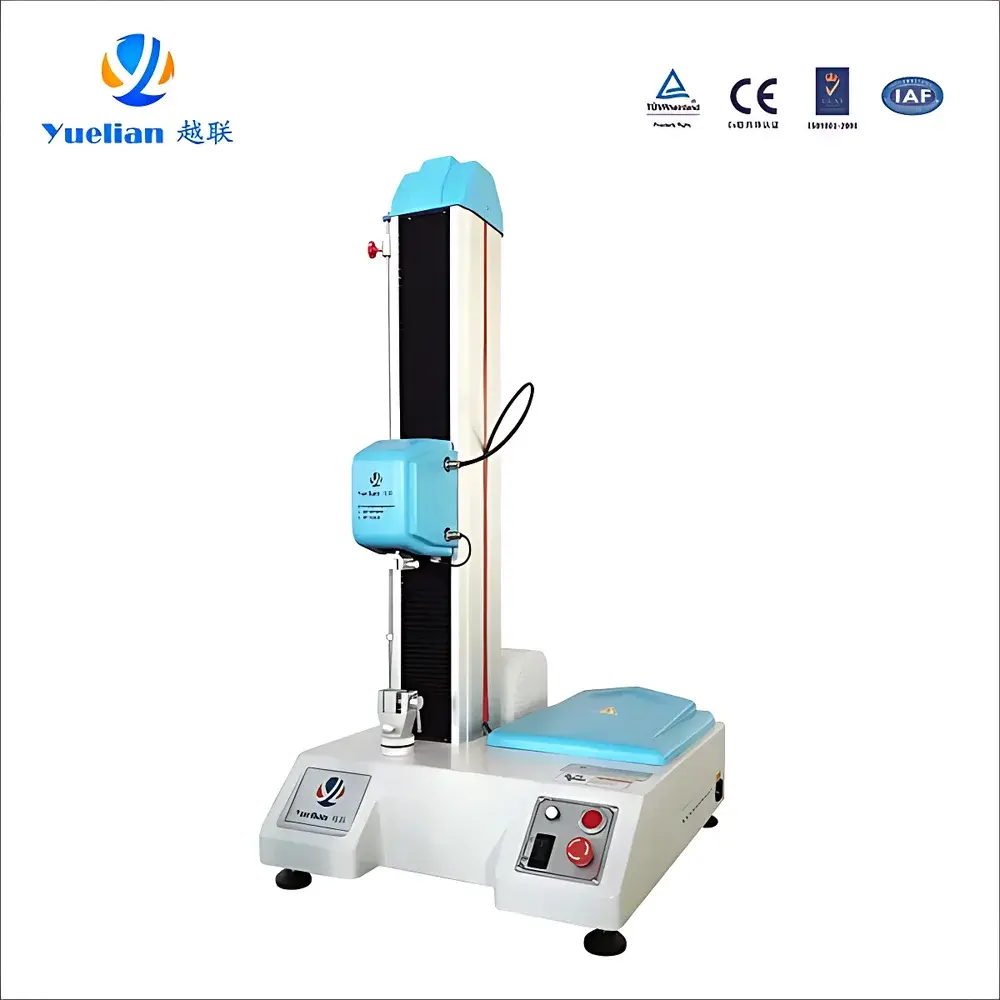

Yuelian YL-S80 90-Degree Peel Strength Tester

Overview

The Yuelian YL-S80 90-Degree Peel Strength Tester is a precision-engineered electromechanical tensile testing system designed for quantitative evaluation of interfacial adhesion performance in pressure-sensitive adhesives, tapes, laminates, and bonded assemblies. It operates on the fundamental principle of controlled uniaxial force application under standardized angular peel geometry—specifically configured for 90° peel testing per ASTM D903 and ISO 8510-2. The instrument applies a constant-rate tensile load to a specimen where one substrate is rigidly fixed while the other is peeled at precisely 90° relative to the bond line, enabling direct measurement of peel resistance (in N or N/mm) as a function of displacement. Its modular architecture supports both ambient and environmental chamber-integrated operation, allowing validation of adhesive performance across temperature ranges from −40 °C to +150 °C when coupled with external thermal enclosures.

Key Features

• High-fidelity load measurement system with ±0.1% full-scale accuracy and 1/500,000 internal resolution, traceable to national metrological standards
• Precision ball screw transmission driven by an AC servo motor, delivering smooth, low-noise motion with zero backlash and repeatability better than ±0.002 mm over 500 mm stroke
• Modular quick-change fixture interface enabling rapid deployment of standardized peel jaws (90° and 180°), shear blocks, tensile grips, bending fixtures, and puncture probes
• Integrated dual-mode load cell capable of bidirectional force sensing—essential for evaluating both tensile and compressive responses in composite peel or creep-recovery protocols
• Comprehensive real-time data acquisition at 50 Hz, synchronized with displacement and time stamps, ensuring temporal fidelity for dynamic peel onset analysis
• Seven user-definable test zones, up to 40 manual cursor points, and 120 auto-sampled data points per curve—supporting granular event capture such as initial tack, steady-state peel plateau, and failure transition
• Dual-layer safety architecture including hardware-based emergency stop, software-enforced upper/lower stroke limits, overload cut-off, and automatic fracture detection via slope-threshold algorithms

Sample Compatibility & Compliance

The YL-S80 accommodates specimens conforming to international peel test geometries—including ASTM D3330 (pressure-sensitive tapes), ISO 29862 (flexible packaging laminates), and GB/T 2790 (adhesive strength of rubber-to-metal bonds). It accepts substrates ranging from thin polymer films (≥25 µm) and foil laminates to rigid composites and elastomeric sheets. Fixture adaptability extends to ISO 8510-1 compliant 90° peel clamps, ASTM D1876 T-peel fixtures, and custom-designed mandrel-based configurations for curved-surface peel assessment. All test methods are fully documented and configurable within the software to satisfy GLP audit requirements. Raw data files include embedded metadata (operator ID, timestamp, calibration certificate ID, environmental conditions) and support 21 CFR Part 11-compliant electronic signatures when deployed with validated IT infrastructure.

Software & Data Management

The proprietary Yuelian TestSuite v4.2 software provides a deterministic, scriptable test environment compliant with ISO/IEC 17025 documentation standards. It enables creation of multi-step test sequences—including pre-load dwell, ramp-to-load, hold phases, and cyclic peel protocols—with programmable transitions based on force, displacement, or time triggers. All curves are exportable in CSV, XML, and PDF formats; statistical summaries automatically generate CPK, process capability indices, and ANOVA-ready datasets for inter-lot comparison. Audit trails record every parameter change, user login/logout, calibration event, and report generation—retained for ≥10 years per configurable retention policy. Data integrity is preserved via SHA-256 hashing of raw acquisition buffers and write-once-read-many (WORM) archiving options.

Applications

• Quantification of 90° peel strength for medical transdermal patches, surgical tapes, and wound dressings per ISO 10993-10 biocompatibility guidance
• Evaluation of thermal stability of automotive interior bonding adhesives under accelerated aging per SAE J2527
• Quality control of lithium-ion battery electrode tab attachments during cell assembly
• Validation of release liner adhesion loss profiles in label stock manufacturing
• Mechanical screening of flexible printed electronics interconnects subjected to flexural fatigue
• Comparative assessment of bio-based adhesive formulations against petrochemical benchmarks
• Supporting R&D of recyclable multilayer packaging structures under EN 13432 compostability criteria

FAQ

What standards does the YL-S80 natively support for peel testing?
ASTM D903, ISO 8510-2, GB/T 2790, GB/T 2791, GB/T 2792, JIS Z 0237, and ASTM D3330—all preloaded as editable templates with correct units, sampling rates, and pass/fail logic.
Can the system perform both 90° and 180° peel tests without hardware modification?
Yes—the base configuration includes interchangeable peel angle fixtures; 180° testing requires only swapping the upper grip assembly and selecting the corresponding method template.
Is the software compatible with LIMS or MES integration?
Yes—via TCP/IP socket interface and RESTful API endpoints supporting HL7, ASTM E1384, and custom JSON payloads for automated result ingestion into enterprise systems.
Does the YL-S80 meet regulatory requirements for pharmaceutical or medical device testing?
When operated under validated IQ/OQ/PQ protocols and paired with certified calibration services, it satisfies FDA 21 CFR Part 11, EU Annex 11, and ISO 13485 documentation expectations.
What is the recommended recalibration interval for routine QC use?
Annually for load cell and displacement encoder verification; quarterly verification using traceable reference standards is advised for GMP environments.
