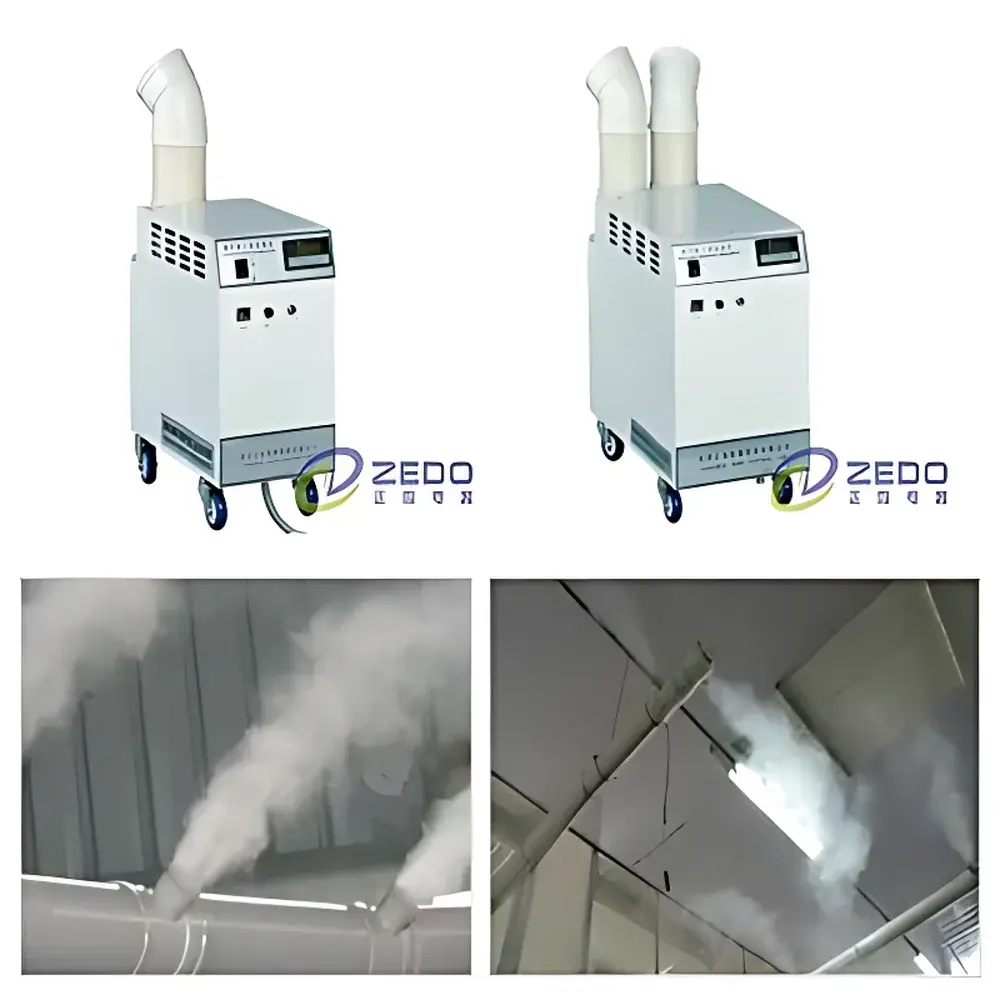

ZEDO ZS-40Z Industrial Ultrasonic Humidifier

Overview

The ZEDO ZS-40Z Industrial Ultrasonic Humidifier is an engineered solution for precise ambient humidity control in controlled industrial environments—particularly where electrostatic discharge (ESD), material dimensional instability, or process-related moisture loss compromises product integrity or operational safety. Unlike evaporative or steam-based systems, the ZS-40Z employs high-frequency ultrasonic transduction (1.7 MHz) to atomize deionized or softened water into sub-5 µm droplets, enabling rapid vapor-phase integration without surface wetting or condensation risk. This principle—based on piezoelectric energy conversion at the liquid–air interface—ensures consistent aerosol generation under variable inlet water pressure (0.1–0.4 MPa) and temperature (5–35°C), making it suitable for integration into cleanrooms, electronics assembly lines, textile loom halls, and precision printing facilities compliant with ISO 14644-1 Class 7–8 or ANSI/ESD S20.20 requirements.

Key Features

• Full 304 stainless steel enclosure and tank—electropolished interior, IP68-rated sealed base, integrated overflow protection, and auto-refill interface compatible with municipal or RO water supply lines.
• Modular ultrasonic transducer array with alumina ceramic diaphragms—rated for 3,000–5,000 operational hours in hard-water conditions (up to 300 ppm TDS); field-replaceable without tools in <90 seconds.
• IP68-certified variable-frequency power supply—fully potted, submersible up to 1 m depth; eliminates corrosion-induced failure modes common in transformer-based competitors.
• 36V DC waterproof centrifugal fan with sealed ball bearings—delivering ≥120 m³/h airflow at static pressure of 80 Pa; optimized for uniform mist dispersion over distances up to 8 m.
• Microprocessor-based controller with SHINYEI HS-1000 series capacitive hygrometer (±2% RH accuracy, 0–95% RH range)—supports setpoint-driven PID regulation, real-time humidity trending, and event-triggered logging.
• Multi-mode operation: manual on/off, programmable time-scheduled output, or closed-loop relative humidity feedback—configurable via intuitive membrane keypad and LCD interface.

Sample Compatibility & Compliance

The ZS-40Z is validated for continuous-duty operation in non-sterile industrial settings where humidity maintenance between 40–65% RH is critical to process yield or material handling. It accommodates feed water conductivity ≤500 µS/cm (typical for softened or reverse-osmosis-treated municipal supplies). While not intended for pharmaceutical-grade sterile environments (e.g., ISO 14644-1 Class 5), its stainless steel wetted surfaces, absence of heating elements, and low-maintenance architecture align with GMP Annex 15 prerequisites for ancillary environmental control equipment. The unit’s electrical design conforms to IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity standards), supporting integration into factory-wide SCADA networks via optional 4–20 mA analog output or Modbus RTU (RS-485).

Software & Data Management

The embedded controller records timestamped humidity readings, runtime hours, fault codes (e.g., low-water, transducer impedance drift), and actuation events—stored internally for 30 days. Optional USB data export enables traceability for internal quality audits or ISO 9001 clause 7.5.3 record retention. When deployed in regulated manufacturing (e.g., semiconductor packaging or medical device assembly), the system supports 21 CFR Part 11–aligned audit trails via external HMI integration—capturing operator ID, parameter changes, and calibration verification timestamps. No cloud connectivity or proprietary software is required; configuration remains fully local and deterministic.

Applications

• Electronics manufacturing: Mitigating ESD risks during PCB handling, solder paste application, and wafer probing by sustaining 45–55% RH in Class 10K–100K clean zones.
• Textile spinning & weaving: Preventing yarn breakage and static cling in cotton, polyester, and blended fiber processing lines.
• Offset and flexographic printing: Stabilizing paper/web moisture content to reduce registration errors, ink misting, and curl deformation.
• Woodworking and composite fabrication: Minimizing dimensional shift in CNC-machined MDF, plywood, and carbon-fiber layups prior to adhesive curing.
• Industrial HVAC augmentation: Supplementing central humidification in large-volume spaces (>5,000 m³) where duct-mounted systems exhibit thermal lag or uneven distribution.

FAQ

What water quality is required for optimal performance?

Deionized, softened, or reverse-osmosis water (conductivity ≤500 µS/cm) is recommended. Hard water (>150 ppm CaCO₃) accelerates ceramic transducer scaling and reduces service life. A pre-filter (5 µm) is advised for municipal feed lines.

Can the ZS-40Z be integrated into a BMS or PLC network?

Yes—via optional 4–20 mA analog output (humidity feedback) or RS-485 Modbus RTU interface (full parameter read/write access). Protocol documentation and register maps are provided upon request.

Is routine maintenance required beyond transducer replacement?

No scheduled lubrication or calibration is needed. Quarterly visual inspection of the water inlet filter and monthly cleaning of the transducer surface with 10% citric acid solution (pH 3.5) suffices for >95% uptime.

Does the unit comply with explosion-proof or hazardous location standards?

No—the ZS-40Z is rated for general-purpose industrial use only (IEC 60079-0 unclassified). It must not be installed in Zone 1/2 or Class I/II/III hazardous areas without third-party encapsulation certification.

How is humidity uniformity validated across large production floors?

ZEDO provides commissioning support including thermal-hygrometric mapping per ISO 14644-3 Annex B guidelines—using NIST-traceable probes at 1 m, 2 m, and 4 m heights across a representative grid. Typical spatial deviation is ±3.5% RH at steady state.
