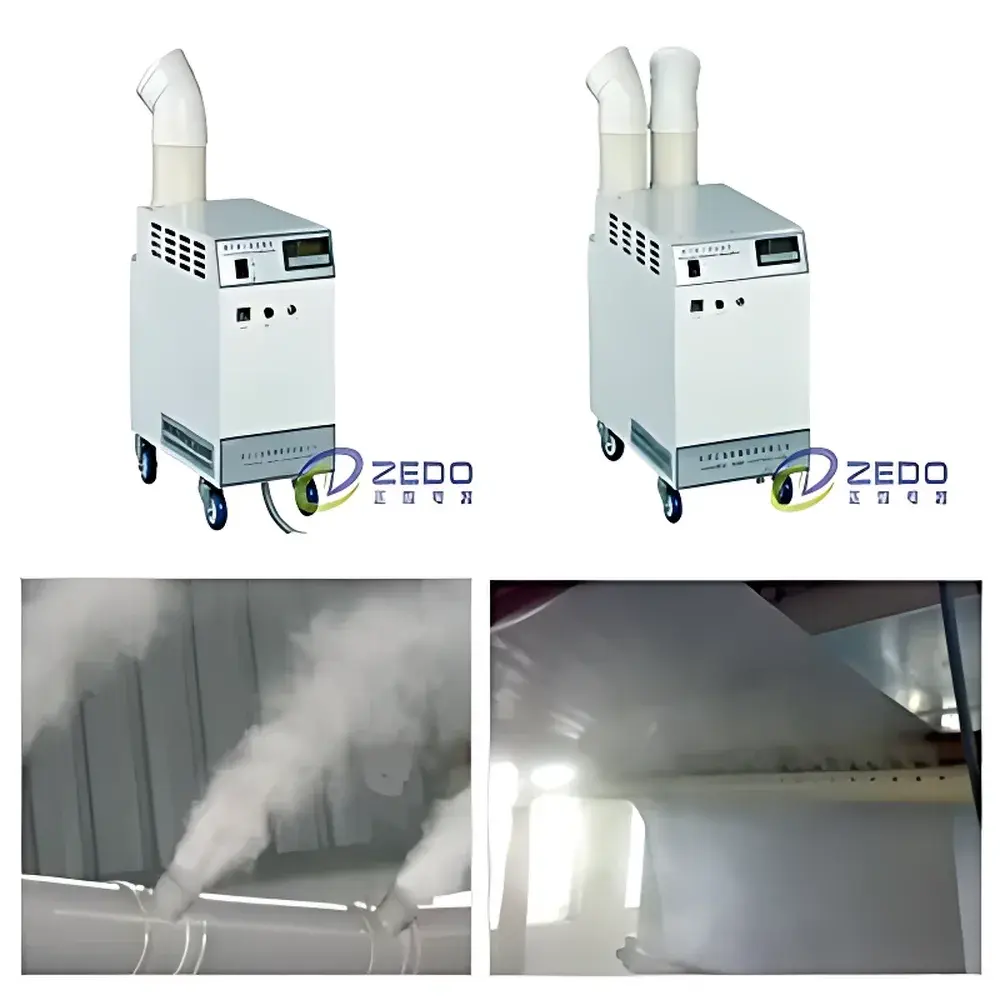

ZEDO ZS-40Z Series Ultrasonic Industrial Humidifier for Printing Facilities

Overview

The ZEDO ZS-40Z Series Ultrasonic Industrial Humidifier is engineered specifically for precision humidity stabilization in printing production environments—particularly offset, flexographic, and digital print facilities where electrostatic discharge (ESD), paper dimensional instability, and ink transfer inconsistency are critical process risks. Unlike evaporative or steam-based humidification systems, this unit employs high-frequency ultrasonic transduction (1.7 MHz) to generate sub-10 µm water droplets via piezoelectric ceramic oscillation. This cold-mist principle ensures zero thermal load on conditioned air, eliminates mineral carryover when used with softened or deionized water, and delivers rapid, spatially uniform RH modulation without condensation risk. Designed for continuous-duty operation in ambient temperatures of 5–40°C and non-corrosive indoor atmospheres, the ZS-40Z integrates seamlessly into HVAC ductwork or operates as a standalone unit for localized zone control—making it suitable for ISO Class 8 cleanrooms, pre-press labs, and high-speed rotary press halls alike.

Key Features

• Full stainless-steel (AISI 304) enclosure with electrophoretic coating—resistant to corrosion, chemical splashes, and mechanical abrasion in industrial settings.
• IP68-rated hermetically sealed variable-frequency power supply and PCB assembly—certified for submersion up to 1 m depth; eliminates moisture-induced short circuits and extends service life under high-humidity operational cycles.
• Integrated 36V brushless DC fan with sealed ball bearings—provides stable airflow (>120 m³/h) with <35 dB(A) acoustic emission and immunity to salt-laden or alkaline aerosol exposure.
• Alkaline-resistant ceramic atomizing plate—compatible with water hardness up to 300 ppm CaCO₃; rated for 3,000–5,000 operational hours before replacement; field-swappable without tools.
• Microprocessor-based controller with Shin-Yei HS1101EL high-stability capacitive RH sensor—offers ±3% RH accuracy across 20–95% RH range and supports programmable setpoints, hysteresis tuning, and alarm thresholds.
• Auto-fill system with float-level cutoff and overflow protection—enables unattended operation for up to 48 hours (with standard 40 L reservoir); optional connection to municipal water supply with integrated pressure regulator and sediment filter.

Sample Compatibility & Compliance

The ZS-40Z humidifier is validated for use with deionized (DI), softened, or reverse-osmosis (RO) feed water—minimizing white dust deposition on rollers, plates, and optical sensors. It complies with IEC 60335-1 (Household and Similar Electrical Appliances Safety) and meets CE conformity requirements for electromagnetic compatibility (EMC Directive 2014/30/EU) and low-voltage safety (LVD Directive 2014/35/EU). While not classified as a medical or pharmaceutical-grade device, its closed-loop RH feedback architecture, audit-trail-capable logging (via optional RS485/Modbus RTU interface), and traceable calibration support adherence to GLP (Good Laboratory Practice) and GMP-aligned environmental monitoring protocols per ISO 14644-1 and ISO 8573-1 Annex C. It is routinely deployed in facilities undergoing FDA 21 CFR Part 11 readiness assessments for environmental parameter documentation.

Software & Data Management

The onboard controller features a 4.3-inch TFT LCD touchscreen with intuitive icon-driven navigation—supporting multi-language UI (English, German, Spanish, Chinese). All operational parameters—including target RH, current RH, runtime hours, fault codes, and transducer duty cycle—are stored locally with timestamped records retained for ≥12 months. Optional Ethernet or Wi-Fi modules enable integration into BMS (Building Management Systems) or MES platforms via Modbus TCP or MQTT protocols. Historical data export is supported in CSV format; remote firmware updates are performed over secure HTTPS channels. For regulated environments, optional 21 CFR Part 11-compliant software packages provide electronic signature workflows, user role-based access control (RBAC), and immutable audit trails for all configuration changes.

Applications

This humidifier addresses humidity-sensitive failure modes across the print value chain: mitigating static-induced misfeeds and sheet jams in high-speed sheetfed offset presses; stabilizing paper fiber expansion/contraction to maintain register accuracy within ±0.05 mm; suppressing airborne particulate contamination during UV-curable ink curing; preventing edge curl and delamination in laminated packaging substrates; and reducing ink mist dispersion in gravure and flexo stations. It is also specified for pre-humidification of recycled fiber stock prior to slitting and rewinding, and for maintaining RH integrity in proofing rooms where color matching under D50/D65 lighting requires strict environmental repeatability (per ISO 3664:2009). Field deployments confirm consistent RH maintenance at 55±3% RH across 200–500 m² zones with ≤±0.5°C ambient temperature fluctuation.

FAQ

What water quality is required for optimal operation?

Deionized (conductivity <5 µS/cm) or softened water (hardness <50 ppm CaCO₃) is recommended to prevent scaling and extend transducer life. RO water (TDS <10 ppm) is acceptable but not mandatory if upstream softening is applied.

Can the unit be integrated into an existing HVAC system?

Yes—duct-mounted configurations are available with flanged inlet/outlet ports (DN150–DN250) and optional static pressure compensation. Integration requires coordination with HVAC commissioning engineers for airflow balancing and dew-point verification.

Is remote monitoring supported out of the box?

Standard units include RS485 Modbus RTU output. Ethernet/Wi-Fi telemetry modules are optional accessories with factory-installed firmware enabling cloud-based dashboard visualization and SMS/email alerting.

What is the expected mean time between failures (MTBF)?

Based on 24/7 operation under ISO 14644-1 Class 8 conditions, MTBF exceeds 15,000 hours for the core humidification module; fan and power supply subsystems demonstrate >50,000 hours MTBF per MIL-HDBK-217F predictions.

Does the unit comply with explosion-proof or ATEX requirements?

No—the ZS-40Z is not certified for Zone 1/2 hazardous locations. For solvent-rich printing environments (e.g., gravure with toluene-based inks), consult ZEDO’s ATEX-certified ZS-EX variant series.
