ZEDO ZS-40Z Ultrasonic Industrial Humidifier for Printing Facilities

Overview

The ZEDO ZS-40Z is an industrial-grade ultrasonic humidifier engineered specifically for precision humidity control in printing production environments. It operates on high-frequency piezoelectric transduction (1.7 MHz), generating sub-10 µm water droplets via cavitation-induced atomization—ensuring rapid vapor-phase transition without wetting surfaces or compromising paper integrity. Unlike steam or electrode-based systems, the ZS-40Z introduces no thermal load, dissolved solids, or conductive contaminants into the airstream, making it ideal for ISO Class 8 cleanroom-adjacent print halls where static mitigation, dimensional stability of cellulose substrates, and ink transfer consistency are mission-critical. Its design targets a stable operational humidity band of 40–60% RH—the empirically validated range for minimizing triboelectric charge accumulation on paper webs, offset litho plates, and polymer-based flexographic sleeves.

Key Features

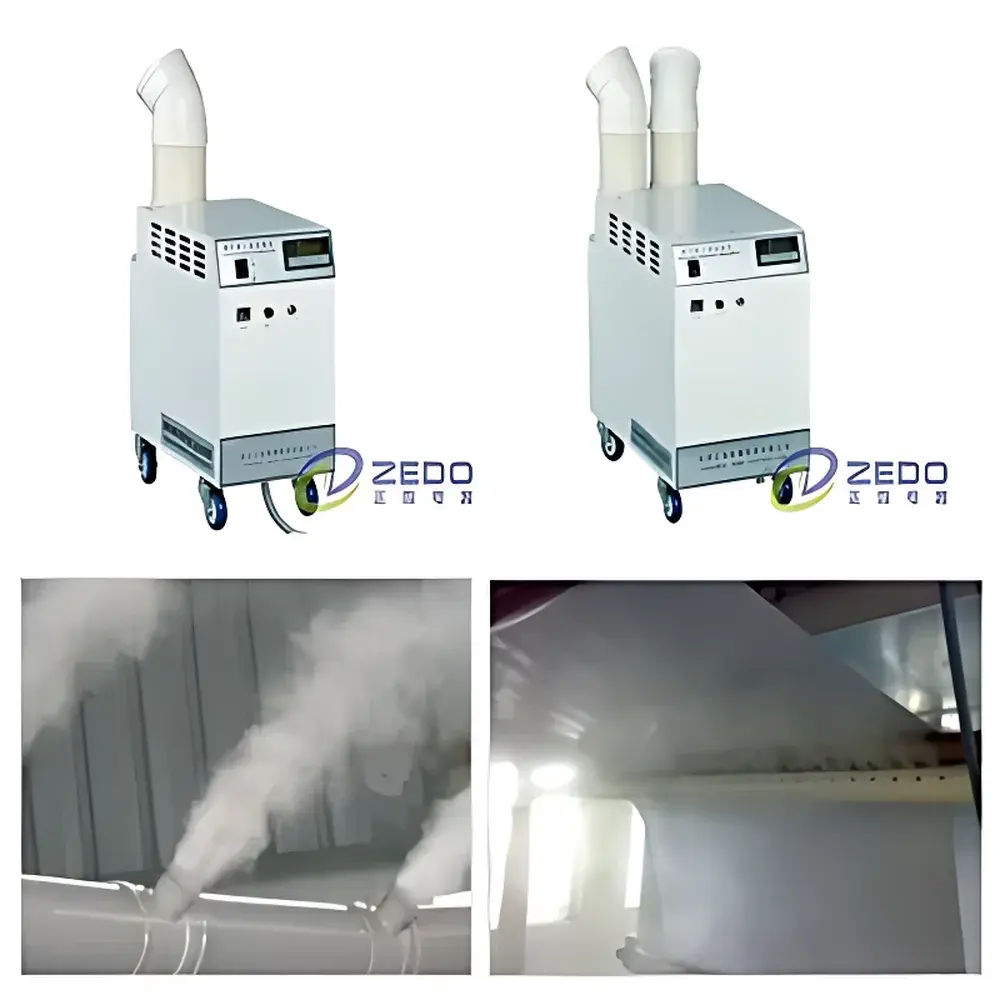

• Full 304 stainless steel enclosure with electrophoretic coating—resistant to corrosion from ambient ozone, solvent vapors, and cleaning agents common in pressrooms.
• IP68-rated sealed variable-frequency power supply and 36V brushless DC fan—capable of continuous operation in high-humidity or condensation-prone zones without insulation degradation.
• Integrated ceramic ultrasonic transducer array with alkaline/acid tolerance—optimized for municipal water sources (up to 300 ppm TDS) and compatible with deionized water recirculation loops.
• Microprocessor-based controller with Shinyo capacitive RH sensor—provides closed-loop feedback at 2-second sampling intervals and ±3% RH accuracy across 10–90% RH.
• Auto-fill system with float-switch-level monitoring and overflow cutoff—prevents dry-run damage and ensures uninterrupted operation during unattended shifts.
• Modular single-tube mist delivery architecture—enables directional saturation near press feeders, folding units, or die-cutting stations without ducting infrastructure.

Sample Compatibility & Compliance

The ZS-40Z is validated for use with standard offset, gravure, flexographic, and digital print substrates—including coated/uncoated woodfree papers, synthetic films (PET, BOPP), and corrugated board. It meets mechanical safety requirements under EN 60335-1 and electromagnetic compatibility per EN 61000-6-3. While not intrinsically rated for Zone 1 hazardous areas, its non-sparking construction and absence of heating elements permit deployment in general-purpose industrial zones per IEC 60079-0. The unit supports GLP-aligned environmental logging when paired with optional RS485 Modbus RTU output (firmware v2.3+), enabling traceability for audit-ready humidity records in certified print facilities.

Software & Data Management

The onboard controller features a 4.3-inch TFT LCD interface with multilingual menu navigation (English, Spanish, German, Chinese). Real-time parameters—including setpoint RH, measured RH, runtime hours, transducer duty cycle, and fault codes—are stored locally for 30 days. Optional Ethernet/Wi-Fi gateway modules (ZEDO-EMG-100) enable integration into SCADA platforms via OPC UA or MQTT, supporting alarm forwarding, remote calibration lockout, and CSV export of time-stamped humidity logs compliant with FDA 21 CFR Part 11 Annex 11 requirements for electronic record integrity. Firmware updates are performed via microSD card with SHA-256 signature verification.

Applications

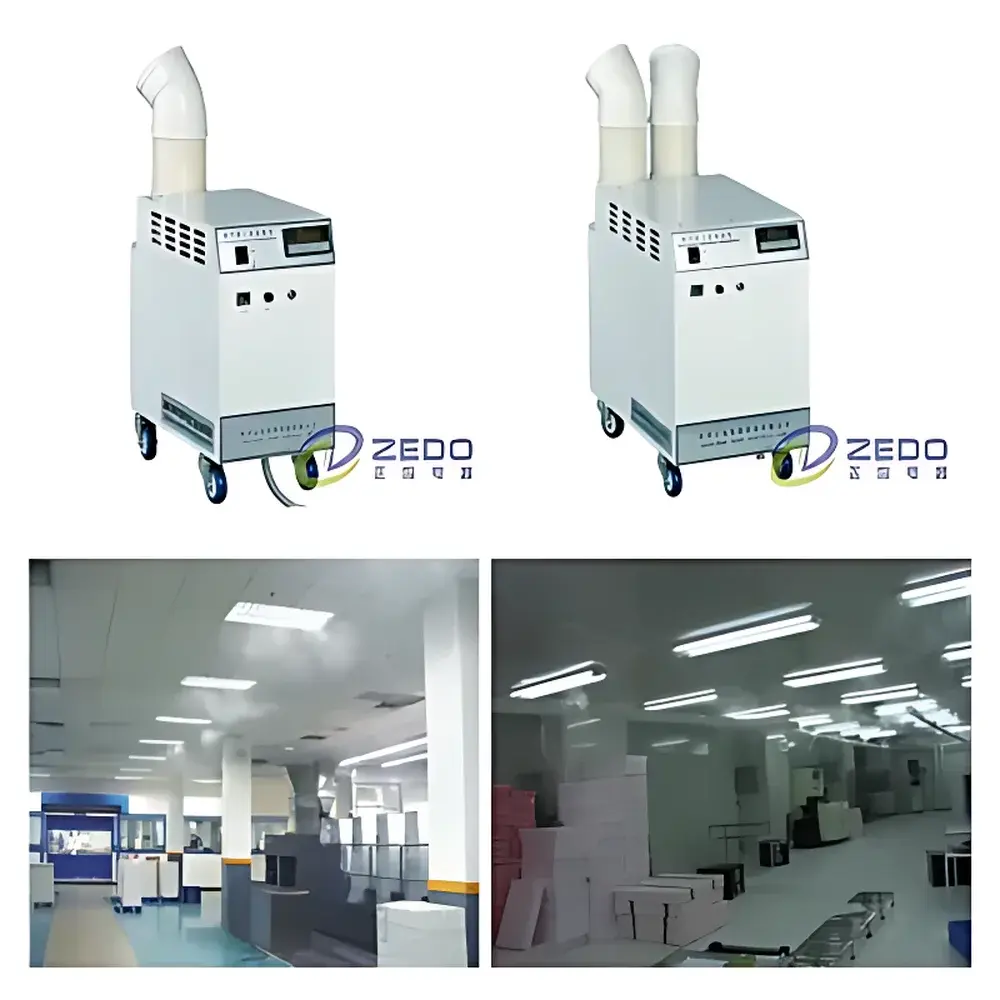

• Offset lithography pressrooms: Prevents sheet sticking, misregistration, and ink misting caused by electrostatic repulsion between paper fibers.
• Flexographic printing lines: Stabilizes anilox roll metering consistency and reduces static-induced dust adhesion on photopolymer plates.
• Digital inkjet facilities: Maintains optimal moisture content in coated media to prevent cockling, curl, and printhead clogging.
• Post-press operations: Controls relative humidity in cutting, creasing, and binding zones to minimize fiber fracture and glue adhesion variance.
• Archival and security printing: Supports ISO 11799-compliant storage microclimates for banknote, passport, and certificate production.

FAQ

What is the recommended installation height for optimal mist dispersion?
Mount the unit at 2.5–3.5 m above floor level with ≥0.5 m clearance from ceilings or HVAC diffusers to ensure laminar aerosol distribution without localized condensation.
Can the ZS-40Z operate continuously for 24/7 production cycles?
Yes—its sealed IP68 components, ceramic transducer longevity (≥3,000 hrs), and auto-shutoff on low-water condition support unattended operation across three-shift schedules.
Is water pretreatment required for long-term reliability?
While compatible with untreated municipal water, installing a 5 µm sediment filter upstream extends transducer service life; reverse osmosis is unnecessary unless TDS exceeds 500 ppm.
How does the ZS-40Z compare to high-pressure fog systems in print environments?
Unlike 70–100 bar nozzle-based systems, the ZS-40Z eliminates nozzle clogging risks, requires no high-pressure pump maintenance, and avoids surface wetting that can degrade ink drying kinetics.
Does the unit support integration with building management systems (BMS)?
Yes—via optional Modbus RTU (RS485) or BACnet/IP (Ethernet) communication modules, enabling centralized humidity setpoint scheduling and fault reporting.
