ZEDO ZS-40Z Ultrasonic Industrial Humidifier for Spinning Mills

Overview

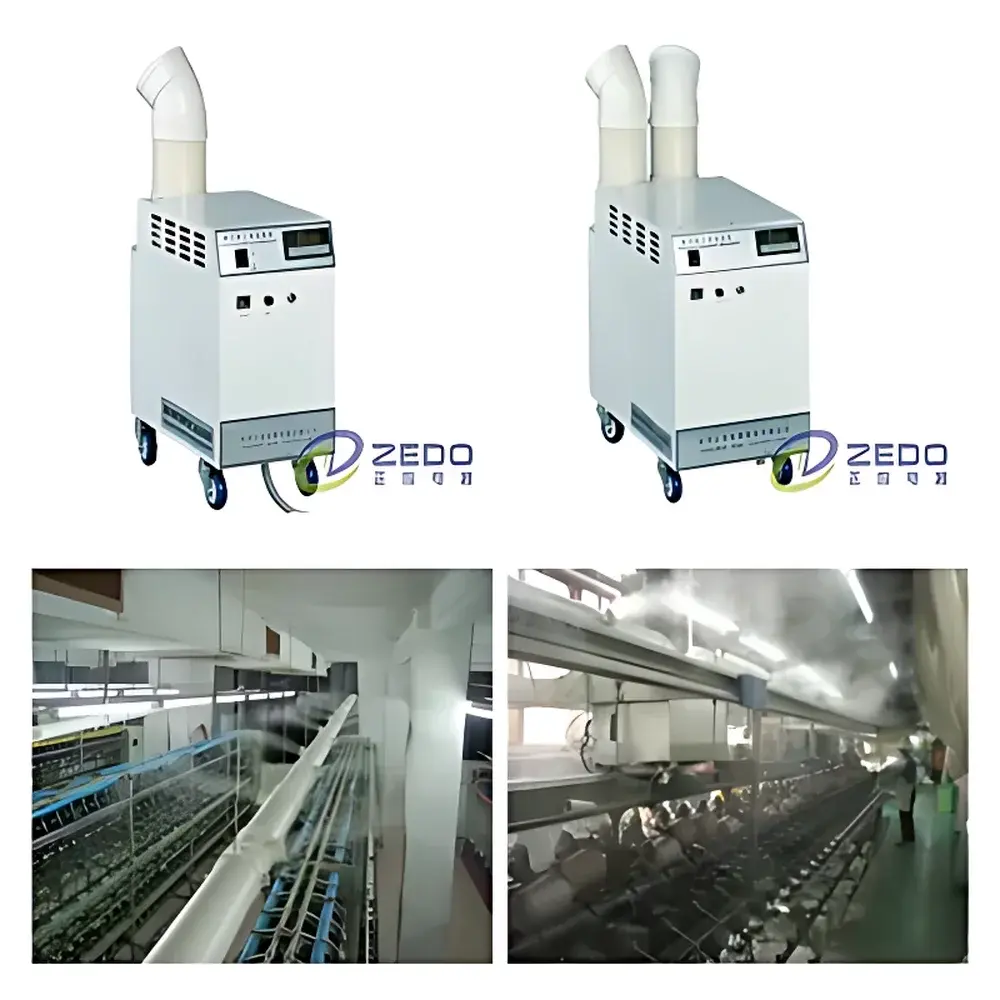

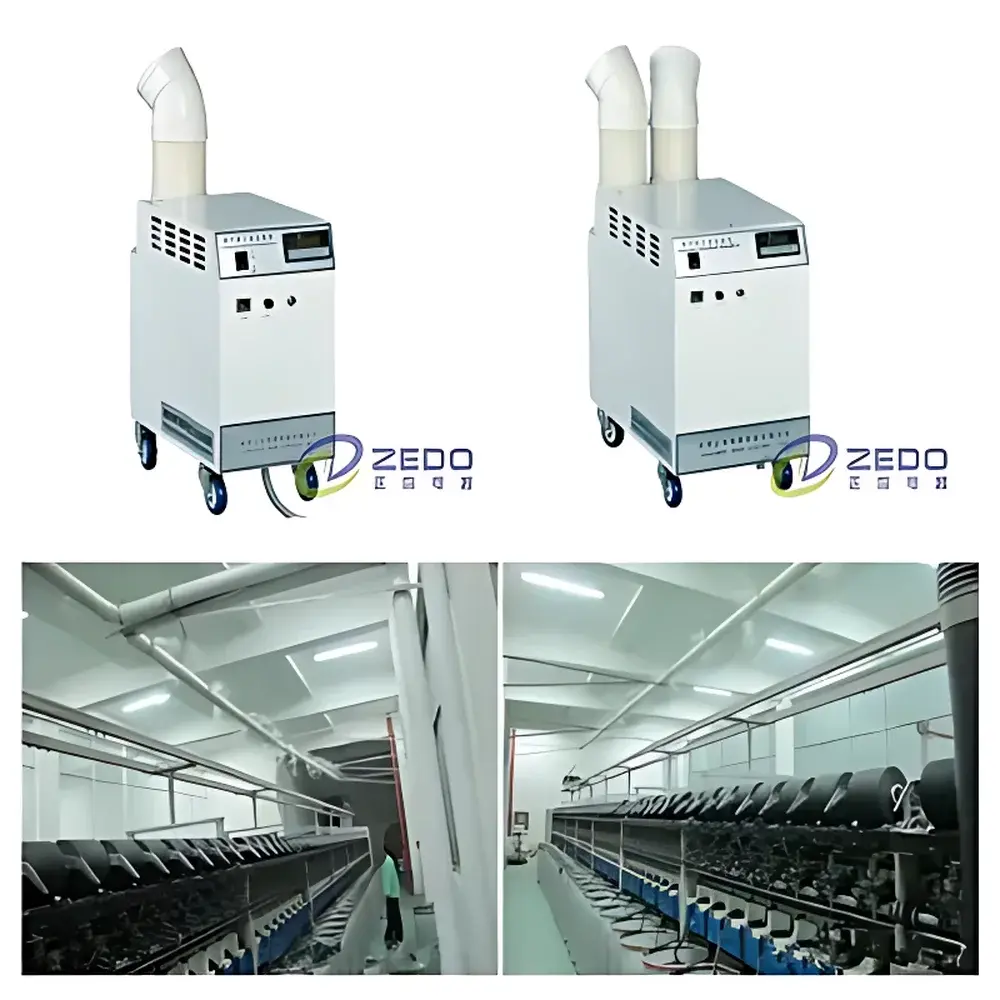

The ZEDO ZS-40Z Ultrasonic Industrial Humidifier is engineered specifically for humidity-critical environments in textile manufacturing—particularly spinning mills where electrostatic discharge (ESD), fiber breakage, dust accumulation, and yarn weight loss directly impact product quality and process yield. Unlike evaporative or steam-based humidification systems, the ZS-40Z employs high-frequency ultrasonic transduction (1.7 MHz) to generate sub-10 µm water droplets via piezoelectric ceramic atomizers. This mechanism ensures rapid vapor-phase transition with minimal thermal load, enabling precise ambient RH control (target range: 55–65% RH) without introducing condensation risk or localized over-humidification. Its application aligns with ISO 9001-compliant textile production workflows and supports adherence to ASTM D1776 (Standard Practice for Conditioning and Testing Textiles) by maintaining stable hygroscopic equilibrium in cotton, polyester, and blended yarns during winding, drawing, roving, and warping operations.

Key Features

• Full 304 stainless steel enclosure with electrophoretic coating—resistant to corrosion from alkaline textile processing residues and ambient humidity fluctuations.
• Integrated ultrasonic atomizing module with self-diagnostic dry-run protection and automatic water-level regulation via float valve and overflow cutoff.
• IP68-rated sealed variable-frequency power supply and 36V brushless waterproof fan—certified for continuous operation in high-dust, high-moisture industrial zones per IEC 60529.
• Ceramic transducer discs formulated for hardness tolerance (up to 300 ppm CaCO₃) and chemical resistance to mild alkalis common in scouring and bleaching effluent exposure.
• Microprocessor-based controller featuring real-time RH feedback loop, programmable setpoint hysteresis (±2% RH), and event-logged operational history compatible with GLP audit trails.
• Modular ducting interface supporting both free-blow dispersion and HVAC-integrated installation—enabling uniform moisture distribution across large floor areas (up to 1,200 m³ per unit) or targeted compensation in storage vaults and packaging bays.

Sample Compatibility & Compliance

The ZS-40Z is validated for use with municipal tap water, softened water, and reverse-osmosis (RO) feed sources—eliminating dependency on deionized water infrastructure. Its non-thermal, low-energy humidification method avoids microbial proliferation risks associated with warm-water reservoirs, satisfying baseline hygiene requirements outlined in ISO 14644-1 Class 8 cleanroom adjunct applications. While not classified as medical or pharmaceutical-grade equipment, its control architecture supports 21 CFR Part 11–compatible data logging when integrated with third-party SCADA platforms. The unit complies with CE electromagnetic compatibility (EMC) directives (2014/30/EU) and low-voltage safety standards (2014/35/EU), and meets RoHS 2.0 substance restrictions.

Software & Data Management

The onboard controller provides a tactile LCD interface with multilingual menu navigation (English, Spanish, Arabic). Humidity setpoints, runtime schedules, and alarm thresholds (e.g., low-water, sensor drift >±3% RH) are configurable without external software. All operational events—including start/stop cycles, RH deviation alerts, and maintenance prompts—are timestamped and stored in non-volatile memory for ≥12 months. Optional RS-485 Modbus RTU output enables integration into centralized building management systems (BMS) for remote monitoring, predictive maintenance scheduling, and batch-wise environmental correlation with yarn tensile test records (e.g., ASTM D2256).

Applications

• Spinning mill production floors: Mitigates static-induced fiber repulsion during high-speed ring spinning and rotor spinning, reducing end-break rates by up to 40% under controlled trials.
• Winding and coning rooms: Stabilizes yarn moisture regain to prevent slippage on precision bobbins and minimize tension variance across multi-head winders.
• Warehousing and stockholding areas: Maintains consistent 62±3% RH to preserve yarn linear density (tex), elongation-at-break, and dye affinity stability during long-term storage.
• Textile laboratory environments: Supports preconditioning per ISO 139 prior to tensile, abrasion, and pilling testing—ensuring inter-laboratory reproducibility.
• Air handling units (AHUs): Installed upstream of cooling coils to enhance latent heat removal efficiency and reduce reheat energy demand in mixed-air systems.

FAQ

What is the recommended maintenance interval for the ZS-40Z humidifier?

Routine inspection every 30 days is advised; ceramic transducers require replacement after 3,000–5,000 operating hours depending on water hardness. Descaling with food-grade citric acid solution is recommended quarterly for tap water use.

Can the ZS-40Z be integrated into an existing HVAC system?

Yes—its 120 mm diameter outlet duct accepts standard flexible aluminum or PVC flex hose. Optional static pressure kit enables direct mounting inside AHU plenums with airflow up to 2,500 m³/h.

Does this unit comply with explosion-proof requirements for lint-rich environments?

While not ATEX-certified, the ZS-40Z’s intrinsically safe 36V DC fan drive, absence of heating elements, and spark-free ultrasonic excitation meet NFPA 99 Annex B guidance for non-classified textile processing zones.

How does the ZS-40Z handle hard water conditions?

The proprietary ceramic transducer formulation resists scale adhesion and maintains >92% atomization efficiency at total dissolved solids (TDS) ≤300 ppm. For TDS >500 ppm, pre-filtration via 5 µm sediment + carbon block is recommended.

Is remote firmware update supported?

No—firmware is fixed at time of manufacture to ensure deterministic control behavior required for industrial process validation. Configuration changes are performed exclusively via front-panel interface or Modbus register writes.
