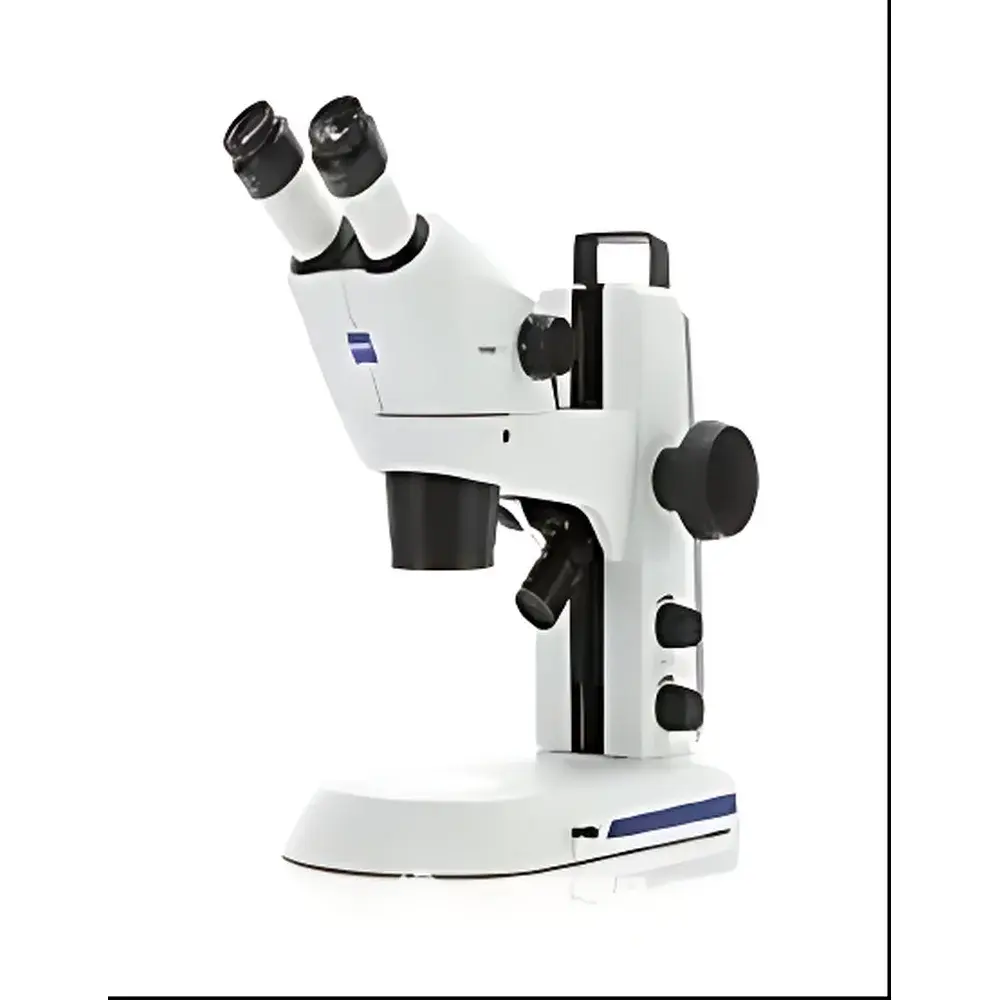

ZEISS Stemi 305 Professional Grade Stereo Microscope

Overview

The ZEISS Stemi 305 is a professional-grade stereo microscope engineered for precision visual inspection, quality control, and documentation in regulated laboratory and industrial environments. Based on the Greenough optical principle—featuring two independent objective pathways that deliver true stereoscopic depth perception—the Stemi 305 provides high-fidelity 3D imaging with natural spatial orientation, essential for morphological assessment, defect identification, and dimensional evaluation. Designed and manufactured in Oberkochen, Germany, the instrument integrates ergonomic usability with metrologically stable mechanics, enabling consistent operator performance across shifts and users. Its modular architecture supports both routine visual examination and digital documentation workflows without requiring external illumination consoles or auxiliary power units—making it suitable for ISO/IEC 17025-accredited testing laboratories, GMP-compliant QC suites, and academic core imaging facilities.

Key Features

• Greenough-type optical design delivering inherent depth of field, low distortion, and high resolution across the full zoom range (8×–40× standard; expandable to 4×–200× with optional objectives and eyepieces)
• Integrated dual-mode LED illumination system: coaxial reflected light, oblique reflected light, and transmitted base lighting—all independently controllable via front-panel dials
• Thermally stable white LED light source (6,000 K color temperature) with >50,000-hour lifetime, minimal heat emission, and flicker-free operation compliant with EN 62471 photobiological safety standards
• Modular trinocular head compatible with ZEISS Axiocam 105, 205, or 305 color cameras; optional built-in Wi-Fi camera module enables direct streaming to iOS devices via ZEISS Labscope app
• Ergonomic stage with low-profile focus mechanism (fine focus graduation: 1 µm), adjustable interpupillary distance (55–75 mm), and diopter compensation per eyepiece
• Robust aluminum-magnesium alloy housing with ESD-safe surface finish, conforming to IEC 61340-5-1 for electrostatic discharge protection in microelectronics handling environments

Sample Compatibility & Compliance

The Stemi 305 accommodates specimens up to 120 mm in height and 200 mm in width, supporting diverse sample types including metallic alloys, semiconductor wafers, PCB assemblies, forensic trace evidence (fibers, particulates, toolmarks), and translucent biological specimens. Its long working distance (≥78 mm at 8×, ≥30 mm at 40×) ensures unobstructed access for manipulators, soldering tools, or micromanipulation stages. The system complies with multiple international standards relevant to analytical instrumentation: CE marking per Directive 2014/30/EU (EMC) and 2014/35/EU (LVD); conformity to ISO 10934-1 for stereo microscope performance verification; and alignment with ASTM E2912–22 guidelines for optical microscopy in materials characterization. For regulated industries, the Labscope software platform supports audit-trail-enabled image capture and metadata logging in accordance with FDA 21 CFR Part 11 requirements when deployed with validated IT infrastructure.

Software & Data Management

Digital imaging is supported through ZEISS Labscope—a secure, cross-platform application enabling real-time image acquisition, annotation, measurement (length, angle, area, particle count), and report generation. The Wi-Fi-enabled variant allows synchronized multi-microscope viewing, remote guidance sessions, and encrypted cloud-based image archiving (via ZEISS ZEN Connect integration). All captured images retain EXIF-compliant metadata—including magnification, illumination mode, timestamp, user ID, and instrument serial number—ensuring traceability in GLP and GMP documentation workflows. Optional ZEN Core software extends functionality with batch processing, spectral analysis plugins, and DIC-compatible contrast enhancement algorithms.

Applications

• Materials science: Fracture surface analysis, porosity assessment, coating uniformity verification, and weld inspection per ASTM E3–22 and ISO 14284
• Electronics manufacturing: SMT component placement verification, solder joint integrity evaluation, and post-reflow defect screening under IPC-A-610 Class 2/3 criteria
• Semiconductor metrology: Post-etch wafer inspection, probe card alignment validation, and bump height measurement using calibrated reticle overlays
• Forensic laboratories: Fiber morphology comparison, gunshot residue particle identification, and document authenticity examination per SWGMAT best practices
• Medical device QA: Sterile packaging seal inspection, catheter surface defect mapping, and polymer scaffold pore structure analysis
• Academic research: Invertebrate dissection, botanical specimen documentation, and paleontological fossil surface topography recording

FAQ

What is the maximum working distance achievable with the Stemi 305 at lowest magnification?
At 8× total magnification, the working distance is 78 mm; with optional 0.5× auxiliary lens, it extends to 156 mm.
Is the Stemi 305 compatible with third-party digital cameras?
Yes—via C-mount adapter (ZEISS part no. 439001-9901), though full feature integration (e.g., auto-exposure sync, metadata embedding) requires ZEISS Axiocam models.
Does the integrated LED illumination meet photometric stability requirements for quantitative imaging?
Yes—the constant-current driver maintains luminance stability within ±1.5% over 8 hours, verified per ISO 9241-307 Annex B protocols.
Can the Stemi 305 be validated for use in pharmaceutical GMP environments?
Yes—documentation packages including IQ/OQ templates, calibration certificates (traceable to PTB), and risk assessments are available upon request from authorized ZEISS service partners.
What is the warranty coverage for the Stemi 305 in North America and EU markets?
Standard 24-month limited warranty covering parts and labor; extended service plans (including preventive maintenance and software updates) are offered through ZEISS Certified Service Centers.
