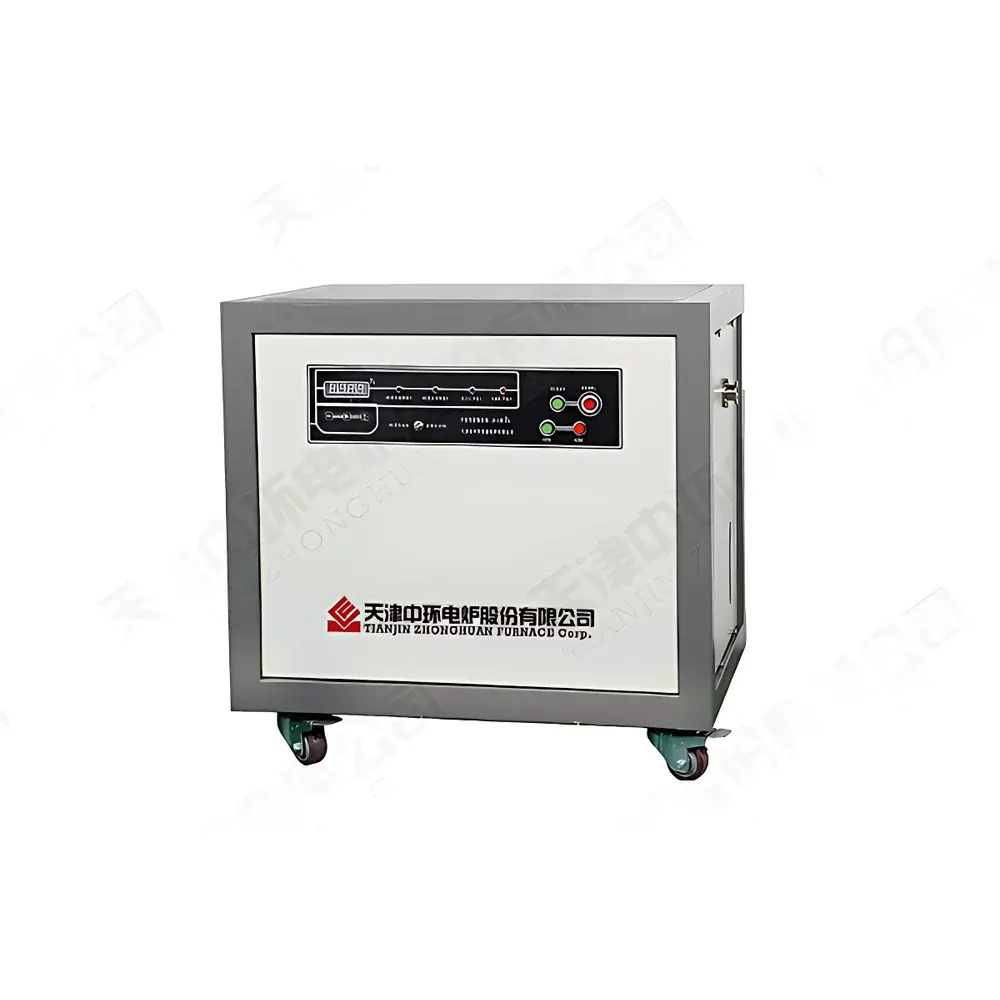

ZhongHuan Furnace ZH-VAC Series Mid-Vacuum Control System

Overview

The ZhongHuan Furnace ZH-VAC Series Mid-Vacuum Control System is an integrated vacuum management solution engineered for laboratory and industrial thermal processing applications. It operates on the principle of mechanical displacement pumping combined with real-time pressure feedback control, delivering stable mid-vacuum performance in the range of 10⁻¹ to 10⁻³ mbar (typical operational envelope). Designed as a turnkey subsystem, it combines vacuum generation, measurement, regulation, and system interface functions into a single compact unit. The system is purpose-built for integration with tube furnaces and box-type furnaces requiring controlled ambient conditions—particularly those used in materials synthesis, heat treatment under inert or reducing atmospheres, sintering, and thin-film precursor processing. Its architecture supports both standalone operation and synchronized coordination with furnace temperature profiles, enabling precise decoupling of thermal and vacuum process parameters.

Key Features

• KF-40 quick-release flange interfaces on all gas inlet/outlet ports—enabling tool-free, leak-tight connections compliant with ISO-KF standards; reduces installation time and minimizes risk of misalignment or O-ring damage.
• Dual-mode power input: configurable for direct integration with ZhongHuan furnace control cabinets (via standardized 24 V DC or 220 V AC interlock signals) or independent operation using standard IEC 60320 C14 mains input.
• Digital thermocouple vacuum gauge (TCG) with scientific notation display (e.g., “1.23E−2 mbar”)—provides high signal-to-noise ratio, long-term baseline stability (< ±0.5% FS/year), and immunity to electromagnetic interference from adjacent heating elements or RF sources.
• Auto/Manual mode toggle: In Auto mode, the system executes closed-loop control by actuating the vacuum pump and solenoid valve based on user-defined setpoints; Manual mode permits discrete pump start/stop and valve open/close commands via front-panel tactile switches—supporting troubleshooting, calibration, and transient process steps.
• Programmable solenoid valve delay logic: Valve opening is automatically deferred for 10 seconds after pump startup, preventing backstreaming of oil vapor or residual air into the process chamber and ensuring accurate pressure stabilization before sample exposure.
• Integrated dual-stage rotary vane mechanical pump with oil mist filter and exhaust silencer—rated for ultimate pressure ≤5×10⁻⁴ mbar and nominal pumping speed ≥8 m³/h at 50 Hz, optimized for rapid evacuation of volumes up to 100 L.
• Structural dual-function chassis: load-rated platform (max. static load 50 kg) with anti-slip rubber feet and recessed cable management channels—designed to serve as both control unit and equipment support surface for tube furnaces, gas manifolds, or auxiliary instrumentation.

Sample Compatibility & Compliance

The ZH-VAC system is compatible with quartz, alumina, and stainless-steel tube furnaces (ID 25–100 mm) and box furnaces (up to 30 L internal volume). It meets CE marking requirements for electromagnetic compatibility (EN 61326-1) and low-voltage safety (EN 61000-6-3). While not certified to UL 61010-1 or ATEX, its design incorporates fail-safe interlocks—including pump overheat cutoff, vacuum loss alarm output (dry contact), and emergency stop circuit integration points—facilitating compliance with local GLP/GMP laboratory infrastructure protocols. All wetted materials (valve seats, seals, pump oil) are chemically inert toward N₂, Ar, H₂, and forming gas mixtures; however, aggressive halogenated or acidic process gases require optional corrosion-resistant upgrades.

Software & Data Management

The system includes analog voltage (0–10 V) and digital RS-485 Modbus RTU outputs for external data acquisition and supervisory control. Optional PC-based software (ZH-VAC Monitor v2.1) enables real-time logging of vacuum curves, event timestamping (pump cycles, valve actuations), and export to CSV or MATLAB-compatible formats. Audit trail functionality supports 21 CFR Part 11–compliant environments when deployed with validated third-party SCADA systems; raw sensor data retains full traceability to NIST-traceable TCG calibration certificates (provided with each unit).

Applications

• Pre-evacuation and dynamic vacuum hold during sintering of ceramics, metal powders, and battery electrode materials.
• Sequential vacuum/inert gas cycling in CVD and annealing processes for graphene, perovskites, and transition metal dichalcogenides.
• Residual moisture and organic contaminant removal prior to high-temperature brazing or diffusion bonding.
• Controlled atmosphere ramp-hold-cool cycles in metallurgical phase transformation studies.
• Integration with mass flow controllers (MFCs) for hybrid vacuum/gas-flow experiments requiring precise partial pressure modulation.

FAQ

What vacuum range does the ZH-VAC system achieve?
Typical operating range: 1×10⁻¹ to 5×10⁻³ mbar; ultimate pressure (pump-only): ≤5×10⁻⁴ mbar under clean, dry conditions.
Can the system be retrofitted to non-ZhongHuan furnaces?
Yes—via standard KF-40 flanges and configurable electrical interfaces; custom mounting brackets and signal translation modules available upon request.
Is pump oil change interval specified?
Recommended every 500 hours of cumulative operation or annually—whichever occurs first; oil type: ISO VG 68 mineral vacuum pump oil (DIN 51506 VDL).
Does the system support remote monitoring via Ethernet or Wi-Fi?
Not natively; RS-485 Modbus enables connection to industrial gateways; Ethernet/Wi-Fi capability requires external protocol converter (e.g., Moxa EDS-G205A).
Are calibration certificates included with purchase?
Yes—NIST-traceable TCG calibration certificate with uncertainty budget and date of verification is supplied with each unit.
