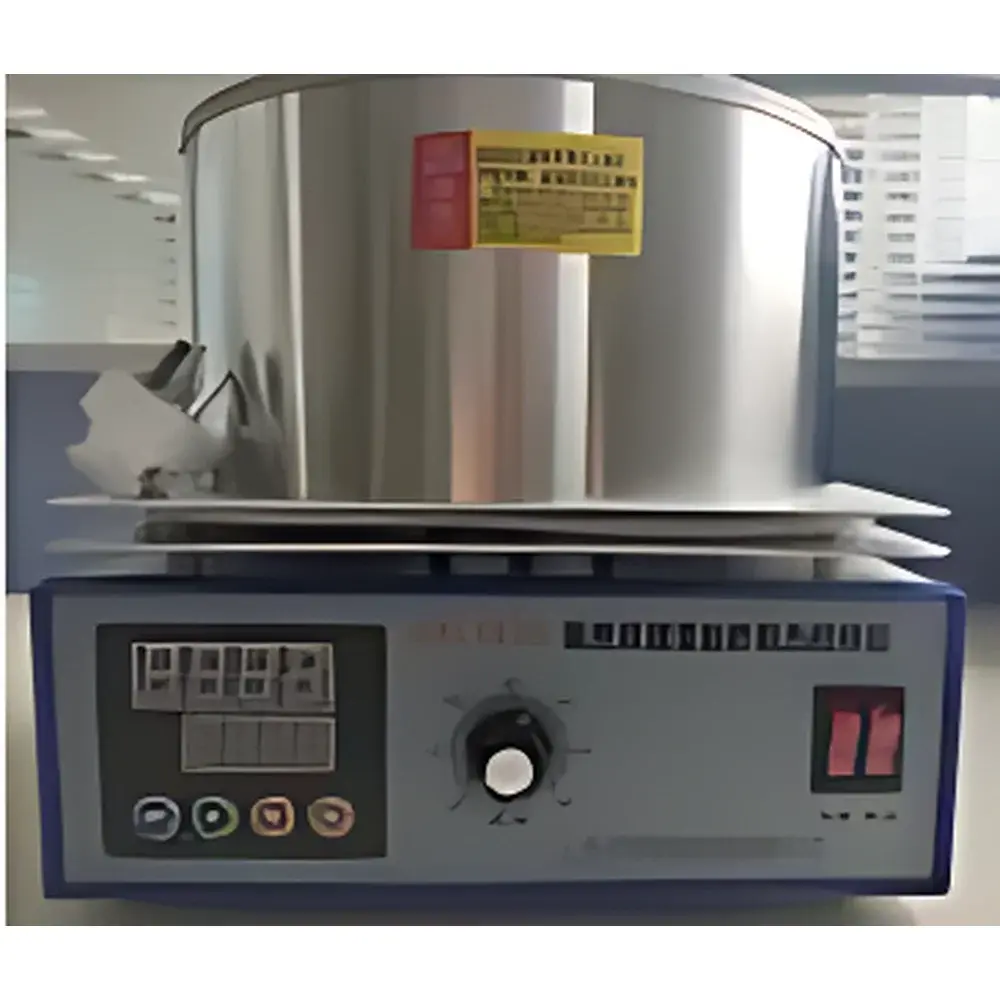

ZiQi DF-101S Integrated Heating Magnetic Stirrer

Overview

The ZiQi DF-101S Integrated Heating Magnetic Stirrer is an engineered laboratory workhorse designed for precise, reproducible thermal and mechanical control during liquid-phase chemical reactions, dissolution studies, sample homogenization, and synthesis protocols. Unlike conventional flat-plate magnetic stirrers, the DF-101S employs a deep-well radiant heating bath—constructed from high-grade 304 stainless steel—that fully envelops the reaction vessel in uniform thermal energy. This geometry enables efficient heat transfer via conduction and infrared radiation, significantly accelerating heating rates (up to 3× faster than planar alternatives) while maintaining ±1.5 °C temperature stability across the working range (ambient to 400 °C). The system operates on the principle of synchronous magnetic coupling: a high-coercivity neodymium-iron-boron (NdFeB) rotor magnet rotates beneath the bath, inducing torque on a compatible stirring bar inside the vessel without mechanical contact. Its robust architecture supports both aqueous (water bath), organic (oil bath), and dry-heating configurations—making it suitable for applications requiring inert atmospheres or solvent-free thermal treatment.

Key Features

• Integrated radiant heating bath with optimized cavity depth and thermal mass for uniform temperature distribution and rapid thermal response
• DC high-power motor delivering consistent torque up to 2 L volume, even with high-viscosity media or large-diameter vessels
• NdFeB permanent magnet rotor rated for continuous operation at elevated ambient temperatures, ensuring long-term magnetic integrity and rotational stability
• Dual-zone thermal isolation: aluminum heat-sink baffle separates the 400 °C heating zone from the electronics compartment, preserving signal integrity and component lifespan
• Digital PID temperature controller with real-time LED display, adjustable ramp/soak profiles, and over-temperature cut-off (OTC) safety lockout
• UL-certified heating element aged at 800 °C for 24 hours prior to assembly; insulation resistance verified >1000 MΩ per IEC 61010-1

Sample Compatibility & Compliance

The DF-101S accommodates standard laboratory glassware including round-bottom flasks (50–2000 mL), beakers, and crystallization dishes. Its open-bath design allows direct placement of vessels with external condensers or gas inlet/outlet adapters. The unit complies with IEC 61010-1:2010 for electrical safety in laboratory equipment and meets RoHS Directive 2011/65/EU for hazardous substance restrictions. While not certified for Class I Div 1 hazardous locations, its sealed motor housing and grounded chassis support use in general chemistry labs operating under GLP-aligned workflows. No external calibration certificate is supplied; however, the integrated temperature sensor is traceable to NIST standards via manufacturer’s internal metrology lab (calibration report available upon request).

Software & Data Management

The DF-101S operates as a standalone analog-digital hybrid instrument with no embedded firmware or network interface. All operational parameters—including setpoint temperature, actual bath temperature, and RPM—are displayed locally on a dual-line LED screen. For laboratories requiring audit-ready records, optional RS-232 or USB-to-serial adapters enable connection to third-party data acquisition software (e.g., LabVIEW, MATLAB, or custom Python scripts) for time-stamped logging. When used in regulated environments (e.g., pharmaceutical QC), users may implement manual logbooks or integrate the device into broader electronic lab notebook (ELN) systems compliant with FDA 21 CFR Part 11 requirements through documented procedural controls.

Applications

• Kinetic studies requiring simultaneous heating and agitation under reflux or inert gas blanket
• Preparation of homogeneous polymer solutions, nanoparticle dispersions, and colloidal suspensions
• Standardized dissolution testing per USP using calibrated vessels and controlled thermal ramping
• Extraction protocols involving heated solvent mixtures (e.g., Soxhlet pre-concentration, essential oil isolation)
• Calibration of thermocouples and RTDs in high-temperature reference baths
• Teaching labs performing Grignard reactions, esterifications, or metal-catalyzed couplings where precise thermal management is critical

FAQ

Can the DF-101S be used for oil bath applications above 100 °C?
Yes—the stainless steel bath and aged heating element are rated for continuous operation up to 400 °C; silicone or mineral oils with appropriate flash points may be used.
Is the stirring speed independently controllable from temperature settings?
Yes—speed and temperature are adjusted via separate rotary dials with independent digital readouts, enabling decoupled optimization of mixing intensity and thermal profile.
Does the unit include a built-in temperature probe for vessel internal measurement?
No—it monitors bath temperature only; for reaction mixture temperature, users must insert a separate calibrated probe through a septum or adapter port.
What maintenance is required to ensure long-term reliability?
Annual inspection of magnet alignment, cleaning of stainless steel bath with non-abrasive detergent, and verification of grounding continuity are recommended per manufacturer guidelines.
Is the DF-101S compatible with magnetic stir bars of varying geometries?
Yes—standard cross-shaped, oval, and flea-type stir bars (5–40 mm length) perform reliably; optimal bar size should match vessel diameter and viscosity range.
