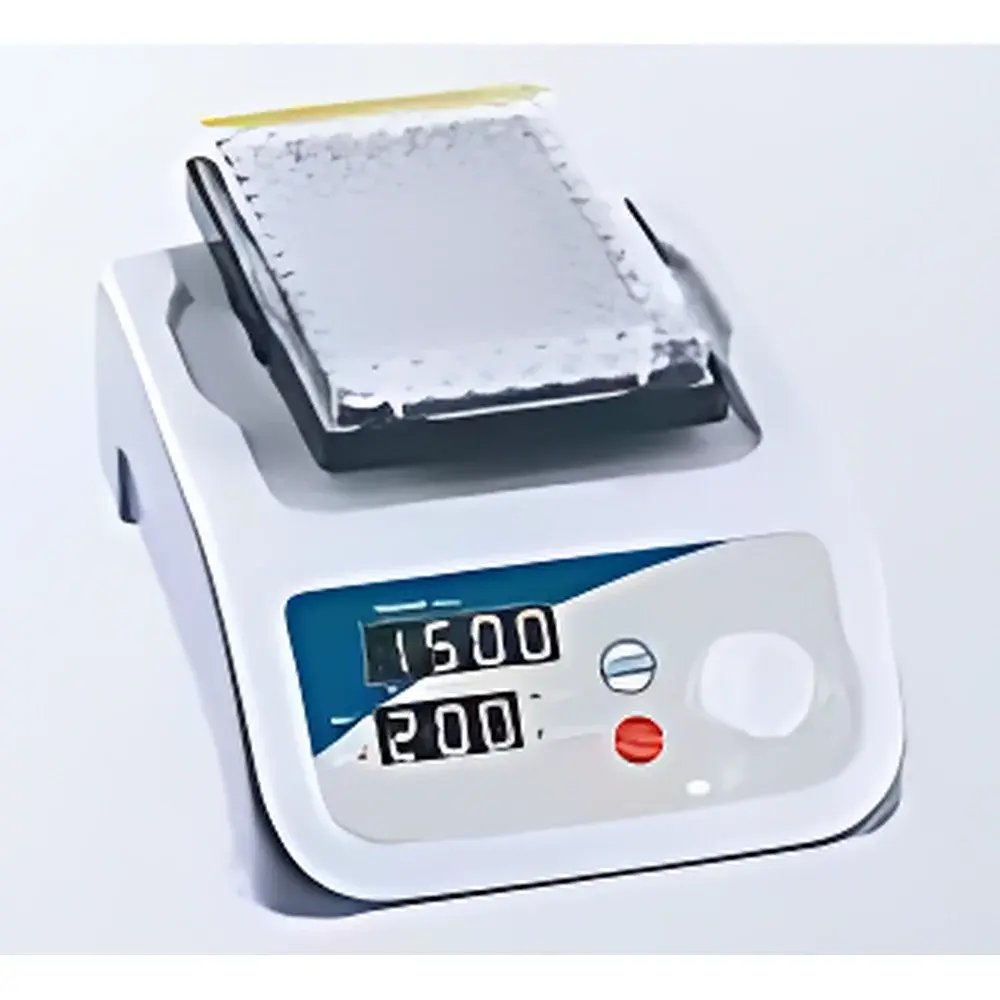

ZiQi VORTEX-M8 Multi-Mode Orbital Shaker

Overview

The ZiQi VORTEX-M8 is a compact, high-performance orbital shaker engineered for precision mixing, homogenization, and suspension of biological and chemical samples in research laboratories, clinical diagnostics, and quality control environments. Operating on the principle of controlled circular motion (orbital oscillation), the VORTEX-M8 delivers consistent shear-free agitation across a wide dynamic range—ideal for cell culture maintenance, ELISA plate preparation, reagent resuspension, DNA/RNA extraction workflows, and sample equilibration prior to analysis. Its brushless DC motor architecture, combined with a rigid aluminum alloy chassis and optimized mass distribution, ensures mechanical stability and minimal vibration transmission—critical for benchtop integration in shared lab spaces or sensitive instrumentation zones.

Key Features

• Brushless DC Motor Drive: A 24 V DC permanent-magnet motor eliminates carbon brushes, reducing wear, electrical noise, and maintenance requirements while enabling continuous operation at maximum speed (3000 rpm) without thermal derating.
• Intelligent Motion Control: Integrated PWM-based speed regulation provides true stepless adjustment from 200 to 3000 rpm with ±2 rpm repeatability; real-time feedback via high-brightness LED display supports both forward and reverse countdown timing (1 s–999 min) as well as momentary “pulse” mode for transient mixing tasks.
• Mechanical Stability & Low-Noise Operation: Precision-balanced eccentric drive mechanism and reinforced base structure limit operational noise to ≤45 dB(A) at full speed; rapid acceleration/deceleration (<3 s each) enhances workflow efficiency without compromising platform integrity.
• Dual-Mode Operation: Seamless switching between “pulse” (press-to-run) and “continuous” modes allows flexible adaptation to protocol-specific mixing durations and intensities—particularly valuable during serial dilution, bead-based assays, or viscous sample handling.
• Over-Temperature & Overload Protection: Embedded PPTC self-resetting fuse and thermal monitoring circuitry prevent motor damage under sustained load (up to 1.5 kg) or ambient temperature fluctuations (5–40 °C), ensuring compliance with IEC 61010-1 safety standards for laboratory equipment.

Sample Compatibility & Compliance

The VORTEX-M8 accommodates diverse vessel formats through a modular accessory system—including tube holders (M8-1 to M8-11), microplate clamps (M8-3), and PCR strip adapters (M8-8). Standard configurations support tubes up to 50 mm diameter (M8-1), Erlenmeyer flasks up to 85 mm (M8-2), 96-well plates (M8-3), and multi-well formats (e.g., 30 × 10 mm, 16 × 12–13 mm, 12 × 15 mm). All accessories feature non-slip silicone inserts and secure retention geometry to prevent lateral displacement during high-frequency shaking. The unit meets IP20 ingress protection rating and conforms to CE marking requirements for electromagnetic compatibility (EMC Directive 2014/30/EU) and low-voltage safety (LVD Directive 2014/35/EU).

Software & Data Management

As a stand-alone analog/digital hybrid instrument, the VORTEX-M8 does not require external software or computer connectivity. All operational parameters—including speed setpoint, elapsed time, remaining duration, and active mode—are displayed on a high-contrast 4-digit LED screen with automatic brightness adjustment. While no digital audit trail or electronic record-keeping is embedded, the device supports GLP/GMP-aligned manual documentation practices via its deterministic timer logic and stable speed output—enabling traceable, repeatable execution of SOPs where electronic data capture is not mandated.

Applications

• Resuspension of lyophilized reagents, bacterial pellets, and antibody conjugates
• Uniform mixing of immunoassay plates (ELISA, CLIA) prior to incubation or washing steps
• Homogenization of tissue lysates and nucleic acid extraction buffers
• Equilibration of calibration standards and reference materials in QC labs
• Pre-analytical sample preparation for HPLC, GC, and mass spectrometry workflows
• Routine maintenance of suspension cultures (e.g., insect cells, yeast) in non-incubated settings

FAQ

Is the VORTEX-M8 suitable for use inside a biosafety cabinet?
Yes—the compact footprint (198 × 138 × 67 mm), low heat dissipation, and absence of forced air cooling make it compatible with laminar flow hoods and Class II BSCs, provided adequate clearance is maintained around ventilation grilles.
Does the shaker support programmable multi-step protocols?
No—this model features fixed-parameter operation only (single-speed, single-timer setting per run); programmable ramping or sequence-based protocols require external controllers or higher-tier models.
What is the maximum allowable load for long-term operation at 3000 rpm?
The rated maximum load is 1.5 kg distributed evenly across the platform; exceeding this may compromise speed stability, increase bearing stress, and void warranty coverage.
Are third-party accessories compatible with the M8 platform?
Only ZiQi-certified modules (M8-series) are validated for mechanical alignment, torque transfer, and safety interlock functionality; non-OEM adapters may induce imbalance or premature motor failure.
Can the unit be operated continuously for >24 hours?
Yes—its brushless motor and thermal protection design permit unattended extended runs within specified environmental conditions (5–40 °C, ≤80% RH), subject to routine visual inspection for abnormal vibration or audible artifacts.
