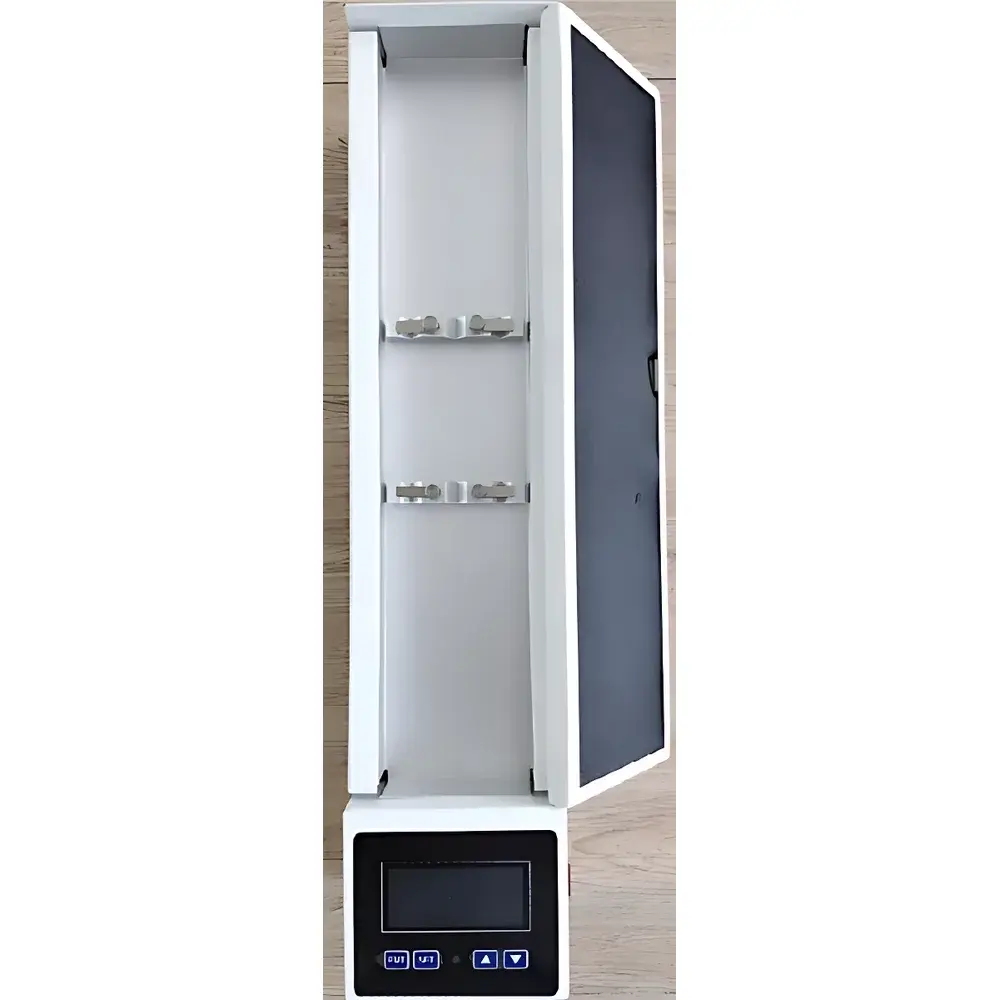

ZiQi ZC-400 HPLC Column Oven

Overview

The ZiQi ZC-400 HPLC Column Oven is a precision-engineered thermal management system designed for high-performance liquid chromatography (HPLC) and ultra-high-performance liquid chromatography (UHPLC) applications. It maintains consistent, programmable column temperature—critical for retention time stability, peak shape reproducibility, and resolution optimization in reversed-phase, ion-exchange, and size-exclusion chromatographic separations. Unlike ambient-conditioned columns, the ZC-400 eliminates thermal drift by actively regulating temperature within a thermally insulated chamber using PID-controlled resistive heating. Its design adheres to fundamental chromatographic principles: controlled thermal environment directly influences mobile phase viscosity, analyte partitioning kinetics, and column packing integrity—thereby enhancing method robustness and inter-laboratory transferability.

Key Features

• Triple-slot, dual-column aluminum base plate accommodates standard 100–250 mm analytical columns (including guard columns and connecting tubing), supporting both vertical and horizontal orientation configurations.
• PID-based digital temperature control system featuring a high-accuracy platinum RTD sensor and microprocessor firmware for real-time self-tuning; achieves ±0.1°C stability across the full operating range (ambient + 1°C to 99.9°C).
• Heated chamber constructed from anodized aluminum alloy with uniform thermal conductivity and low thermal mass, enabling temperature stabilization in under 5 minutes with overshoot < 2°C.
• Front-access magnetic latch lid ensures rapid column loading/unloading while minimizing heat loss and maintaining cavity integrity during operation.
• Dual independent overtemperature protection circuits (hardware + firmware) coupled with audible alarm provide fail-safe thermal shutdown at user-defined or factory-set thresholds.
• Corrosion-resistant epoxy-painted steel housing with dual bottom-mounted leak drainage ports—designed to contain and evacuate accidental mobile phase spills (e.g., acetonitrile, methanol, buffer solutions) without internal pooling or vapor accumulation.
• Compact footprint (500 × 110 × 130 mm) and modular mounting options (benchtop, stackable, or under-chassis installation) enable integration into constrained laboratory workspaces and multi-instrument racks.

Sample Compatibility & Compliance

The ZC-400 is mechanically and electrically compatible with all major HPLC platforms—including Agilent 1200/1260/1290 series, Waters Alliance/e2695/ACQUITY systems, Shimadzu Nexera/i-Series, Thermo Scientific Vanquish, and domestic instruments meeting standard column compartment interface dimensions. Its temperature performance meets ISO 17025-relevant criteria for thermal stability in analytical method validation. While not certified to IEC 61010-1 or UL 61010B as a standalone safety-certified device, its dual overtemperature protection architecture aligns with GLP/GMP operational expectations for auxiliary chromatographic hardware. No refrigeration capability limits use to ambient-plus applications—consistent with typical method requirements for C18, phenyl-hexyl, or HILIC columns operated between 40°C and 70°C.

Software & Data Management

The ZC-400 operates as a standalone instrument with local control only—no embedded software, USB/Ethernet connectivity, or remote API. All parameter settings (setpoint, display mode, alarm threshold) are managed via the front-panel dual-line LCD and tactile membrane keypad. The display provides simultaneous readout of set temperature and real-time chamber temperature, updated every 0.5 seconds. No data logging, audit trail, or electronic record functionality is included—making it suitable for non-regulated environments or laboratories where manual temperature verification and paper-based SOP adherence are standard practice. For regulated workflows requiring 21 CFR Part 11 compliance, external environmental monitoring systems (e.g., calibrated data loggers) must be employed to document thermal history independently.

Applications

• Stabilizing retention times in gradient elution methods where column temperature fluctuations cause peak migration or co-elution.
• Improving resolution of closely eluting isomers (e.g., ortho/meta/para substituted aromatics) through precise thermal modulation of selectivity.
• Reducing backpressure in UHPLC systems by lowering mobile phase viscosity at elevated temperatures (e.g., 60–80°C with sub-2 µm particles).
• Enabling method transfer between laboratories by eliminating ambient temperature variability as a source of inter-system bias.
• Supporting QC/QA protocols in pharmaceutical, food safety, and environmental testing labs where column temperature is a critical process parameter (CPP) per ICH Q5C and USP .

FAQ

Does the ZC-400 support cooling or refrigeration?
No. The unit is heating-only and cannot lower temperature below ambient. It is intended for applications requiring thermal stabilization above room temperature.
What is the maximum column length supported inside the chamber?
The 400 mm long heating chamber accommodates standard analytical columns up to 250 mm in length, including guard columns and associated fittings.
Is the ZC-400 compliant with FDA 21 CFR Part 11?
No. It lacks electronic audit trail, user authentication, or secure data export features required for Part 11 compliance.
Can the ZC-400 be mounted vertically or horizontally?
Yes. Its symmetrical chassis and balanced weight distribution allow stable operation in either orientation without affecting thermal performance.
How is thermal uniformity verified across the column bed?
ZiQi specifies ±0.1°C repeatability based on internal calibration using traceable RTD probes positioned at multiple points within the chamber volume—consistent with ASTM E2251 practices for thermal uniformity assessment in analytical enclosures.
