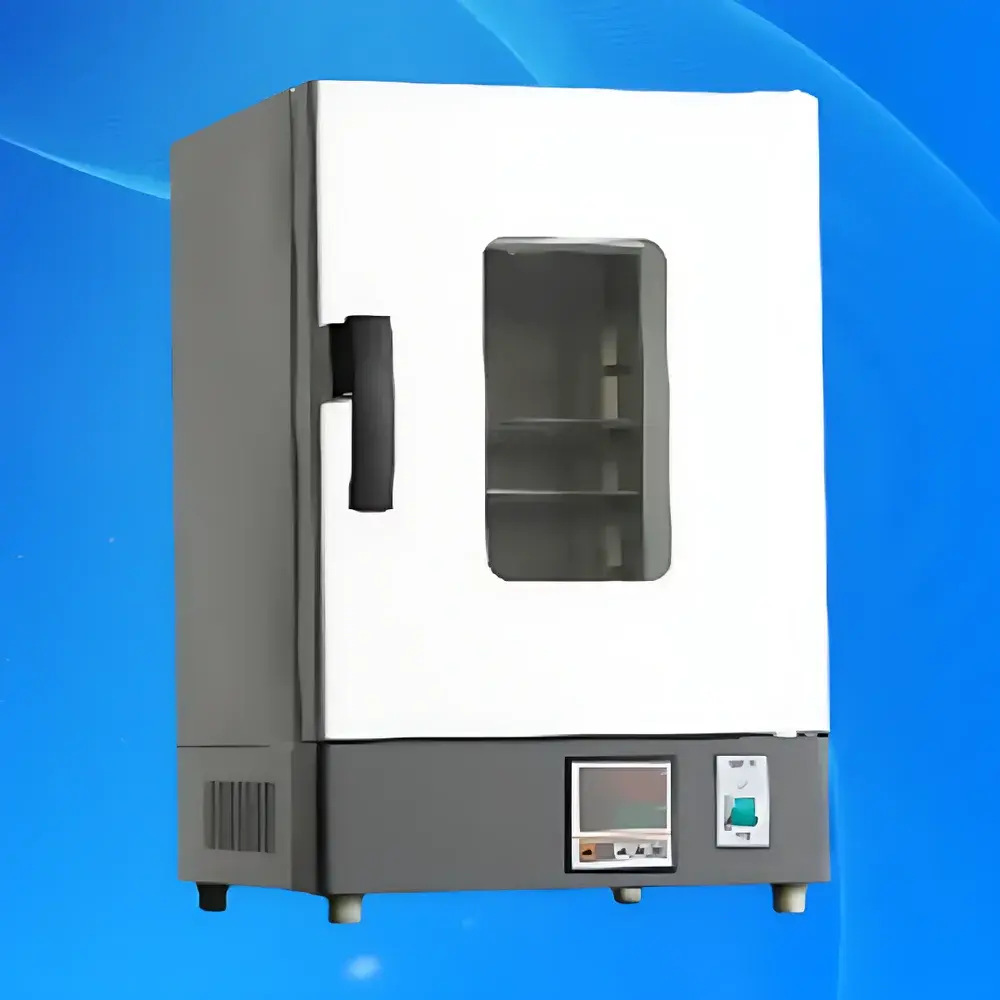

Zuofei DHG-9030A Forced-Air Constant-Temperature Drying Oven

Overview

The Zuofei DHG-9030A is a precision-engineered forced-air constant-temperature drying oven designed for routine thermal processing in industrial quality control laboratories, academic research facilities, and pharmaceutical R&D environments. It operates on the principle of uniform convective heat transfer, utilizing a high-reliability axial fan and optimized airflow ducting to circulate heated air across the entire chamber volume—ensuring consistent thermal exposure of samples regardless of placement. Unlike natural-convection ovens, the DHG-9030A’s actively regulated air movement mitigates thermal stratification and significantly improves repeatability in drying, curing, sterilization, and moisture-loss assays. Its temperature control architecture complies with fundamental requirements of ISO 17025-accredited calibration practices and supports traceable thermal validation protocols when used with external data loggers or optional RS485 interfaces.

Key Features

• Microprocessor-based PID temperature controller with dual-line digital display, offering real-time setpoint and actual temperature readouts with 0.1°C resolution.
• Robust chamber construction: mirror-finish 304 stainless steel interior welded via TIG process; cold-rolled steel exterior with powder-coated finish for corrosion resistance and mechanical durability.
• High-efficiency bottom-mounted heating system using seamless stainless steel tubular heating elements—designed for long-term thermal stability and minimal oxidation at elevated temperatures.
• Transparent double-glazed observation window with silicone gasket seal enables non-intrusive visual monitoring without compromising chamber integrity or thermal performance.
• Programmable timer (1–9999 min) with auto-shutdown functionality and power-loss recovery logic—preserves user-defined settings after unexpected interruptions.
• Integrated over-temperature protection circuit that triggers audible alarm and cuts heater power if chamber temperature exceeds user-defined safety threshold.
• Optimized single-channel forced-air circulation system with adjustable fan speed (optional on higher-capacity models), engineered to achieve ±2.5% temperature uniformity at 100°C per IEC 61000-4-2 test methodology.

Sample Compatibility & Compliance

The DHG-9030A accommodates standard laboratory sample formats including Petri dishes, weighing boats, glass vials, aluminum pans, and ceramic crucibles up to 30 cm in width or depth. Its 31.5 L working volume and 2 standard stainless steel shelves (expandable to 5) support batch processing of multiple parallel samples under identical thermal conditions. The unit meets general-purpose safety standards per GB/T 11158–2012 (Chinese National Standard for Electrically Heated Ovens) and incorporates design elements aligned with broader international expectations for Class II electrical equipment (IEC 61010-1). While not certified to UL or CE for export markets out-of-the-box, its architecture supports third-party conformity assessment for FDA-regulated environments where thermal validation documentation (e.g., IQ/OQ/PQ reports) is required under 21 CFR Part 11-compliant data management workflows.

Software & Data Management

The base configuration includes standalone microcontroller firmware with embedded logging of runtime parameters (setpoint, actual temperature, elapsed time). Optional accessories extend data governance capabilities: an RS485 serial interface enables integration with SCADA systems or custom LabVIEW/Python-based acquisition platforms; a thermal printer module provides hard-copy records compliant with GLP audit trails; and an optional multi-segment programmable controller adds full ramp-soak-hold profiles—including gradient heating, automatic start/stop scheduling, and real-time temperature curve visualization. All digital outputs adhere to Modbus RTU protocol conventions, facilitating interoperability with enterprise LIMS or MES infrastructure.

Applications

• Determination of moisture content per ASTM D2231, ISO 712, and USP <731> loss-on-drying protocols.
• Pre-conditioning of polymer films, filter membranes, and composite substrates prior to tensile or adhesion testing.
• Baking of coated electrodes, catalyst supports, and thin-film sensor substrates in materials science labs.
• Melting point verification of waxes and low-melting-point polymers via controlled isothermal hold.
• Thermal sterilization of glassware and metal instruments in non-critical microbiology workflows (validated at ≥160°C for ≥2 hours).
• Accelerated aging studies for packaging materials under defined thermal stress conditions.

FAQ

What is the maximum operating temperature and thermal stability specification?
The DHG-9030A is rated for continuous operation from ambient +10°C to 250°C, with temperature fluctuation maintained within ±1.0°C at any setpoint and uniformity of ±2.5% (measured at 100°C per standard thermocouple array placement).
Can this oven be validated for GMP or ISO 17025 compliance?
Yes—its stable PID control, reproducible airflow pattern, and optional data-logging interfaces allow full thermal mapping and qualification per Annex 15 (EU GMP) or ISO/IEC 17025 Clause 5.10. Users must perform IQ/OQ/PQ using NIST-traceable sensors and documented procedures.
Is the chamber door seal resistant to repeated high-temperature cycling?
The oven uses a high-purity silicone rubber gasket formulated for continuous service up to 250°C, with demonstrated longevity exceeding 5,000 thermal cycles in accelerated life testing.
Does the unit include over-temperature cut-off as standard?
Yes—a redundant independent mechanical thermostat interrupts power to heating elements if chamber temperature exceeds the user-set safety limit by more than 5°C.
What are the electrical requirements for installation?
The DHG-9030A requires a dedicated 220 V AC, 50 Hz single-phase circuit with minimum 10 A breaker rating and proper grounding per IEC 60364-5-54. No neutral connection is required.
